Gauge layout Party No 5!!!!!

Discussion in 'Getting Started' started by N Gauger, Jan 16, 2005.

  1. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

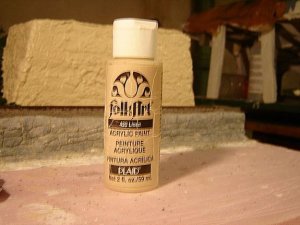

    And here is the paint I used

    Attached Files:

  2. seanm

    seanm Member

    Joined:
    Oct 11, 2004
    Messages:
    378
    Likes Received:
    0
    Tom,

    Was the abutment made freehand or was there something to give it shape under it.... or was it molded? Looks really good!
  3. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
  4. seanm

    seanm Member

    Joined:
    Oct 11, 2004
    Messages:
    378
    Likes Received:
    0
    Todays progress...

    I took the bucket of parts and drilled holes and cut biscuit pockets in them and assembled all the loops.

    If I were to do it over, I would drill the holes last, but live and learn.

    If you have never seen a buscuit jointer it is a cool tool!

    [​IMG]


    It cuts a pocket in the edge of the wood....


    [​IMG]

    And you glue in a biscuit. Makes a very stable joint.

    [​IMG]



    Anyhow, if you assemble enough of these you get a big stack!!!

    [​IMG]

    The foil was to keep the layers from being glued together. The white pins are cut up plastic coat hangers used to "register" the holes so the stack will line up.

    That is it for today!! I am out of town for a couple of days now, so no more work till sunday!
  5. trains1972

    trains1972 Member

    Joined:
    Sep 1, 2004
    Messages:
    147
    Likes Received:
    0
    I like the helix. Here is an update on the trees on my layout. I used one bag of the ground cover stuff, I ordered 4 more bags to give you an idea of how many trees I want. The area that I am modeling is Yellowstone park if a train ran through it.

    [​IMG]

    [​IMG]

    [​IMG]

    Here is a picture of the first wild life on the layout.

    [​IMG]

  6. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Nice work everyone. This is going to be a great party.
    I've made some progress.

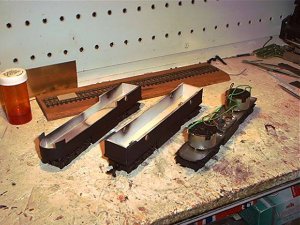

    The experimental drive for the AHM C-liner worked out great.
    It has 8 wheel drive 8 wheel electrical pickup and dual motors.
    The 2 dummy chassis are also completed.

    Attached Files:

  7. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

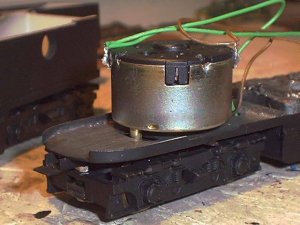

    Unlike the original drive , the tape deck motors are mounted to the trucks on spacers and swivel with the truck.

    Attached Files:

  8. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

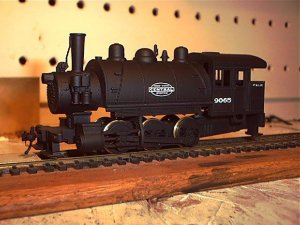

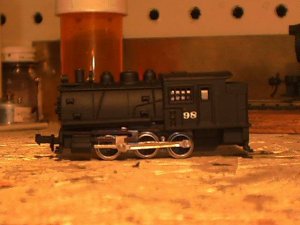

    I have the stock MDC 0-6-0T painted and ready to assemble.

    Attached Files:

  9. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    2 powered and one dummy Athearn Hi-F F7 chassis are ready to assemble.

    Attached Files:

  10. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

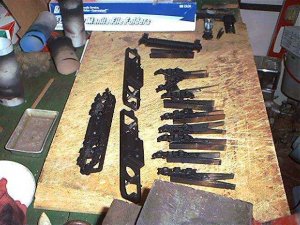

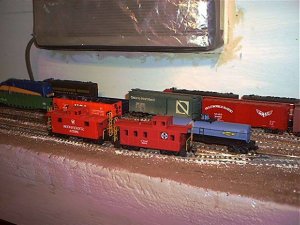

    I painted the frames, ladders and railings on these 2 MDC caboose kits that my son assembled.
    The frame and upper platform were repaired and painted on the Athearn tank car also.

    Attached Files:

  11. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    I also painted this N scale project that was on the shelf.

    Attached Files:

  12. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Saturday, Jan. 22/05

    Dear Diary

    Today is the Big Day!!! After weeks of preparation, putting strapping on walls, masonite installation, priming, painting, building the benchwork, cutting up plywood, laying homasote, more painting..... I am finally ready to start laying track! Wooo-hooo! I can't wait.

    Musn't forget to take some photo's for the Gauge layout party. Wow, everyone's really making progress on their projects.

    Anyway, I better finish this coffee and get going. I have a railroad to build!!

    Val
  13. Fred_M

    Fred_M Guest

    Dang Ray, that experimental C liner dual motor power is quite cool. :)

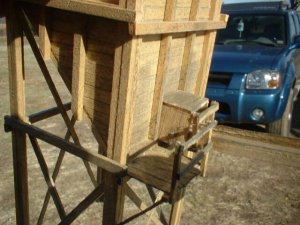

    I put on a pulley for the chut counterweight and a walkway by the chut. Fred

    Attached Files:

  14. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    7,260
    Likes Received:
    0
    :D :D :D Some more neat stuff!! You all are doing great!!! :)
  15. Catt

    Catt Guest

    I'd like to show y'all what I've accomplished and I would too if'n my my dadburned FTP would cooperate with me. :(

    Oh well maybe tomorrow.
  16. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Great progress everyone!

    I finished recoloring the stones in the abutment.

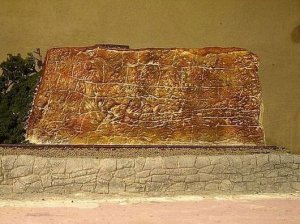

    Here is the front face.

    Attached Files:

  17. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

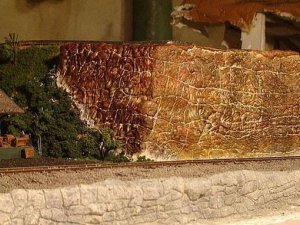

    Here is the view from the side.

    Attached Files:

  18. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
  19. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

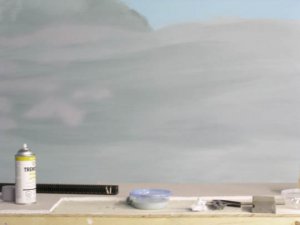

    Well, it was a pretty productive weekend. I painted these clouds earlier in the week and decided I didn't like them. I spent 6 hours working on it before I came to that conclusion. Anyway, it's mainly the top I don't like - I think they'll work in photos, so I'm going to move on.

    Val

    Attached Files:

  20. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Moving on to more enjoyable things, I started laying track on Saturday. I tried to solder the track for the curve, but when I curved it, it came apart. Who knew you should still use rail joiners when you solder??? :oops:

    When I went to test the curve, I discovered a strange buzz coming from somewhere. Thought it was the power pack, thought maybe the loco, but testing on another piece of track produced no buzz.

    The guys at the LHS were as mystified as I was. Coming home this afternoon I found the source of the problem. A non-DCC engine sitting way up the track!!! :oops: :oops:

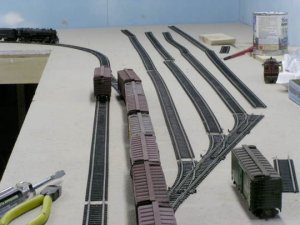

    Anyway, I made a lot of progress on the track work today. Here you see the beginning of the yard ladder - none of that track is actually spiked yet and needs straightening in a big way! The boxcars are there so I can see how many cars fit on the siding. I need the measurements for a yard track which will be the same length plus loco.

    Val
