I have decided to start this model again and I will publish my progress as I go along.
As a first step, I opened up each pdf page in GIMP and then saved them individually as page 1 to 8 Bitmap files. Then, one at a time, I opened up each page in MS Paint and copied the parts one by one and pasted them onto new A4 sized pages. Some of the parts were too big so I divided them into 2 pieces. I ended up with 13 x A4 sized pages.
I have also decided to number each part to make assembly easier.
The main problem that I found previously was the tab positions so I have started to relocate them on the drawings to make assembly easier.

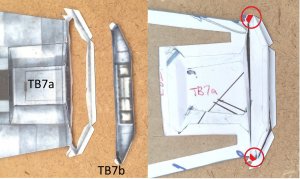

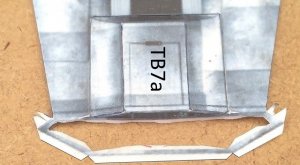

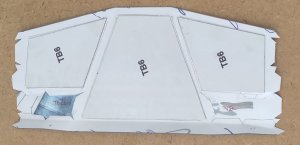

As I build, I will fine tune the parts and then upload the relevant pages to Mediafire as they are completed.

Great idea!! :)


MikeBer

Member
Feb 26, 2008
51
30
21
Port Ellizabeth South Africa
This is a very well designed model but unfortunately the parts were printed in A3 format.
Because the majority of modellers only have an A4 printer, including myself, I’ve re-arranged the parts (without a reduction in scale), to fit onto A4 sized sheets.
4 of the parts were too big to fit onto A4 sheets so I divided each of the 4 parts into 2 pieces each, using panel lines for the joining interfaces.

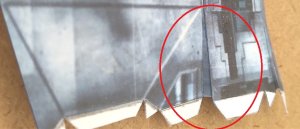

Another thing that I was not happy with was the tab positions. As a personal preference, I don’t like tabs to alternate between two parts as I feel that this gives rise to “wavy” join lines. I prefer the tabs to all be on the one part so that a clean straight join is obtained.

The assembly guide of the original model only consisted of pictures with no discernible sequence or part numbering so I have numbered all the parts on the A4 sheets, using a modular numbering system.

The model was well designed to be built in modules, so I’ve kept to this, starting with the main body (B).

As a personal preference, I find it easier to scribe all parts that bend before cutting them out.

Once I am satisfied with each module, I will upload the relevant pdf pages to Mediafire for you to download should you wish to build it.

  • Like
Reactions: zathros

MikeBer

Member
Feb 26, 2008
51
30
21
Port Ellizabeth South Africa
Main body.

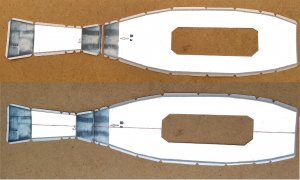

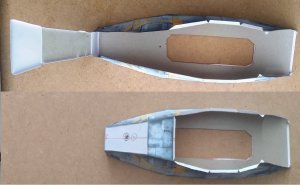

Join the base parts B to Ba and then re-enforce base B with 1mm card using the template guide provided.

Photo 01.jpg

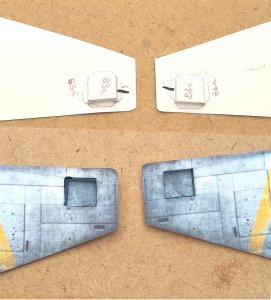

Assemble parts B3a & B4a and when dry, fit them to sides B3 & B4. Note that there is an alignment dot on one of the tabs on each part. This tab faces the front of the body.

Photo 02.jpg

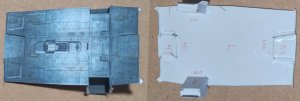

Using cereal box card, reinforce sides B3, B4 and part Ba as shown, leaving room for the base tabs at the bottom.

Photo 03.jpg

Join sides B3 & B4 to base B.

Photo 04.jpg

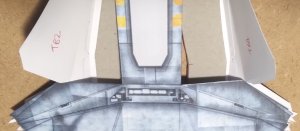

Join parts B1 to B2 and then to Base B and sides B3 & B4.

Photo 05.jpg

Rear landing unit.

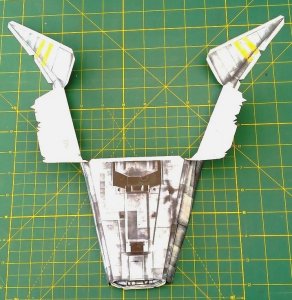

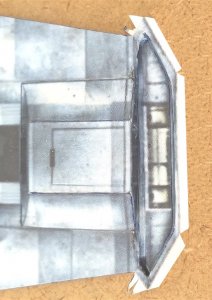

After assembling parts L1a, L1b, L1c & L1d, glue them to part L.

Photo 06.jpg

Now attach sides L2 & L3 to L.

Photo 07.jpg

Note that the front and rear bend slightly.

Photo 08.jpg

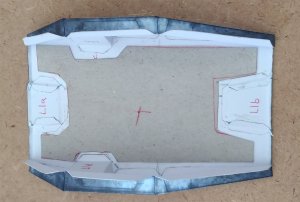

Add reinforcing card.

Photo 09.jpg

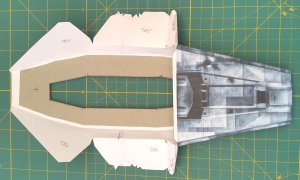

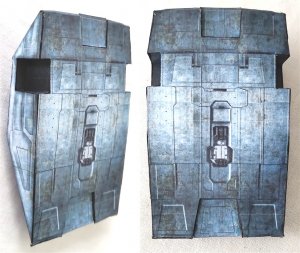

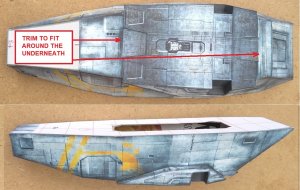

Now attach this unit to the body.

Photo 10.jpg

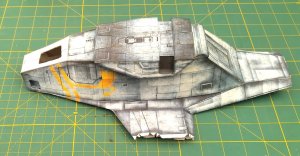

This completes module 1. The files can be found here :-

http://www.mediafire.com/folder/e2cv2r9jdye20/Razor_Crest

Please feel free to tell me if you pick up any problems or mistakes.
