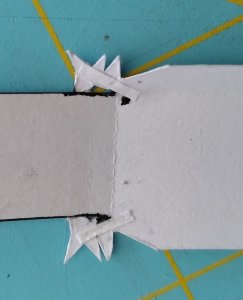

I cut a 10mm x 180mm strip of 2mm card and chamfered the ends as shown.

photo 29.jpg

This was glued in place across the body, in line with the panel marks as shown. Note that it does not interfere with the triangular tabs.

photo 30.jpg

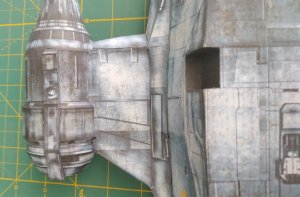

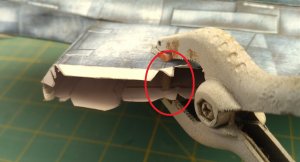

The port engine was now glued in place. I found that the best position for it to fit on the tabs was more or less midline although the engines on the real ship were higher in relation to the wing. A liberal amount of pva was spread on the wing tabs and the engine pushed into place.

photo 31.jpg

The model was set in a vertical position to dry before fitting the starboard engine in a similar fashion.

photo 32.jpg

Any slight gaps in the fit were filled with pva using a paintbrush. This would dry clear. To finally cover any gaps in the joints between the engines and the wings, wing fillets have been provided. Print them on 80 gm paper, test fit them and then put a bead of pva along the joins and tease the fillets into place with narrow tweezers. Run your finger along the join to collect any surplus glue.

Once dry, this would not be noticeable (it dries shiny), as eventually the model will be sprayed with clear acrylic lacquer to preserve the ink from fading.

photo 34.jpg

photo 35.jpg

photo 36.jpg

Next step is the armour. I built the parts as they were originally but a few changes needed to be made to simplify the construction.

Last edited:

MikeBer

Active Member
Armour.

These parts are left and right handed so be careful not to mix them up, especially parts AL6 and AR6. If you bend them the wrong way when assembling 6a & 6b, you might think the left one is the right one and vice-versa.

They are also very small so be careful. I’ve put spare ones on the sheet.

I’ve separated part 6 into two parts as I found it easier to assemble. The original part lacked space for tabs because of the closeness of the sides.

I separated part 2 into 3 parts, also to simplify the assembly.

I’ve dispensed with the original part 5 as will be explained when the barrels (part 4) are fitted.

Assemble part 1 as shown.

photo 01.jpg

Assemble part 2. 2a & 2b do not have tabs but are glued directly onto part 2a.

photo 02.jpg

Slide part 1 onto part 2 but not all the way. Put a ring of glue around part 2 as shown then slide part 1 fully into place. Clean up any excess glue.

photo 03.jpg

Now fit part 3.

photo 04.jpg

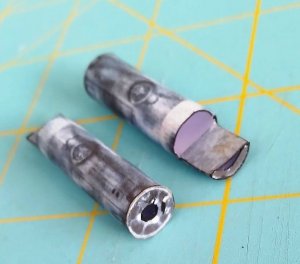

The barrels (part 4) were then assembled and fitted with a piece of 3mm dowel (I used a bamboo skewer), recessed about 2mm in from the front. The end of a toothpick was then glued into the front of the barrel.

photo 05.jpg

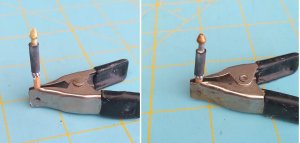

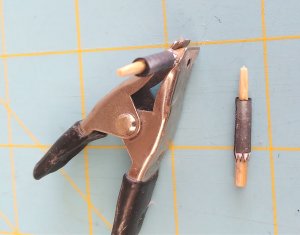

Small rings were made from 0.8mm brass wire as shown. These were then placed onto the toothpicks and a ring of thick superglue put around the top of the rings to form a cone shape.

photo 06.jpg

The stem of the toothpick was painted metallic silver and the cone shape metallic gold.

photo 07.jpg

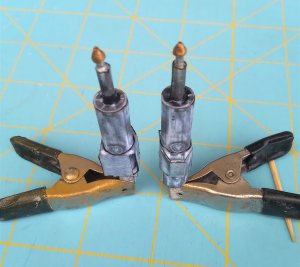

When dry the barrels were glued in place.

photo 08.jpg

The weapons were now glued in place.

photo 09.jpg

photo 10.jpg

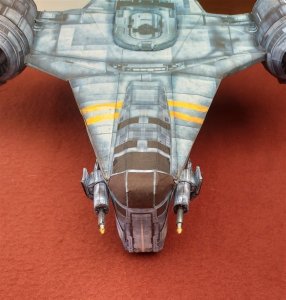

Parts 6a & 6b were now constructed and then glued in place.
photo 11.jpg

photo 12.jpg

This is the reason for the modification.......

photo 13.jpg

A full set of pictures of the ship can be seen here......

https://www.theverge.com/2020/10/27...ar-wars-hasbro-toy-ship-razor-crest-baby-yoda

Boy, would I love to have that model!


Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator

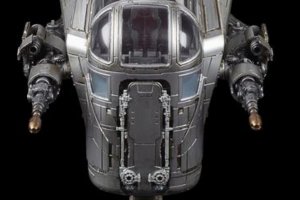

Now she has some teeth! The front reminds me of a wasp's head. I'm trying to make a cockpit interior for her but first I'll have to do something else. The picture of the HasLab Crest shows that an add-on piece of the struts and circles at the front bay should be made. ;)


MikeBer

Active Member
Now she has some teeth! The front reminds me of a wasp's head. I'm trying to make a cockpit interior for her but first I'll have to do something else. The picture of the HasLab Crest shows that an add-on piece of the struts and circles at the front bay should be made. ;)
Thanks, I'll try that when the landing gear is finished.


MikeBer

Active Member
The front landing gear was quite easy to assemble but one of the parts of the rear landing unit is very complicated. I've made it easier to assemble by re-positioning two of the side walls on the long sidewall part and transposing the tabs from the sole onto the side walls to make it easier to glue together.
I am just testing out the final version now.


MikeBer

Active Member
There is a mistake on page 09.pdf and Engine 1.pdf so I have uploaded the revised versions.

FRONT LANDING UNIT

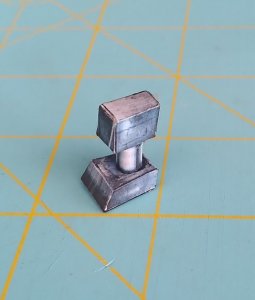

Assemble parts FS1, FS2 & FS3. I decide to put a 5mm hole in parts 1 & 3 and fit a 4mm dowel (skewer) in FS2, 15mm long.

photo 01.jpg

FS2 was then glued into parts 1 & 3.

photo 02.jpg

FS4 was carefully assembled.

photo 03.jpg

and when dry, assembly 1-3 was glued in place.

photo 04.jpg

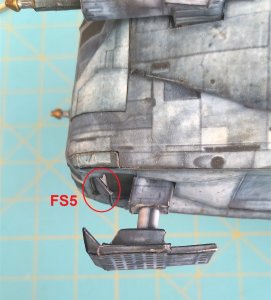

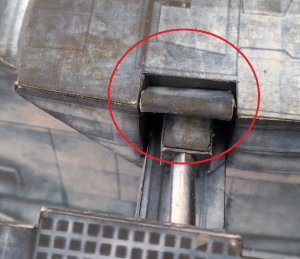

This was then fitted underneath the front of the body and part FS5 was then made and fitted.

photo 05.jpg


MikeBer

Active Member

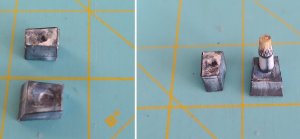

REAR LANDING UNITS

The Rear landing units have been labelled LS(left sole) and RS(right sole), numbers 1 to 7.

I would advise building the LEFT sole first so that you become familiar with the assembly and correcting any mistakes before you repeat the process for the RIGHT sole. Some of the parts are very fiddly and fragile so wait until each gluing operation dries fully before continuing.

The assembly of LS parts 1-7 will also be relevant to RS parts1-7.

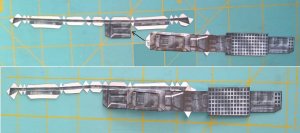

Start by cutting out LS1 and glue the side pieces to the main body.

photo 06.jpg

Because the side walls on LS2 are so fragile, I reinforced the bends on the rear with thin strips of 80gm paper.

photo 07.jpg

Now join part 1 to part 2.

photo 08.jpg

Now start by gluing the side wall as shown. This is a bit tricky so dry fit it first.

photo 09.jpg

Carry on until all the side walls are glued in place. Now glue in a piece of 2mm card to firm up the base.

photo 10.jpg

When dry, finish closing in the sole.

photo 11.jpg

Parts 3 & 4 are straight forward. If you want to use a 4mm dowel (skewer) in part 8, cut out the holes in parts 3 & 4. (I will use a 4mm skewer).

photo 12.jpg

Again with part 5, reinforcing strips were fitted on the rear of the small side walls.

photo 13.jpg

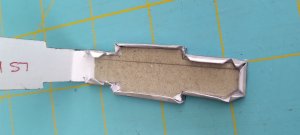

Glue the side walls and then attach a 1mm piece of card to the base. Glue the top by gluing at the points shown. When dry, glue along the rest of the tabs, forming the bend at the other end.

photo 14.jpg

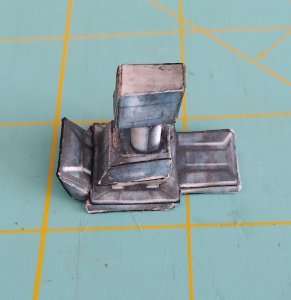

Part 6 was also reinforced on the side walls and then assembled, with a 1mm piece of card to stiffen it.

photo 15.jpg

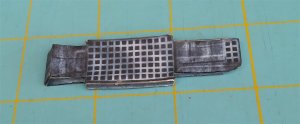

Part 7 was reinforced with 1mm card.

If you did not make the rear sole parts together, now is the time to make the starboard (RIGHT) ones.

I used a 4mm skewer so the tabs were cut off part 8.

photo 16.jpg

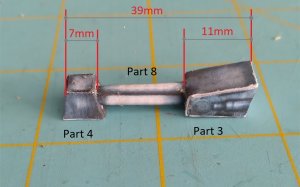

Fit the dowels (skewer), 39mm long, as shown but do not fix to parts 3 or 4 yet.

photo 17.jpg

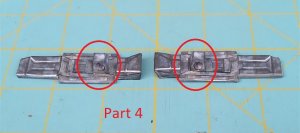

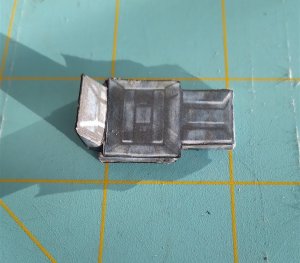

Glue part 4 to the sole.

photo 18.jpg

Dry fit part 8 to part 4 and trim if necessary but do not glue.
Dry fit part 8 to part 3, trim if necessary then glue into part 3.

photo 19.jpg

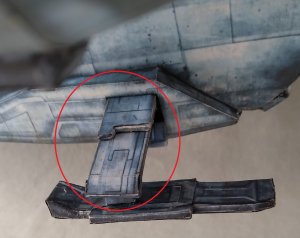

If you have not built the model yet, I would recommend reinforcing the inside back and sides of the front and rear landing gear recesses with 1mm card.
Attach parts 3 to the hull, locating them centrally in the recesses.

photo 20.jpg

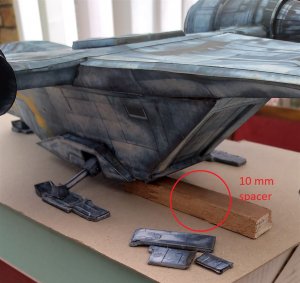

Get something that’s 10mm thick to use as a spacer.
When parts 3 are fully set in the hull, stand the hull on a flat surface, elevated if possible to make it easier to work on and place the 10mm spacer under the rear, behind the rear landing legs and not in the way of the soles which will be fitted now.

photo 21.jpg

The rear landing legs can now be glued to parts 4. Leave to dry fully before attaching parts 5 & 6 to the legs.

photo 22.jpg

Finally, fit parts 7.

photo 23.jpg


MikeBer

Active Member

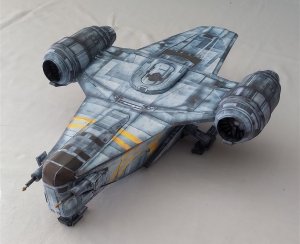

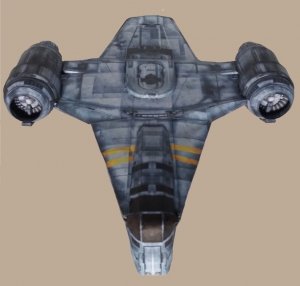

And that is the model finished. Most of the parts were prototype parts so I will now build another one using the final pdf’s.
