The M.A.T. goes mushroom

Discussion in 'N / Z Scale Model Trains' started by Matthyro, Jan 15, 2004.

  1. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    As talked about in Shamus's what are we going to do in the new year thread, here is my progress into the mushroom world.
    In theory, a normal layout is about 52% efficient compared to the space available. The mushroom idea proposed by John Armstrong will provide about 85% efficiency.

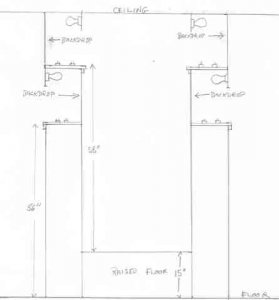

    Here is a rough sketch showing a cross section of a mushroom that will fit under the height of my basement beams.

    Attached Files:

    • m1.jpg
      File size:
      9.9 KB
      Views:
      1,219
  2. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

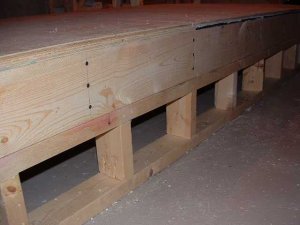

    First step was to build the raised floor. It is 15inches high, 3 feet wide and 19 feet long. It is constructed out of 2X4s and 2X6s

    Attached Files:

    • m2.jpg
      File size:
      33.7 KB
      Views:
      1,190
  3. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

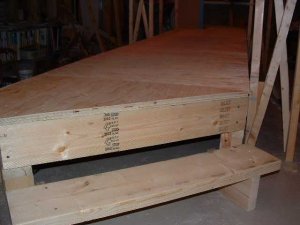

    Here is the step up to the raised floor at one end. There is another step part way down one side

    Attached Files:

    • m3.jpg
      File size:
      32.7 KB
      Views:
      1,182
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    A view showing the length of the floor

    Attached Files:

    • m4.jpg
      File size:
      33.8 KB
      Views:
      1,165
  5. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    I have made a start at the mushroom construction using L girders.
    I have also installed ceiling tiles in this section

    Attached Files:

    • m5.jpg
      File size:
      32.3 KB
      Views:
      1,152
  6. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    A photo of one side with the backdrop ready for painting and the foam base ready for track laying.

    Attached Files:

    • m6.jpg
      File size:
      24 KB
      Views:
      1,125
  7. Bob Collins

    Bob Collins Active Member

    Joined:
    Feb 2, 2001
    Messages:
    1,023
    Likes Received:
    0
    Totally cool.:cool: :cool:

    Now that I see what you are doing I realize that I have seen several articles in either MRR or RMC that deal with this kind of construction and layout.

    Thanks for taking the time to educate this novice:thumb: :thumb:

    Bob
  8. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Robin,
    Like Bob, I've seen articles about mushroom design. They sure seem to pack a lot of railroading in the space available! You will be the first person I've been able to talk to about this approach. Looking forward to more...say, what's happened to your current layout?
    Best wishes on this ambitious project!
    Ralph
  9. Arlaghan

    Arlaghan Member

    Joined:
    Sep 9, 2003
    Messages:
    668
    Likes Received:
    0
    Brilliant! You can get a long run out of this... is this an extension to your layout or a new one? Do you have a trackplan?
  10. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    What is the width of the platforms you are going to put the layout on and how do you plan on getting from one level to the other?

    This is very interesting.:thumb: :thumb:

    Don
  11. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Robin your layout was big (by my standards) before the mushroom, now it will be huge. Have you figured out how many zillions of scale miles your mainline will be? :)
  12. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Kewl!!!

    I used to work at a 1:1 mushroom farm, so if you need any tips, just let me know :D :D :D

    I always thought that was a neat idea. I would do the same, but I think it will take 20 years to scenic the area I have.
  13. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Ralph, the 2003 layout is no more. Needed the space for this 2004 one.
    Don, I plan to have a long canyon where one line climbs up the 18inches to the upper level. I am trying to keep the grade to 2% so need a run of 75 feet to do it. No helix for me.
    The platform widths vary from 12inches to 18inches.
    Alex, I don't have a drawn up track plan but plan to draw it right on the layout so I can make sure everything fits.
    Tyson, no guesses as yet as to miles of track.
  14. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Robin, when I saw the title I thought that maybe there was some residual effect from the old mushroom plant.
    How many guys (and gals) will you need over to operate?
  15. pomperaugrr

    pomperaugrr Member

    Joined:
    May 21, 2003
    Messages:
    125
    Likes Received:
    0
    Robin:
    You sure do exhibit a lot of energy and enthusiasm for model railroading! Some of it has even rubbed off on me, in terms of inspiration to get started on my own layout. The mushroom design seems like a great way to maximize your space and keep a linear track plan. The photos you posted do a much better job at conveying the "mushroom" concept than any of the articles I've read on the topic. Thanks for sharing your progress. You are a busy man!

    Eric
  16. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Way to go!

    Wow Robin, you continue to astound me with how much you get done. It seems you no sooner say it, then it's halfway done. Looks like this is going to be one awesome layout!!! :thumb: :thumb: :thumb: :thumb: :thumb:

    Val
  17. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    As of January24th 2004

    Thanks Val.
    Got quite a bit done so far on the mushroom section. Used up a box of 500 screws this week

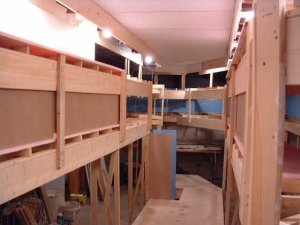

    Here is a view looking east.

    Attached Files:

    • m10.jpg
      File size:
      35.2 KB
      Views:
      467
  18. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

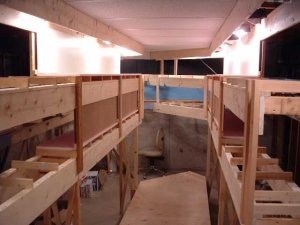

    The view looking west.

    Attached Files:

    • m9.jpg
      File size:
      34.6 KB
      Views:
      462
  19. SD90

    SD90 Active Member

    Joined:
    May 23, 2003
    Messages:
    1,161
    Likes Received:
    0
    WOW Robin, and you said I work fast! That's a really cool idea. I can't wait to see all of your scratchbuilt buildings on there! Keep the pictures coming!

    Mike.
  20. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Progress as of the 7th. February

    The backdrops are all installed and painted. Here is a view of the upper inside of the mushroom looking east.

    Attached Files:

    • m11.jpg
      File size:
      32.3 KB
      Views:
      416
