Union Pacific BIG BOY 4-8-8-4 1/25 Scale (Engine)

Discussion in 'Gallery & Designs' started by kooklik, Sep 2, 2009.

  1. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hi there

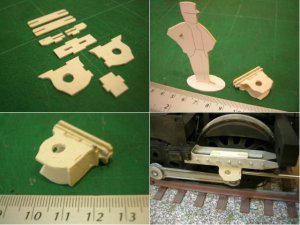

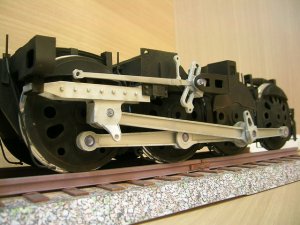

    Back again , continue building on driving section. I finished left side of guide. I'll paint in aluminium color same as rods.
  2. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0

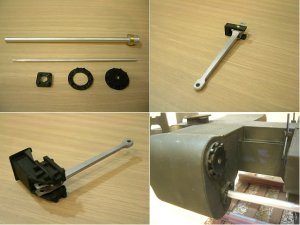

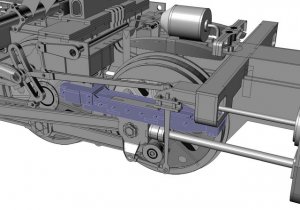

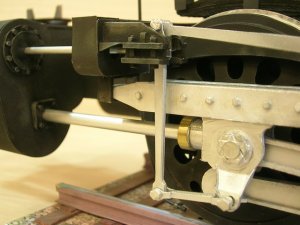

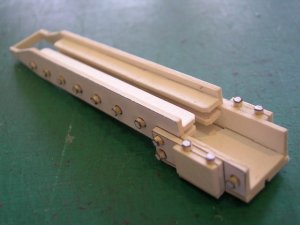

    Painted Guide with aluminium color and the Guide Holder in flat black. And continued to build Cross Head. I have not painted yet. I checked aligment and its slideability. I inserted a stainless shaft through the cylinder's holes straight to the Cross Head to check their centering. All are OK as in the 3D model.



  3. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0

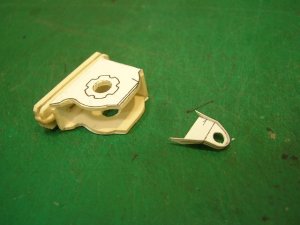

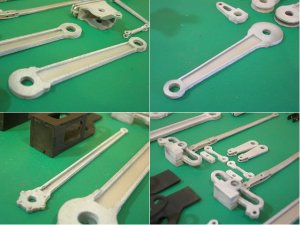

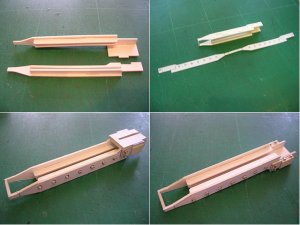

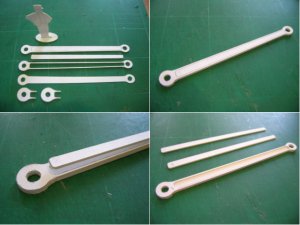

    Main Rod:
    1. Cut along for all parts but do not throw away the inner piece of frame (the biggest cardboard part).
    2. Remove the inner piece and glue the bonding surface. (Spray glue is recommended)
    3. Put the inner piece back to the frame.
    4. Paste the frame to the thin frame (190 grams piece) and press all surface with a flat plate. The inner piece keeps the frame shape when assembly.
    5. Remove the inner piece.
    6. Assemly the Joint Reinforcement pieces (the smaller cardboard pieces)
    7. Fillet out the corners with knife.
    I avoid to use sand paper to the surface. It makes rough surface and not good for painting.
  4. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0

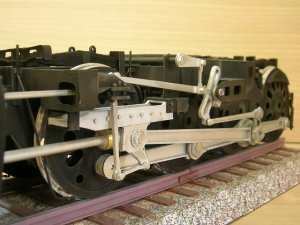

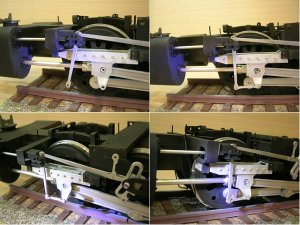

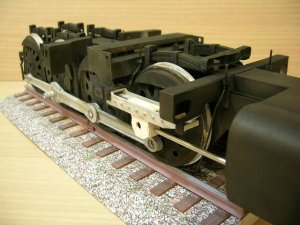

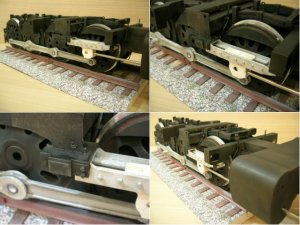

    The cross head was completed. I want to see how the engine looked like when the main rod is set to. The rod holes and aligment with the cross head is OK. It seems no crashing with other wheels' joints. He's going to be a really operatable looking machine. I love to watch him and wanna share here.
    ----kooklik----
  5. 4x4paper

    4x4paper Member

    Joined:
    Aug 24, 2006
    Messages:
    62
    Likes Received:
    0
    I like how you did that long piece with the inner part very clever :mrgreen:
  6. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Thank you 4x4paper I'll use this tip for other smaller rods too. I'll have a report soon. Now I am unrolling other smaller rods and links.
    Cheers
    ----kooklik----
  7. ekuth

    ekuth Guest

    I just continue to be amazed at the quality of work you show... so clean!
  8. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Thank you Ekuth , I have more progression report.

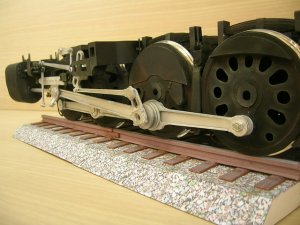

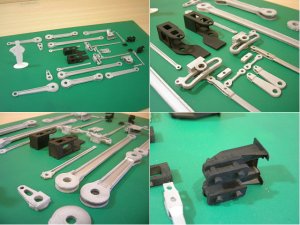

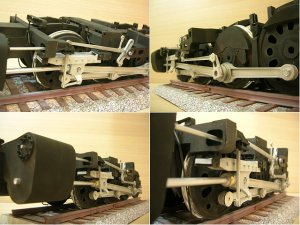

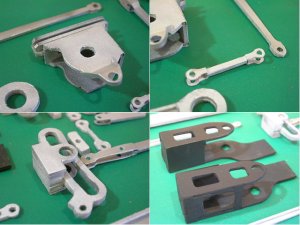

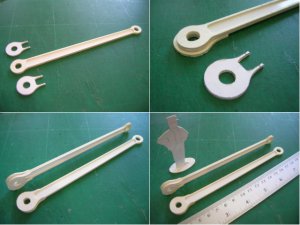

    Drive rods and main rods were rebuilt. Today I finished all ecentric rods and link rods and most of main parts of driving unit.
  9. allhallowseve

    allhallowseve Member

    Joined:
    Jul 13, 2005
    Messages:
    864
    Likes Received:
    1
    Holy @#$ !!!

    That will be an awesome model when your done !!!

    What kind of card board are you using ?? Did you it getting from a craft store ??

    And Is this a personal build or do you plan on a release ??
  10. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    The cardboad is made of bagasse. I don't know the English name. It's a material for most of architechture model building in my country.
    For the plan to release is still far away. It may take 1.5 y from now , still long :( But I'll release in sections. Total 4 , Tender , Front Engine , Back Engine and Boiler+Cab.

  11. 4x4paper

    4x4paper Member

    Joined:
    Aug 24, 2006
    Messages:
    62
    Likes Received:
    0
    I thing some pre cut parts will make this model more attractive :thumb:
  12. allhallowseve

    allhallowseve Member

    Joined:
    Jul 13, 2005
    Messages:
    864
    Likes Received:
    1
    i figure it would be a long build , just from the look of it size wise ..
    i will look in to that cardboard , Its look stronger then the form board they sell, And after awhile it bends :(
  13. Elliott

    Elliott Senior Member

    Joined:
    Jul 18, 2006
    Messages:
    1,062
    Likes Received:
    0
    Your build/rebuild of the drive gear is astounding! Such a complicated piece of gear and you have broken it down in such a way that I can (almost:mrgreen:) understand it. Is it my imagination or are the drive rods and main rods stronger/more robust than they were?
  14. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hello there

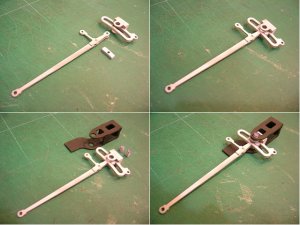

    Today I combined all rods and links together. All rods are individual linking. I must be careful of glue applying. Gluing mistake on joints causes error positions.
    Cheers
    ----kooklik----
  15. oklacnw

    oklacnw Guest

    My gosh, this looks as good as any brass model I've seen.
    Al
  16. kcpstudio

    kcpstudio Member

    Joined:
    Oct 23, 2006
    Messages:
    35
    Likes Received:
    0
    Kooklik.... words just can't describe it. Fantastic work!
  17. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Thank you kcpstudio
    and
    Hello there

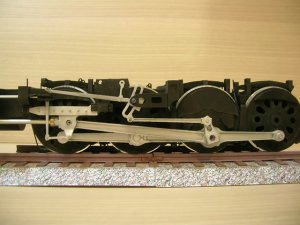

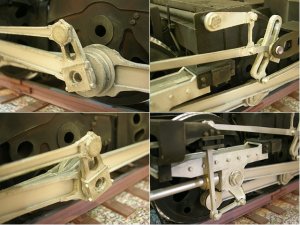

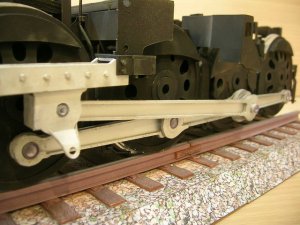

    I am back. More than a month I have nothing in progress. My time was occupied by work. Today I covered all joints by bolts. And added a link for reverse gear. That's all finishing of left side rod works.
    Cheers
    ----kooklik----
  18. papastumpy

    papastumpy Member

    Joined:
    Dec 21, 2008
    Messages:
    170
    Likes Received:
    0
    My favorite build thread of all! [​IMG] I can not wait for this to be available. :wave:Rick





    [​IMG]
  19. oklacnw

    oklacnw Guest

    Beautiful!
  20. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Thank you oklacnw and Rick.
