Union Pacific BIG BOY 4-8-8-4 1/25 Scale (Engine)

Discussion in 'Gallery & Designs' started by kooklik, Sep 2, 2009.

  1. Specter84

    Specter84 New Member

    Joined:
    Jun 26, 2007
    Messages:
    11
    Likes Received:
    0
    Which scale?

    Kooklik, I've been lurking since the beginning of your tender thread. Since the quality of your work left me speechless, I decided not to post an empty message. :mrgreen:

    There is 1 thing I was wondering about : the tender thread says that this model will be 1/48 scale, and this thread says 1/25. Which will it be? Or offered in multiple scales?

    I just need to know how large to build the extra room on the back of my house! :twisted:

    Thanks
    Specter
  2. hmas

    hmas Member

    Joined:
    Mar 22, 2007
    Messages:
    216
    Likes Received:
    0
    Yes in multiple scales the tender is in 1/48, the body of the loco will be in 1/25, & the wheels valve gear will be in 1/32.:thumb:
    This was designed to allow the G scale, proper mainline people 1/32 scale & the 1/48 scale people to have a bigboy loco, that appeals to all!
    G scale will have it on 45mm track (narrow) at I guess 3'6" gauge
    1/32 people will be set on 45mm as standard gauge 4' 8.5"
    1/48 people will be able to use it as a 16" gauge feeder line sign1
    Good thing it's not the first of April, otherwise no-one would believe me!:eek:

    Now if you want to motorise it, 10' radius curves may be needed, so a 30'x 30' shed might be in order
    Hi kooklik I'm back again
  3. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hello Tony

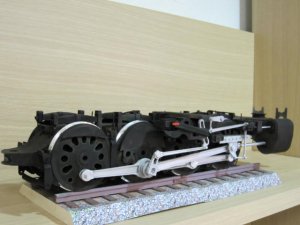

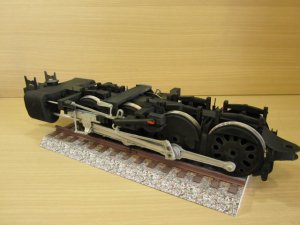

    So glad to see back again here. I was so busy with the work in recently. So I don't have much progress to report now. Anyway I'm still working on the left side of the side rods and cylinder shafts. It will be soon completed. I'll have some pictures to show here.
    Cheers
    ----kooklik----
  4. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hello Specter
    The scale is 1/25 for both Tender and Engine :)

    At first I intended to design in 1/48 and started the tender thread's name in 1/48. Before unrolling to 2D , by the vote results in some forums , 1/25 won. So I changed to be 1/25. Unfortunately the thread's name cannot be changed.
    And thanks for a lot of your kind words. Hope you enjoy looking the growing of the engine too. It goes slowly in recently,but never stops.

    Cheers
    ----kooklik----

  5. Elliott

    Elliott Senior Member

    Joined:
    Jul 18, 2006
    Messages:
    1,062
    Likes Received:
    0
    Someone beat me to it...the thread title now reads 1/25 for the scale.

    @Tony (HMAS) good to see you here again! Thanks for your explanatory post. It made sense, to me anyhow......:cool:
  6. Specter84

    Specter84 New Member

    Joined:
    Jun 26, 2007
    Messages:
    11
    Likes Received:
    0
    :rolleyes: Oh brother. I've found a bigger smart-aleck than myself. Thanks for the laugh, it's been a rough week, I needed one.

    Someone correct me if I'm wrong, but this should be the finished size? :eek:
    HTML:

    Locomotive Length : 40.9 in   (104.0 cm)
    Overall Length    : 63.7 in   (161.9 cm)
    Width             :  5.3 in    (13.6 cm)
    Height            :  7.8 in    (19.8 cm)

  7. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hi Specter
    The model size in 1/25 scale is
    Overall length: 162.2 cm (63.8 in)
    Engine Length: 107.9 cm (42.5 in)
    Tender Length: 57.6 cm (22.7 in)
    Width: 14.3 cm (5.6 in)
    Height: 19.8 cm (7.8 in)
  8. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hi there

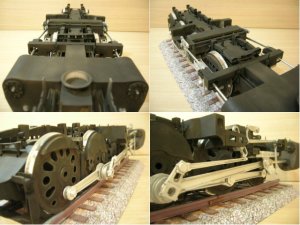

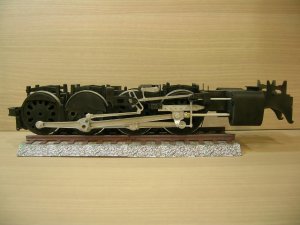

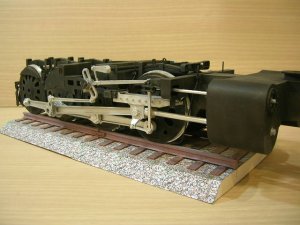

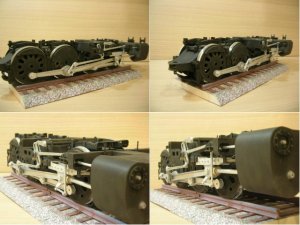

    I finished right side rods today. Next part will be the grease tank. It's small and contained with many fine parts.
    ----kooklik----
  9. 4x4paper

    4x4paper Member

    Joined:
    Aug 24, 2006
    Messages:
    62
    Likes Received:
    0
    That looks very goooood:mrgreen:
  10. Elliott

    Elliott Senior Member

    Joined:
    Jul 18, 2006
    Messages:
    1,062
    Likes Received:
    0
    Amazing Kooklik! Just amazing!! Your work seems to be the epitome of perfection. It certainly sets the example for us to strive toward.
  11. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Thank you Elliott.
  12. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hi there

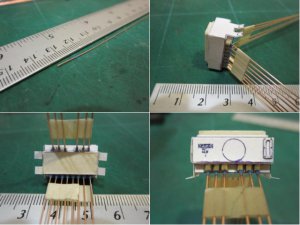

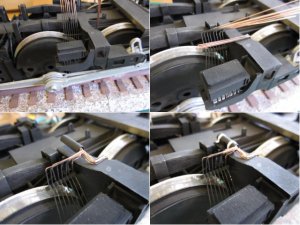

    Thanks for your following my thread. I'm back again after leaving my home for the 3 weeks business trip. I completed the grease box before leaving home. But I didn't take any photos. The one of hard job of this section is 14 grease pipes. They were made by 0.5 mm wire (copper wire from telephone cable or CAT5 cable). They are so thin and easy to be broken if I do careless holding. But after finished painting I feel it's worth to spend a lot of my time on it.
    Cheers
    ----kooklik----
  13. mysteroid

    mysteroid Member

    Joined:
    Jul 1, 2008
    Messages:
    108
    Likes Received:
    8
    Mind bogglingly awesome!
    :eek:

    Steve
  14. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hi there

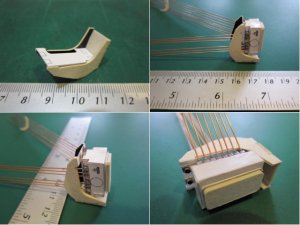

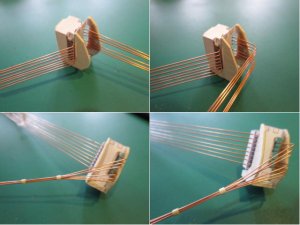

    I have more update report to share. The grease box is one of fine and complicate part. I display how to build in step by step.

    ----kooklik----






  15. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0

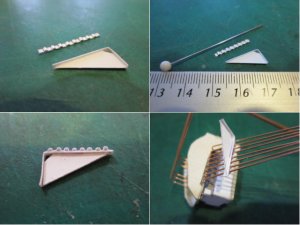

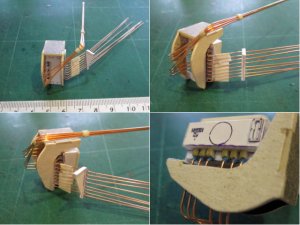

    grease box ( continue )


  16. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0

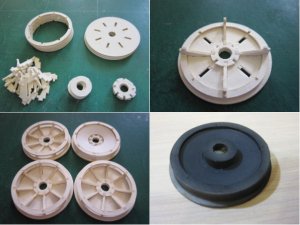

    Next job is engine truck. I started from its wheels. The wheels are 36" size which is the smallest wheel of Big Boy.

  17. Coot59

    Coot59 Member

    Joined:
    Aug 30, 2007
    Messages:
    102
    Likes Received:
    0
    Asume!!!!!!!!!! :thumb:
  18. 4x4paper

    4x4paper Member

    Joined:
    Aug 24, 2006
    Messages:
    62
    Likes Received:
    0
    nice very nice
  19. wacek80

    wacek80 New Member

    Joined:
    May 1, 2010
    Messages:
    11
    Likes Received:
    0
    AMAZING! I can`t achieve so good results in plastic and for you is no problem in paper....I must work on my skill...
  20. techikun

    techikun New Member

    Joined:
    Apr 25, 2005
    Messages:
    13
    Likes Received:
    0
    Wow...Amazing... Fantastic!
    You are great designer and also great builder!!
    Very nice model.
