Shinhoto Chi-ha 1:25 Model-hobby

Discussion in 'Armory & Military' started by josve, Jun 26, 2007.

  1. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209
    Oh yes I'm ready!!
    I will suggest you put the chiha as number two in your vehicle pile!!
    And thanks for your nice words Russell!!
  2. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,544
    Likes Received:
    0
    Shoot, I just may have to do this Chi-Ha while I wait for my package!
    One can never have too much fun!:twisted:
    I am working on three models at the moment and all three are almost finished!
    Hopefully I will have all of them done in the next couple of days so I can show them off!!

    As always Johnny, you are a huge inspiration to me!:cool:

    Russell
  3. RTomedi

    RTomedi Member

    Joined:
    Jun 8, 2007
    Messages:
    35
    Likes Received:
    0

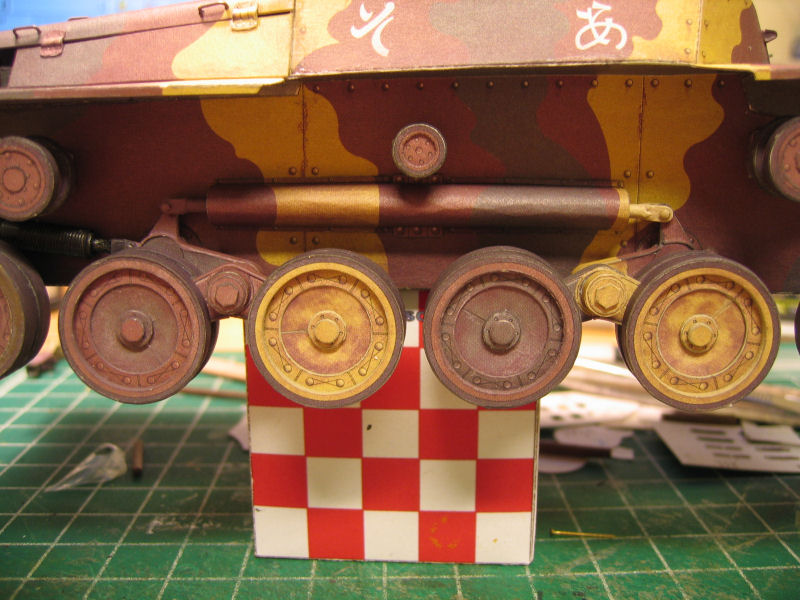

    Amazing job with the wheels and suspension Johnny.
    Beautiful indeed. :thumb:
    I´m waiting to see how the tracks fit on it. Must get some tips to do the tracks here on my model. wall1
    I´m doing the Sherman ( GPM 188 ).
    Your work there is really inspiring.
    Hugs.
  4. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209

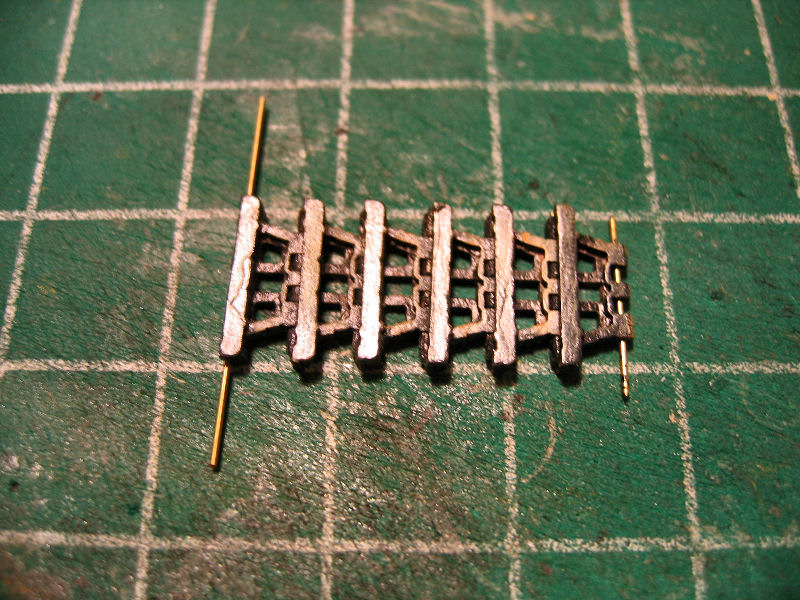

    I think the tracks will fit just fine :)


    [​IMG] [​IMG]

    I put together a few links just to see how they looked.
    The tracks are from DrafModel.
    Somehow I prefer lasertracks....
  5. RTomedi

    RTomedi Member

    Joined:
    Jun 8, 2007
    Messages:
    35
    Likes Received:
    0
    It´s difficult for me to get lasercut tracks here in Brazil.
    I must import everything! wall1
    But I´m thinking about doing a technique I´ve learned here in this forum.

    About your tracks Johnny, awesome as usual. :thumb:
    Your tracks are always impressive.
    Keep us updated.
    Hugs.
  6. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209
    I also have to import every single thing, from cardboard,models,tools and laserparts.....The cardmodelling is totally unknown here in Norway.
  7. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209

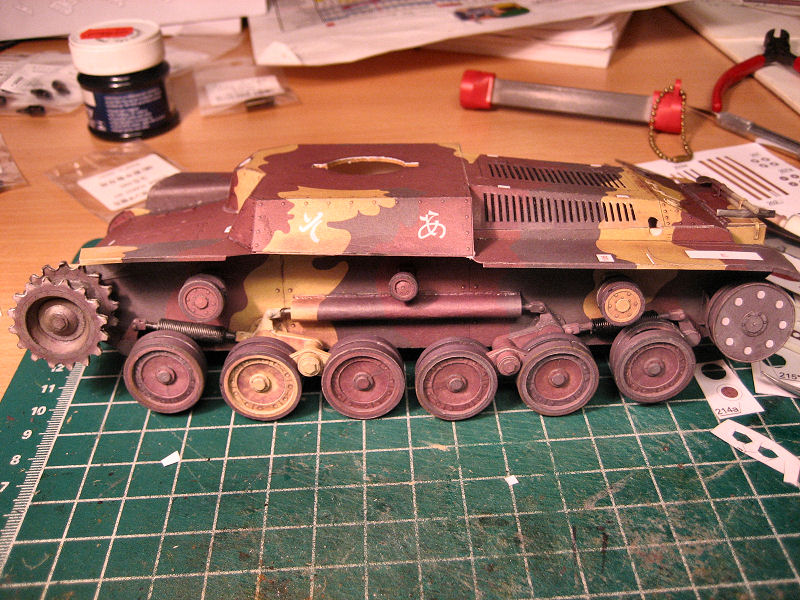

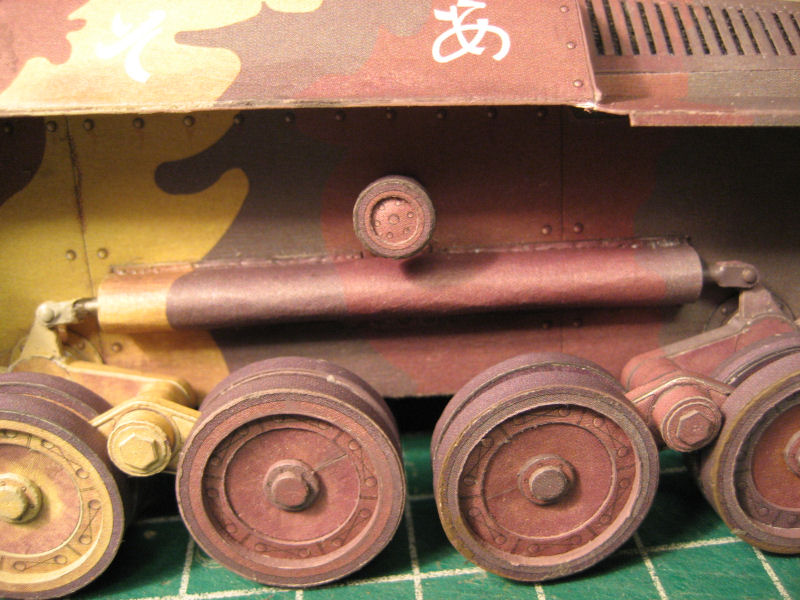

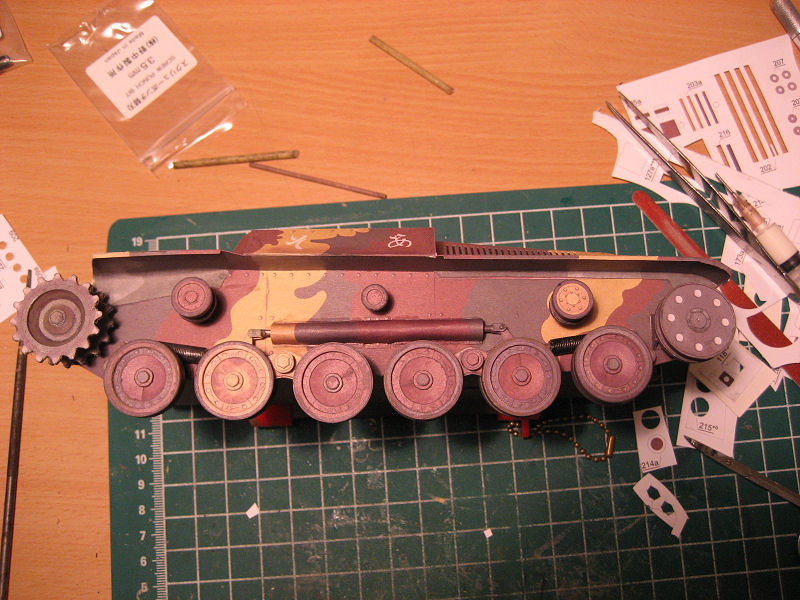

    Well guys I'm back at work after my vacation....and I got some progress on the ChiHa tonight.

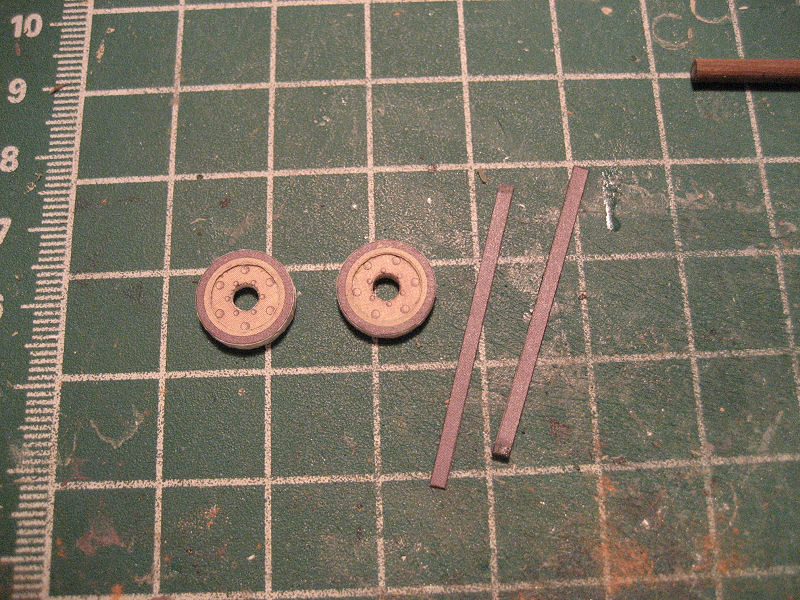

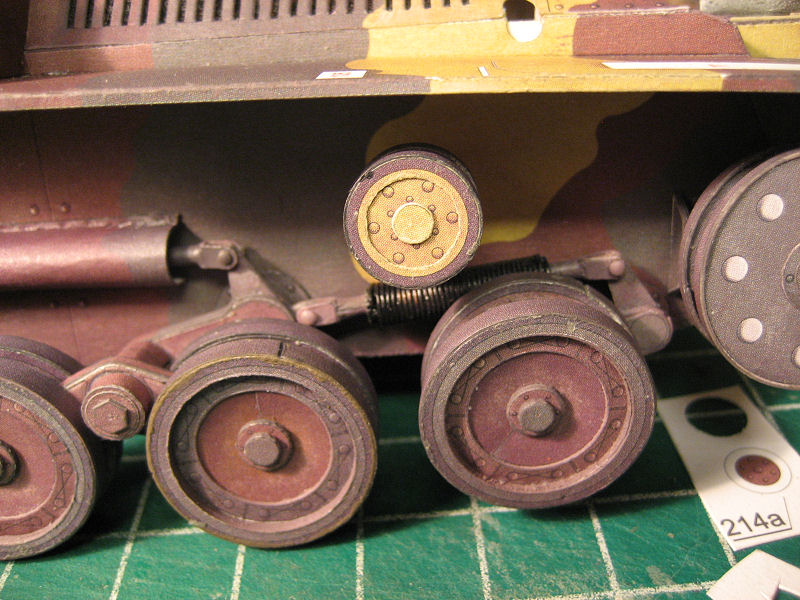

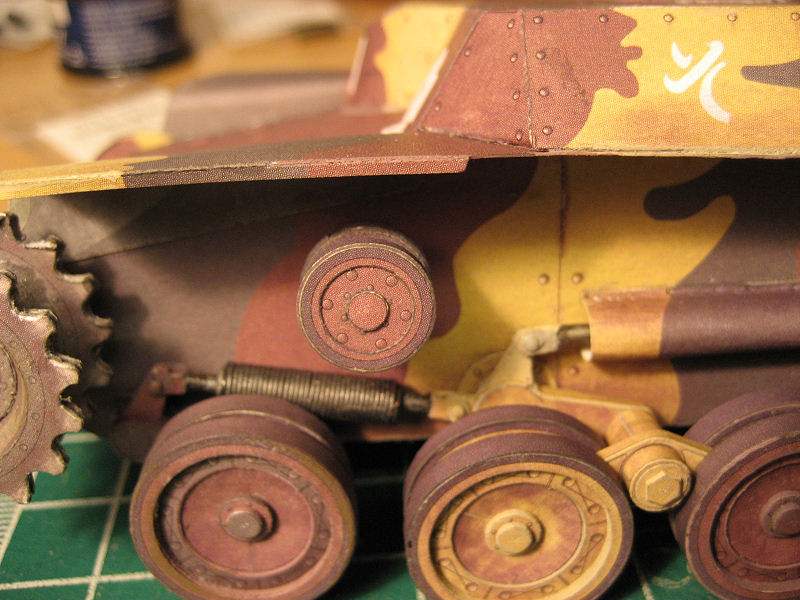

    I made the small leadingwheels.So now It's just the second drivewheel left of the wheelwork!

    [​IMG] [​IMG]


    [​IMG] [​IMG]

    [​IMG] [​IMG]
  8. RTomedi

    RTomedi Member

    Joined:
    Jun 8, 2007
    Messages:
    35
    Likes Received:
    0
    Just beautiful!
    It gonna be great with the tracks. :cool:
    Hugs.
  9. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209
    Thanks Ricardo!!

    The exhaust.

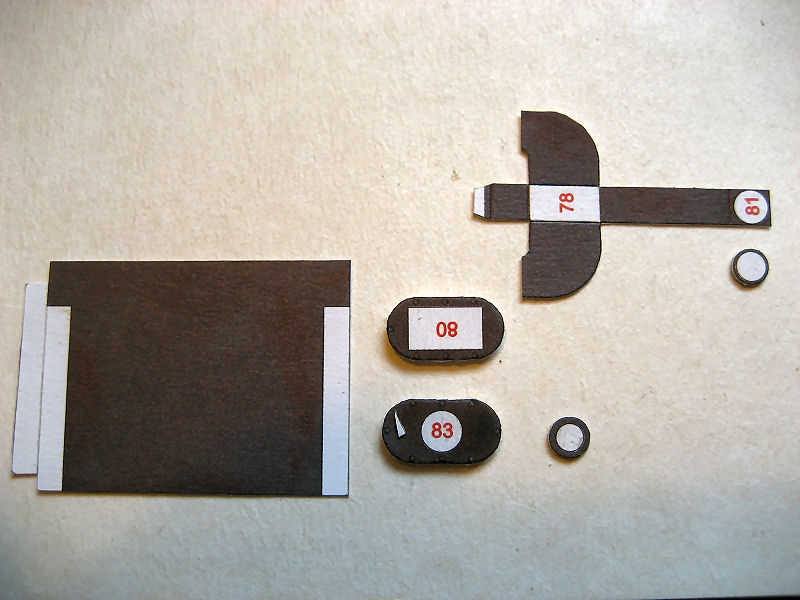

    Today I made the exhaust.

    The parts are cutted out and edgepainted.
    [​IMG]

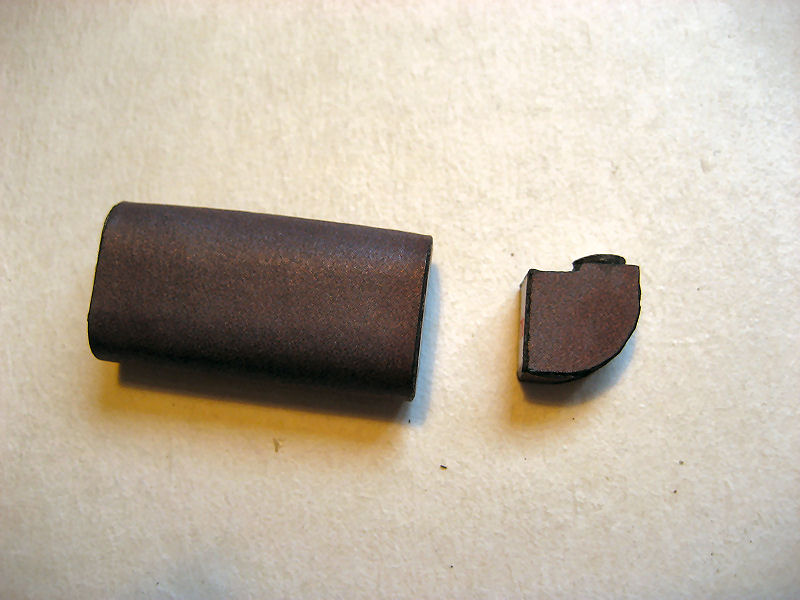

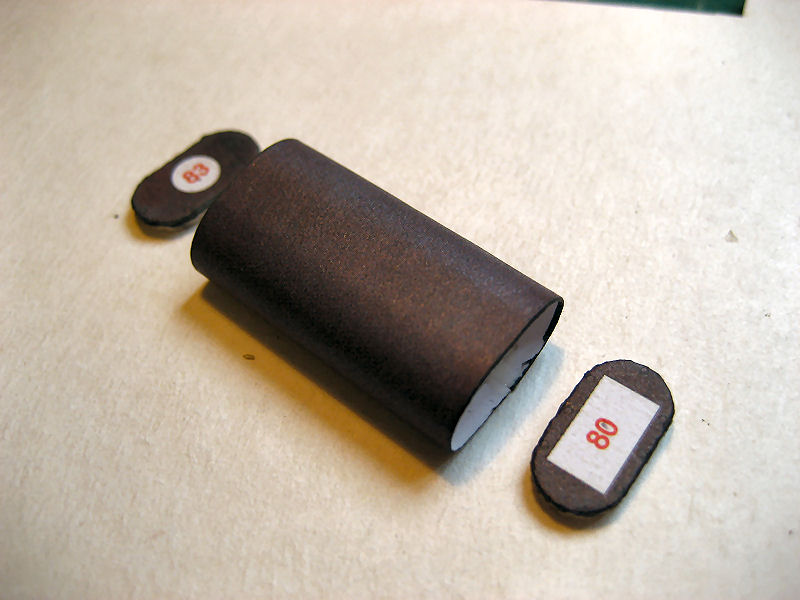

    First I made the exhaust tank.Made of 3 parts.
    [​IMG]

    Then it was the bend.
    [​IMG]

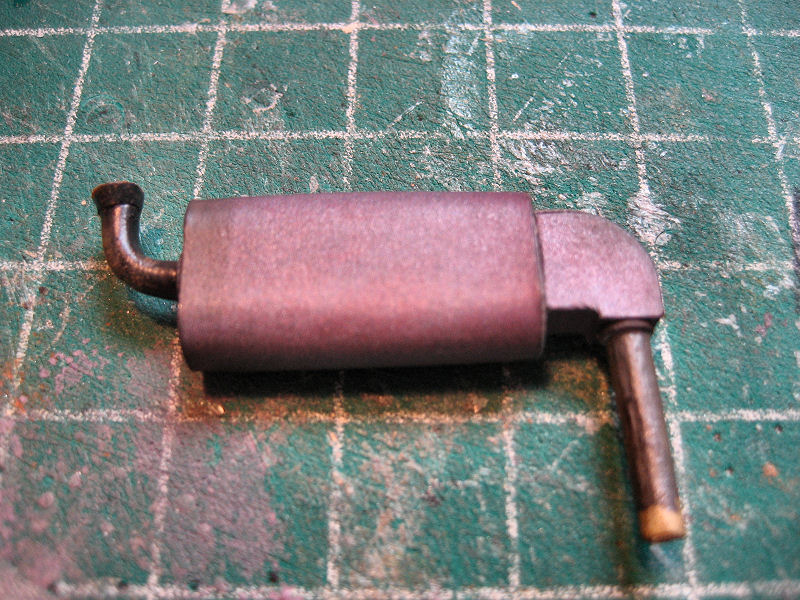

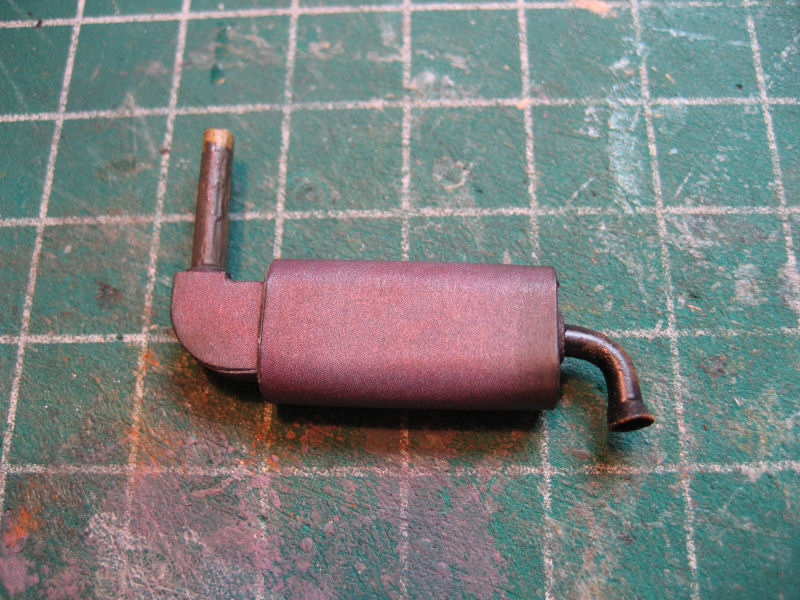

    And all assembled
    [​IMG] [​IMG]

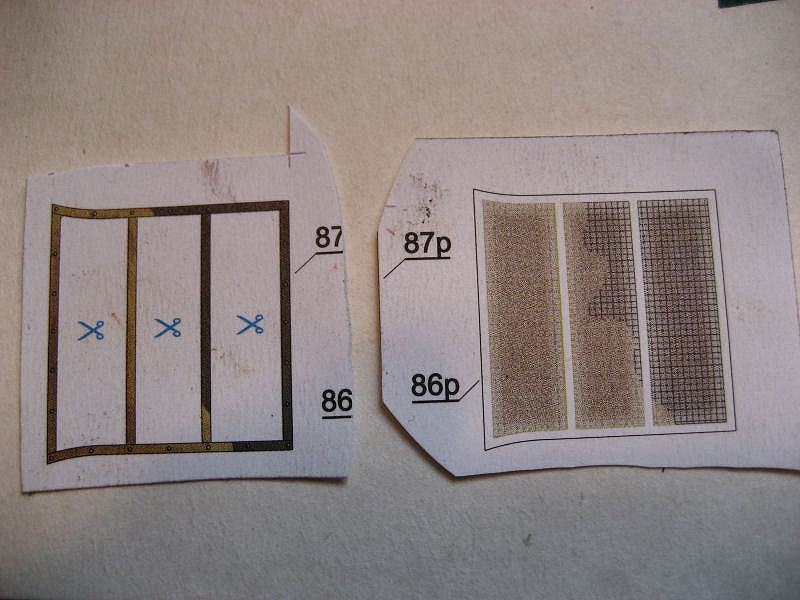

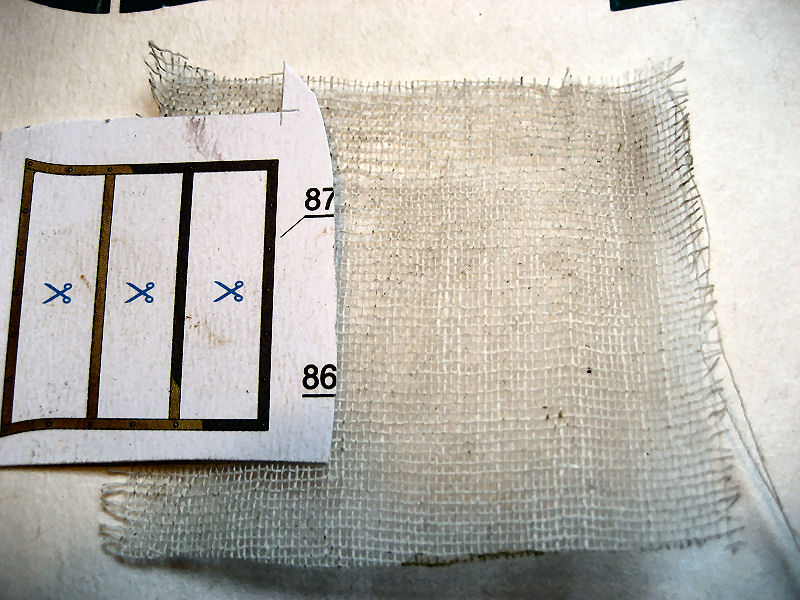

    The top cover was to be made of a frame and the underlying net.I replaced the papernet with something else.....
    [​IMG] [​IMG]

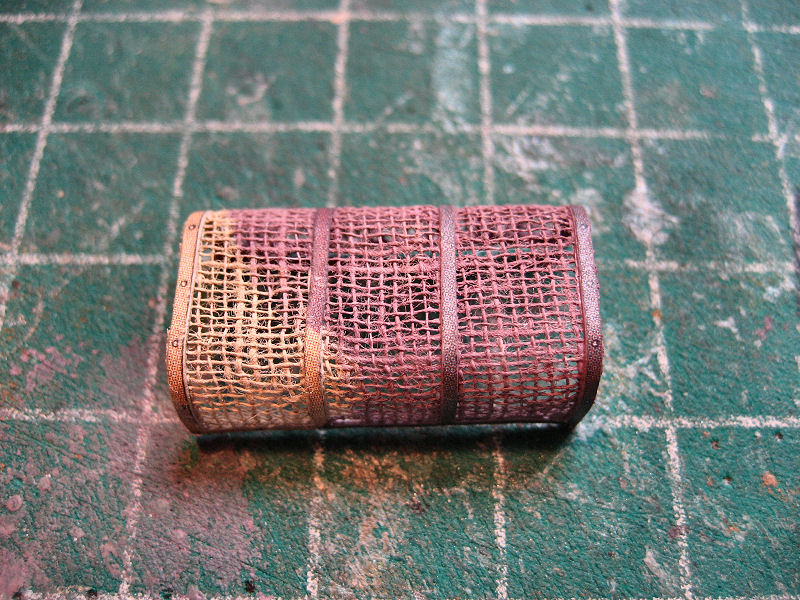

    The finished cover looks like this.I don't have any metalnet....so I guess this will do.It's hard to tell the difference with the naked eye from a normal view,but the macro shows that it's not metal...
    [​IMG]

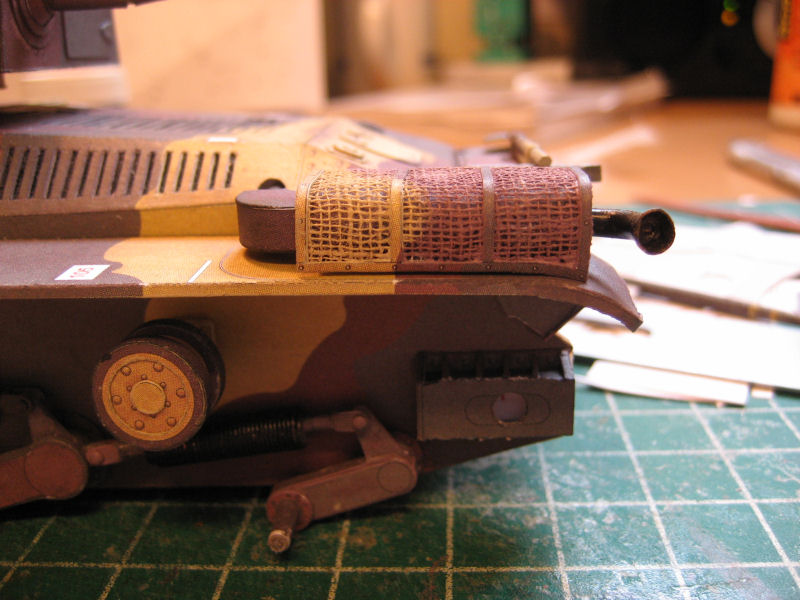

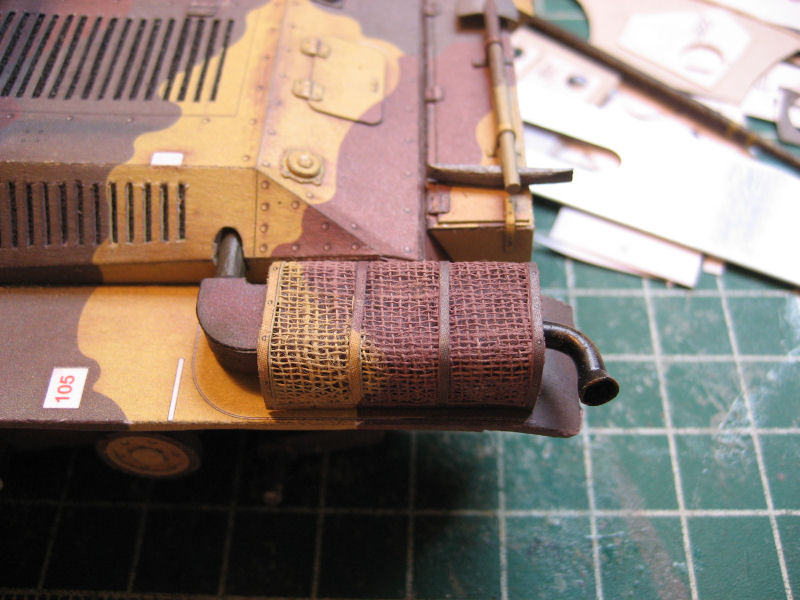

    Placed on the tank.
    [​IMG] [​IMG] [​IMG]
  10. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209

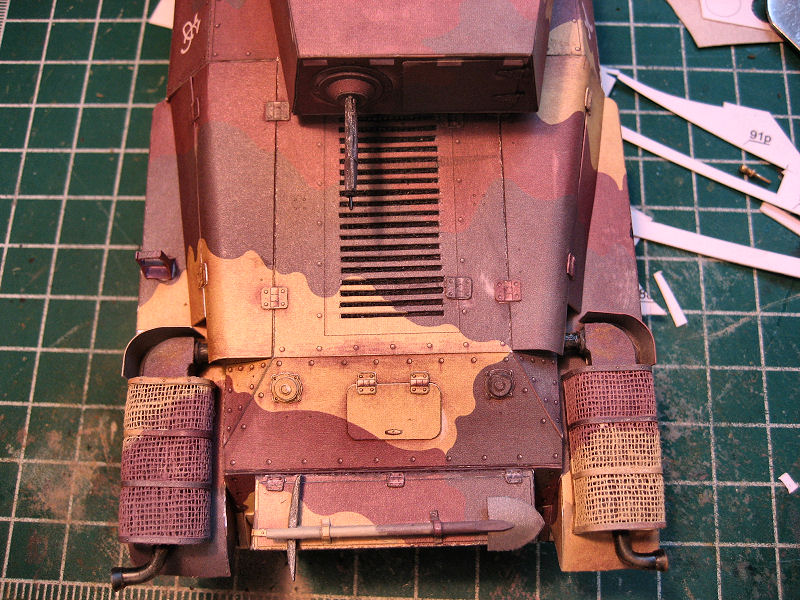

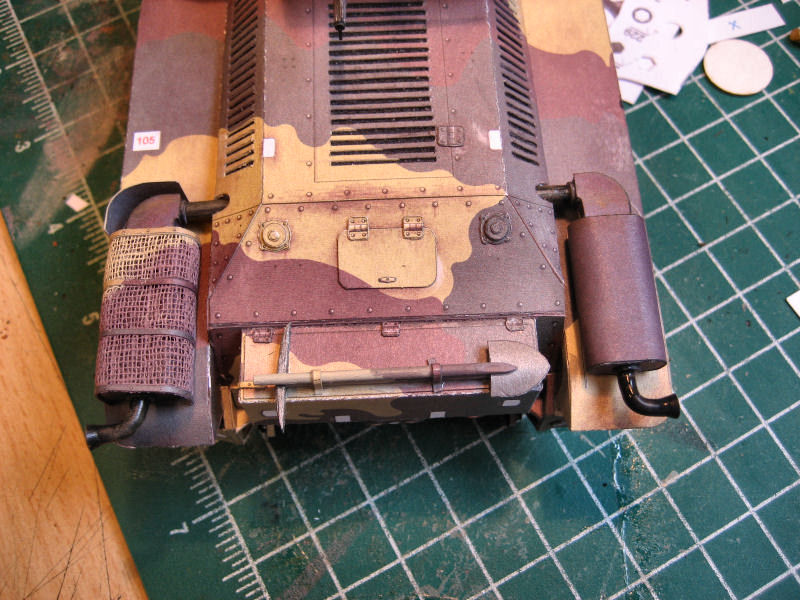

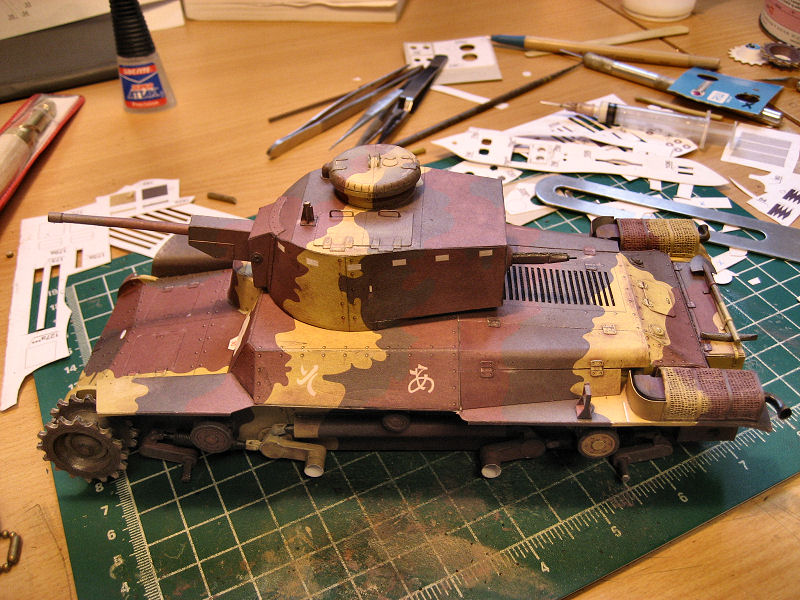

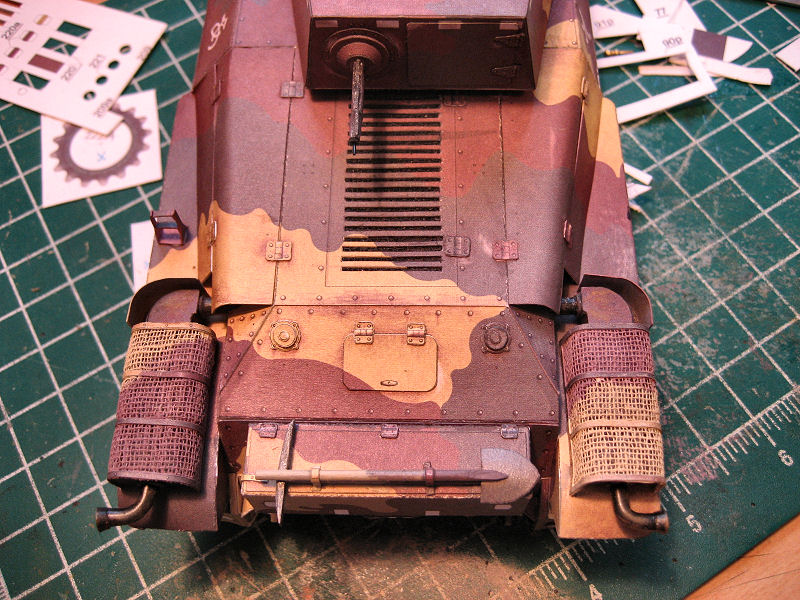

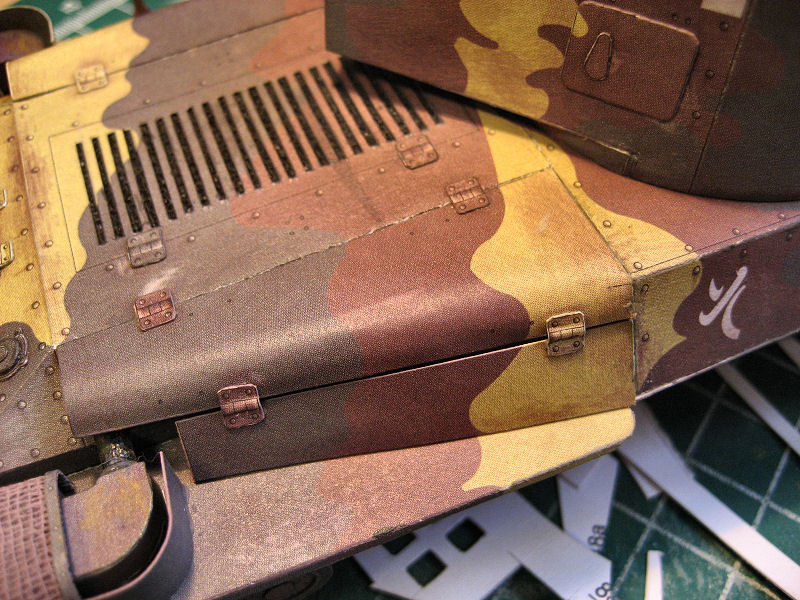

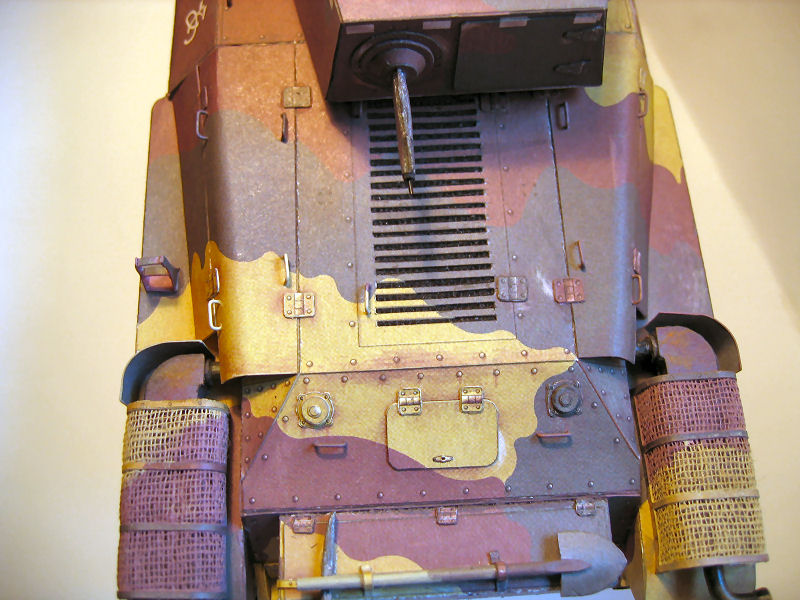

    So the rear end is done.Only the jack is missing.Will add that item in the end due to my lousy handling of the models sometimes.....

    [​IMG] [​IMG]

    [​IMG] [​IMG]
  11. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,544
    Likes Received:
    0
    You got me drooling all over my desk, Johnny!:mrgreen:

    Man, that is one beautiful looking tank! Fantastic, as always, Johnny!

    For that netting, did you use gauze, that you wrap a wound with?
    Sure looks like it. I think I have seen you use that stuff before and it works great!
    I have to make sure I have a supply of that stuff, for when I need it.:mrgreen:

    Russell
  12. sergiotang95

    sergiotang95 Member

    Joined:
    May 12, 2007
    Messages:
    46
    Likes Received:
    0
    All your models are flawless and so neat. How do you manage such neat cuts?

    Sergio
  13. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209
    Thanks for your kind words guys!!

    @ Sergio I use a metal ruler and the exel scalpel with blades #11 for cutting :)

    @ Russell Yes thats the word for it I think,it's the bandage stuff....It's pretty handy and you have to be about 20cm close to see it's not a real metalnet.


    Finishing the upper part of the tank.

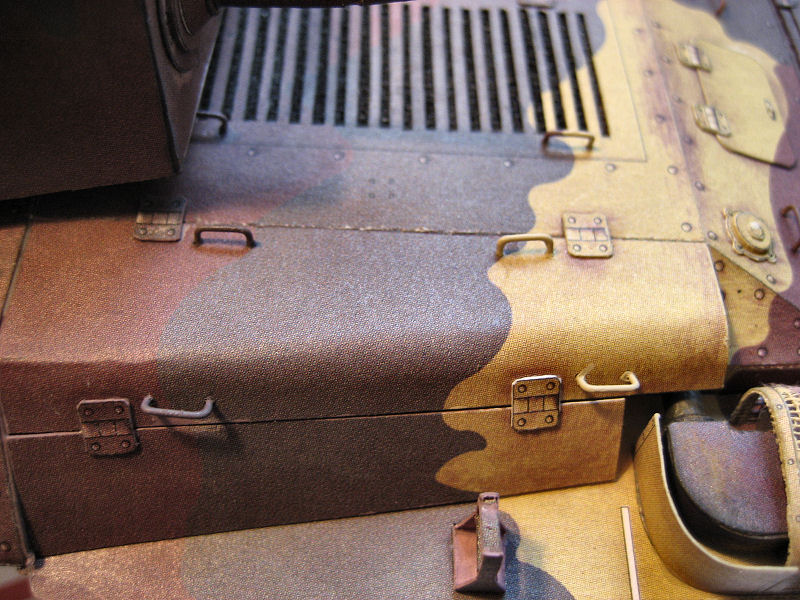

    The handgrips are all in place.
    [​IMG] [​IMG] [​IMG]

    The tower machinegun
    [​IMG] [​IMG]

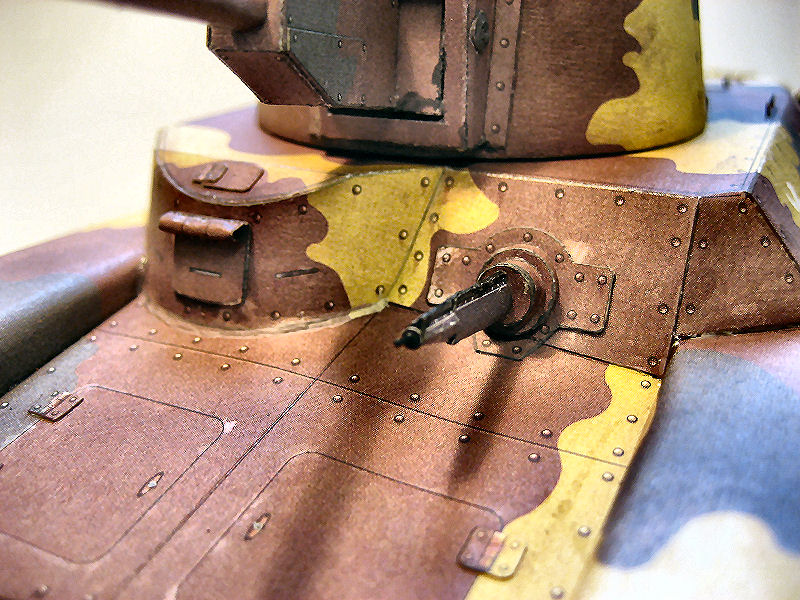

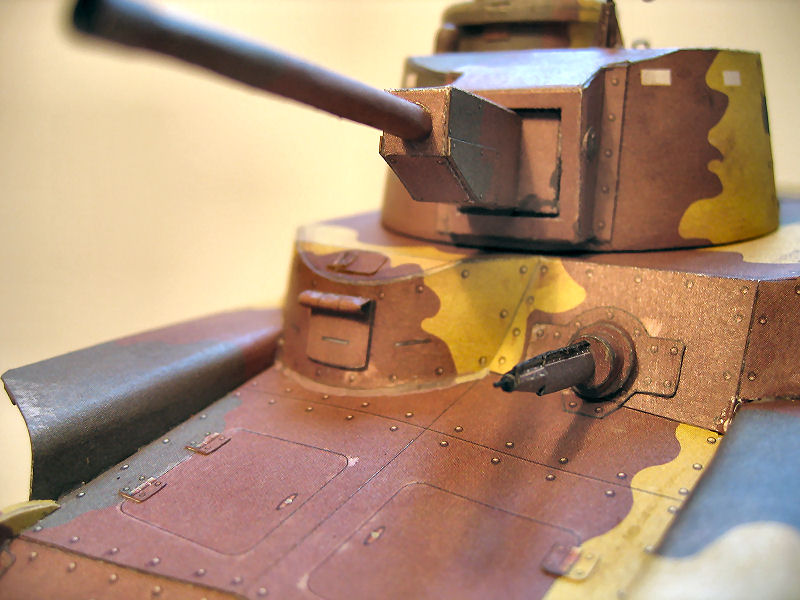

    The front machinegun and rest of the hatches
    [​IMG] [​IMG]

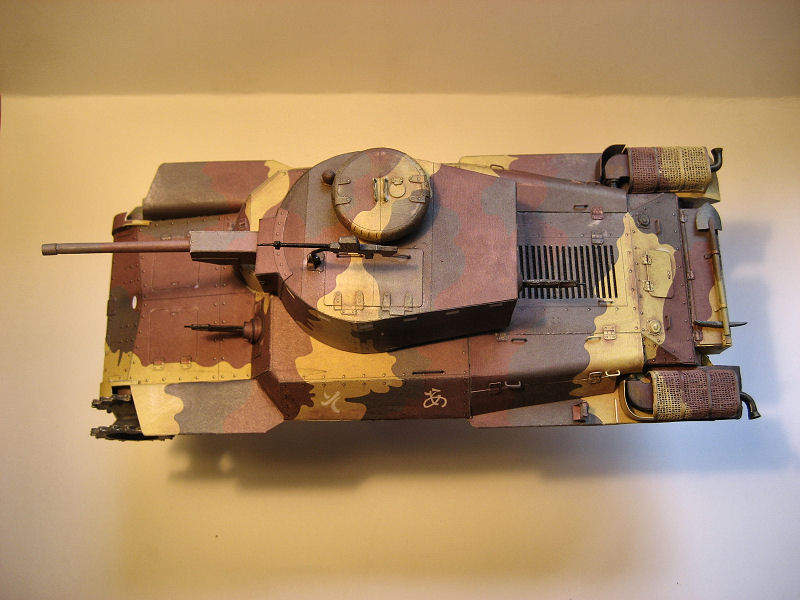

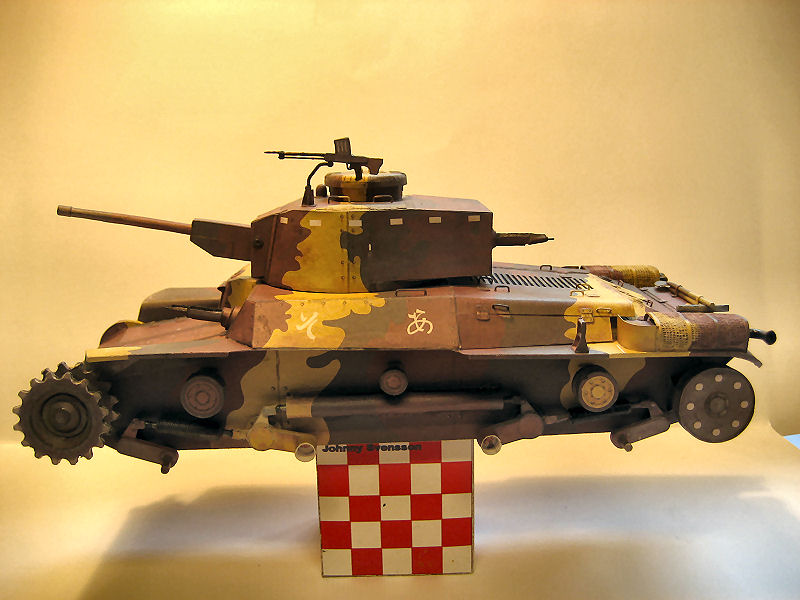

    And a couple of overviews at last.
    [​IMG] [​IMG]
  14. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209
    Just a small update today.Due to much work at work :) this was all I managed today!!

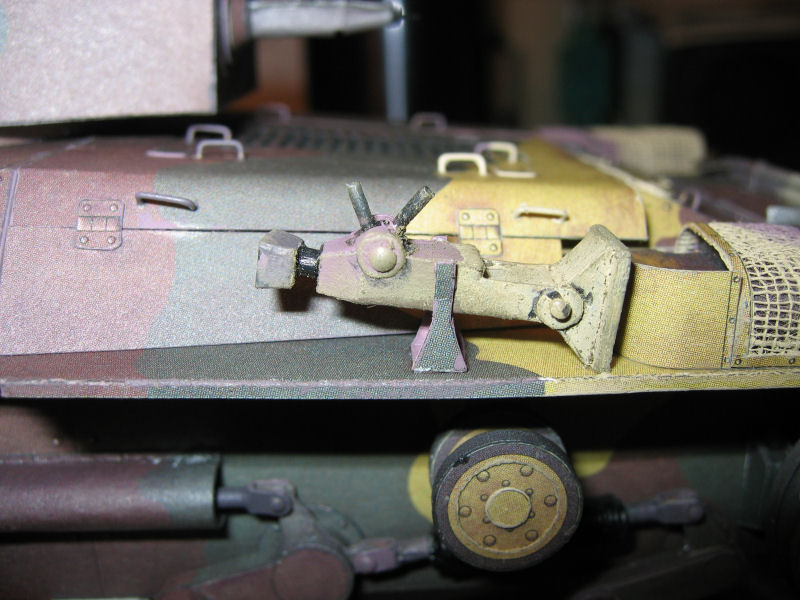

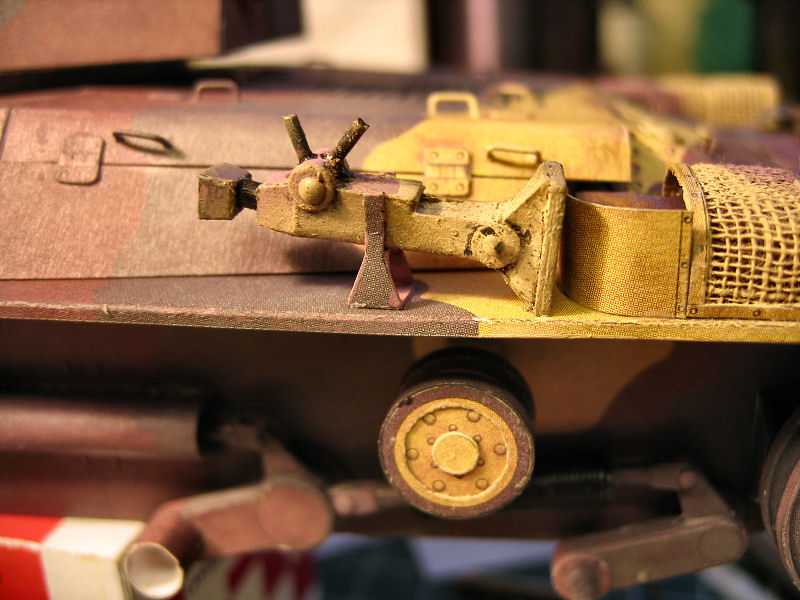

    I made the jack.
    [​IMG] [​IMG]

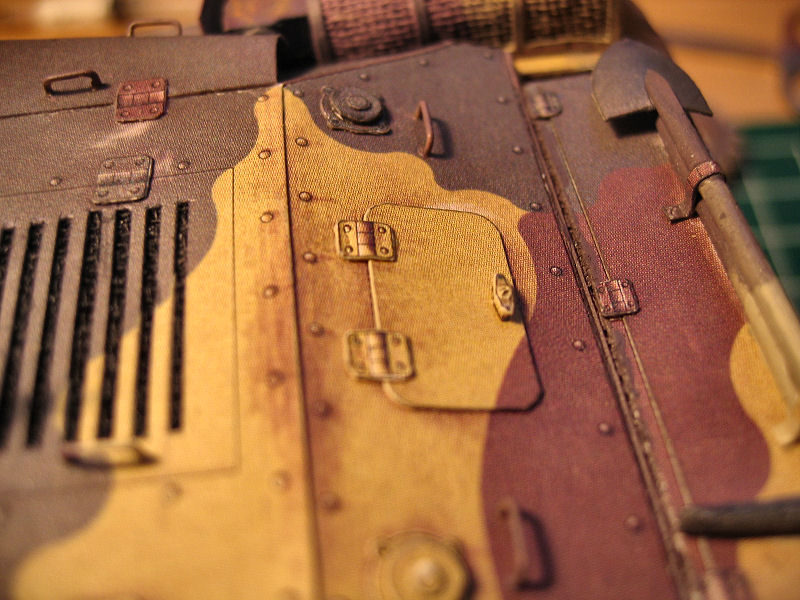

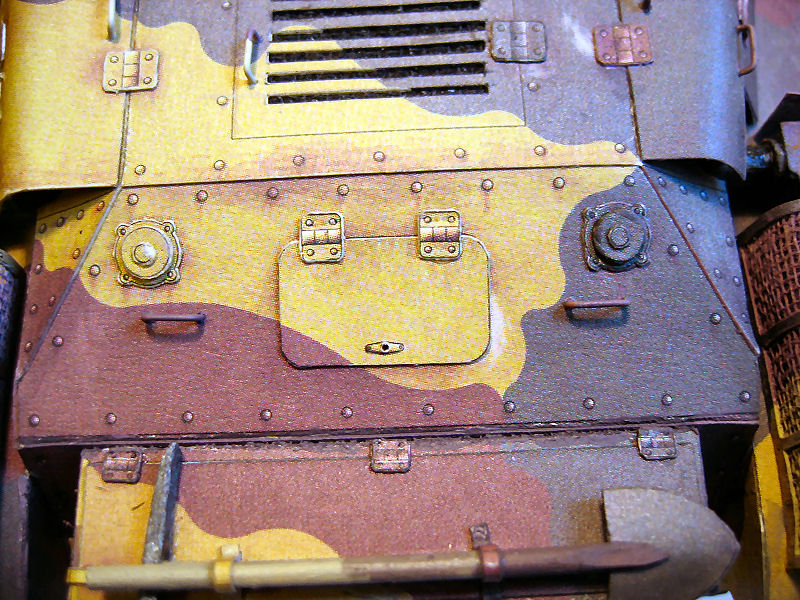

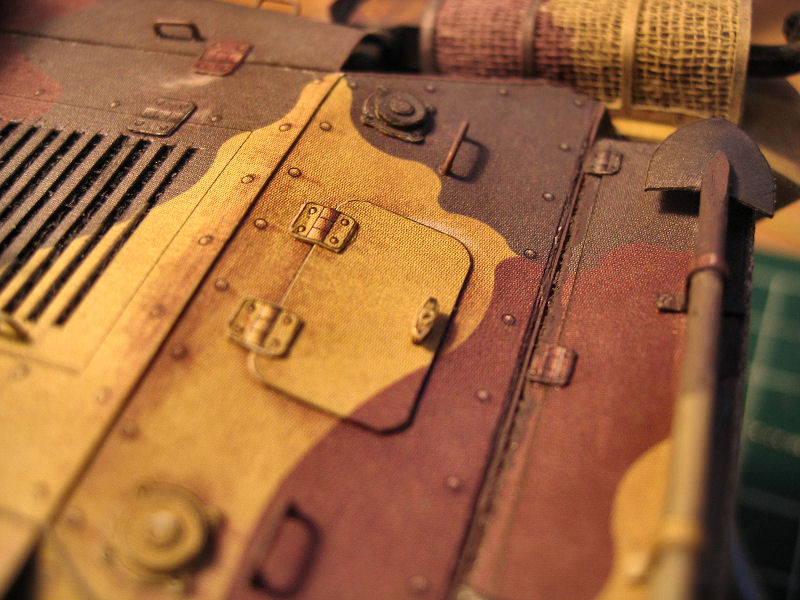

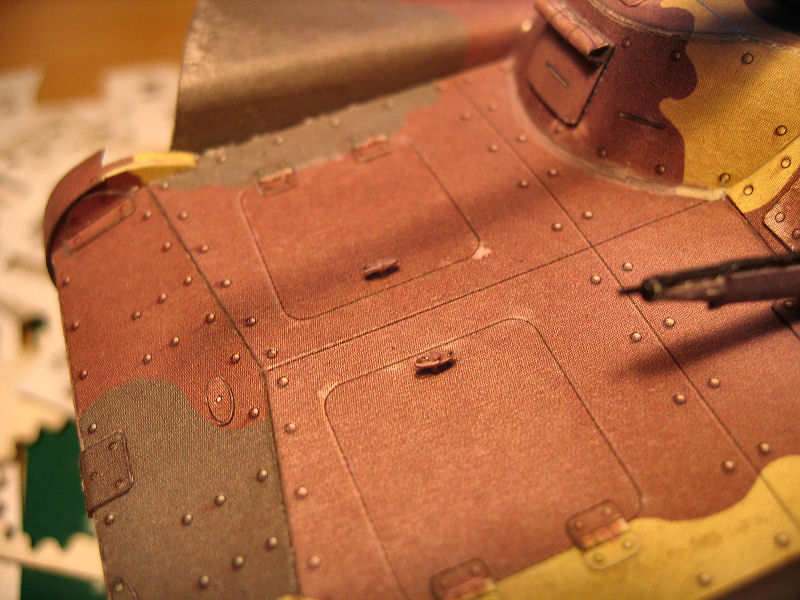

    And did the tiny hatch locks...
    [​IMG] [​IMG] [​IMG]

    So not much progress this time.....but a little bit done every day , the ChiHa will making it's way to the finishing line :)
  15. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209

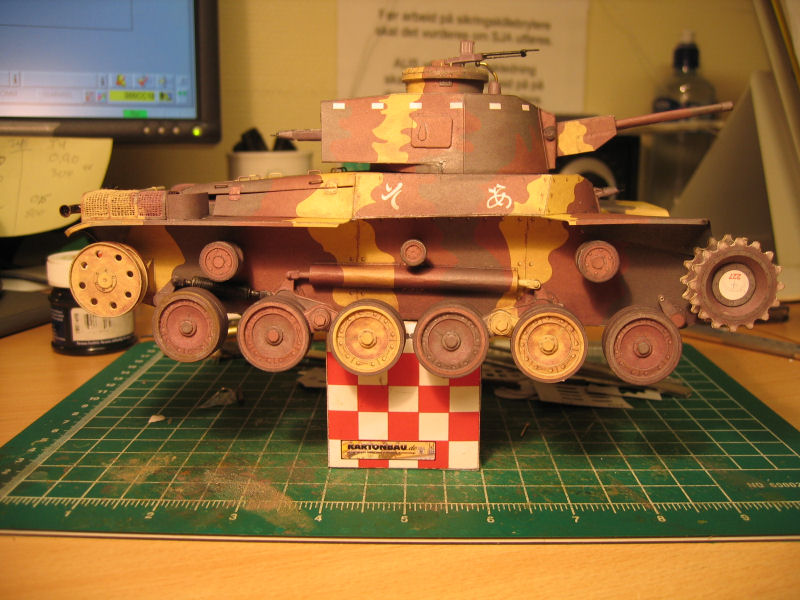

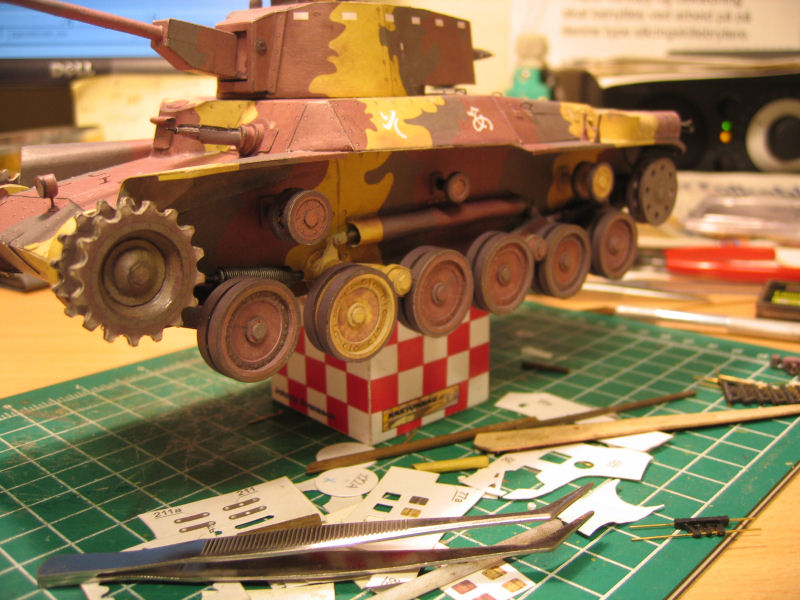

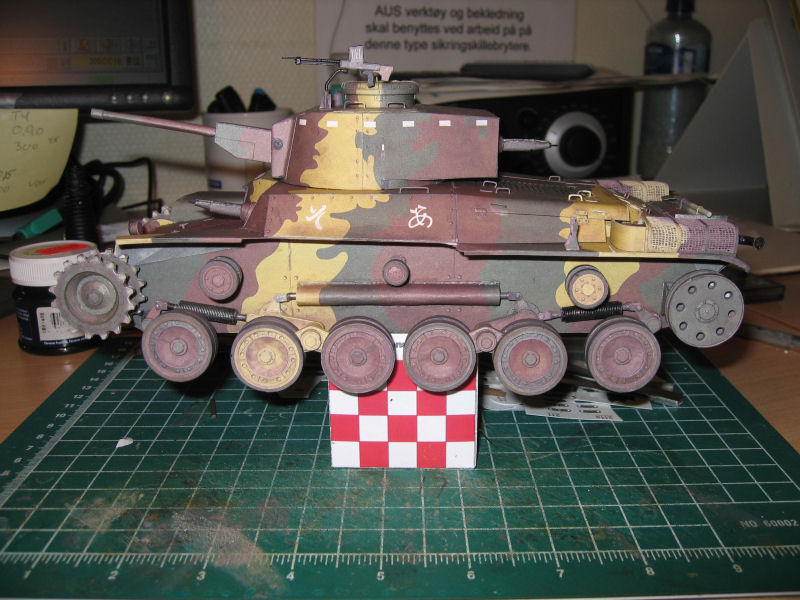

    Today it was an important day....the wheels should be glued on.
    I was a bit nervous about the alignment of the wheels,but all in all I'm satisfied with the result.

    [​IMG] [​IMG]

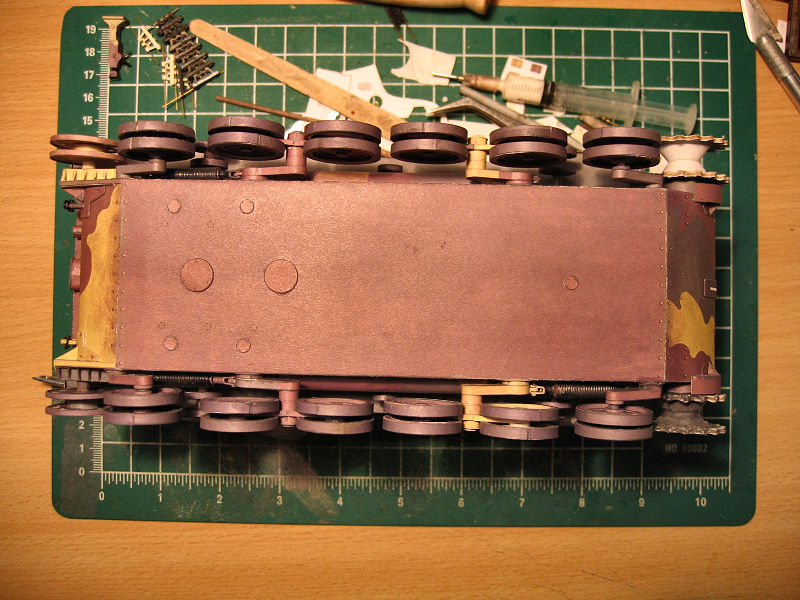

    The underside shows that there are some minor adjustments to be made.
    [​IMG]

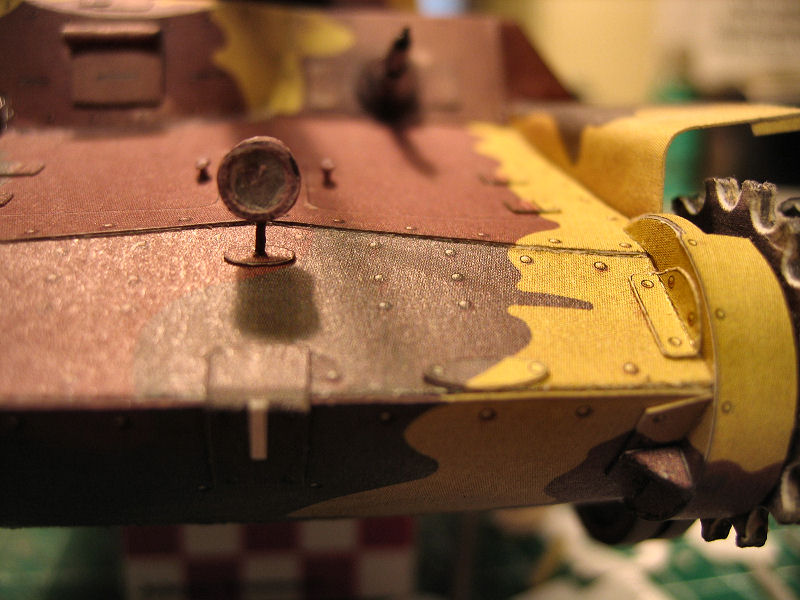

    Also got the front light in place.I made a reflector of aluminiumfoil and a small bulb,but obviously nothing of that shows....
    [​IMG]

    There are one spring at the front end still missing and some paint on the drivewheel,but I'll see what I can get done tomorrow!
    [​IMG] [​IMG]

    So the end is just a bunch of tracklinks away.....
  16. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209

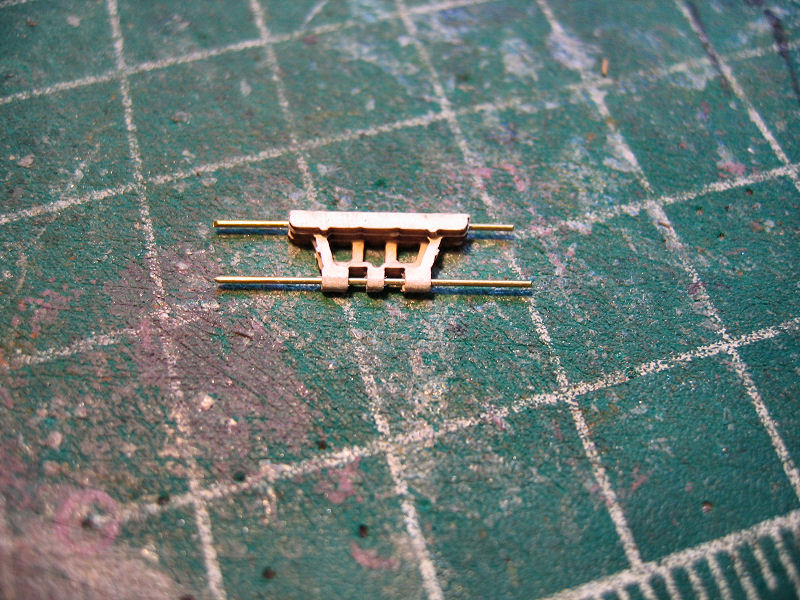

    Making the tracks.

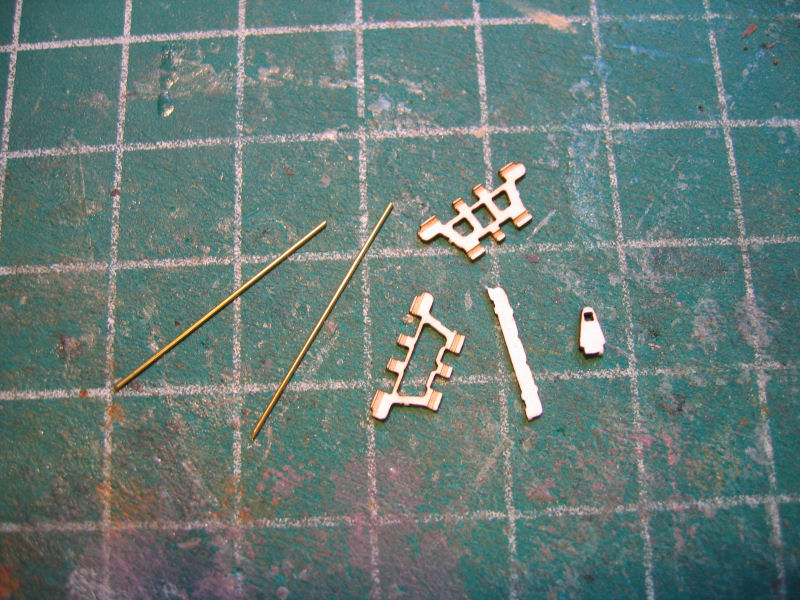

    Each link contains 4 parts.
    [​IMG]

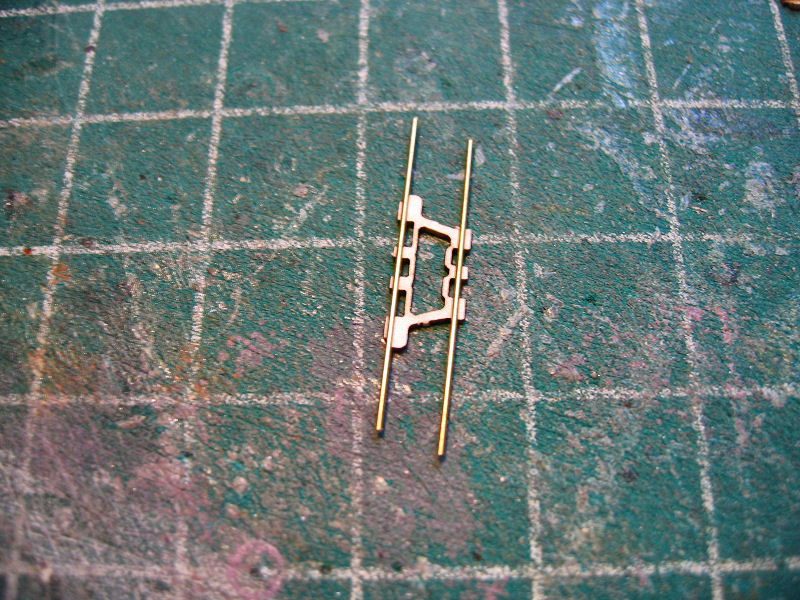

    I place the rods first,because I don't want the glue to close the tiny holes...
    [​IMG]

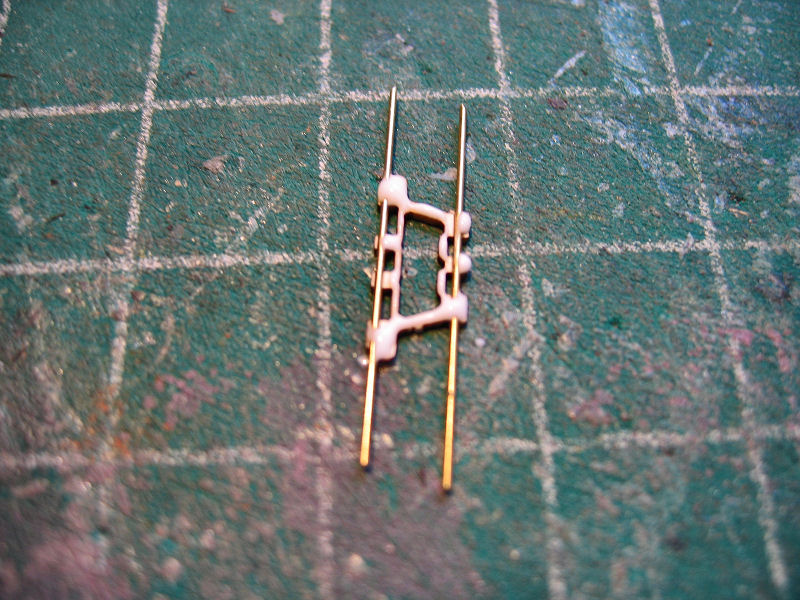

    Then I apply the glue,and put the top part in place.
    [​IMG]

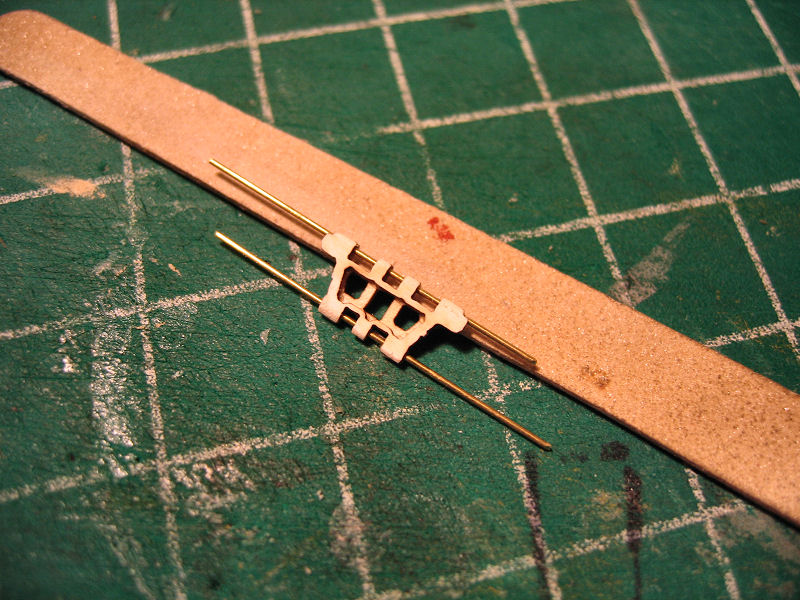

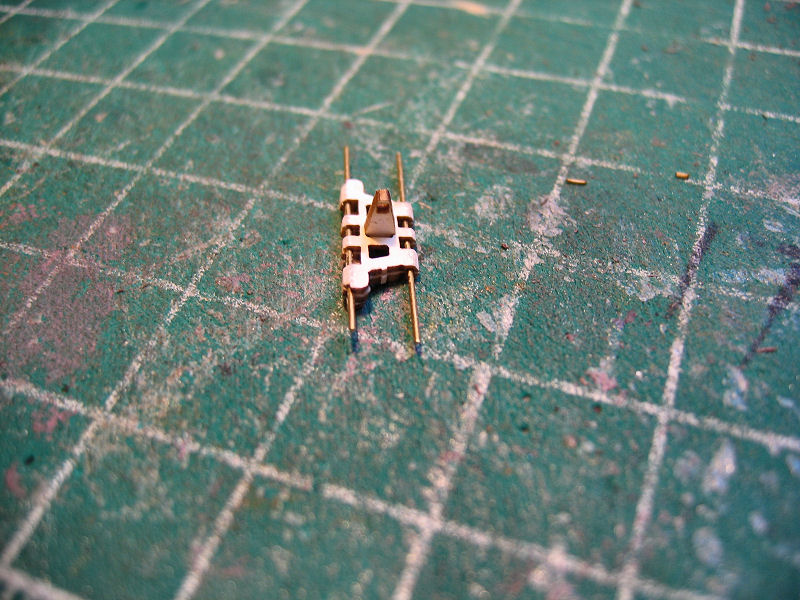

    When the glue has dried,I have to grind the edges to make them round.
    I use a nail grinder found in the womans section in stores.Very handy for a lot of small work.They comes in packages of 10 and costs almost nothing.
    [​IMG]

    When the grinding is done,I glue the small strip on the outside of the tracklink
    [​IMG]

    And when all links are assembled and painted I will add this last part to the links.Not adding them at once is because I dont wan't to destroy them,and the handeling of the tracks are also easier without having to think of this..
    [​IMG]

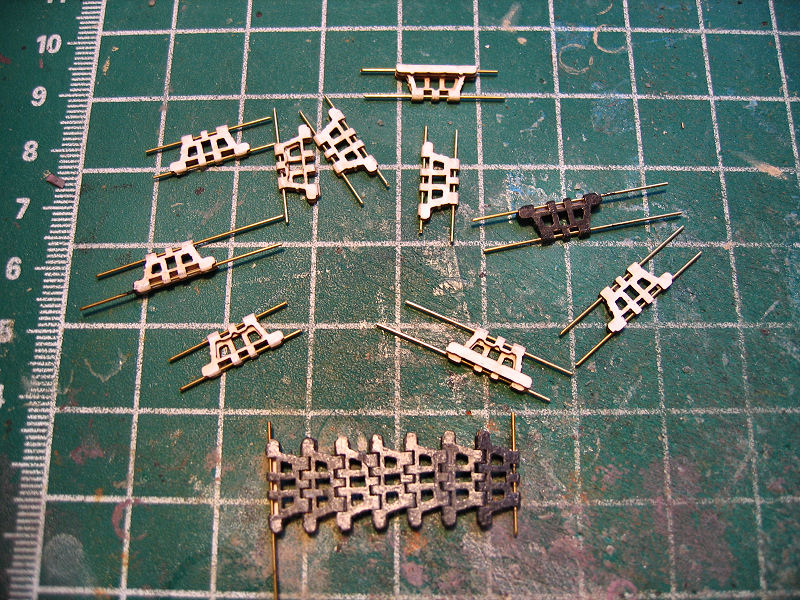

    So now I have 17 links on the table...
    [​IMG]

    210 links all in all.....I'm really looking forward to this job.....
  17. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209

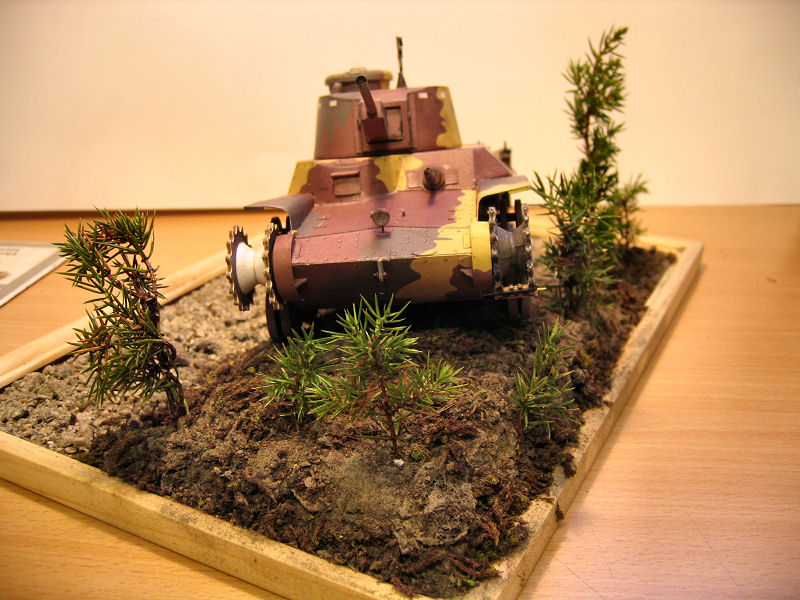

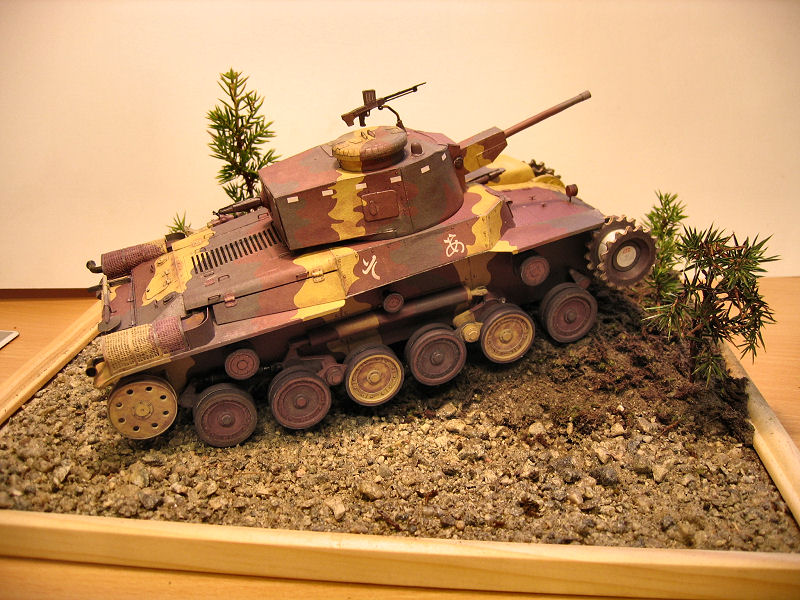

    I have been working on a small base for the chiha.Here is what I have so far.

    [​IMG] [​IMG] [​IMG]

    I might find some wooden structures to add, maybe a fallen down shed or something like that.
  18. cgutzmer

    cgutzmer Guest

    Very nice! You always do a wonderful job with your dioramas. I really like how even though its so small its still its own little world. The going up the hill and squishing the little trees really gives the impression of the tank moving through the scrub on the way to battle....
    Chris
  19. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    843
    Likes Received:
    209
    The models looks a lot better IMO than just display them as they are.

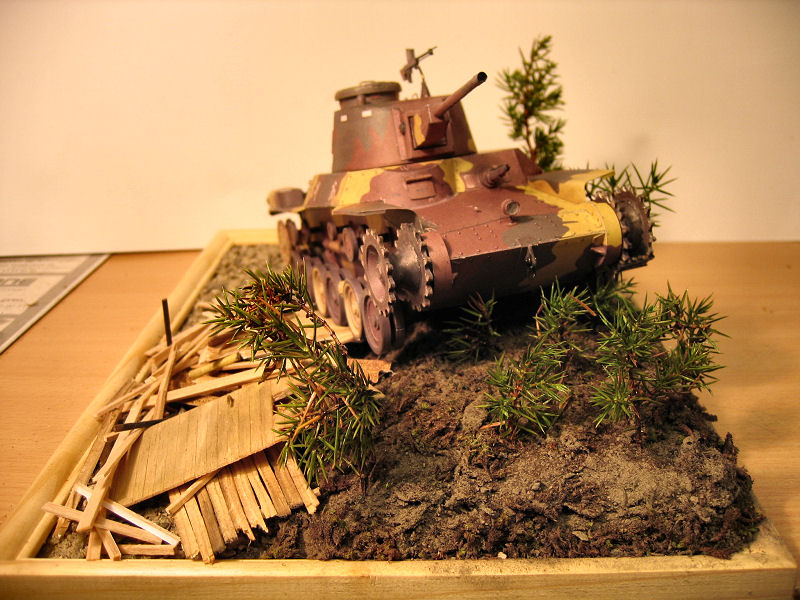

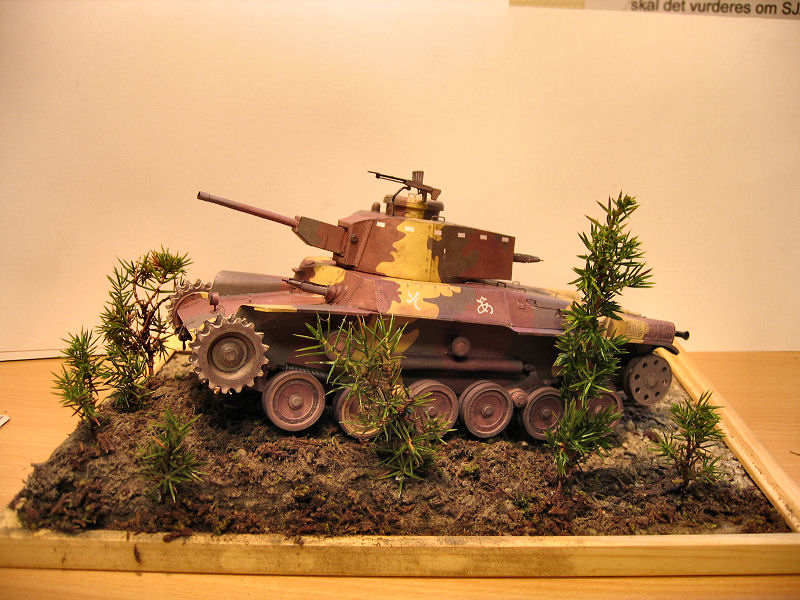

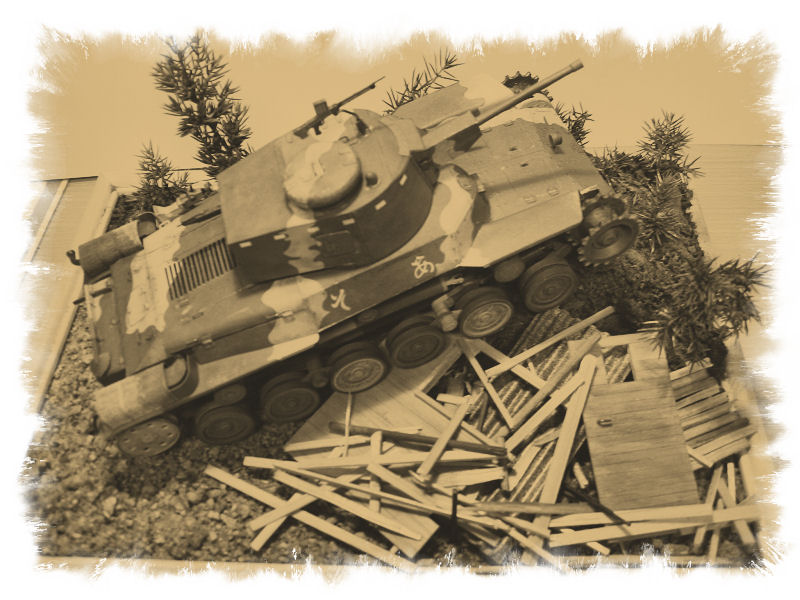

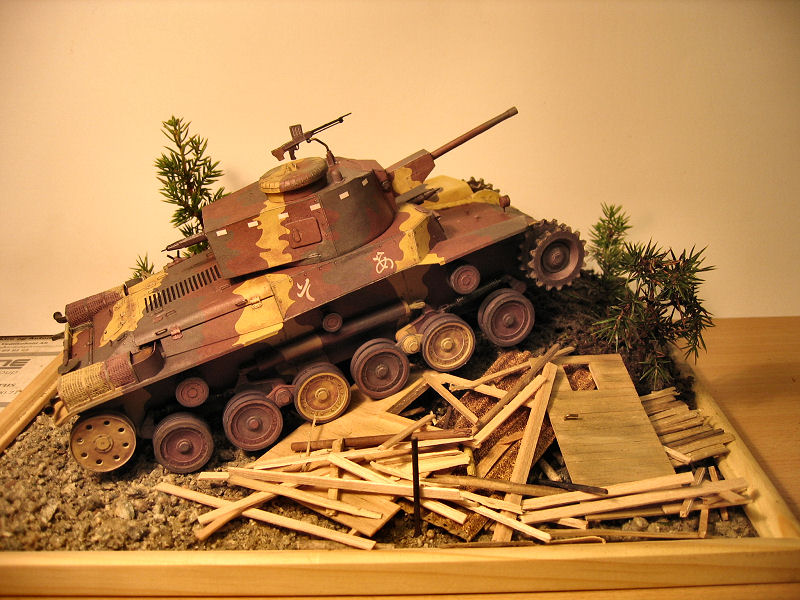

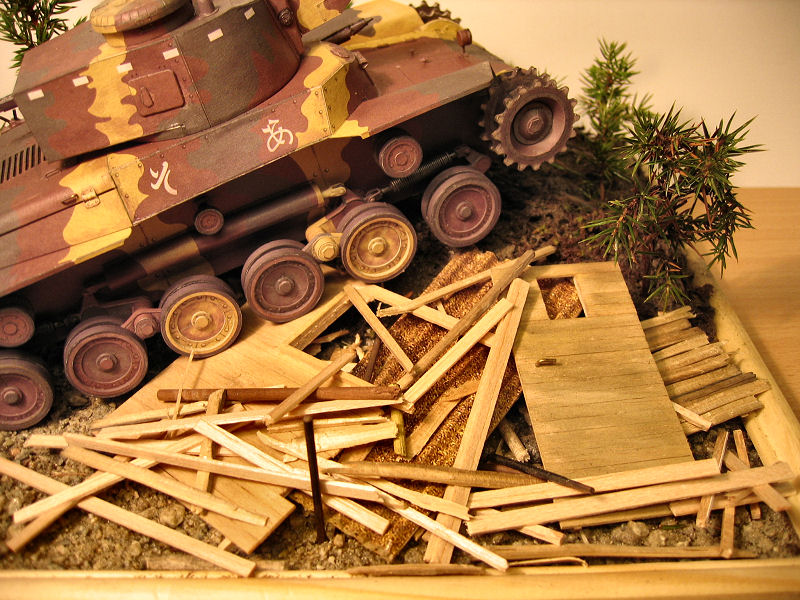

    Added some more trees,made the last spring on the front suspension and I tried to make the destroyed shed with some debrie around,a door,half a wall and a roofplate

    [​IMG] [​IMG] [​IMG]

    I also found an old newspaper.....
    [​IMG]
  20. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,544
    Likes Received:
    0
    Your diorama looks fantastic Johnny! You are a bottomless pit of creativity!

    210 links altogether! Wow!
    How many hours do you think it takes just to complete the tracks?

    Russell
