Restoration of AT&SF #3780

Discussion in 'N / Z Scale Model Trains' started by Ray Marinaccio, Sep 4, 2003.

  1. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Steel steam pipes replaced the broken plastic ones and a new smoke stack was fabricated.

    Attached Files:

  2. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Repairs began on the cab support.

    Attached Files:

  3. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

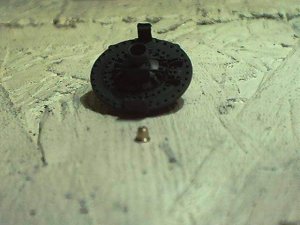

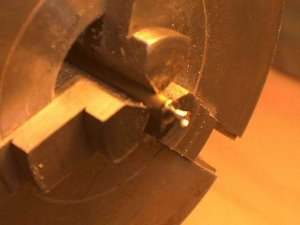

    A bell was turned on the lathe from a peice of 1/8" brass rod. If you look closely you can see that the inside is also cut out. At the rim it is .080" dia.

    Attached Files:

  4. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

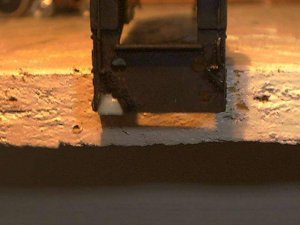

    This photo may give you an idea just how small it really is.

    Attached Files:

  5. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Ray,, that must be very satisfying work my friend.;)
    I know I love it when my megar attempts gets one of my pieces running again.;)
    Thanks for sharing :p your love of restoration.:)
  6. rich maiorano

    rich maiorano Member

    Joined:
    Apr 27, 2002
    Messages:
    644
    Likes Received:
    0
    HEY RAY how are your eyes after that ........now thats craftsmanship if I ever seen it nice work:eek: :eek: :eek: :eek: :eek: Rich
  7. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Wow Ray!
    It's a locky engine repair shop that has you on board!
    That is some fantastic workmanship!!:cool:
  8. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Thanks Chris, Rich And Charlie. Yea, I was a little cross-eyed for a while after making the bell. A strong magnifying glass helped a little.
    This photo shows the new bell bracket and the fabricated steps from the pilot to the running board. (the one on the right of the photo)
    I cured the gear noise with a few shims on the worm shaft. Runs a lot smoother now , still haven't pulled any cars yet.

    Attached Files:

  9. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

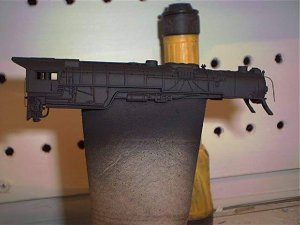

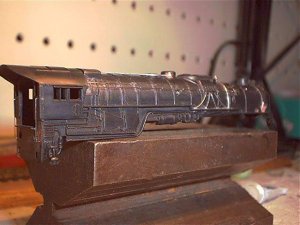

    This photo shows the smoke box modifications in progress.

    Attached Files:

  10. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

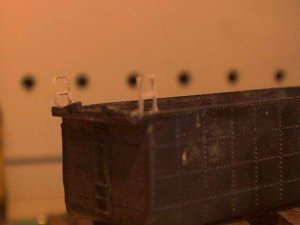

    The tender steps were fabricated with super-glue gell over a wire frame.

    Attached Files:

  11. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

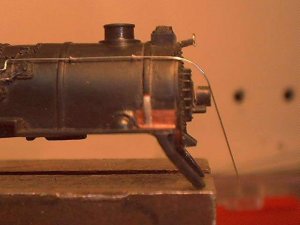

    Some of the molded on details were removed and replaced with steel wire.

    Attached Files:

  12. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

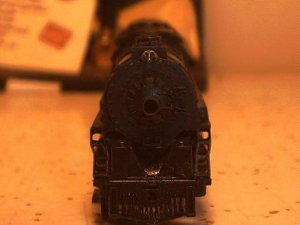

    Some modifications were done to the headlight

    Attached Files:

  13. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

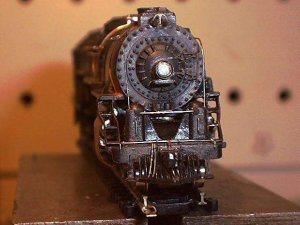

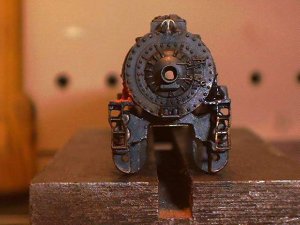

    This photo shows some of the pilot modifications.

    Attached Files:

  14. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

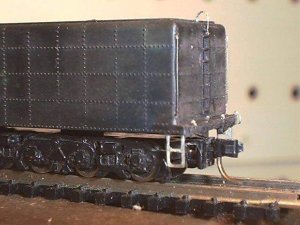

    I left the coupler mounted to the truck because of the tight curves on the layout. I may lower the tender and body mount the coupler at a later date.

    Attached Files:

  15. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    I've got some paint on it, won't be long now.

    Attached Files:

  16. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

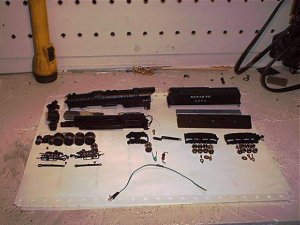

    The painting is completed and is ready to be assembled.

    Attached Files:

  17. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

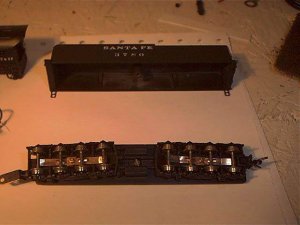

    Pickups were added to the outer axles of the tender.

    Attached Files:

  18. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

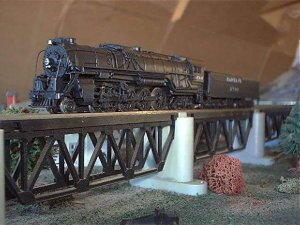

    And the moment I've been waiting for.

    Attached Files:

  19. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

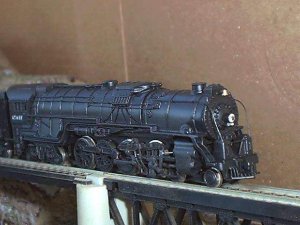

    The other side.

    Attached Files:

  20. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

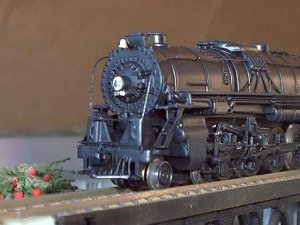

    A close up.

    Attached Files:
