Looking for an Armored car?

Discussion in 'Armory & Military' started by OhioMike, Jan 30, 2008.

  1. jim mccoin

    jim mccoin Member

    Joined:
    Feb 17, 2008
    Messages:
    30
    Likes Received:
    0

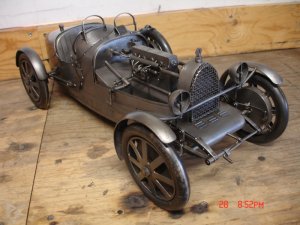

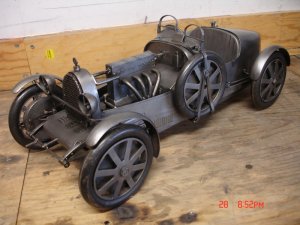

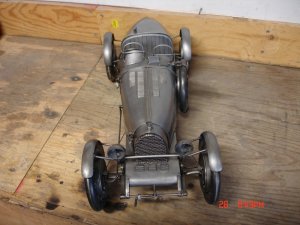

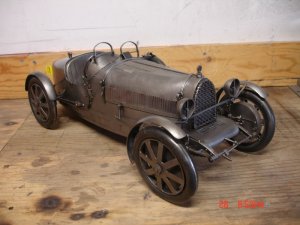

    This is my version of a Type 35 Bugatti, I fell in love with 15th century plate armor as a child, when I finally had time to do it my wrists and fingers were worn out. That's why my projects are unfinished steel.

    Jim

    Attached Files:

  2. jim mccoin

    jim mccoin Member

    Joined:
    Feb 17, 2008
    Messages:
    30
    Likes Received:
    0

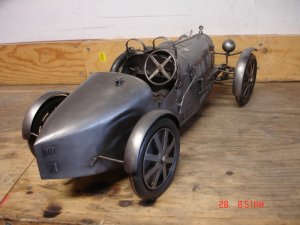

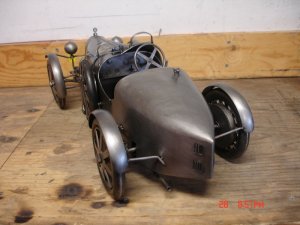

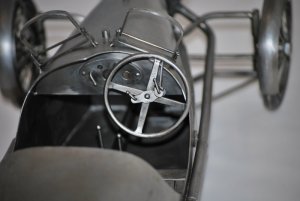

    My impression of a Type 37 Bugatti, .045 cold rolled steel, various diameters of welding wire and cold rolled rod.

    Jim

    Attached Files:

  3. Zathros

    Zathros Guest

    Incredible, absolutely incredible! If you ever wanted to sullen your hands with a paper version, the website below has a collection of the nicest ones in paper, maybe even plastic, depending on who builds it, I have ever seen.

    http://www5b.biglobe.ne.jp/~kamaboko/1_30model/

    [​IMG]
  4. jim mccoin

    jim mccoin Member

    Joined:
    Feb 17, 2008
    Messages:
    30
    Likes Received:
    0
    No no no, I wouldn't think of working with paper, when I screw up a piece of steel, I can weld it, file it and sand it, then the screw up disapears:cool:

    Jim
  5. Zathros

    Zathros Guest

    You would not believe how many times you can find yourself printing out a whole sheet of paper because you mess up one part. Then of course, you have more spares! :)
  6. robot

    robot i'm a paper shredder

    Joined:
    Apr 21, 2010
    Messages:
    11
    Likes Received:
    0
    "What I'd really like, Dad, is to borrow the car keys.
    See you later. Can I have them please ?"
  7. Zathros

    Zathros Guest

    My sentiments, exactly!! :)
  8. jim mccoin

    jim mccoin Member

    Joined:
    Feb 17, 2008
    Messages:
    30
    Likes Received:
    0

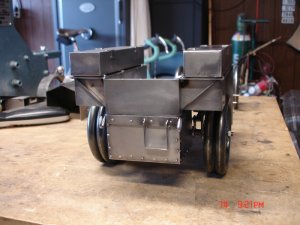

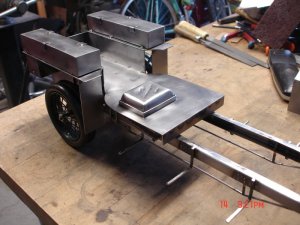

    Did I tell you guys these large projects take forever. I had a lot of interuptions last fall and didn't work on the RR AC for quite a while, I'm setting it aside for a while to focus on three motorcycles. I'll post them as they progress.

    The Rolls to date

    Jim

    Attached Files:

  9. Zathros

    Zathros Guest

    You must have incredibly strong hands, arms and neck. This kind of work is hard!!! :)
  10. jim mccoin

    jim mccoin Member

    Joined:
    Feb 17, 2008
    Messages:
    30
    Likes Received:
    0
    Wrong!, .045 cold rolled moves quite easily, its all technique and leverage:thumb: . The hard part is not welding your self into a corner, I hate cutting things apart :cry: These projects are nothing more than elaborate puzzles that happen to look like something .

    Decades ago a very skilled Tig welder taught me how to "work smart not hard" save your body.

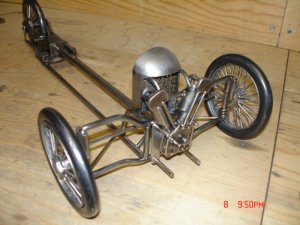

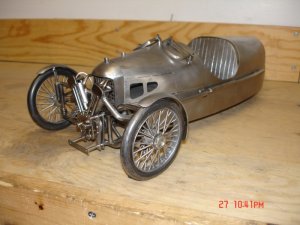

    My version of a Morgan Trike, mid to late 20's

    Jim.

    Attached Files:

    • 312.jpg
      File size:
      91.9 KB
      Views:
      7
    • 091.jpg
      File size:
      143.3 KB
      Views:
      7
    • 083.jpg
      File size:
      154 KB
      Views:
      7
  11. Zathros

    Zathros Guest

    I have a Miller Econotig, a Milling machine, and SouthBend 9" Lath BackGear, and all the tooling to go with it, rotary tables, indexing tables. I am so impressed by this work. Cold rolled .45 isn't too bad, but face it, our designs are absolutely brilliant! :)
  12. jim mccoin

    jim mccoin Member

    Joined:
    Feb 17, 2008
    Messages:
    30
    Likes Received:
    0
    No no, .045 cold rolled, thin enough to shape and thick enough to file and sand.

    Take care.

    Jim
  13. Zathros

    Zathros Guest

    That's basically a millimeter thick, add a couple of thousands. I was mostly trying to express to having all this machinery, and still not being to do what you do! :)
  14. jim mccoin

    jim mccoin Member

    Joined:
    Feb 17, 2008
    Messages:
    30
    Likes Received:
    0

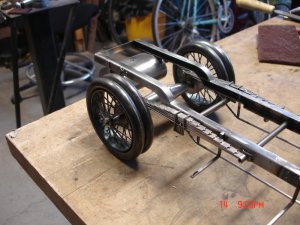

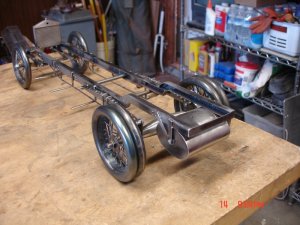

    I probably told you guys I'm setting the RR AC aside for a while to concentrate on a few motorcycles. For the next few days I'm in wheel building mode, this is how you can do this without a lathe, I have a air eraser, an airbrush that shoots fine grit instead of paint to clean up the oxide on welded parts.

    Jim

    Attached Files:

  15. Zathros

    Zathros Guest

    What are you welding with? I would be interested in every step of this process explained, if it isn't asking too much. I love your work. I am thinking a metal working subsection might by a good idea, as you are more than welcome here.!! :)
  16. jim mccoin

    jim mccoin Member

    Joined:
    Feb 17, 2008
    Messages:
    30
    Likes Received:
    0
    Hey, a little while ago I did a good interview with the guys at "Good Spark Garage" you might check it out.

    Over the next couple of days I'll post some of the do's and dont's of working with thin material and small diameter wire.

    Jim
  17. Zathros

    Zathros Guest

    Gota lionk for "Good Spark Garage"? :)
  18. jim mccoin

    jim mccoin Member

    Joined:
    Feb 17, 2008
    Messages:
    30
    Likes Received:
    0
    Welding wise, I use a Miller Maxstar 150. Its 120 volt DC only, since most of what I do is in the 30 to 50 AMP range its just fine. With the low amperage I'm used to, you can do a quick tack about a 1/2" from where you're holding the metal

    Most of my tungsten is 1/16", I cut the 7" tungsten in half using the medium wheel on my bench grinder, grind a point on each end then do a fine polish on the 1/42" belt sander, I uasuly prep 2 or 3 tungstens at a time that way when I dip the tungsten or touch it with filler wire I have a new one handy. You will contiminate your tungstens.

    The other tool that I must have is a 25" 18ga. max bench shear, I'v used Beverly shears, tin snips and aircraft shears all my life, but nothing can cut a crisp straight edge like a shear.

    If you have two pieces of sheetmetal with a clean metal to metal edge you can do a series of small tacks and the joint will dissapear, no need for a full length weld.

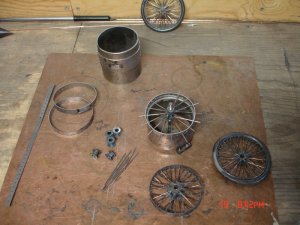

    I drill very few holes, most of the holes I need are done with a Whitney Junior punch. The holes in the RR AC turret are a series of punched holes and a file is used to connect them. The strip of metal in the photo with all the holes is a template for rims, I clamp it to another strip and punch the spoke holes, I'll do a photo of the wire wheel building process in a day or so.

    We'll continue this in a day or so.

    Jim
  19. Zathros

    Zathros Guest

    Don't stop now! :)
  20. jim mccoin

    jim mccoin Member

    Joined:
    Feb 17, 2008
    Messages:
    30
    Likes Received:
    0
    Hey again,

    I need to know how much welding you have do done, to know where to start. Its pointless to go over ground you've already covered.

    When someone has not welded before, I recomend a class at the local junior college or vocational high school.

    Take care

    Jim
