Large Rolls-Royce Wraith.

Discussion in 'Commercial & Civilian Vehicles' started by xaero892, Sep 8, 2018.

  1. xaero892

    xaero892 New Member

    Joined:
    Jun 10, 2016
    Messages:
    89
    Likes Received:
    86
    Ok, here goes...

    I work as a 2-tone masker at Rolls-Royce Motor Cars.

    After hearing about my "little" hobby, my manager has asked me if I would be willing/able to build a large model of one of the cars. I said I would like to give it a go as this is something I have been thinking about myself.

    To cut a long story short, we got the 3d model transferred to my pc and simplified to a standard that I could work with.

    We also decided on a 2-tone car in Arctic White and Twilight Purple.

    So far I have arranged parts for the bonnet and front bumper. I have also started a rough test build of the bonnet.

    The final model will be just over 1.1 metres in length.

    More to come soon. :)
    Last edited: Sep 18, 2018 at 9:59 PM
    ASC Mclaren likes this.
  2. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    8,163
    Likes Received:
    3,143
    I am sorry for this. We will get this taken care of ASAP!
  3. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    9,470
    Likes Received:
    4,848
    I have notified the proper people. :)
  4. xaero892

    xaero892 New Member

    Joined:
    Jun 10, 2016
    Messages:
    89
    Likes Received:
    86
    Thanks guys, I'll keep checking back and post them when it's sorted.
  5. xaero892

    xaero892 New Member

    Joined:
    Jun 10, 2016
    Messages:
    89
    Likes Received:
    86
    Picture upload is working.

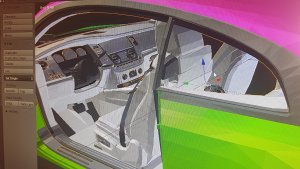

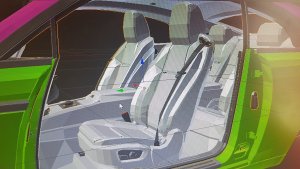

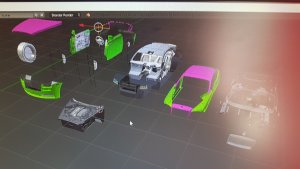

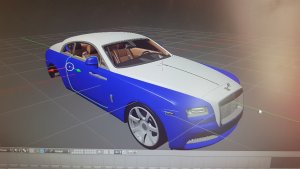

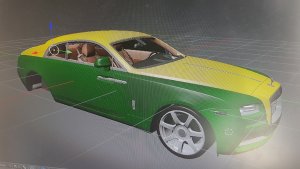

    These first pictures are the 3d model as it arrived in my possession. The bright colouring is to differentiate between the top and bottom colours.

    I separated some parts to make it easier to work with them.

    20180830_121019.jpg 20180830_121034.jpg 20180830_121057.jpg 20180830_120030.jpg
  6. xaero892

    xaero892 New Member

    Joined:
    Jun 10, 2016
    Messages:
    89
    Likes Received:
    86

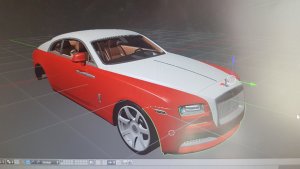

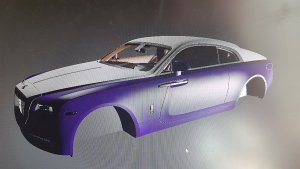

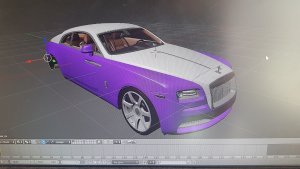

    Next the external colouring was worked out. I showed some different combinations to my boss and it was decided it should be purple and white. We both thought the purple should be darker to match the real twilight purple that we produce.

    20180901_133002.jpg 20180901_133156.jpg 20180901_133232.jpg 20180901_133336.jpg 20180901_133535.jpg 20180902_141611.jpg
  7. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    9,470
    Likes Received:
    4,848
    That's going to be some project. You may have to "wet mold" some of the paper to get those curves. :)
  8. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    8,163
    Likes Received:
    3,143
    This looks like it is going to be a very interesting project.
  9. xaero892

    xaero892 New Member

    Joined:
    Jun 10, 2016
    Messages:
    89
    Likes Received:
    86
    It will definately be "fun".
    Zathros, wet moulding may well be an advantage but I'll need some practice as I've not done it before.

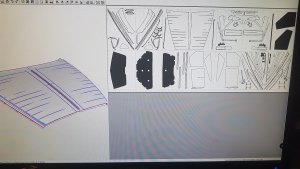

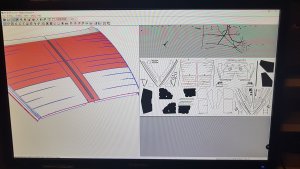

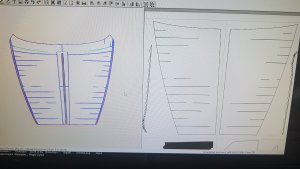

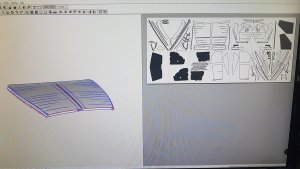

    I separated the parts into individual files for export, then loaded the bonnet into pepakura to begin arranging the template layout.

    The bottom picture is a semi-final layout after rearranging.

    20180902_221747.jpg 20180903_171510.jpg 20180908_185214.jpg 20180908_190333.jpg
    Revell-Fan and Rhaven Blaack like this.
  10. xaero892

    xaero892 New Member

    Joined:
    Jun 10, 2016
    Messages:
    89
    Likes Received:
    86

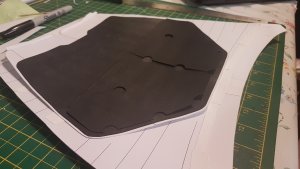

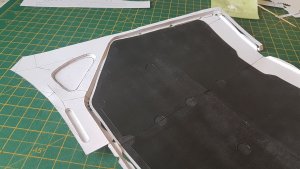

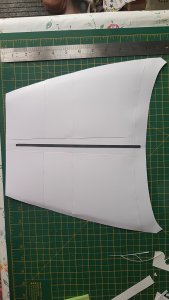

    Next comes the test build of the bonnet to see if / how it would all fit together.

    Please bear in mind that this is a test and the final model will be of better quality. ;)

    20180903_171338.jpg 20180904_184026.jpg 20180905_213606.jpg 20180910_115951.jpg
    I have got a little further with this but it's not quite finished. Also I have integrated another part to raise the heat shielding (the big black bit) on the underside to give it more relief.
  11. xaero892

    xaero892 New Member

    Joined:
    Jun 10, 2016
    Messages:
    89
    Likes Received:
    86

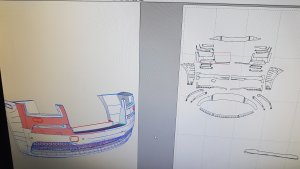

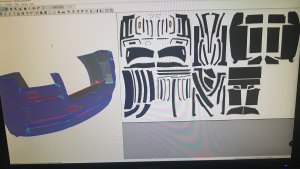

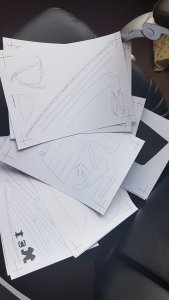

    During the bonnet build I have spent some time arranging parts for the front bumper. I will need to find some mesh for the lower grill but other than that it is ready for printing.

    20180906_211816.jpg 20180908_125356.jpg 20180908_183658.jpg
    That's it for now, more as it progresses. :):)
  12. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    9,470
    Likes Received:
    4,848
    Wow, your moving right along, very impressive!! :)
    xaero892 likes this.
  13. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    7,077
    Likes Received:
    4,725
    Extraordinary! Keep it coming, please! :)
    xaero892 likes this.
  14. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    9,470
    Likes Received:
    4,848
    Will they be allowing you to share this model? It's a blast just seeing you make it!! Just curious. ;)
  15. xaero892

    xaero892 New Member

    Joined:
    Jun 10, 2016
    Messages:
    89
    Likes Received:
    86
    The design of the car is common knowledge and lots of people have reproduced it in cg models already so I cannot see a problem. I will double check just to be sure.

    Also while I'm here, the texturing inside...

    Not sure how many of the switches will be buildable but I'm going to give them a go. ;)
    lyter1958 likes this.
  16. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    9,470
    Likes Received:
    4,848
    A lot of those switches can be made by lightly punching the back of the paper with a toothpick filed down (or other rod shaped tool) the diameter you need, against a firm but hard surface, like your cutting board. This will raise the button on the front panel, and give you the desired texture. You can do this with thin normal printer paper, then when done, glue that sheet onto the actual dash, and you will have your textured dash. You'll have to try a few methods to get the feel for it, but it works, and for many other features too. :)
    lyter1958 and xaero892 like this.
  17. xaero892

    xaero892 New Member

    Joined:
    Jun 10, 2016
    Messages:
    89
    Likes Received:
    86
    That's a great idea, will definately try that. Thanks Zathros, you're a legend. :Drinks:
