"Flying Dutchman" - Ghost Ship - OREL Russian Paper Model Build

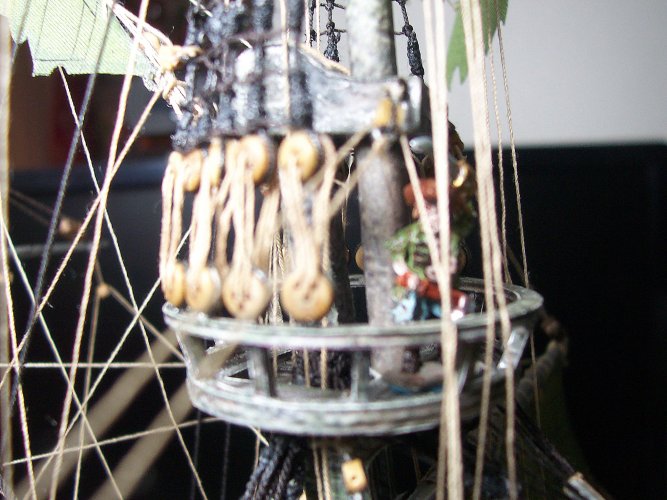

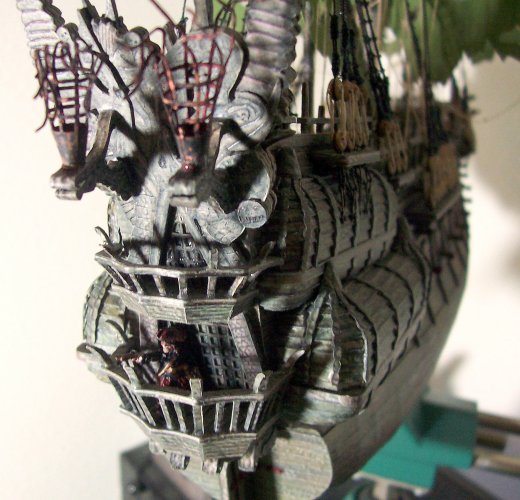

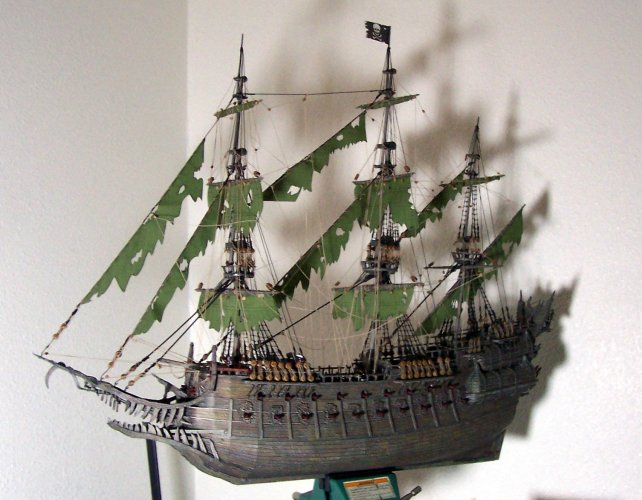

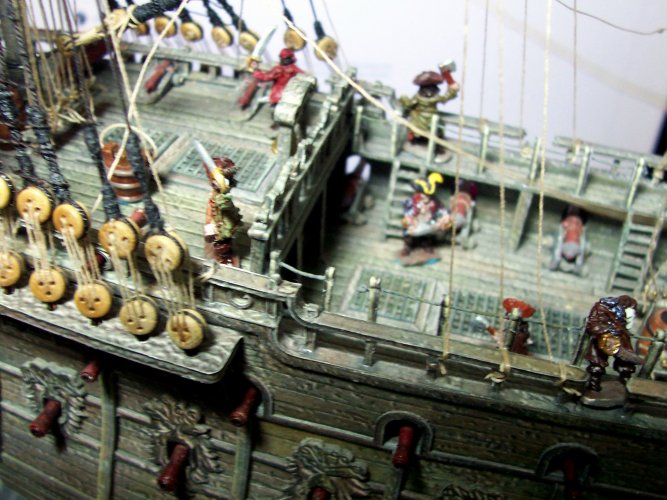

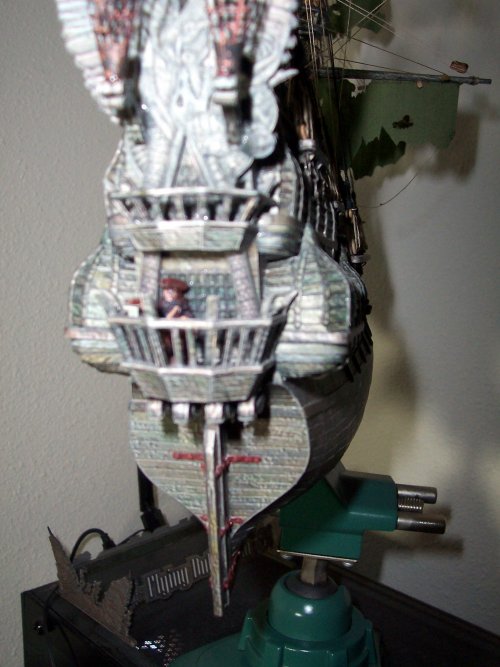

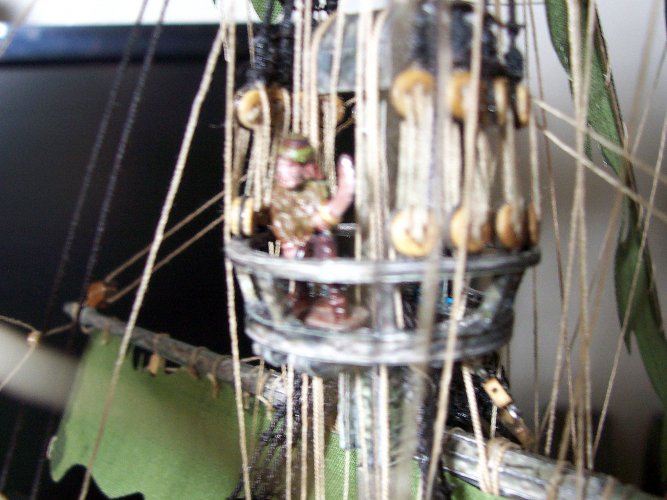

These are just a few development shots of the finished ship.


















I will take some beauty shots and add them here as soon as I can. Thank you all for commenting and supporting the build :toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::toast::)

This is the Orel Web site in the Ukraine where you can get one of these kits. I also bought the photo etch kit, the wooden masts kit, and the laser-cut parts kit, and the sails pack.

I have a "spare" Flying Dutchman Orel kit that I will be putting on eBay. I bought it as a backup in case something went wrong, but I didn't need it after all. I see that their Web site is currently not offering any models due to the terrible situation in the Ukraine where the company is located.

This is definitely a level 5 on the 1 thru 5 skill range. To build the model as you see it here, you will need to purchase many additional items. The instructions are very basic when it comes to rigging and other areas of the construction but I have done my best to include those areas in this build thread.

You will need the following items to build the basic version of the Flying Dutchman ship without rigging or sails.



Tools:
  1. Magnifying headgear, glasses
  2. Daylight fluorescent lamp X 2
  3. Darning needles
  4. Cutting mat (large)
  5. Metal clamps X 2
  6. Alligator clips X 2 (tiny size)
  7. Pencil
  8. French curve
  9. 6" steel rule
  10. 18" steel rule
  11. Post-it notes
  12. Pin vice
  13. Set of hair-drills index
  14. Power drill
  15. Masking tape, blue, 1/2" wide
  16. Various adjustable clamps
  17. Elastic bands (various sizes)
  18. Belaying Tools
  19. Scalpel
  20. Multiple sets of tweezers (different types)
  21. Ship Vise <----------- Essential from Harbor Freight
  22. Hemostats different types
  23. Modelling pins
  24. Sandpaper - 250, 400, 600 grades
  25. Artists brushes - small, medium, large
  26. Pipette
  27. Small wooden clothes pins
  28. Tiny Wooden clothes pins
  29. Soldering iron + solder + flux
  30. Lanyard creation tool
  31. Shroud creation tool (optional)
  32. Several cans of Red Bull
  33. Small flashlight
  34. Beeswax
  35. Sanding block(s)
  36. Nail-file sand paper sticks
Glues:
  1. White Alene's Tacky Glue
  2. Elmer's Extreme White Glue
  3. Elmer's Glue All
  4. Spray Glue
  5. Starbond Super Fast Thing CA Glue + Nozzles
  6. 5 Minute Epoxy Resin
  7. Blue Putty
Paints and Stains:
  1. Novacan Black Patina metal convertor
  2. Pewter gray acrylic
  3. Ivy Green acrylic
  4. Matt black acrylic
  5. Chocolate brown acrylic
  6. Gold
  7. Set of fiber color pens (for sail diagram mappings)
Rigging Items:
  1. Dead eyes
  2. 0.20mm dark color rope
  3. 0.45mm dark brown rope
  4. 0.75mm dark brown rope
  5. 1.00mm dark brown rope
  6. 1.50mm dark brown rope
  7. 0.20mm natural color rope
  8. 0.45mm natural brown rope
  9. 0.75mm natural brown rope
  10. 1.00mm natural brown rope
  11. Ships bell

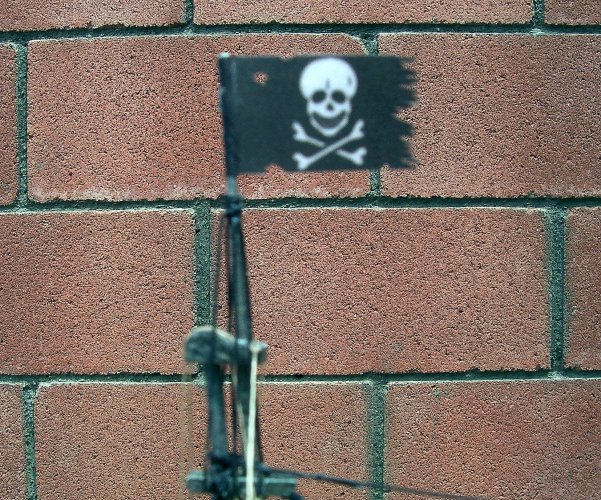

  12. Pirate Jolly Roger
  13. Barrels
  14. Buckets
  15. Tiny black nails
  16. Black sewing thread
Ships Specifications:
  1. Length = 21.5"
  2. Width = 7"
  3. Height = 18"
  4. Build Time = 1 year
  5. Build Hours = fulltime, every day and most nights
  6. Material = paper and cardboard. Wood for masts and yardarms
  7. Difficulty Level = Advanced

To be continued....

Last edited:
  • Love
  • Like
Reactions: Revell-Fan, tino, zathros and 2 others
This build was amazing I thank you for taking us with you during this build and for the historical notes. I love every piece of this model you put in so much time and love and it payed back. You have done an amazing job. Im wandering what you are going todo next.
Cheers on a job well done.
:CHEERS:

So, I went outside and was going to start taking some photos. Then, one of the guys that lives at the place we are staying, came out to see what I was up to. He asked a bunch of questions about the ship and one of them was what types of wood was it made from? :biggrin: I told him it was a paper model, and he wouldn't believe me! :eek: I said yes, its paper and cardboard for sure, I guarantee it! People don't realize how awesome paper is for model building it seems?

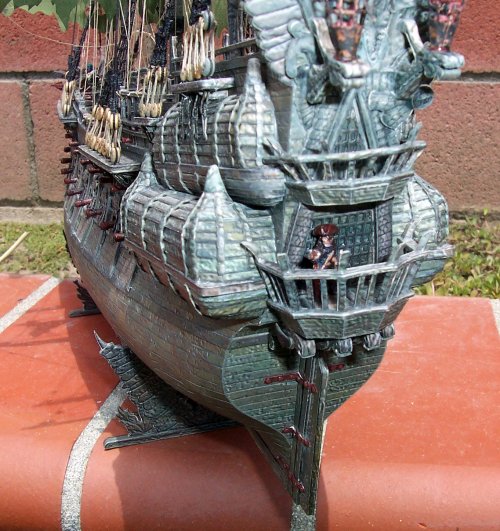

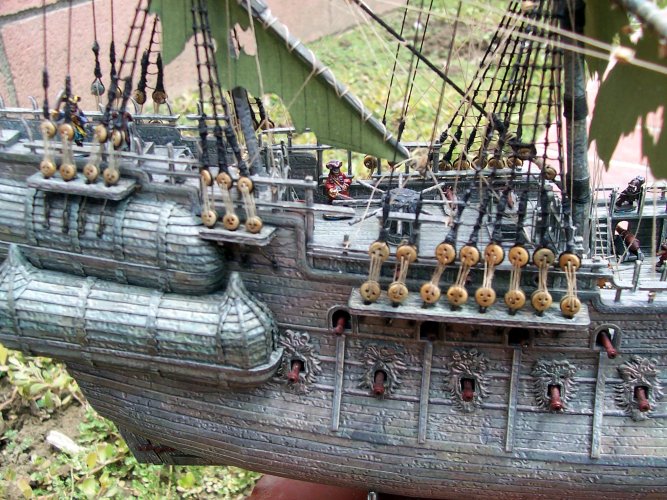

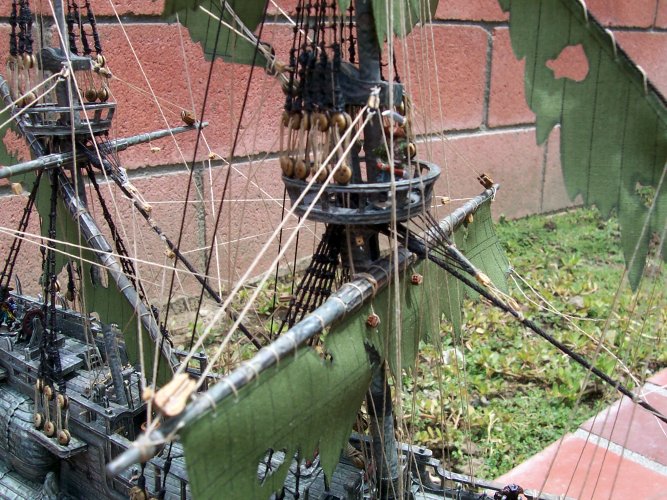

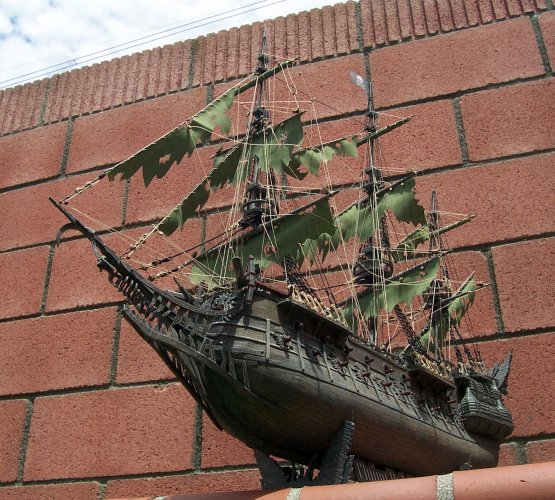

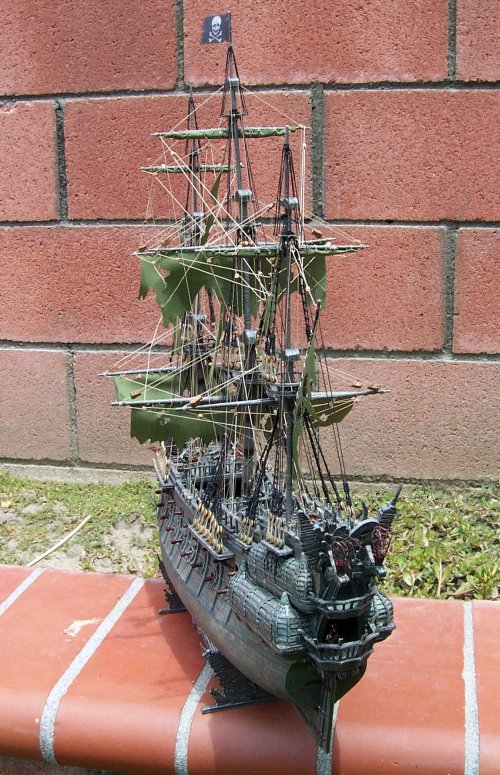

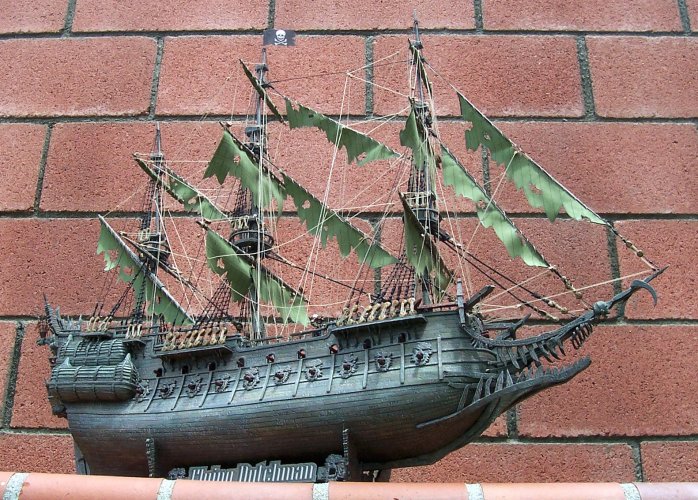

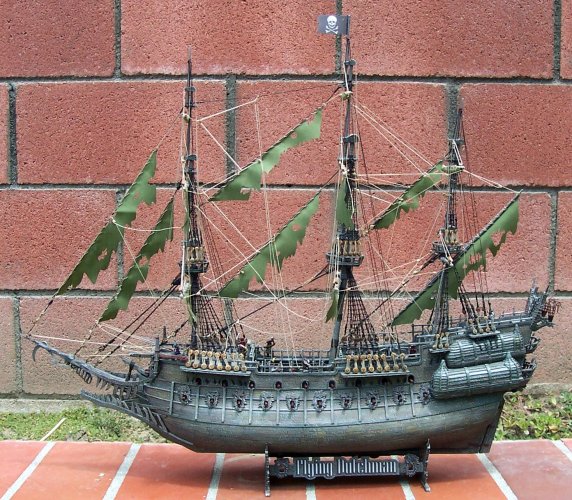

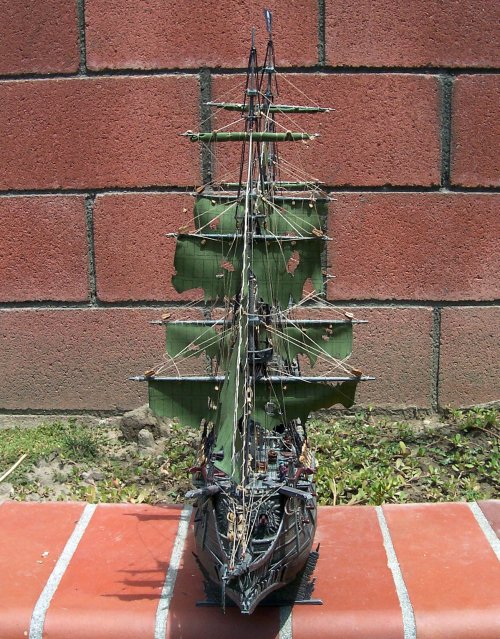

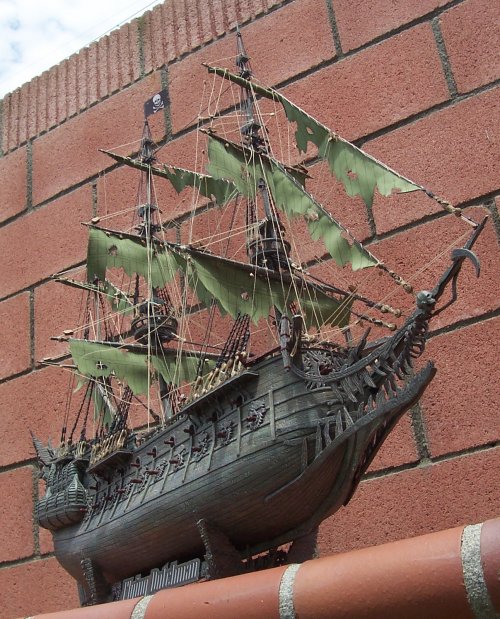

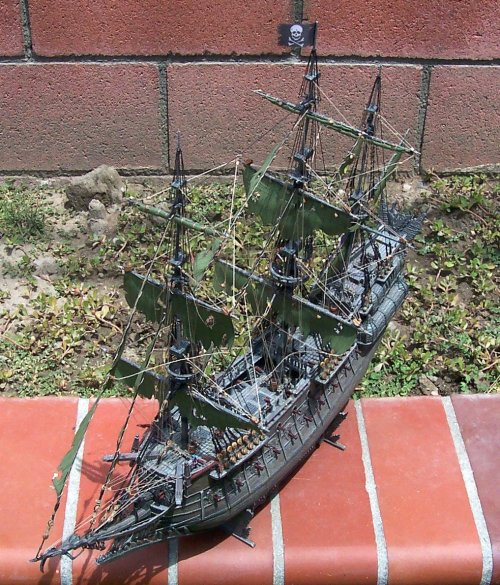

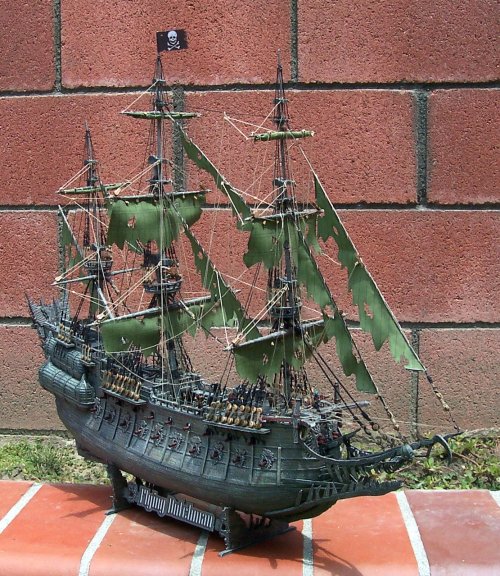

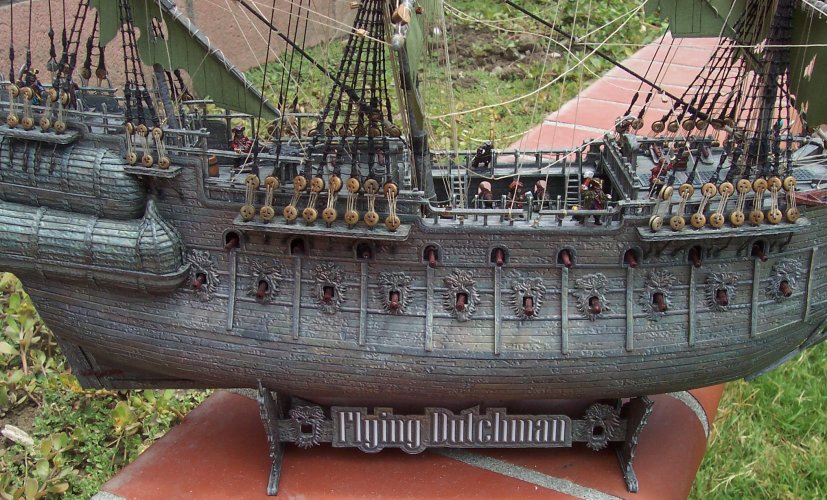

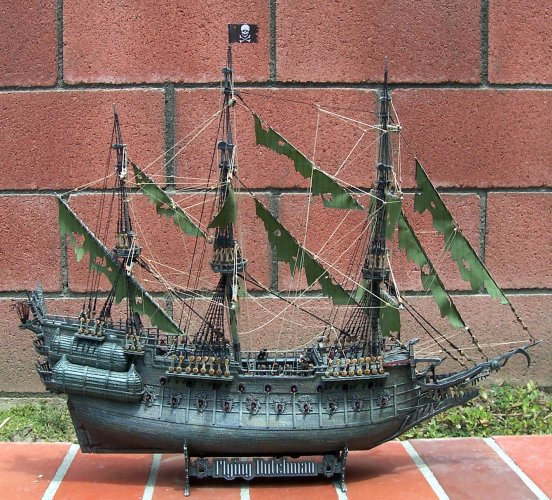

Here are the pictures


  • Love
  • Like
Reactions: Revell-Fan, micahrogers, Rhaven Blaack and 2 others
One of the most incredible threads I've ever followed, with a world class ship model at the end. You are in a very elite club of master modelers! :)

  • Like
Reactions: mijob, Revell-Fan and mtrappett
Awesome model!!
Your work, the entire thread, the picture, your explanations are top class. Congratulations!
Thank you for list of tools and other things.

  • Like
Reactions: mijob
Absolutely breath-taking! This model sets thebar higher. Your craftmanship, talent and attention to detail are amazing! It was an honour to be part of this journey. Thank you very much and CONGRATULATIONS on this masterpiece! :)

:BRAVO: :BRAVO::BRAVO:
