I may be wrong, but maybe those parts are meant to represent Velcro tape blocks, for 'sticking' things to, to stop them floating around in zero gravity.
The shuttle was covered in them!
1/12 Apollo Command Module
- Thread starter Kolokolnikov
- Start date
-
- Tags
- apollo command module
I may be wrong, but maybe those parts are meant to represent Velcro tape blocks, for 'sticking' things to, to stop them floating around in zero gravity.
The shuttle was covered in them!
Can you edit the model? I would see all the walls without the seats installed.
If it's not difficult for you, can you take this kind of pictures inside?
Yes you're right, it's Velcro blocks, I found them in almost all the photos I found.
No, you probably did not understand me. You are flying in the viewer on the site. Look there is a button to download the complete model for Blender.
@mijob :

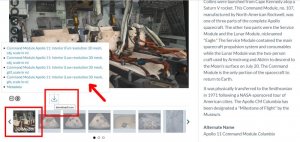

When you click on the 3D Model on the bottom there is a download tab. If you click on it several file options are displayed. When you click on one the 3D file is downloaded.
I would give it a try but I have no idea how to open them. In addition, I don't have enough highspeed volume left to DL such a big file.
When you click on the 3D Model on the bottom there is a download tab. If you click on it several file options are displayed. When you click on one the 3D file is downloaded.
I would give it a try but I have no idea how to open them. In addition, I don't have enough highspeed volume left to DL such a big file.

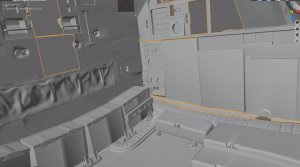

I have downloaded the file and opend it in blender. Only problem is I never worked with Blender.
This is the only picture I could get.
I will try it later this evening.
This is the only picture I could get.
I will try it later this evening.
If you managed to open the file, can I ask you to resave it to a different format, for any other 3D software?
I don't think you should download such a huge file. Here is a link to the unpacked archive.
Microsoft OneDrive
1drv.ms

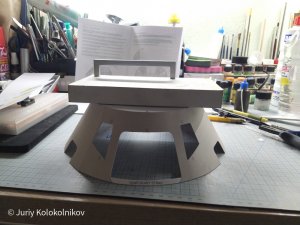

To further simplify the assembly of the interior, I decided to assemble the skin. Since for me this is the first experience of forming such thick sheets (0.21 + 0.5mm), I did not ideal form parts and the structure turned out to be not straight. For leveling, I put a 3kg press on it overnight. I'll see if I can align it in this way.
- Apr 5, 2013
- 13,498
- 9,549
- 228
Yes, we just discussed the model from this tour.
- Apr 5, 2013
- 13,498
- 9,549
- 228
I suggest you use XNViewMP, it is FREE. I've been using it for over 10 years. You press the PRT/SCN button on the picture you want, the open XNView, and import the "Clipboard", and you can crop and do whatever you want with the picture and save it in a variety of formats. This would give you the ability to make parts using Paint, right off of the pictures. This way you can rotate the model to the orthgonic view you wish and take a screen grab. This pic you could scale and use as the part for your capsule.
Link= https://www.xnview.com/en/xnviewmp/
Link= https://www.xnview.com/en/xnviewmp/
- Apr 5, 2013
- 13,498
- 9,549
- 228

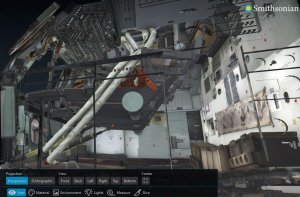

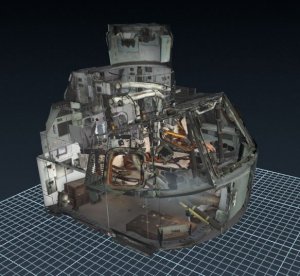

Looking at your conversation, I've concluded you should look at the 3D model tour online, not download it. Online the display has all the tools to the left to manipulate the views. Using those view controls can get you right in front on any panel you wish, then do what I suggested above, using XNViewMP, and crop the images to size, and using "Paint" or some othr photo editor to make the control panels to the scale you wish. You would end up with actual control panel pictures to work with which you could copy, or use as is, and stick the Switches on. I would not download such a file and try and use it, there's no need, when the link I provided sends you to the working 3D online manipulation of the 3D model. This is not what I have read in the preceding discussion. The link I provided is to the online 3D Model manipulation page, unless I've missed something here?
Thanks, I will try both ways. Only I didn't manage to control the camera in the 3D tour, maybe I need to change the browser.Looking at your conversation, I've concluded you should look at the 3D model tour online, not download it. Online the display has all the tools to the left to manipulate the views. Using those view controls can get you right in front on any panel you wish, then do what I suggested above, using XNViewMP, and crop the images to size, and using "Paint" or some othr photo editor to make the control panels to the scale you wish. You would end up with actual control panel pictures to work with which you could copy, or use as is, and stick the Switches on. I would not download such a file and try and use it, there's no need, when the link I provided sends you to the working 3D online manipulation of the 3D model. This is not what I have read in the preceding discussion. The link I provided is to the online 3D Model manipulation page, unless I've missed something here?

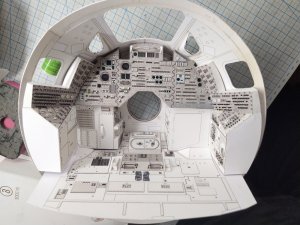

Progress is slowly moving. After assembling the main elements of the skin, I installed the finished parts on dry. I already like the result, but I have to align and glue everything very precisely, in such a space it is rather difficult.
- Apr 5, 2013
- 13,498
- 9,549
- 228
Fantastic. I use Firefox s my Browser. The 3D manipulation has a feature to give you orthogonic view, numbered 1-40, I believe. You really happy to play with the the paning controls to get the hang of it. It took me 10 minutes to finally get it, but I'm not that bright of a bulb.
Yesterday I started to make lighting, started selecting LEDs, and found a discrepancy in the floodlight fixture. Ken presents them as a simple flat object, but in reality they have a different shape.

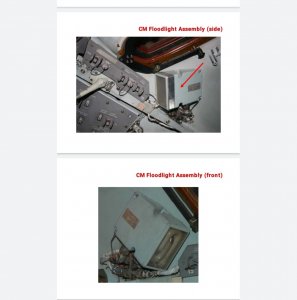

Link to document with phots and description.

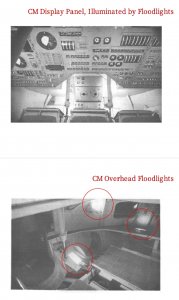

Real photos

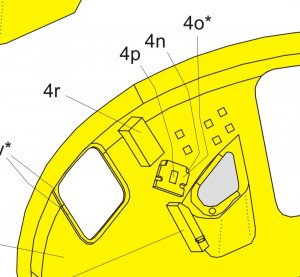

Ken`s version, parts 4p 4n 4o*
Also in this document I found more interior lighting. But I have not yet found what they look like and where they are located exactly.
Link to document with phots and description.
Real photos
Ken`s version, parts 4p 4n 4o*
Also in this document I found more interior lighting. But I have not yet found what they look like and where they are located exactly.
