Yard planning help needed

Discussion in 'Track Planning' started by spitfire, Mar 25, 2004.

  1. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Wow - those are majorly cool!!! Thanks a lot Chris! I can see that if I had that software I would never get any real layout building done!!!

    :thumb: :D :cool: Val
  2. cidchase

    cidchase Active Member

    Joined:
    May 15, 2002
    Messages:
    1,640
    Likes Received:
    0
  3. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    re: trainclown's yard

    that second yard looks like you could operate it as its own thing. you could close that loop and have a 'just watch em run' oval, too
  4. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    I like the idea of a return loop for your plan Val. Train Clown's first diagram really appleals to me as a solution. Nice graphics, btw TC! I see a lot of staging advantages over a point to point scheme and you'll also be able to send a train out and back from the industrial switching area if you want...the closest thing to continuous running. Sometimes its just fun to watch a train move. :)
    Ralph
  5. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,949
    Likes Received:
    0

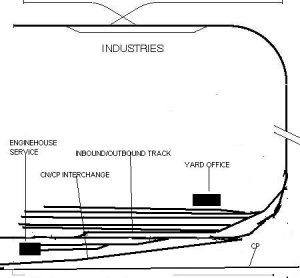

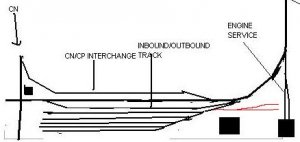

    Val Here is one idea of many base on your plan...The engine house/service area is optional.

    Attached Files:

  6. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Thanks a lot Brakie - it looks great!! I like the way you worked in an interchange with CN, although I'm going to change that to the CP track and the yard is CN. I also like that I won't need a small fortune in turnouts!!

    :thumb: Val
  7. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Looks like you could also add a track for cabeese and/or MOW and/or RIP :D I like the plan :D

    Don't worry about the turnouts Val, that's why they pay your baronesses the Big Bucks :D :D :D

    Attached Files:

  8. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,949
    Likes Received:
    0

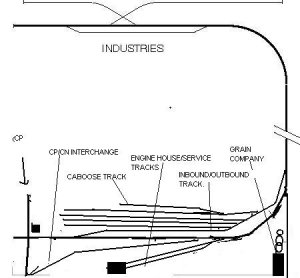

    Val,Here is idea number 2.

    Attached Files:

  9. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,949
    Likes Received:
    0

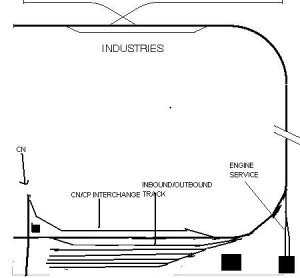

    Heres idea number 3.

    Attached Files:

  10. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Wow, thanks a lot Brakie!! :thumb: :thumb: :thumb: I have a lot to mull over now.

    Val
  11. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,949
    Likes Received:
    0

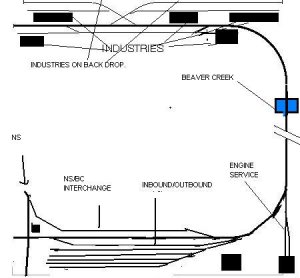

    Val,Here is the Beaver Creek Ry.like I mention in the chat room.Beaver Creek is located by Dayton(Oh).

    Attached Files:

  12. DaytonTrainDude

    DaytonTrainDude New Member

    Joined:
    Dec 5, 2003
    Messages:
    28
    Likes Received:
    0
    My brother used to live in Beavercreek. Nice place!:)
  13. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,949
    Likes Received:
    0
    A little more about the Beaver Creek Ry.The layout concept is totally Vals..I just added 3 different yards ideas for her to mull over..
    Now while I was doing the yards I started to think how I would improve this layout to my tastes.Being a big short line fan I wanted to see what I could do in that regard using a point to point design like Val's since I like that open running between the yard and industries since this puts "miles" between the two points.A very clever idea.:D So the Beaver Creek Ry was born.
    The history.
    This industrial branch was once part of PRR then PC then CR and finally NS after the NS/CSX buyout of Conrail.This branch was sold in 1998 under the Thoroughbred short line program to the Greater Dayton Port Authority.The GDPA looked for a railroad to operate this section of track and serve the industries of the Miami Valley Industrial Park Association located outside of Beaver Creek.The winning contract went to CDB Industries.This company is the parent company of 7 short lines to include the C&HV Ry.Operations commence on this line in 1998 after some yard track was laid and upgrading of track where needed.
    Locomotives.
    The CDBI chose to use 2 EMD SW1500s for motive power.These are exNS units bought used from NS.Any EMD Switcher or Geep could be use as well as Alcos,Baldwins or FMs depending on your tastes.For steam I would use a 0-6-0T,a small 2-6-0 or a small 2-8-0.There would be no need to turn the engine as it can return to the yard tender first-not uncommon in the days of steam on short lines or intercity industrial locals or transfer runs.
    Operation.
    I designed the upgraded layout with day to day modern short line operations in mind so,with that thought I decided it was not necessary to switch each industry during a operation session A typical switch job could be 1-7 cars long as per traffic and customer demands.Sometimes it could be no more then a light engine move to pick up outbound cars ready for pickup at the industries.
    Type of cars needed..My preference would mostly boxcars,covered hoppers and tank cars..Of course any type of car could be use to suit your tastes..
    Industries: I have not put much thought into this for the time being but any type of industry found in a industrial park would work..
    I got the idea for using SW1500s from these photos posted by Papa Bear..

    http://www.the-gauge.com/forums/showthread.php?s=&threadid=9004

    Please scroll down and check these pictures out...
  14. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Sounds neat Brakie. I'm assuming based on the 2 ft. width you mentioned in the chat that you're going to have mainly flats and/or very shallow industries.

    I'd like to reccommend the City Classics building components. They're a curtain-wall design and you can build as wide and tall as you want. I've used them extensively to make a background building on my industrial area.

    Val
