Yard planning help needed

Discussion in 'Track Planning' started by spitfire, Mar 25, 2004.

  1. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    I'm looking for yard plans for an area that would be 10 ft long and could be between 30" - 48" wide. (it's not built yet so I have some flexibility). My layout when finished, will be point-to-point, with the yard at one end and an industrial switching section (already built) at the other end.

    I don't know much about types of yards, division point, classification, engine servicing etc. Which type has the most operations potential? I'd like the option of using the yard for staging when I want to switch the industrial area, or conversely, using the industrial area as staging when I want to operate the yard.

    Does anyone have any suggestions as to what kind of yard would work best for my purposes, and/or any trackplans that would fit my space?

    Any help will be greatly appreciated. :D :D :D :D Thanks!!!

    Val
  2. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Hi Val,

    Here is the plan for the yard we use at the modular club set-ups:

    Walkley Yard

    See also www.hotrak.ca (the club site).

    Walkley Yard is about twice as long as you have space for, but the design of the entry/exit may help you.

    Andrew
  3. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
  4. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
  5. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Thanks very much everyone. Lot's of great links there and it looks like lots of reading and learning for me!!!

    :thumb: Val
  6. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    The Orangeville yard is part of a layout that is occasionally open. I have emailed the owner (link on the site) and he has been very helpful with info and an invitation to attend. Too far from Ottawa, but maybe do-able from T.O.?

    He has also created the yard at (almost) full size for HO - I think he said he needed another foot. As it is the yard is about 25 feet long!

    Andrew
  7. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Hi Val!
    I don't know how much expert advice I can offer here, but one thing I've really come to appreciate in model railroading (& life in general) is SIMPLICITY...
    Regardless of the terminology used, or whether your yard has 2 tracks, or 20...the yard has a simple function...it's an area where cars are parked, stored, & then reassembled into trains (or, in the modelers' vernacular, "staged")
    These are the functions you need to keep in mind pertaining to your layout...

    Also, don't lay any tracks or turnouts that you can't EASILY reach, especially when it pertains to a yard...in other words, if your benchwork is against a wall, I would make 30" the maximum width...
  8. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    That is correct Andrew, the whole yard would be 25.5' by 5' if done to HO scale.

    I compressed it to 2x6.5' in N Scale for my layout.
  9. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Calories are expensive, so I try to conserve all I can. Keeping this in mind, I would modify this rule to keep the yards within easy reach from one side of hte layout, wall or none, and put the operators controls there too.
  10. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Charlie, your point about reach is something I've considered. There is an electrical service panel against the back wall and I want to keep a clear laneway to that, which would also provide access to the other side of the yard. I haven't built the benchwork for this section yet. The rest of the benchwork is against 2 walls and is 32" wide (with track no further than 24" from the edge. This section would actually be a peninsula.

    I'm not sure if I want to build it wide enough to have a return loop, or whether I want to keep it as a true point-to-point.

    Another thing is that I'm not really interested in having a roundhouse or major engine servicing. I find they eat up too much valuable space (and money!). If I had more room it would be fun, but I'd rather have maximum track, and pretend it's somewhere further on, ie beyond the layout. I wouldn't mind having some kind of fueling (I operate both steam and deisel), but again this is not essential.

    Val
  11. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Val - if you do not want or don't have space for a turntable, you might want to consider a return loop or wye so the engines can be turned.

    Andrew
  12. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    Val, when it comes to your electrical panel, I would check it out. In our club room, we were told we had to keep 3' clear from the panel.

    Andrew, it takes more space for a wye or return loop, a turntable is the smallest footprint.
  13. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Yes, but a loop around the outside and end of the yard is doable with a few lengths of flex track, while the (for example) Walthers' ready-to-run turntable will set you back msrp US$300 :eek:

    Andrew
  14. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Yes Will, that's the information I have too. In any case, I sometimes have the cable guys messing around in there replacing service and even without this clearance rule I don't want those idiots anywhere near the layout!!!!

    Val
  15. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    I think that is why they put in the 3' rule wasn't it?

    Not for anything to do with the panel, it was to do with the calibre of the service droids they send in.
  16. TR-Flyer

    TR-Flyer Member

    Joined:
    Nov 25, 2001
    Messages:
    554
    Likes Received:
    0
    Hi Val:
    So, if you're keeping 3' clear in front of the panel, you can make the yard 4-5 feet wide cuz you'll be ble to get to it from both sides.

    Also, Check out the library, or the "Books list" here on the gauge, The book on model railroad operations has a lot about different types of yard s and their functions.

    Regards,
    Ted
  17. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    A Clown with idle time

    Soooooooooo, here I sits and doodlin' around with 3rd PlanIt.

    I came up with a couple of idears for ya.

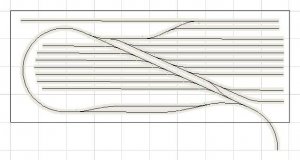

    First one is the simple one.

    Attached Files:

  18. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    Yup, I said it is the simple one. :D

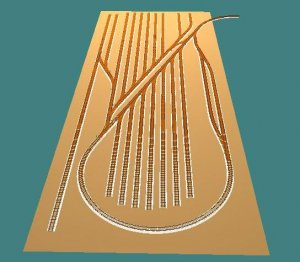

    Here is a 3D image of it.

    Attached Files:

  19. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0

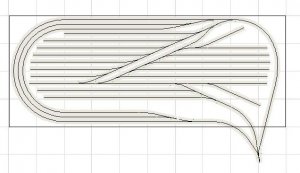

    This next one has more opporational stuff to do, and is more fun....................................I think.

    Probably will give Brakie eye strain :p :D ;)

    Attached Files:

  20. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0

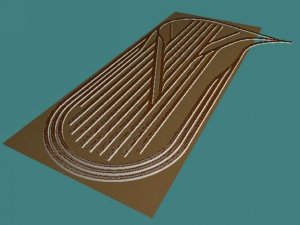

    And once again in 3D.

    Food for thought.:eek:

    Have fun

    TrainClown

    Attached Files:
