Walk thru Duck Under

Discussion in 'N / Z Scale Model Trains' started by Bill Pontin, Nov 1, 2005.

  1. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0
    Walk thru Module

    Tired of having to crawl on my knees under the "Duck under" at our NTrak show layouts. Several clubs have a lift type gate, but I wanted to be different, guess that is what happens when you retire and like to play with wood. Still have a ways to go and several bugs to work out, but here is my idea of a Gate Walk Thru.

    Attached Files:

  2. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

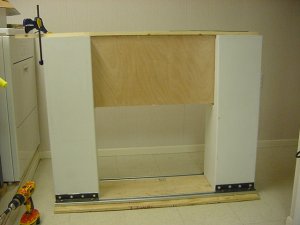

    Sorry posted the wrong picture - here is the gate closed

    Attached Files:

  3. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

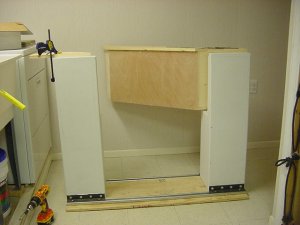

    Here is the gate completly open. 28" wide walk=thru

    Attached Files:

  4. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

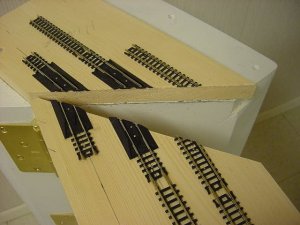

    Using a 45 degree opening so as the cuts will be staggered.

    Attached Files:

  5. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

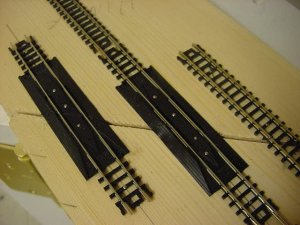

    Ignore the Red line, did not have another Atlas re-railer crossing for testing
  6. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

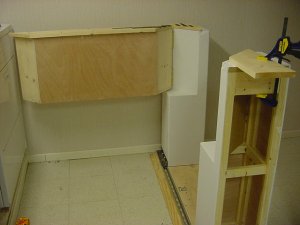

    with gate opening

    Attached Files:

  7. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

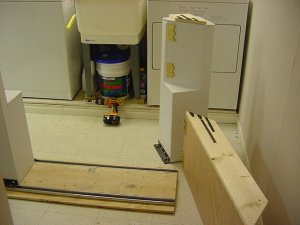

    I can break the entire 4'gate down into four pieces for transporting.

    Attached Files:

  8. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

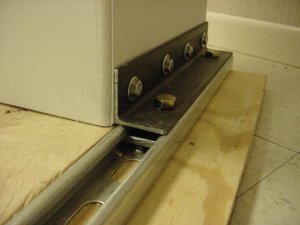

    For clamping the towers I used a piece of electrical channel, (don't know what is called) It is 1 and 1/2" wide x 3/4 high. I used 1 1/2" angle barstock bolted to the towers and 1 1/2" flat barstock for clamping.

    Attached Files:

  9. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

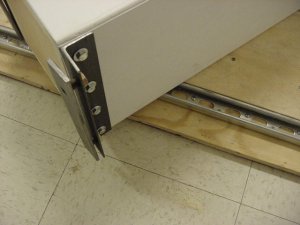

    Here is another view of the tower clamping mechanism.

    Attached Files:

  10. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

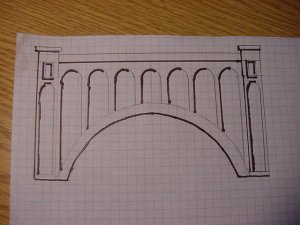

    Still have a long ways to go and some electrical bugs to work out. So far the I am pleased with the strength and alignment of everything. Planning on using some veneer on the gate face to make it look like a bridge. Something like this -

    Attached Files:

  11. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    6,794
    Likes Received:
    0
    Great Stuff!!!! Cool Idea!!!
  12. ls1gto

    ls1gto Member

    Joined:
    Sep 24, 2005
    Messages:
    70
    Likes Received:
    0
    Sweet! Nice work!
  13. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    4,856
    Likes Received:
    0
    I was going to say that looks like the heaviest N-trak I've ever seen.
    Nice design as it looks as if you can compensate for shrinkage/expansion of the wood.
    Will you wire through the electrical channel? Are there controls to keep the trains out of the gap?
  14. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    776
    Likes Received:
    0
    WOW, that has to be one of the best pieces of benchwork I have ever seen. Come to think of it, it's better than some of the furniture I own. NICE work!:thumb:

    Ya have to admire quality work.
  15. SD90

    SD90 Active Member

    Joined:
    May 23, 2003
    Messages:
    1,150
    Likes Received:
    0
    Great idea! Looks good, I like the idea of using the re-railers for the joint!
  16. ausien

    ausien Active Member

    Joined:
    Sep 14, 2004
    Messages:
    1,047
    Likes Received:
    0
    Nifty idea, Bill a smart idea from a smart man, wish I thought of it... may borrow your brain wave myself....have a good one ..steve
  17. Sir_Prize

    Sir_Prize Member

    Joined:
    Mar 5, 2001
    Messages:
    841
    Likes Received:
    0
    Hmmm.. A few more more pics from the "in progress" and I think it would be Academy worthy. I'd vote for it at this piont.
  18. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,412
    Likes Received:
    0
    That is one fine idea and well built.:thumb: I would think that you might want to add a power cutoff switch to remove rail power to the adjacent rails when the gate is open. Just a thought.:D
  19. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0
    Powering the rails will be no problem that I can see. Shutting down rail power, when the gate is open, is where I am stumped. Interlocking the modules electrical connection to the an open gate wouldn't be a problem either. Unfortunately we have some speed demons in the club and a short 10" of dead track before the precipice is insufficient. Ideal solution is with longer hookup leads that connect to the far end of the two adjoining modules. This would require insulating the connecting tracks which is unfeasible.

    Been thinking along the lines of hooking up a loud and annoying buzzer or bell when the gate is open. :D
