USS Cairo Test Build

Discussion in 'Ship & Watercraft Models' started by fishBait, May 23, 2012.

  1. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    The test build has started and pictures here will follow the build. Three errors in the prototype sheets have been caught (one
    a major fix) and corrected.

    1) View of a couple of the prototype parts sheets.

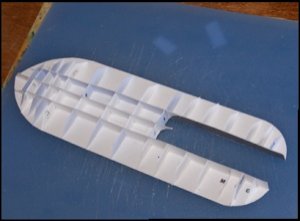

    2) Shot of the hull top with formers installed.
    3) Closeup shot of the hull top and formers showing the wheel well braces installed.
    4) Same shot as #3 showing side wheel well brace installed on one of the side keels.

    fishBait

    Attached Files:

    • p01.jpg
      File size:
      23.4 KB
      Views:
      24
    • p02.jpg
      File size:
      22.1 KB
      Views:
      16
    • p03.jpg
      File size:
      22.1 KB
      Views:
      23
    • p04.jpg
      File size:
      22 KB
      Views:
      17
  2. Zathros

    Zathros Guest

    It looks like it's going to be a nice model. A representation from that era that was real!!

    [​IMG]

    As she rests today:

    [​IMG]
  3. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    Continuing the build. I will keep the graphics numbers in order for future reference.

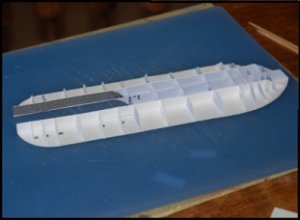

    5) Completed hull, the main deck just cut from the parts sheet, and the casement assembled with formers.
    6) Same as #5, but from a different angle to show the wheel well on the hull.

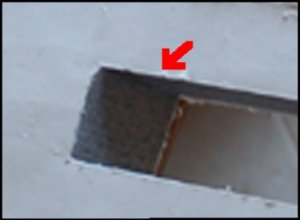

    7) Closeup of #6 showing the wheel well cover installed on the formers (see #3).
    Tomorrow, hopefully, we will be installing the casement on the hull and setting the stage for adding upper details.
    fishBait

    Attached Files:

    • p05.jpg
      File size:
      24 KB
      Views:
      23
    • p06.jpg
      File size:
      22.4 KB
      Views:
      18
    • p07.jpg
      File size:
      19.9 KB
      Views:
      17
  4. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    Thanks Zathros. I have really enjoyed the design and now the building. I have wanted a USS Cairo ever since I visited Vicksburg right after they raised her. They were just getting the keel and hull laid down.

    Nest is the USS Benton and USS Essex followed by the USS Deleware.

    fishBait
  5. Zathros

    Zathros Guest

    You do great service to the collective memory of our country by preserving these ships in model form, and by offering them for FREE, you keep it accessible to everyone. That is awesome! :)
  6. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    Now install the paddlewheel and casement on the hull. The first step is simply gluing the Casement Bottom (main deck) on top of the hull. Watch the alignment here. Alignment is more critical at the stern at this point. If it is too short at the bow, no problem. If it is too long, it can be
    trimmed later. Just make sure the stern is in allignment.
    Yes Virginia, there should be a photo of the hull with the main deck mounted on it. That is one that got away from us.
    8) The USS Cairo should now look like this from the bottom, the white underside of the main deck clearly
    visible.
    9) Cut a strip equal to gap width between the hulls and longer than the gap. Assemble the paddlewheel on the strip 1/8 inch back from one end.
    10) Slide the strip with the paddlewheel into the gap area and properly align it. Mark the main deck stern on the strip; remove and trim to length. Apply glue to the main deck undersides in the gap; reinsert the strip and paddlewheel; align carefully and press down to make a good glue joint.
    11) The USS Cairo should now look like this from the pottom.
    Continued,
    fishBait

    Attached Files:

    • p08.jpg
      File size:
      22.9 KB
      Views:
      15
    • p09.jpg
      File size:
      23.2 KB
      Views:
      19
    • p10.jpg
      File size:
      25.1 KB
      Views:
      18
    • p11.jpg
      File size:
      23.7 KB
      Views:
      16
  7. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    12) Test fit the casement on the hull. Fit should be good, but you may have to do a little trimming here. Critical alignment is at the forward end of the casement. When the fit is good, glue the casement to the hull.
    13) Another view.
    14) and one more.
    The Cairo is starting to resemble a Pook Turtle. Next we start adding top side detail. But that is another story.

    fishBait

    Attached Files:

    • p12.jpg
      File size:
      22.9 KB
      Views:
      16
    • p13.jpg
      File size:
      22.1 KB
      Views:
      16
    • p14.jpg
      File size:
      22.9 KB
      Views:
      18
  8. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    After the last post, a serious design flaw was discovered while preparing this post. Some redesign was necessary, and the last two posts must be replaced and the work redone.

    Restart at Step #8, mentally delete the previous steps 8-14. Here are the new steps 8-14:

    We will now install the paddlewheel and casement on the hull. The first step is simply gluing the Casement Bottom (main deck) on top of the hull. Watch the alignment here. Alignment is more critical at the stern at this point. If it is too short at the bow, no problem. If it is too long, it can be trimmed later. Just make sure the stern is in alignment.
    8) Main deck installed on the hull.
    9) The USS Cairo should now look like this from the bottom, the white underside of the main deck clearly visible.
    10) Cut a strip equal to gap width between the hulls and longer than the gap. Assemble the paddlewheel on the strip 1/8 inch back from one end.
    11) Slide the strip with the paddlewheel into the gap area and properly align it. Mark the main deck stern on the strip; remove and trim to length. Apply glue to the main deck undersides in the gap; reinsert the strip and paddlewheel; align carefully and press down to make a good glue joint.
    12) The USS Cairo should now look like this from the bottom.
    13) Cut out and assemble the casement. Assembly is straight forward, but has has two unique aspects. First, there are two stiffners glued to the inside top of the casement for strength. Second, the four corners do not meet perfectly, but are offset (see next graphic).

    More follows,

    fishBait

    Attached Files:

    • p08.jpg
      File size:
      22.9 KB
      Views:
      15
    • p09.jpg
      File size:
      22.9 KB
      Views:
      16
    • p10.jpg
      File size:
      23.2 KB
      Views:
      15
    • p11.jpg
      File size:
      25.1 KB
      Views:
      13
    • p12.jpg
      File size:
      23.7 KB
      Views:
      15
    • p13.jpg
      File size:
      22.2 KB
      Views:
      15
  9. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0

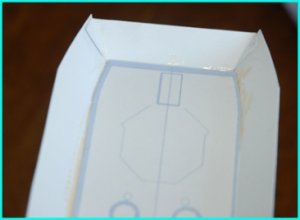

    14) Closeup of one end of the casement underside. The offsets at the corners are correct.
    15) Cut out the casement formers and mount them on top of the main deck. I used scrap paper to make them double thickness and added scrap paper re-enforcement.
    16) Test fit the casement over the casement formers and main deck. The bow and stern armor should meet the main deck at the light gray join lines. The side armor should fit down and around the main deck meeting the hull armor in the classic Pook Turtle fashon (see graphic). If necessary, trim the casement formers to avoid distorting the casement. Glue the casement to the main deck and formers.
    17} Another view showing the casement fit and overlap.
    18} Examining the photo of the actual USS Cairo, the sharp demarcation line between the heavy armor and lighter armor on the sides is clearly evident.
    19} Trim the casement overlap around the joint with the hull making a smooth transistion. Cut out, bend and glue the heavy side armor on each side. Be careful of the alignment. Notice the glue joint on the bottom of the heavy armor has sprung loose. I pushed the drying time to get the post on tonight. Don't worry, I fixed it.

    More follows,

    fishBait

    Attached Files:

    • p14.jpg
      File size:
      20 KB
      Views:
      16
    • p15.jpg
      File size:
      23.1 KB
      Views:
      12
    • p16.jpg
      File size:
      22.9 KB
      Views:
      14
    • p17.jpg
      File size:
      24.6 KB
      Views:
      16
    • p18.jpg
      File size:
      23.4 KB
      Views:
      12
    • p19.jpg
      File size:
      22.7 KB
      Views:
      13
  10. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,524
    Likes Received:
    2,460
    You are doing a really good job in designing this model. I like how you are chronicling your steps carefully throughout your build.
    I also like fact that you are putting formers throughout the model.
    It looks lie it will be a fun build.
    keep up the great work.
  11. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    Thanks for the kind words. Will try to keep it going in the same manner.

    fishBait
  12. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    23) If the optional add on gun port covers are desired, cut them out and glue them on over the preprinted locations. Now we will also insall the forward gunnels. This is a fairly difficult procedure. Pick one side of the Cairo and cut out the forward gunnel for that side. Test fit and make sure that the angle between the casement and gunnel is correct; if not adjust and test fit again until you have a good fit. TRIMMING IS A NECESSITY! Glue the gunnel on with a butt joint to the bow armor and a short run on the main deck.

    24) Now glue the gunnel on around to the apex of the bow. The gunnel should transition from the angle at the bow armor to perpendicular or near perpendicular to the main deck at the bow apex. Let dry throughly before attempting the other side. Repeat on the other side of the Cairo and join the two gunnels at the bow. Again, allow to dry throughly. At this point, we have another decision to make. The inside of the gunnels are glaringing white.

    25} If desired, install the three piece interior gunnel wall. Cut out both interior side gunnel walls. Again, trim to fit your Cairo at the joint with the bow armor. Allow to dry until stable! Cut out the third interior gunnel wall piece, the apex. Fold in the center and crease, printed side in. Apply glue and use a toothpick to press the crease into the bow gunnel apex (red arrow). Then make sure that each side attaches to the interior gunnel wall while making sure that the apex is secure.

    26} The USS Cairo forward deck is now complete.

    Stay tuned to this station. Next, we will give the same treatment to the stern area.

    Attached Files:

    • p23.jpg
      File size:
      23.3 KB
      Views:
      14
    • p24.jpg
      File size:
      23.2 KB
      Views:
      17
    • p25.jpg
      File size:
      22.7 KB
      Views:
      15
    • p26.jpg
      File size:
      23.7 KB
      Views:
      17
  13. Zathros

    Zathros Guest

    Very nice! I too am impressed with the formers in what must be a very rigid hull. :)
  14. vbsargent

    vbsargent Member

    Joined:
    Apr 17, 2008
    Messages:
    188
    Likes Received:
    3
    I have to admit that I'm not particularly interested in ironclads, but this one has piqued my interest. I like the treatment you are giving to the Cairo. The graphics are nice and clean, the assembly seems a good blend of simple cut & paste with elements of scratch building. Could serve as a good introduction to more advanced methods used in paper modeling.
  15. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    I agree, the hull and casement together is as rigid as any plastic model I have built. Very strong. I am considering using the technique on future HO models to handle the track and train weight.

    fishBait
  16. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    Thank you for your kind words. I would add two comments to your observations. 1) This is my first design of a papermodel, but even if it were not, should not the test build of any new model design be considered scratch building? 2) Tabs I do not mind, that is tabs that fold and attach to the opposing part. Slits I do not like at all and have trouble cutting them and/or using them without introducing some part distortion. I went out of my way and spent time to design the Cairo with NO SLITS! I feel that this will attract new papermodelers to the hobby if more are designed in this way. I hope it will become a recognizable feature of my designs.

    I hope that my comments do not disturb you or others. I felt I saw some of my ideas and feelings in your statement.

    Thanks,

    fishBait
  17. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    27) The gun doors and rudder cable rollers (same as deck cleats on the bow deck) have been installed on the aft deck. We will use a different technique to install the gunnels. The side gunnels only go around to the end of the main deck splashboard (red arrow). Test fit and trim the gunnels as before. Position the gunnel (one side at a time) and glue to the main deck/hull all the way around, but do not glue the angle to casement butt joint (blue arrow). As soon as these are stable, glue the third piece around the stern. Allow to dry thoroughly.

    28) Gently transition the gunnel upsweeps to fair into the stern armor (red arrow) and glue. Allow to dry thoroughly. Again, the interior wall of the gunnel is glaringly white.

    29) Cut out the interior gunnel wall. It should fit from just inside the armor-gunnel joint all the way around to the opposing armor-gunnel joint. Test fit and trim. Glue the interior gunnel wall into place. This new technique is vastly superior and will be used in the future to install the bow gunnels.

    30} With the exception of rudders and control cables, the USS Cairo's aft main deck is now complete.

    For the next post, we move up to the hurricane deck and start installing the USS Cairo's most recognized identifying features.

    fishBait

    Attached Files:

    • p27.jpg
      File size:
      24.8 KB
      Views:
      12
    • p28.jpg
      File size:
      22.4 KB
      Views:
      14
    • p29.jpg
      File size:
      23.2 KB
      Views:
      15
    • p30.jpg
      File size:
      25.1 KB
      Views:
      20
  18. Zathros

    Zathros Guest

    It will also add to the longevity. I had a discussion with a designer who was enraged when I pointed out a problem with his model. Sometimes people ask for suggestions, but don't really want them. This person destroyed their model, blaming me. :cry:

    I thought to myself, first, it was a prototype. Second, the whole model could have printed on the thinnest weight paper, and that laminated over the hull, and there would be nothing noticeable.

    I learned from one member an excellent method for hiding corner seams by using folded piece of paper, cut along panels lines. Since this person really details his models, I could not see a paper model, but I did see a spaceship, the Rodger Young.

    I designed a model a long time ago. I never released it because the nose section is extremely complicated. I have come to the conclusion that it will have to be built, and since few people like to paint their models, and want them printed, this model will need a "skin" with the graphics, to make a presentable model.

    I like your model. I like your build technique. I like the website you have started and I really like the premise and philosophy behind what you are doing. I think it's great!! You get my support and endorsement, for whatever that's worth. :thumb:

    (sorry for the long ramble)




    .
  19. fishBait

    fishBait Member

    Joined:
    Mar 15, 2012
    Messages:
    119
    Likes Received:
    0
    A-HAH, do I detect a fellow Robert Heinlein fan. Only man I know that conceived of a space ship called the Roger Young! One of the best SF writers ever.

    Thanks for your kind words. Don't ever hesitate to present suggestions to me. That is how we learn. I am filing your paper skin concept for future use, it is a great scheme. And I think it is worth a lot!

    Thanks again,

    fishBait
  20. vbsargent

    vbsargent Member

    Joined:
    Apr 17, 2008
    Messages:
    188
    Likes Received:
    3
    I have trouble imagining a model utilizing slots and tabs. I used to design corrugated (cardboard) displays, you know, the ones you see in the supermarket. WE used slot and tabs for just about everything, because it was cheaper than glue and the display always had to be shipped flat and assembled by the supermarket. But we always ALWAYS accounted for the thickness of the cardboard. Even after twenty years I remember B fluted cardboard is 1/8" and C is 3/16". If one doesn't cut the slit in the card as a bracket (accounting for the thickness of the card) one cannot avoid getting distortion.

    Starship Troopers is a seminal work by Heinlein, but I have to admit that I think that I like "The Cat Who Walks Through Walls" just a bit better.
