Tugboat Hermes

Discussion in 'Ship & Watercraft Models' started by zathros, May 7, 2013.

  1. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328

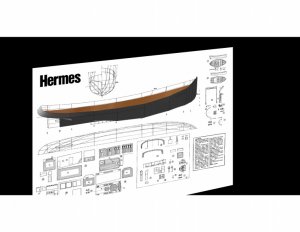

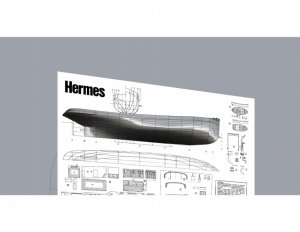

    I sometimes make models for people for various reasons. They are one offs. This is a Tugboat Hermes I am making for a doctor/friend of mine. He is helping me out a lot and charging me far less than what he could be. I am making the boat as a gift, he has no idea I am making it. He captained a 67 foot long pleasure craft, holding all the certification, but told me he always wanted a Tugboat. So now, I will give him one. :) The pictures you see of the hull are the drawings used to develop the surface. The final hull will be composed of horizontal lines to the waterline, and vertical lines of the bottom of the ship developed off of the ships present skinning. When making a ship to be made out of paper, you must model it to take that into consideration. So the ship does not look "perfect", but that is because all the parts unroll, and it is easy to "Render" really nice models that can't be built. :)

    p.s. This is one reason the "Hot-Rod" had to go to the back-burner.

    Attached Files:

    d5j4vu likes this.
  2. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,253
    What a WONDERFUL gift. I am sure your doctor will like this model.
    You have my curiousity now. I will be following this thread to see just how it turns out.
  3. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    I've just subscribed to this thread, "Mentor"! As a former Navy Officer, you can tell how interested I am in ships...
  4. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328

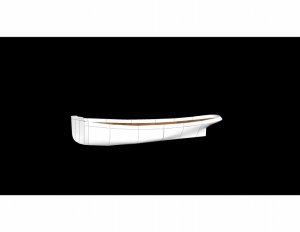

    Dialing in the Hull. :)

    Attached Files:

  5. inky

    inky Member

    Joined:
    Jun 24, 2011
    Messages:
    379
    Likes Received:
    9
    Looking good, can't wait to see more.
  6. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    Oh, boy, I want one!!!
  7. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328
    Next step for the Hull is deciding how far the longitudinal strips of paper will go, traditionally to the waterline, before the vertical lined pieces for the bottom hull care cut out. I need to do more research to find out if the boat was wood or steel. I believe it was in service till 1921, which could mean it's wood or steel, I don't know.

    Thank You guys, for the nice comments. :)
  8. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    A little help...

    Zathros

    My "Mentor", I thought I'd found it for you, but it was just a tugboat named Hermes, built in 1973...:cry:
  9. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328
    I found that too! :)

    1920 is a strange year as many work boats were still made from thick timbers. I wouldn't be surprised as to what it was made from.

    Oh, and I am not worthy of being called "Mentor" by anyone. A lot of people just called me "Z". That works and is easy to type. With the fountain on information you provide, you are the mentor around here! :)
  10. goodduck

    goodduck Active Member

    Joined:
    Jul 26, 2010
    Messages:
    487
    Likes Received:
    240
    very nice!
  11. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328
    Thanks Allen! You are the Rhino3d King, I appreciate your sage words!

    I have now found enough evidence, after reading, in German, an account of her life, being bombed in France, then raised by the French renamed, and finally scrapped in 1970, I find it hard to believe a wooden tugboat would last from 1922 to 1970. So that issue is over, Yeah! I think I have enough pictures to place the weld joints. I am making this model in a civilian configuration as it apparently had a hideous camouflage paint scheme and a deck welded on the bow with a big gun. None of that will be on this. I just spent an hour re-doing the stern as the propeller shafts did not line up properly. I just have to make the parts that blends the shafts into the Hull now. :)

    Attached Files:

    Arturo likes this.
  12. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328

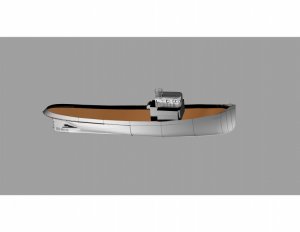

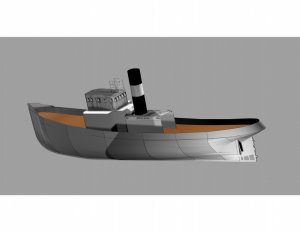

    Bit more progress. Fared in the propeller shaft mounts, smoke stack, part of deck housing.

    Attached Files:

  13. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    She's becoming great, man. I'm not much of a "ship builder", but I definitely want this one! Oh, boy!
  14. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328

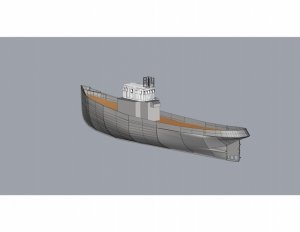

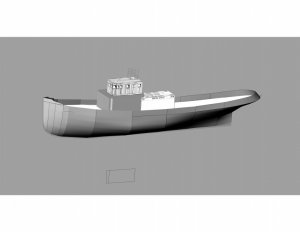

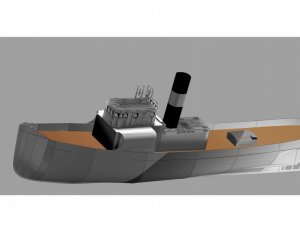

    Incremental progress. added deck weather sides and engine cabin. :)

    Attached Files:

  15. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    Zathros

    It's looking very cool, man! Do you intend to design a stand for it?
  16. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328
    Yes, I will make a cradle. :)
  17. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,253
    This Tug is really coming together BEAUTIFULLY!!!
    I can not wait to see it built.
  18. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    1st!

    First volunteer!sign1sign1
  19. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328

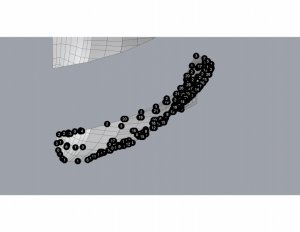

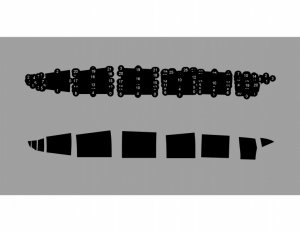

    I posted this picture to show how Rhino unrolls pieces. This is the bottom section of the ship. As you can see, the numbers give orientation. It's helpful. :)

    Attached Files:

  20. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    Pretty nice! This thread gets better "by the post"...
