time to get started on a new layout

Discussion in 'HO Scale Model Trains' started by nachoman, Jan 13, 2008.

  1. nachoman

    nachoman Guest

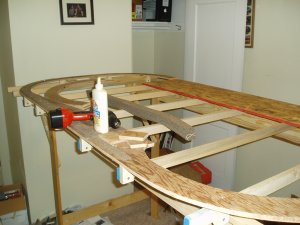

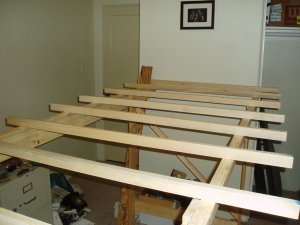

    Well, here are the begginings of my brand new layout. The old one has been taken down and awaiting it's place in the closet. As you can see, I'm just barely getting the benchwork started. Today, I have continued working on the benchwork, but hopefully tomorrow I will get some of the subroadbed in place and will start laying track!

    I plan on periodic updates to this thread, but I am also going to write a construction journal for the e-mag.

    Kevin

    Attached Files:

  2. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0
    Cool so far. I know you have already posted the track plan in another thread but for reference sake, you may want to include it here as well. I can see my mudhen growling around those curves already!
  3. nachoman

    nachoman Guest

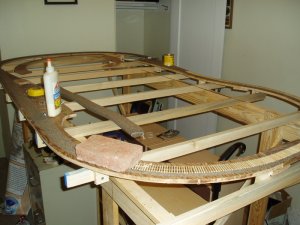

    Here is my most recent progress. It doesn't look like much, but I put more bracing underneath and have started with the subroadbed. I used the L-girder construction method and it is remarkably sturdy. The next step will be to finish the subroadbed on the first level, and then lay the ties and rails. I need to get the rails layed on the lower level first, because once I start adding the upper levels, access to the lower level becomes more difficult.

    Kevin

    Attached Files:

  4. tetters

    tetters Rail Spiking Fool!

    Joined:
    Jan 22, 2005
    Messages:
    905
    Likes Received:
    0
    Sweet. You're handlaying too right?
  5. toptrain1

    toptrain1 Member

    Joined:
    Jan 2, 2007
    Messages:
    562
    Likes Received:
    19
    Your not alone!

    Well Natchoman I to am presently breaking down my layout and building anew. I still have some table work to break up before starting. My main move is to go from the basement to the attic. In the area where I am breaking down the old layout I'll set up my table saw and start building tables, of a portable type, to put up in the attic. Here is a old photo of Stevenville yard.
    frank------toptrain1

    Attached Files:

  6. nachoman

    nachoman Guest

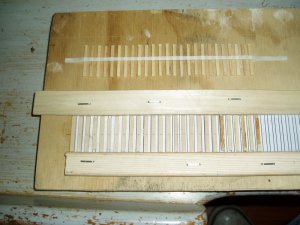

    Here is a homemade tie allignment jig with a strip of ties alligned and held with a thin strip of masking tape.

    Kevin

    Attached Files:

  7. tetters

    tetters Rail Spiking Fool!

    Joined:
    Jan 22, 2005
    Messages:
    905
    Likes Received:
    0
    Well that answers my question. LOL!

    Clever...I like it.
  8. nachoman

    nachoman Guest

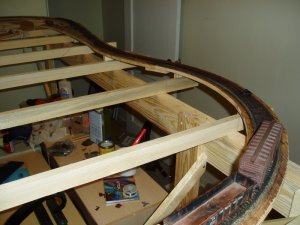

    Well, I didn't get as much done as I hoped this weekend. Too many other things to occupy my time (football!). But, I slowly started laying ties, 25 at a time. I've got the subroadbed for the lower dual-gauge lower level cut out and secure. Once I get the rails layed around most of the lower level, I can begin the climb up the mountain :mrgreen:. I've also started building a turnout where the narrow gauge branches away from the dual gauge. I've also realized that building a full dual-gauge turnout may be formidable, and I am considering buying the other three that I need (at 35-40 bucks a piece!)

    Kevin

    Attached Files:

  9. nachoman

    nachoman Guest

  10. nachoman

    nachoman Guest

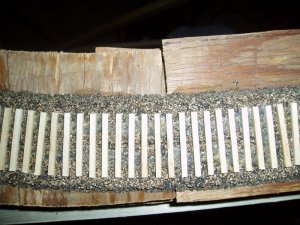

    Here is this week's update: I got about 1/2 of the ties on the lower level glued down, sanded, and stained. I also mounted a custom turnout where the narrrow gauge can diverge from the dual gauge trackage. I painted the rails with rustoleum rusty metal primer before I spiked them down, and it looks really red in the photograph, so I am not sure i am happy with the color that much. I also started spiking the dual guae trackage. That's very tedious, and I will probably run out of spikes really fast. I am spiking every 4th tie.

    Kevin

    Attached Files:

  11. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0
    It's kinda fun to start on something new isn't it? Kinda gives a new excitement to the whole project.
  12. sidewayzinca

    sidewayzinca New Member

    Joined:
    Jul 10, 2005
    Messages:
    11
    Likes Received:
    0
    could you try and get a picture of the spikes up close when you have a chance. i have been out of the game for a while and am pretty much new to handlaid track.
  13. nachoman

    nachoman Guest

    I will do my best. My camera is only point and shoot, so it may not focus on the spikes that well.

    Kevin
  14. nachoman

    nachoman Guest

    first trains!!

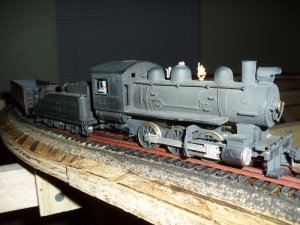

    Since this was my first attempt at handlaying, I thought it best to test the short section I have completed before I go too far. So, I pulled out old #6 from storage (a MDC 0-6-0), blew the dust off her, put her on the track, and let her roll. With a few squeaks and wobbles the wheels turned and off she went, for about two feet and then derailed wall1 So, I put the loco back on the track, and tried again. Another derailment, at the same spot wall1 So, out came the NMRA gauge. Seems my rails were a little tight in gauge in a few places on the curve. Lesson learned - when using those three point gauges, the single prong end has to face towards the inside of the curve! If you do it the other way on a sharp curve, the gauge will be too tight (especially on 18" radius curves).

    After unspiking and re-spiking about 3' of track for both the narrow and standard gauge rails, I tried again with success :mrgreen: Next I tried a short narrow gauge train - and once again success.

    Hopefully over the next few evenings I can extend the track to the other side of the turnout so I can test the turnout.

    Kevin

    Attached Files:

  15. sidewayzinca

    sidewayzinca New Member

    Joined:
    Jul 10, 2005
    Messages:
    11
    Likes Received:
    0
    thank you.
  16. nachoman

    nachoman Guest

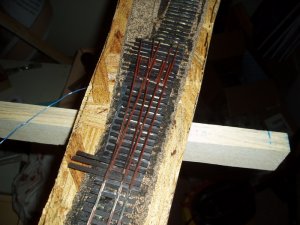

    I've got enough rail laid and wiring done so I can run through my first homemade switch. Things run through there quite smooth. Unfortunately, the diverging narrow gauge track doesn't go anywhere yet, so I can't test that direction yet.

    One thing I learned, is my handlaid switch is more critical of wheels out of gauge. If things are in gauge - it works perfectly. If wheels are just slightly narrow, they bump on the guard rails. This is a good thing, though. If everything is in gauge - things run much, much better. Ti just means I made my turnout to closer tolerances than the prefabs.

    I also made a short video of my work train running through the switch. I don't normally like to patronize local media fads, but youtube does let me share the video with you all for free. The quality is poor and there is no sound because I just took the video with my digital camera. Hope the link works.

    http://www.youtube.com/watch?v=aMKGJ54K-rQ

    Kevin
  17. nachoman

    nachoman Guest

  18. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0
    Looks like the switch is working great! Off the wall Q: In your experiences of uploading videos from digital sources to you tube, do you think it would work uploading a video from my cell phone? It's a 3g2 format. I've always wanted to upload videos but have never taken the time to figure out how.
  19. nachoman

    nachoman Guest

    I know nothing about uploading videos from a cell phone. In fact, this is the first time I have uploaded a video of any kind :)

    Kevin
  20. tetters

    tetters Rail Spiking Fool!

    Joined:
    Jan 22, 2005
    Messages:
    905
    Likes Received:
    0
    Yep...that's my excuse whenever my trackwork operates less then stellar! Its the rolling stock...not my track! sign1

    All kidding aside. I agree with you on that point. 9 x's out of 10 if I do encounter a problem it has more to do with the wheels being out of gauge then the trackwork itself.
