Scratch 1:400 CV-6 USS Enterprise

Discussion in 'Ship & Watercraft Models' started by airbob, Nov 10, 2007.

  1. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0

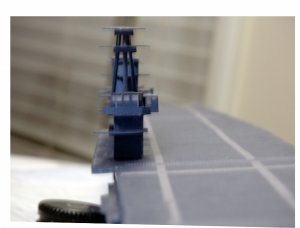

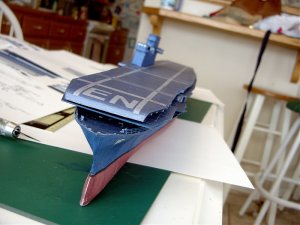

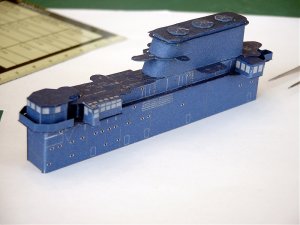

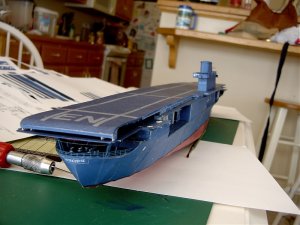

    This is the evolution of the design and construction of the flight deck control island on the Enterprise...with the funnel assembly (I used Siatki for this...it worked nicely!) added and some detail added to the lower levels. And a view of the Enterprise from bow and stern with the flight deck island sitting on the deck- not glued till one of the last operations...(don't want to damage these delicate little details!)...
    balloon6balloon6balloon6

    Attached Files:

  2. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    That is spectacular ................ I like Siatki too
  3. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0

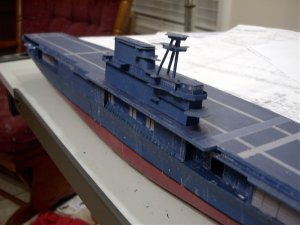

    Continuing progress on Enterprise Island....

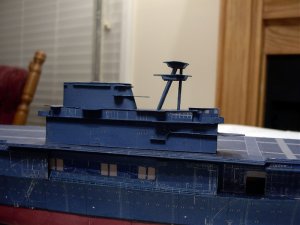

    continuing additions to the Control island to include the mast with the fire control platform and the gun platform...will add the railings at a later date to prevent destruction from fat:thumb: fingers...:oops:

    Attached Files:

  4. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0

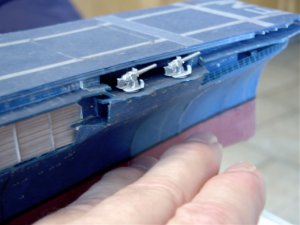

    I have been building the 5 inch AA guns this shows 2 of them that I have finished at the starboard foc'sle position...this position will be finished by the addition of the armored apron that surrounds each gun position...only 6 more to build...my nerves are shot now..(notice the fat "ham fingers" below these teeny little things)so I think that I will do something else and try again tomorrow!
    hamrhamrhamr

    Attached Files:

  5. CJTK1701

    CJTK1701 Banned

    Joined:
    Dec 13, 2006
    Messages:
    1,147
    Likes Received:
    0
    Most excellent. A very fine build.:thumb:
  6. Coot59

    Coot59 Member

    Joined:
    Aug 30, 2007
    Messages:
    102
    Likes Received:
    0
    Out standing!!!!!!!!!
  7. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0
    assembly of 5" 38's

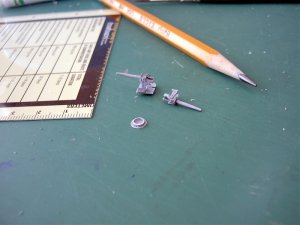

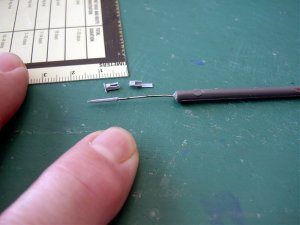

    This shows how the 1:400 5 inch AA gun barrel is rolled on a straight pin and how the breech assembly is assembled....this is all very delicate but results in a most elegant 5 inch gun to grace the foc'sle deck fore and aft on this carrier. The tweezer comes in handy for the final shaping of these tiny little pieces! Only 2 more to
    complete for the total of 8 guns...then for the gun aprons to add a realistic look to these areas...

    Attached Files:

  8. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0
    5"38's

    This is the mostly fully assembled 5" 38 gun...with the second almost complete...

    Attached Files:

  9. Gregory Shoda

    Gregory Shoda Member

    Joined:
    Apr 18, 2004
    Messages:
    235
    Likes Received:
    0
    Very fine looking guns! Excellent work.
  10. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0
    main screws and admiral's barge

    Here is a picture of the shafts for the (4) main screws and a picture of the starboard rear quarter with the boat crane one admiral barge for ADM Halsey...now to get to all the other little boats all over the place...:p:p:p

    Attached Files:

  11. CJTK1701

    CJTK1701 Banned

    Joined:
    Dec 13, 2006
    Messages:
    1,147
    Likes Received:
    0
    Every time I look at this it stuns me that it's made out of paper and made by hand, now that's talent.:thumb:
  12. Lex

    Lex Dollmaker

    Joined:
    Dec 1, 2006
    Messages:
    1,930
    Likes Received:
    0
    Wow, scratchbuilt models are beyond me......... Looks great now, keep going Bob!!
  13. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0
    rudder and antiroll rudders

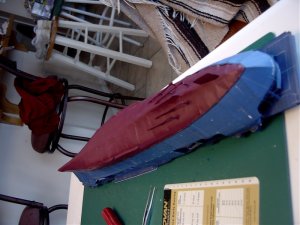

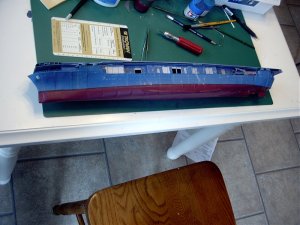

    These are photos of the addition of the main propeller shafts and rudder and the port and starboard anti roll rudders. The whole under-waterline hull was washed with a flat hull red wash...next for more little Admiral barges and whaleboats...

    Attached Files:

  14. eibwarrior

    eibwarrior Member

    Joined:
    Dec 17, 2005
    Messages:
    588
    Likes Received:
    0
    OK now Bob. You're starting to get into "Barry territory" here... :)

    Great job on the 5" 38s I can tell no difference between those and the one's that grace my plastic FRANKLIN.

    I've said this before, and I'll say it again... You need to market this design. There are not enough E's out there in the commercial market. You could clean up with this one mate.
  15. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    Hi Bob

    is this one still progressing ? Hope it is
  16. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0
    Barry,
    I have taken a hiatus...and have not been active at modeling now for about 2 months I guess. I began to prepare this model for putting online...but there is soo much to do to achieve this. I have converted the color of the vertical surfaces to more of the Grey to match the 5S-sea blue....the deck surfaces will remain the same. Lately I have gotten into watching Turner Classic Movies, and taking care of the house and dog and 2 cats..:p I will return...
  17. Lex

    Lex Dollmaker

    Joined:
    Dec 1, 2006
    Messages:
    1,930
    Likes Received:
    0
    ...That's the single greatest news!! If it's going to be available then I'd love to build it!
