Scratch 1:400 CV-6 USS Enterprise

Discussion in 'Ship & Watercraft Models' started by airbob, Nov 10, 2007.

  1. David H

    David H Member

    Joined:
    Nov 2, 2005
    Messages:
    523
    Likes Received:
    0
    I am as they say Gob-smacked!

    Inspirational build!

    How many stations do you take measurements from - I mean the bow flair looks pretty complex to plot?

    D
  2. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0

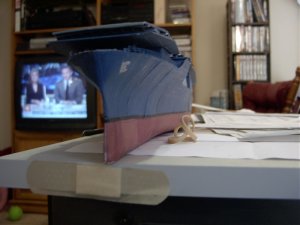

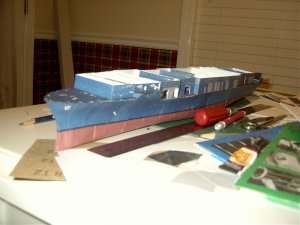

    Continuing design and beta build of CV-6 Enterprise

    This is the finished design and beta build of the hull plating sections up to the main deck- foc'sle deck line...now to take to task the construction of the decks up to the flight decks....then we'll see how an aircraft carrier takes shape!
    :winter1: Happy Christmas! and Merry New Years! to all!!!:p

    Attached Files:

  3. David H

    David H Member

    Joined:
    Nov 2, 2005
    Messages:
    523
    Likes Received:
    0
    You-Da-man! I cannot wait!

    D
  4. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0

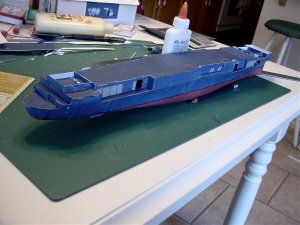

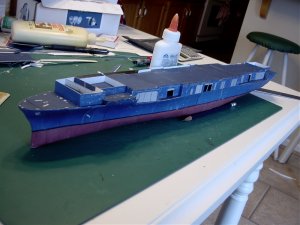

    Continuing on designing and beta building the above the maindeck superstructure to the flight deck! This view from port bow above...
    Happy New Years ,Ya'all!balloon6balloon6balloon6

    Attached Files:

  5. RyanShort1

    RyanShort1 Member

    Joined:
    Feb 4, 2004
    Messages:
    398
    Likes Received:
    1
    Boy that's looking nice...

    Ryan
  6. eibwarrior

    eibwarrior Member

    Joined:
    Dec 17, 2005
    Messages:
    588
    Likes Received:
    0
    Looking good Bob. All those bulkheads and formers on the hangar deck can be a lot of work. I can't imagine from a scratch build perspective how difficult it would be.

    Happy New Years to you from E. TN!
  7. jaffro

    jaffro Long term member

    Joined:
    Jun 18, 2007
    Messages:
    735
    Likes Received:
    0
    This is a very inspirational thread, thanks bob.

    I'm about to take on a 1:96 scratchbuild myself, with absolutely no CAD, 3D or scratchbuild experience whatsoever... all I have is the confidence that I can pull it off.

    Although I have had a very generous offer to help with my hull, I'm wondering exactly how you pulled it off without CAD etc... I think in the time it took me to scan my plans I pretty much figured out a few ways to do it, but couldn't quite get my head around the whole process.

    I'm still not entirely sure how to tackle the rest of the ship, but I have a very good set of plans, my only setback is trying to get them to fit on my scanner. :D

    I'll be eagerly watching this build while I plod along with my own... it's looking fantastic so far and you've helped boost my confidence a little in preparation for the huge amount of work ahead of me.
  8. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0
    Jaffro,
    I began by isolating out each hull section and then measuring the distance from keel to waterline on fore and aft sections....measuring length using the separate hull views and "creating" each section using this technique....the beta build was the final test of fit...and some sections needed to be altered based on thiswall1...same for the waterline to main-deck or foc'sle deck sections....I then used
    Photoshop CS to "elongate" each section based on port and starboard views...using these views to fill in a lot of detail....you really end up studying the plan views again and again:eek:....good luck with your task....it has been a real learning experience for me!:p....but was well worth the effort...:wave:
  9. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0

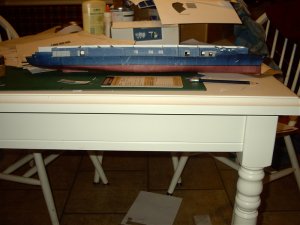

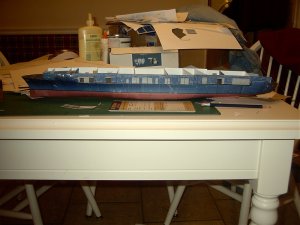

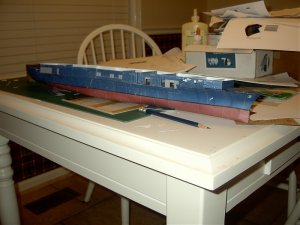

    This is the hull "cleaned-up" before the addition of the flight deck....I should complete this sometime in the next week...this will be exciting!!!
    bounce7bounce7bounce7

    Attached Files:

  10. 191pedram

    191pedram New Member

    Joined:
    Apr 12, 2007
    Messages:
    5
    Likes Received:
    0
    hello
    please guide me how can i take map and instruction files of battle ship
    such as missouri or uss arizona aufortunatly in iran i can't buy any of them
    if it's possible mail to "najedy_b@yahoo.com"
    best regards
  11. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0

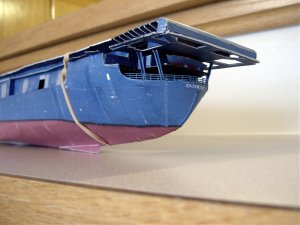

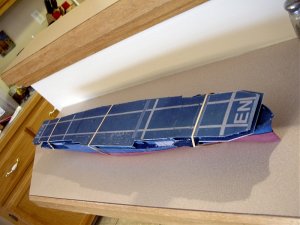

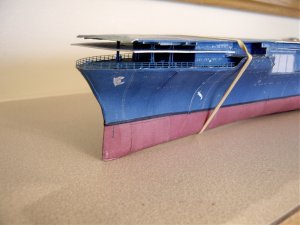

    I have continued design and the beta build on the CV-6 USS Enterprise hull up to the flight deck....the detail of the bow and the stern were very complex and a real "brain twister"...now comes all the little railings!!!...maybe will tackle the control tower sometime later in the month if all goes well...the flight deck was just attached with rubber bands for now so I may remove to finish attaching all those little railings!!! Maybe time to celebrate a little!!!
    :band1::wave7::rofl::rofl::wave7::band1:

    Attached Files:

  12. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0

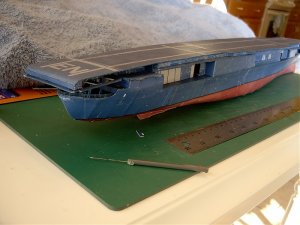

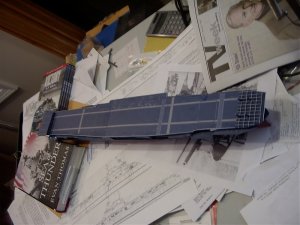

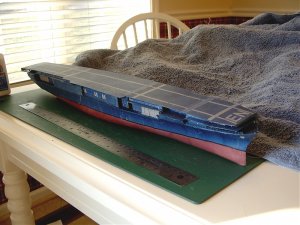

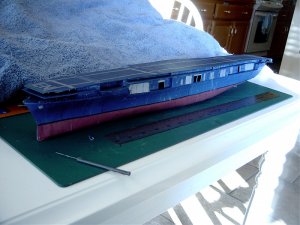

    This is the continuing construction to finish with the flight deck...as you can see there are a lot of little bulkheads added at each station on the Galley Deck....I put 5mm pieces on top of these bulkheads to hold the glue betterfor gluing the FD...the flight deck has a very slightly rounded profile...especially at the bow and stern...maybe not as per the plan detail...but just one of those things that happen:p....however I'm not sure which part that I'll do next the control tower or the 5" multipurpose guns on the Galley deck...

    Attached Files:

  13. Gregory Shoda

    Gregory Shoda Member

    Joined:
    Apr 18, 2004
    Messages:
    235
    Likes Received:
    0
    airbob: Nice work! It looks very challenging. Scratchbuilding does get your creative juices going, doesn't it? I especially like your paint scheme. It is very attractive. But how did you paint the flight deck & the stern lettering?
  14. eibwarrior

    eibwarrior Member

    Joined:
    Dec 17, 2005
    Messages:
    588
    Likes Received:
    0
    Very nice work Airbob. I like the detail you've put in the bow and stern areas with the handrails and flight deck supports. Very nice.

    Keep those updates rolling. I can't wait to see the island take shape.
  15. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Wow!

    Airbob, you are definitely Da Man!

    Very nice piece of work!!

    Jim
  16. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0
    Greg,
    The flight deck/stern lettering lettering was done using the Photoshop CS lettering program....the flight deck was designed using the original Floating Drydock plans...painting done by Photoshop CS program....hope this helps...
  17. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0

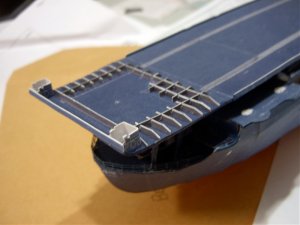

    Flightdeck detail of CV-6 USS Enterprise

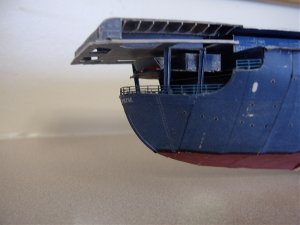

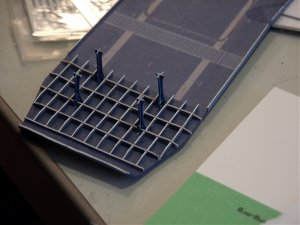

    This is pictures of the detail of the under deck area of the (one) bow and (two) stern areas of the flight deck, the last view shows the detail of the under flight deck area with a 2mm "apron" attached to all edges except for the above bow and stern beam reinforced areas.:wave:

    Attached Files:

  18. cesandman9265e

    cesandman9265e New Member

    Joined:
    Jan 25, 2008
    Messages:
    14
    Likes Received:
    1
    Very nice.....WOW!! :eek:.....The detail is too much! GREAT JOB!! I can't wait to see your work on the tower! I have the 1/350th scale CVN-65 tamiya kit (unbuilt ).
  19. jaffro

    jaffro Long term member

    Joined:
    Jun 18, 2007
    Messages:
    735
    Likes Received:
    0
    This is looking great airbob, I have to agree, all that extra detail under the flight deck is looking very nice indeed, keep up the good work!
  20. airbob

    airbob Member

    Joined:
    Nov 21, 2005
    Messages:
    467
    Likes Received:
    0

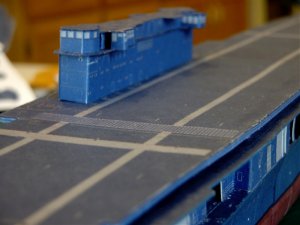

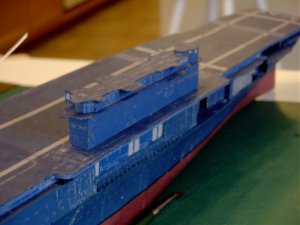

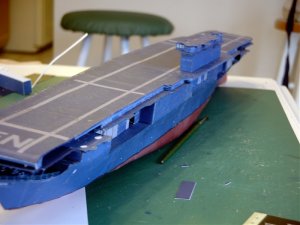

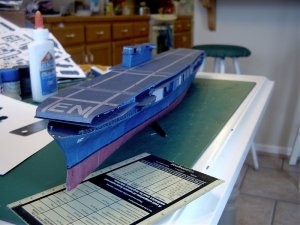

    hese are some shots of the beginning construction of the flight island on the Enterprise....next up will be the funnel complex..

    Attached Files:
