Saturn 5 build

Discussion in 'Space & Aeronautics' started by lyter1958, Jan 13, 2016.

  1. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391
    i wanted to take a break from the Sulaco build ( just got into a funk with it) and try something different.

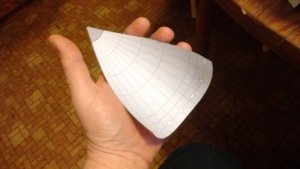

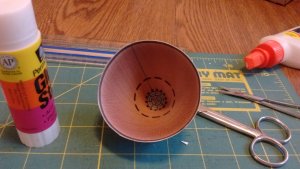

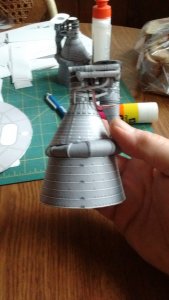

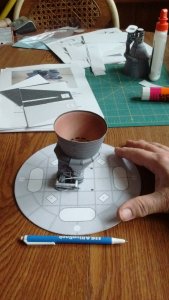

    This is the 1/48 scale model made by Greelt Peterusma . i wasn't sure on how BIG 1/48 was till i built the first
    F1 engine. after holding it -finished, i thought-- crapp, i got myself into it again..lol

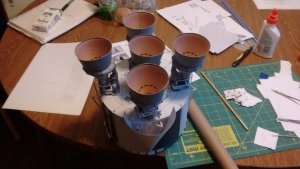

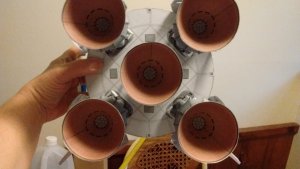

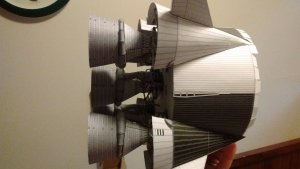

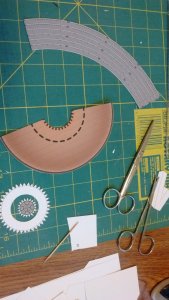

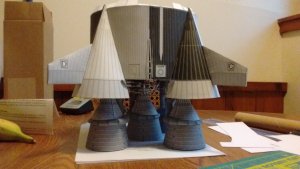

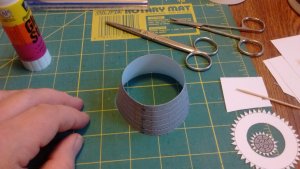

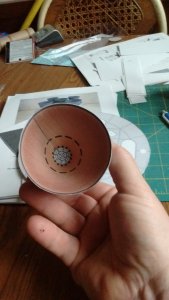

    here are the build pic's of the engines and the completed thrust section. enjoy
    mark

    Attached Files:

  2. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391

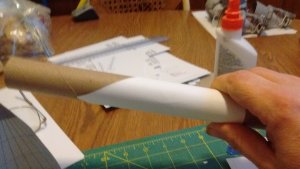

    some more

    Attached Files:

  3. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391
    and still more s5 011.jpg s5 012.jpg

    Attached Files:

  4. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391

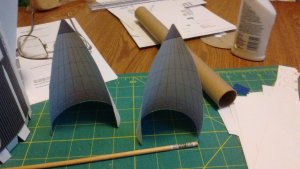

    last ones for now

    Attached Files:

  5. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,405
    Likes Received:
    3,329
    Your workmanship is as good as it gets. Period. This could not have been done any better. IMHO. :)
    lyter1958 likes this.
  6. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,659
    Likes Received:
    1,072
    Nice work! That thing is gonna be huge!!!! I'm bemused to know how tall it will be when finished... I estimate around 2 meters tall ?!?!?!
    lyter1958 likes this.
  7. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Joined:
    Aug 1, 2009
    Messages:
    5,891
    Likes Received:
    3,537
    Wow, this looks great! :)

    (P.S.: I have corrected the title of your thread, two letters were switched. ;) )
    lyter1958 likes this.
  8. Cybergrinder

    Cybergrinder Member Extraordinaire

    Joined:
    Jun 24, 2014
    Messages:
    822
    Likes Received:
    433
    Can't wait to see the progess!
    lyter1958 likes this.
  9. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,405
    Likes Received:
    3,329
    I like the symmetry and the "neatness' of all the parts. This is really excellent craftsmanship combined with a decent model = excellent results. :)
    lyter1958 likes this.
  10. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391
    opps my bad, no splle chick
    lol
    Revell-Fan likes this.
  11. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391
    thanks zathros, the rest of the first stage is a little rough at this moment, not lining up right and not turning out round enough, but i'm doing what i can ...:)
  12. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391
    thanks Dan, i think it's to be about 8' tall. and i'm not sure where i'll put her when she's done..
  13. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391
    i made some goofs on the engines, but hey, its a learning experince and i'm having fun in the mean time, and thats what counts , right ???:yesyes:
    DanBKing likes this.
  14. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391

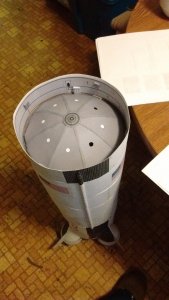

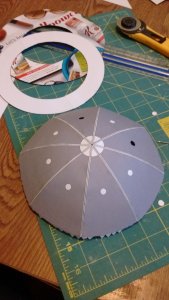

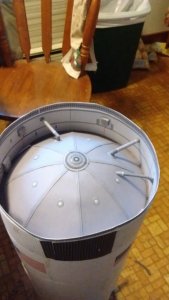

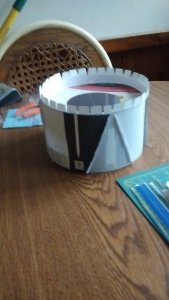

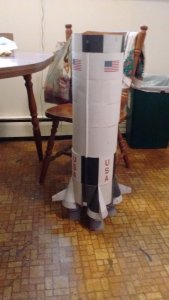

    more pic's. stage 1 is done. 33 inches tall and now on to stage 2.

    Attached Files:

  15. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391

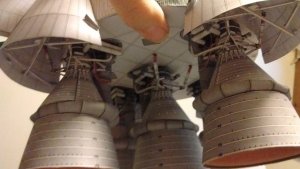

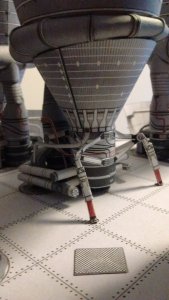

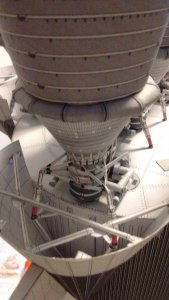

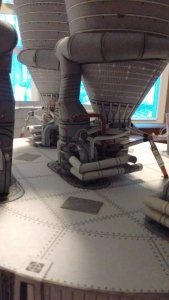

    i did a goof on 1 wall section, flag up too high and all was glued when i noticed it. some close up of engines

    Attached Files:

  16. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,405
    Likes Received:
    3,329
    Very nice! :)
    lyter1958 likes this.
  17. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391

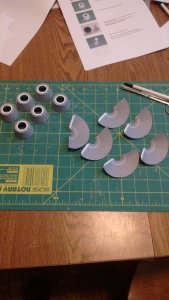

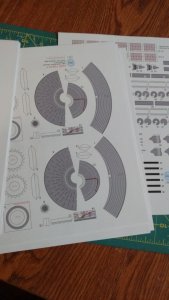

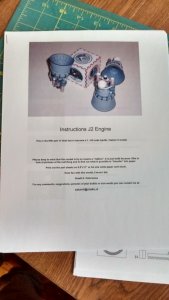

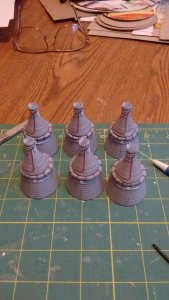

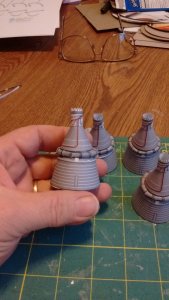

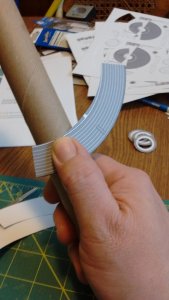

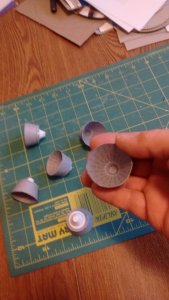

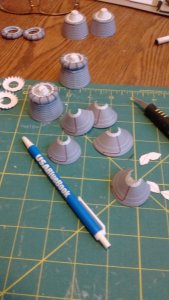

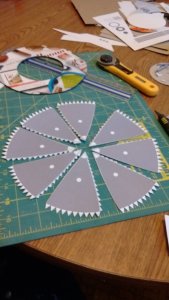

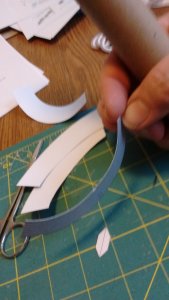

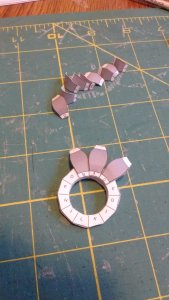

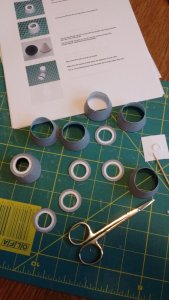

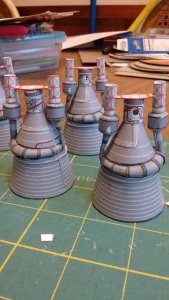

    ok, now on too the J2 engines. gotta make 6 of these- 5 for stage 2 and 1 for stage three. i am building all of them at once to cut some time. not as much detail as the F1's and also not as big. here's whats been done so far

    Attached Files:

  18. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391
    and more

    Attached Files:

  19. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391
    and...

    Attached Files:

  20. lyter1958

    lyter1958 Esteemed Member

    Joined:
    Jan 20, 2015
    Messages:
    220
    Likes Received:
    391

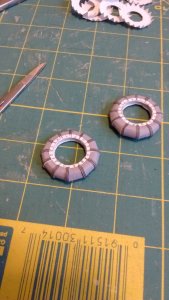

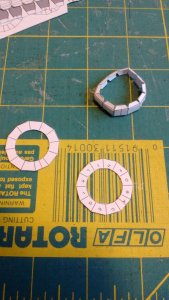

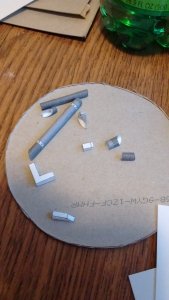

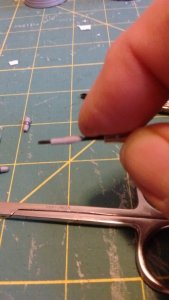

    now on this part made me say "ARRRGGGGG" quite a few times. very small rolls. and i mean small. had to use a scrib pin to get it. then the plans say to " roll some paper into a small tube to glue parts togther"....yeaa, right.. cut paper-fold-fold- and then shove it in and glue. wish my fingers were smaller...

    Attached Files:
