Kitbasher's Diary: Bachman Rural Freight Statoion (N Scale)

Discussion in 'Scratchin' & Bashin'' started by Drew1125, Nov 14, 2003.

  1. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Hi everyone!

    Well after being completly bone-idle in the modeling dept for the last few weeks, I've finally started piddling with something...

    I've been wanting to build something for The Gauge NTrak project next summer, & this will be a part of something I have in mind...

    I've had this kit laying around for a couple of years...I don't remember where I got it or why, but, what the heck...let's see what we can do with it!

    At this point, I still don't have anything complete, but I thought I'd kind of walk through where I'm at up to now...

    Here's the picture of the kit as it appears on the box...

    Attached Files:

  2. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

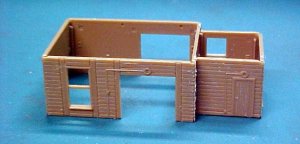

    The first thing I did was to "rough-up" the siding a little bit with the point of an x-acto knife, then glues the wall sections together...

    Attached Files:

  3. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

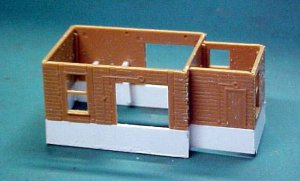

    I opted not use the base included with the kit...instead, I made a 4' high foundation out of pieces of .040" styrene sheet...

    Attached Files:

  4. Arlaghan

    Arlaghan Member

    Joined:
    Sep 9, 2003
    Messages:
    668
    Likes Received:
    0
    COOL!

    Can't wait to see this one develop. :)

    Judging by the size of that window... it's a very tiny kit indeed! Gotta love N scale. :D
  5. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

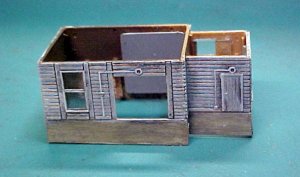

    I sprayed the entire structure with Floquil Roof Brown, then dry-brushed the siding with Polly Scale Reefer White, & painted the foundation Polly Scale Concrete...then gave everthing a thin black wash of India Ink & alcohol

    Attached Files:

  6. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

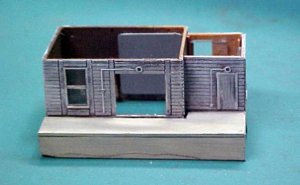

    Next, I used some more of the .040" styrene to make a "concrete" loading dock...

    Attached Files:

  7. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

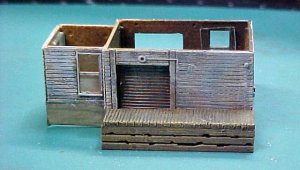

    On the other side, I made a smaller "wooden" dock, cut from pieces of the original kit's base...I also added a loading door from the scrap box...

    Attached Files:

  8. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Well, that's where I am at this point...guess I'll go see what else I can come up with this evening! :)
  9. Catt

    Catt Guest

    Lookin' good ,Charlie. :D
  10. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    Charlie, I can see that that building is going to be a cute little thing.
  11. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    It's working for me! :cool: Really love the wooden loading dock.
  12. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Nice one Charlie. Now what comes next?
  13. NScale

    NScale Member

    Joined:
    Nov 9, 2003
    Messages:
    41
    Likes Received:
    0
    Looks great! Love to see the finished project :D
  14. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Thanks guys! :)

    Well, this might seem a little wierd...

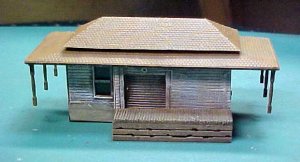

    I decided to go on and use the roof from the kit...the problem was, the posts that support the overhang were now dangling off the ground because of my foundation modifications...:eek:

    Attached Files:

    • oh1.jpg
      File size:
      32.3 KB
      Views:
      216
  15. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

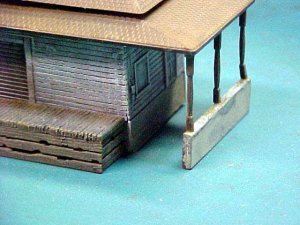

    ...I've tried to solve this by making some concrete "knee-walls out of styrene...any thoughts on this? I guess I could always go back, get rid of the kit supports, & just make posts that go all the way to the ground...?
    Any comments would be appreciated!

    Attached Files:

    • oh2.jpg
      File size:
      48.4 KB
      Views:
      217
  16. Arlaghan

    Arlaghan Member

    Joined:
    Sep 9, 2003
    Messages:
    668
    Likes Received:
    0
    How about having the loading dock area extend all the way across and to the sides of the building? Just a thought. :)
  17. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Hi Arl!
    Y'know, I did consider that...that's pretty much thwe design of the original kit...(see 1st pic)
    But I'm funny like that...I just can't leave anything alone!:D
    I was trying to get something different out of this kit...a building that's had things added on, knocked off, changed around, etc...maybe something that once was a RR structure, but has been used for other purposes in the years since...?
  18. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Charlie,

    Just a thought, but suppose you slid the roof to one side instead of having an overhang on both ends. You could have a lot more to work with on one side rather than splitting it up. I think lengthening the posts on each end would look strange with such a short overhange and the knee wall also looks out of place with such a short roof overhang.

    Don
  19. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Hmmm...now you've got me thinking in a whole new direction...Thanks Don! :) :cool: ;)
    Lemesee...I know I got a nice sharp razor saw around here somewhere...:D
  20. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Charlie,

    You have helped me more times than I can count. :) :)

    Don
