GeeBee R1 Racer, 1:33, Rafal Ciesielski

Discussion in 'Aircraft & Aviation' started by rlwhitt, Nov 19, 2006.

  1. cgutzmer

    cgutzmer Guest

    Looks special to me :D acrylic painted wire for the strut?
    Chris
  2. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,100
    Likes Received:
    0

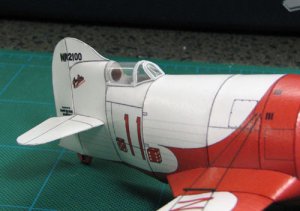

    Tailwheel mounted, and on to the part I've been dreading the most, with good reason as it turns out. Canopy! @#$%!**&! (Said a lot of those tonight). From this distance it looks OK, but close up it's pretty much a disaster. In the future I'll be avoiding scratch-built canopies whenever I get the chance!

    Attached Files:

  3. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,100
    Likes Received:
    0

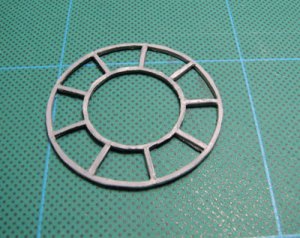

    The next part is a bit tricky - the cowl support ring. It's tough because of all the thin sections that must be cut from 1mm thick laminate. To make it easier I first cut out the center and sections and then liberally coated the thing with thin CA to strengthen it before cutting out the final outside. Finally painted the whole thing flat gray.

    Attached Files:

  4. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,100
    Likes Received:
    0
    Final item for tonight is the cowl ring and that big engine mounted!

    Attached Files:

  5. cmdrted

    cmdrted Active Member

    Joined:
    Jul 9, 2004
    Messages:
    1,729
    Likes Received:
    0
    Wowsers, looks great! Even the canopy!
  6. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,544
    Likes Received:
    0
    Sweeeet!

    Russell
  7. ekuth

    ekuth Guest

    Very very impressive. WOW.
  8. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,100
    Likes Received:
    0
    Yep, just 20 ga floral wire (around .8 mm I think, don't have my calipers yet).

  9. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,100
    Likes Received:
    0
    Thanks again guys!

    @ekuth, good to see a space guy lurking in here! I'm afraid I've not spent much time lately looking in the space forums, did you finish your shuttle?

    Rick
  10. therapy

    therapy New Member

    Joined:
    Oct 13, 2006
    Messages:
    10
    Likes Received:
    0
    Sorry, wrong thread :)
  11. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,100
    Likes Received:
    0

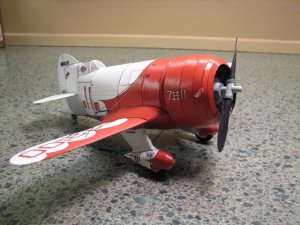

    Finished!

    She's ready for racin'...

    Attached Files:

  12. cmdrted

    cmdrted Active Member

    Joined:
    Jul 9, 2004
    Messages:
    1,729
    Likes Received:
    0
    Take a major BOW! Fantastic!!!!
  13. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,100
    Likes Received:
    0

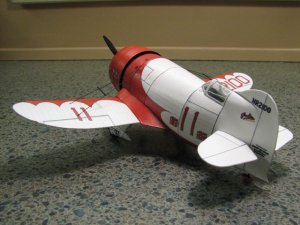

    Rear quarter view:

    Attached Files:

  14. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,100
    Likes Received:
    0
    Side view:

    Attached Files:

  15. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,100
    Likes Received:
    0
    Back to the front:

    Attached Files:

  16. ekuth

    ekuth Guest

    LOL I actually lurk all over the forum... yes, I finally finished it, more or less. As of right now, the cargo bay is empty and may stay that way, because it will be displayed in the vertical position attached to the stack (which is what I'm working on now... however the instructions that came with it are, shall we say, sporadic at best, so I'm having to muddle through.

    I'm an airplane guy from way back (first plastic models were planes) and I'll most likely start one after the shuttle is done. After looking at your GeeBee here, I think I may choose that one~!
  17. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,544
    Likes Received:
    0
    Beautiful job, sir!!!

    Russell
  18. Alcides

    Alcides Member

    Joined:
    Jul 9, 2005
    Messages:
    630
    Likes Received:
    0
    Wow!!! Very nice work. You have a winner !!!

    One comment OT: In spanish we speak about "he" not "she". The planes are female in english and male in Spanish, very strange.
  19. eatcrow2

    eatcrow2 Member

    Joined:
    Apr 20, 2004
    Messages:
    374
    Likes Received:
    0
    Very nice work indeed.. What did you use for the final finishing coat?? Looks great.
  20. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,100
    Likes Received:
    0
    Thanks guys!

    @eatcrow2: It's Krylon gloss clear finish
