Finally The CVR goes public

Discussion in 'N / Z Scale Model Trains' started by Will_annand, Oct 15, 2004.

  1. SD90

    SD90 Active Member

    Joined:
    May 23, 2003
    Messages:
    1,161
    Likes Received:
    0
    Doc, that is a good sign for the heating pipe!
  2. grumbeast

    grumbeast Member

    Joined:
    Jan 13, 2003
    Messages:
    472
    Likes Received:
    0
    Sorry replying to this a little after the fact.. just got back from Calgary.

    Love the sign, I've got to get me one of them there signs!. By the way Will, I'm 6'3 too so apart from one small pipe you wouldn't have to duck.

    I don't have my plan digitised yet, I really should get it done but I've just changed 2/3rd's of it!.

    I'll try and get a rough one done up soon..

    Graham
  3. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    I am beginning to hate wiring! :curse:

    I am wiring my layout DC and I have 35 blocks on the layout. The control panel is in a drawer under the bench at the apex of the first walkin. (See trackplan on my website).

    I wired the control panel once using DPDT switches, if I threw the switch one way, it was "On", if I threw the switch the other way, it was "Off". Then I found out that since I have a "wye" on my layout, it causes a reverse loop and you have to use DPDT-center off toggles.

    So, off come the 35 DPDT switches and I am attempting to rewire the DPDT-center off toggles. Well, each toggle has 6 lugs, so that makes it 6x35=210 lugs.

    I worked on it Thrusday, Friday and after work tonight. So far I have all the switches wired to the power pack, all the cross wires in and 13 wired to the track.
    166 lugs done, 44 to go.

    Then I am going to use the old toggles to wire a control panel for the yard only. This panel will be in a drawer under the layout at the apex of the other walkin.

    The yard control panel has 16 of the 35 blocks, so that is another 96 lugs to solder. But they will be soldered so that if the switch is in one position, control will be given to the yard control panel and if the switch is in the other direction, the control will be at the main control panel.

    This way, one man can run the whole layout from the main panel. Or, a Yard Master can control the yard area while the main panel becomes the "Mainline" panel.

    All I know is that I have lots of wires to run and 306 lugs to solder. Right now I have only completed 166, so I have 140 to go. Still almost half to go :(
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    It sure is tedious Will. Do you have that Kalmbach wiring book. It sure helped me in my DC Cab days. The reversing wiring was relatively simple. Not sure what kind of DPDT switches you are using but am surprised by the amount of rewiring you are faced with.
  5. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    I think that was my problem Robin, I do not have any books on wiring.
    I talked to one of the fellows from the Muskoka club and he told me how to wire it.
    It was only after I had it completely wired that I found out I could not control the reverse loop. Well, I could, but the track would never truly be "off", it would toggle from one direction to the other.

    with the new "DPDT-Center Off" toggles, I have full control over direction as well as turning off a block to hold a train. In this way I can have trains running in both directions, passing on passing tracks. I am using 34 blocks, each siding is it's own block, each passing track is a block and the mainline is split into 9 blocks.

    The rewiring is so I can have full control from the main control panel and also have yard control from the Yard Panel. Actually, the yard control panel was never set up, so it is just "wiring", not rewirng".

    I am not good with the soldering iron, so it is taking time.
    Never knew an 11.5' x 6.5' layout could use so much wire. :D
  6. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Just amazing when you find out how much wiring there is for decent block control and then to cab control so two people could operate at the same time. At least the cab control would use up all of the DPDT switches without the centre off if you chose to go that way
  7. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    Just a quick update, I took a break from wiring today. (Still 12 toggles to wire on panel one). :wave:

    I went out today and got a quart of mis mixed paint for $5.00. :thumb:

    Now, instead of a pale blue foam field, I have nice rich "clay coloured" earth to look at. :eek: :D

    When my Uncle reurns next week, I will see if he can come over and we can update the photos on the CVR website.

    Slowly this is coming together.
  8. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Will, you never know when you luck comes in to get the mixed paint that gives you that earth colour EH!
  9. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Great Will!!! Looking forward to seeing it. :)

    Val
  10. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    You are welcome to come for a visit anytime you are in the area.
  11. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0

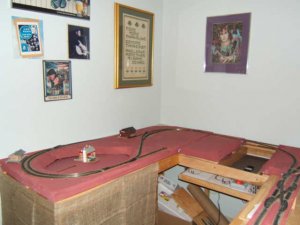

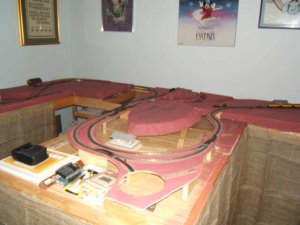

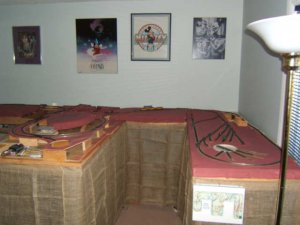

    Big news, I finally bought a digital camera, a Fuji E500. :D So now I can post pictures of the progress on the CVR.

    Two major things happened.
    1. The benchwork now has a skirt.

    2. Initial coloration of the foam makes things look better. A friend says it looks just like the red clay of the real Credit Valley. :thumb:

    Attached Files:

    • L01.JPG
      File size:
      43.6 KB
      Views:
      114
    • L02.JPG
      File size:
      42.7 KB
      Views:
      114
    • L09.JPG
      File size:
      44.1 KB
      Views:
      118
  12. Doc Holliday

    Doc Holliday Member

    Joined:
    Oct 28, 2002
    Messages:
    630
    Likes Received:
    0
    Lookin' real good there Will!

    Doc
  13. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    That's great Will - congrats on the new digicam!!! I guess the government is good for something!! :D :D

    Val
  14. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Nice to see how your layout has developed Will. A good choice for your camera too. I am sure it will give you lots of good use.
  15. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
  16. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Nice to see some more pics! Great work... :D And congrats on the camera!

    Andrew
  17. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    Thanks Andrew, it is slowly coming together, I just wish I had more time to work on it. :D
  18. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Don't we all... :rolleyes:

    Andrew
  19. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0

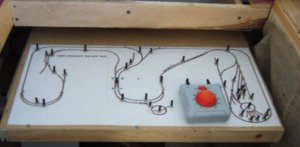

    Andrew, I am still working on the control panel. Not much done for a week or so, I pulled the small of my back, so I have been resting after work lately, not enough energy for the layout. :(

    One more shot:

    Attached Files:

    • CVR.JPG
      File size:
      20.6 KB
      Views:
      118
  20. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Hope you recover soon Will so you can do some more MRing.
