Building Yoav Hozmis Kfir C-2

Discussion in 'Aircraft & Aviation' started by McTschegsn, Jun 2, 2015.

  1. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    204
    Likes Received:
    433

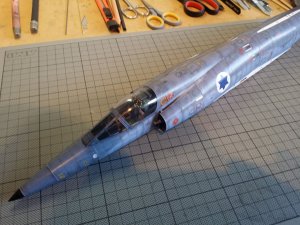

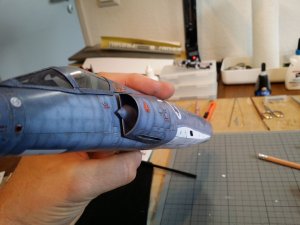

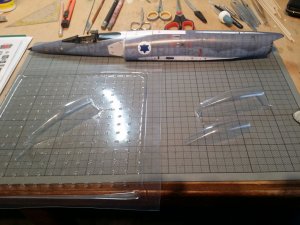

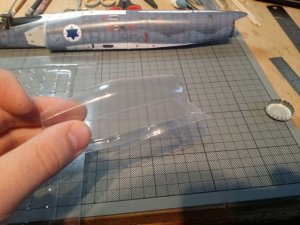

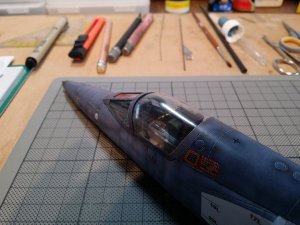

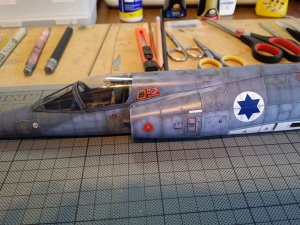

    Yesterday I made the new (vacuformed) canopies. They are much clearer. Attached are some pics. To see the difference just compare pic 2 (Shrinking tube canopy with "smears" in it) and pic 3 (clearer vacuformed canopy)
    Kfir56.jpg Kfir57.jpg Kfir58.jpg
  2. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    204
    Likes Received:
    433
    Tonino likes this.
  3. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    627
    Likes Received:
    1,020
    Very good tutorial. I almost understood everything (despite Google Translator;)).
    I always wanted to try making vacuform transparents but never had the patience to try really hard. Sometimes I bought ready parts from polish manufacturers (for my B17 eg.)
    Now this thread turned on again the interest toward this technique.
    The only thing that stops me is that I find hard to understand what kind of products should I search to make the master. I'm sure I cannot find here the same products you used (available in Germany), but if here is something similar I'm not sure what should I look for.

    Any advice?
  4. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    204
    Likes Received:
    433
    Well the so called "Feinspachtel" is something like fine putty. You can use gypsum or plaster with a fine struture as well. Putty here in germany is available in different porosities. Use the finest putty you can get. If you are not satisfied with the surface you can use some spray primer and sanding to flatten the surface.
    Tonino likes this.
  5. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    204
    Likes Received:
    433

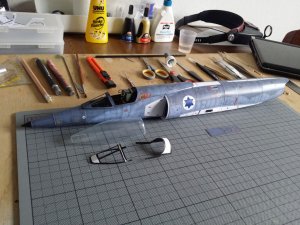

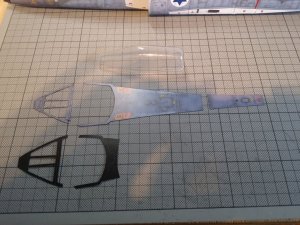

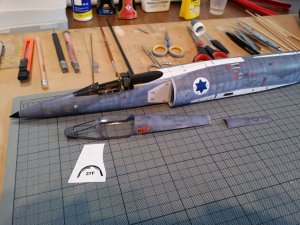

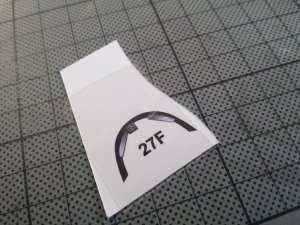

    A tiny update on the Kfir. The canopy frame has been cut out and the edges are colores plus the parts are bent to the almost final shape. The Canopy Frame on the fuse has just been placed there to check the fit... Going to Munich this weekend to meet some old friends so the next update will hopefully be on sunday [​IMG]

    Kfir59.jpg Kfir60.jpg
    DaveyBoy, zathros and micahrogers like this.
  6. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328
    You can use two part epoxy two makes either negative or positive molds. If it is a positive mold, you heat a plastic sheet and pull inf tight over the plug of the canopy shape, and cut off the excess when it cools. If a negative mold, you can drill small holes, and make a vacuum chamber using a heat gun and vacuum source. Old refrigerator motors, especially the small ones, give great suction.
    McTschegsn likes this.
  7. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    204
    Likes Received:
    433
    Some small progress has been made.

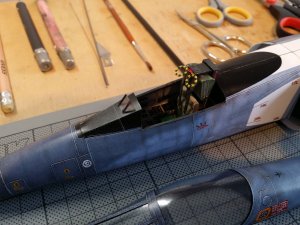

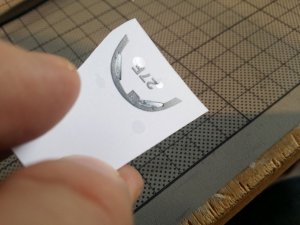

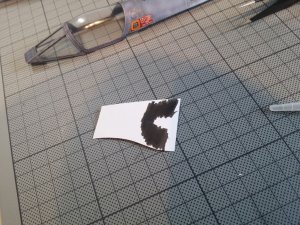

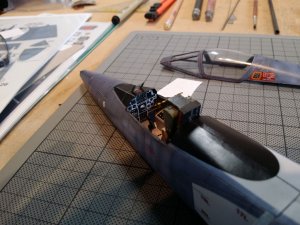

    I just finished the canopy section of the Kfir. Glue is drying now. While the framework on the canopy dried I tried to add a bit realism to the mirrors. I took overheadprojector foil, cutted out the mirrors and glued them to the framepart. The part got also colored from the backside to keep that nasty white blinks away ;) I think it looks good so far though I wonder if you can see it when the canopy is on the model... But it is as always... I built it and I know it is there [​IMG] The HUD is in place and ready to operate [​IMG]
    Next step is to trim the canopyframe properly and glue the part in place so the cockpit is finished.

    Kfir61.jpg Kfir62.jpg Kfir63.jpg Kfir64.jpg Kfir65.jpg Kfir66.jpg
  8. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    204
    Likes Received:
    433

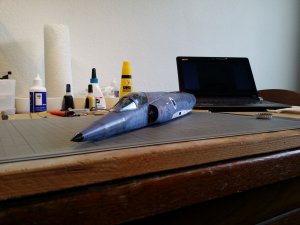

    Placed the canopy. Thats definitely one sleek looking bird :)
    Kfir67.jpg Kfir68.jpg
  9. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,659
    Likes Received:
    1,072
    Bloody hell!!!!!
    That is not paper..... That is REAL!!!!

    Very, very nicely done!!
    McTschegsn likes this.
  10. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    204
    Likes Received:
    433
    Thank you Dan. Kudos belong to Yoav as well for designing such a fantastic model! But trust me... the results so far make me more and more eager to continue :)
    DanBKing likes this.
  11. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    627
    Likes Received:
    1,020
    Great model!

    Great build!

    You are definitely a Master!!! Who needs plastic anymore? WOW! Claphands
    McTschegsn likes this.
  12. micahrogers

    micahrogers Active Member

    Joined:
    Jul 12, 2012
    Messages:
    1,036
    Likes Received:
    272
    truly amazing...
    and yes, you can see the mirrors inside the canopy.
    McTschegsn likes this.
  13. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    204
    Likes Received:
    433
    Thank you Tonino but I think I am a bit away from "Master" ;) Here you can read why :)

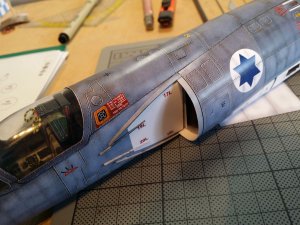

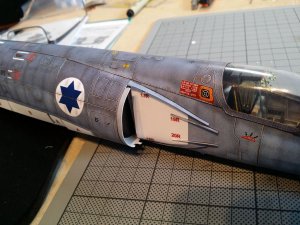

    Today I built the intakes and mounted them to the model. As Yoav said it was a bit fiddly to attach the intakes to the model but nothing severe [​IMG]
    Only things I had to trim were the shock cones a bit when assembling the intakes itselves and of course adding the slots to the fuselage itself for the splitter plates and the gun covers at the inside of the intake.
    Again the beauty grows. Only thing I am not so happy with is the slight gap at the auxiliary air intakes between the splitter plates and the fuselage.
    Well... next time [​IMG] At the moment it looks good to me... There is always room for improvement I think [​IMG]
    On the detail pictures you can see how I bent the gun covers and the special "McTschegsn grab" to let glue dry when mounting the intakes [​IMG]
    Kfir69.jpg Kfir70.jpg Kfir71.jpg Kfir72.jpg Kfir73.jpg Kfir74.jpg Kfir75.jpg Kfir76.jpg Kfir77.jpg Kfir78.jpg
  14. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328
    Superb!! :)
    McTschegsn likes this.
  15. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,403
    Likes Received:
    3,328
    I forgot to hit the "Like" option. I hate when I do that, so I went back and clicked them. I make this as a separate post for those of you who do like t show your support for a builder, and what happens to be an excellent build thread. :)
    McTschegsn likes this.
  16. micahrogers

    micahrogers Active Member

    Joined:
    Jul 12, 2012
    Messages:
    1,036
    Likes Received:
    272
    it just keeps looking better... great work.
    McTschegsn likes this.
  17. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    204
    Likes Received:
    433
    Thank you mates :) Currently I am waiting for the ordered cardboard to continue with the fin. German postal services are on strike at the moment...
