Building Yoav Hozmis Kfir C-2

Discussion in 'Aircraft & Aviation' started by McTschegsn, Jun 2, 2015.

  1. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    Found this on flickr, perhaps you already have it...
    DaveyBoy and McTschegsn like this.
  2. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435
    Thank you Tonino. I also found this one :) Well I did it quick and dirty and took a cut off black painted toothpick as a throttle stick ;)
    Last edited: Jun 7, 2015
    Tonino likes this.
  3. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435
    Back into the game [​IMG]

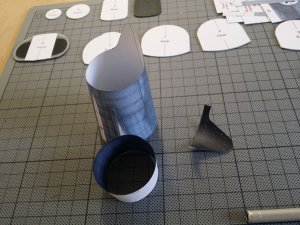

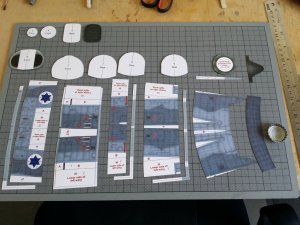

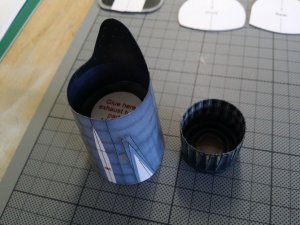

    After cutting out all the rear fuselage section parts I started with the tail cone regarding Yoavs advice to build this part first to ensure mathing of the following parts.
    After drying the Exhaust nozzle will be glued on and the first tail section part is ready.

    Kfir25.jpg Kfir26.jpg Kfir27.jpg
  4. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,682
    Likes Received:
    3,523
    It's so nice to see a Jet model. Much joy! :)
    McTschegsn likes this.
  5. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435

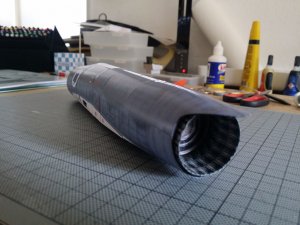

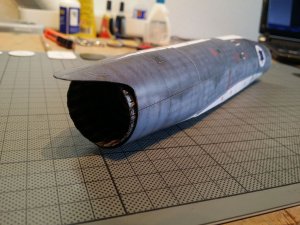

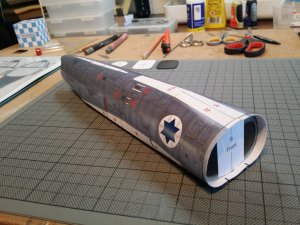

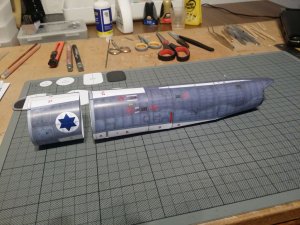

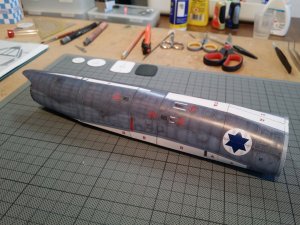

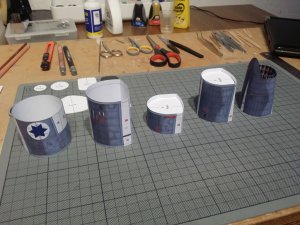

    Got a bit further. Just completed the rear fuselage setions.

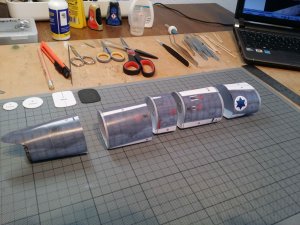

    I still have to sand some formers slightly to get an exact fit but the parts fell together very easily. On the second pic the fuselage parts are put together without glue. Just note the fit. It is almost perfect!
    I hope I will have some more time in the next days to continue building this beauty [​IMG]
    Kfir28.jpg Kfir29.jpg
  6. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,682
    Likes Received:
    3,523
    That is superb workmanship!! :)
    McTschegsn likes this.
  7. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435
    Thank you all for your nice comments :) Continuing the rear fuselage...
    I just finished the rear fuselage segments (and the white glue is drying completely).

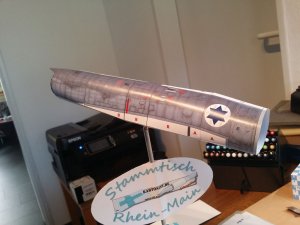

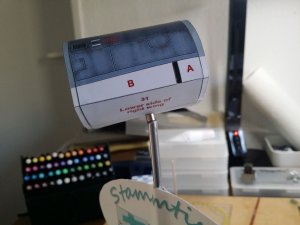

    On one pic you can see a fuselage segment with a tiny magnet in it attaching the part to our regulars table sign. And on one other the complete rear fuselage attached to the sign. One of the magnets can be seen on the top of the signpost. They are 5mm in diameter and 6mm in height.
    Again: the segments are still not glued together to demonstrate the great fit of Yoavs parts!
    When the glue of the formers is completely dry I will glue the segments together.
    Kfir30.jpg Kfir31.jpg Kfir32.jpg Kfir33.jpg Kfir34.jpg Kfir35.jpg
    Last edited: Jun 11, 2015
  8. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,665
    Likes Received:
    1,082
    And you are demonstrating excellent build skills by making them fit so well.
    Nice work.thumbsup
    McTschegsn likes this.
  9. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435
    Thank you Dan, really appreciate that!

    So... progress for today was a part of the front fuselage with inserting (but not yet glueing) the cockpit in its place. The parts fell together very well the only change I did was that I did not use the stopper strips Yoav provided to setting the formers to the right place. Instead of this I inserted the front 5 former after glueing part 5 and pushed it softly in place. I fixed the former with superglue and got a perfect fit with almost no sanding. After that I cut a small hole into the rear 5 former and inserted and fixed it again with superglue. Joining part 4 (with loose inserting the cockpit) was done easily. The slight gap in part 5 where the cockpit wall is folded will be covered up by the cockpit frame. So no worries at this place.

    Tomorrow I go to the Nordschleife (a famous racetrack in germany) for some time challenge :D Hope to continue on sunday...

    Enjoy the pictures. The front fuselage is attached to the rear without glue for the pics [​IMG]


    Kfir36.jpg Kfir37.jpg Kfir38.jpg Kfir39.jpg Kfir40.jpg Kfir41.jpg
    DaveyBoy, zathros, Tonino and 2 others like this.
  10. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435

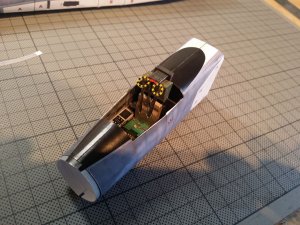

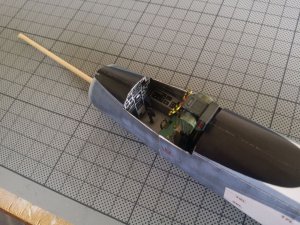

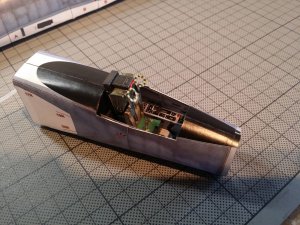

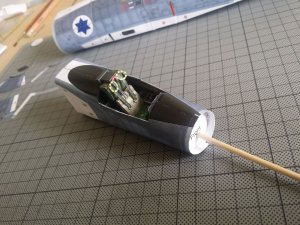

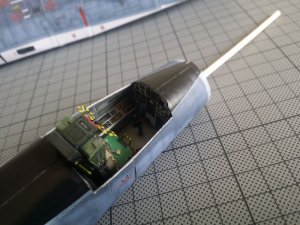

    A tiny update. The cockpit section is glued together and drying now. The stick (attached with a drip of super glue) was for positioning the front 4 former correctly and will be removed when the section is dry.
    Next Step is attaching the cockpit frame, then completing the nose and attach the assembly to the rear fuselage...
    Slowly the bird is growing :)
    Kfir42.jpg Kfir43.jpg Kfir44.jpg
  11. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,665
    Likes Received:
    1,082
    And so is my interest in building one of these......... ;):)
    McTschegsn likes this.
  12. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435

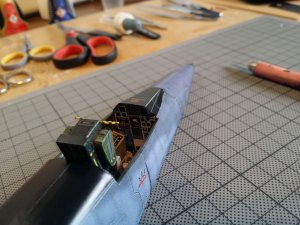

    The cockpit is glued in right now and the cockpit framing is attached... No more white spots [​IMG]
    The next phase will be building the canopy itself. I decided to do the complete nose assembly later for easier handlich of the model.
    I use to do the fiddly parts mostly at the end of the build. The chance of breaking the off or damage them in any way is minimized.

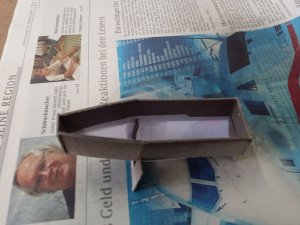

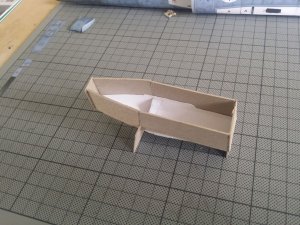

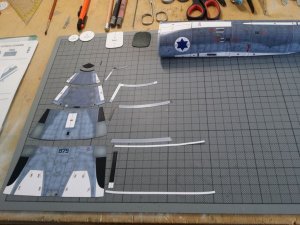

    So I printed the canopy assembly on a second sheet of the same thinkness I used and built the canopy itself. Joiner strips are on the outsine to keep the inner surface flat for the putty.

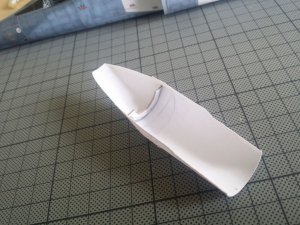

    I reinforced the canopy with cardboard to make it sturdier when putting in the putty for making the plug to vacuform the canopy.

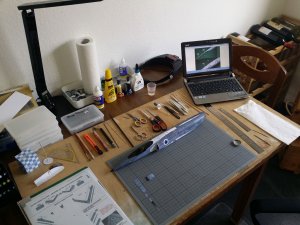

    One pic is of my building space so you can see where I do the fiddling [​IMG]

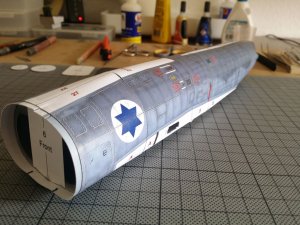

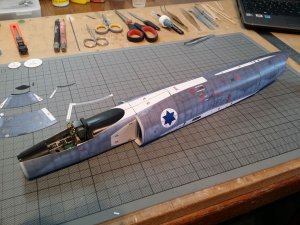

    Last picture is the complete fuselage :)

    Kfir45.jpg Kfir46.jpg Kfir47.jpg Kfir48.jpg Kfir49.jpg Kfir50.jpg Kfir51.jpg Kfir52.jpg Kfir53.jpg Kfir54.jpg
  13. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    I cannot wait to see you working on canopy...
    This is one of the things I never had the heart to try!
    WOW this build is getting VERY interesting. And look at that desktop!!! Looks like a surgery room!

    PS... uhmmmm... and that rack on the right seems very interesting too! I like very much your modeling room!
    McTschegsn likes this.
  14. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435
    Well.... I think tomorrow I will post you some pics of making the mould any maybe making the first canopies...
    I can post a pic of that modeling room too ;)
  15. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,682
    Likes Received:
    3,523
    Look how excellent this is!! Incredible!! :)

    [​IMG]
  16. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385
    Gotta agree "Z" This is turning into a beautiful representation of the "lion"
    Incredible work...
  17. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435
    Thank you guys *blushing*

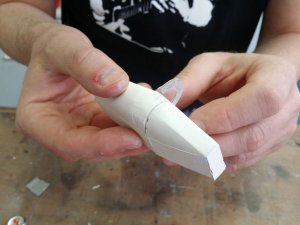

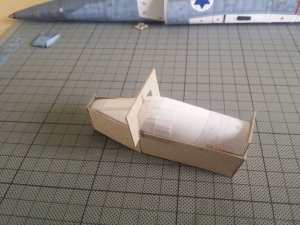

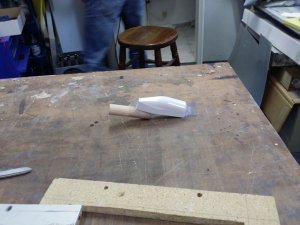

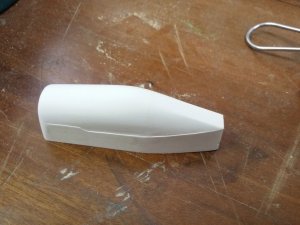

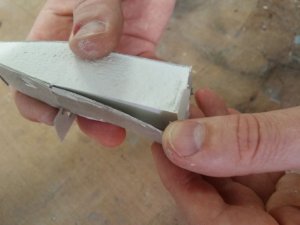

    So today was "plug time" [​IMG] Time to build the plug to vacuform the canopy...

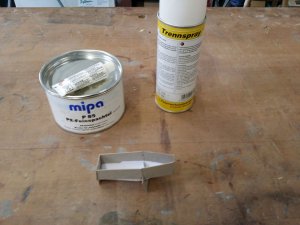

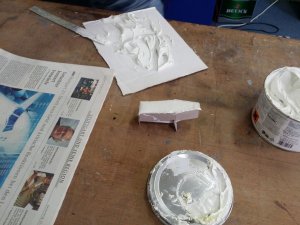

    A few pics illustrate which materials i used and how the outcome was.
    Missing some Vivak to vacuform properly I decided to make a canopy out of shrinking tube... A tube which contracts when exposed to heat. used to insulate cabling and stuff.

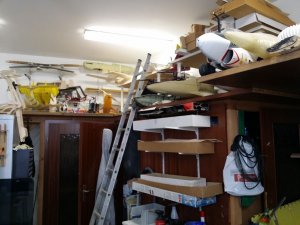

    Well... the first pic is where i normally do my bigger modelling stuff [​IMG] There I have all materials I needed (and a fridge with beer of course [​IMG] )

    Werkstatt.jpg Haube1.jpg Haube2.jpg Haube3.jpg Haube4.jpg Haube5.jpg Haube6.jpg Haube7.jpg Haube8.jpg Haube9.jpg
    DaveyBoy, zathros, DanBKing and 3 others like this.
  18. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435
    The last pictures of the series

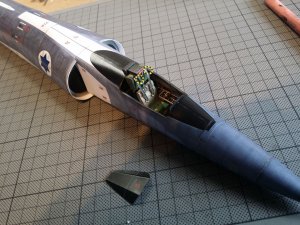

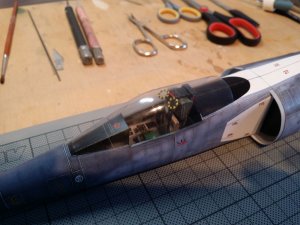

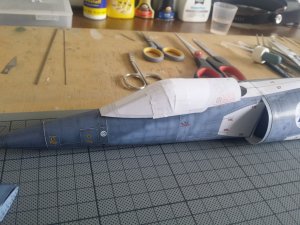

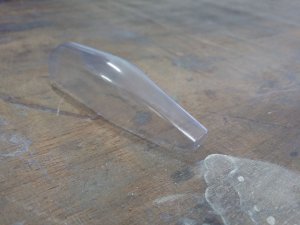

    The shrinking tube canopy is good for checking the form and the fit but it is not so clear like a vacuformed canopy is. So the last pic is the test canopy on the Kfir to recheck the fit.

    Haube10.jpg Haube11.jpg Haube12.jpg Haube13.jpg Kfir55.jpg
    Last edited: Jun 17, 2015
    DaveyBoy, zathros, DanBKing and 4 others like this.
  19. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,665
    Likes Received:
    1,082
    A workshop is not a true workshop without the fridge for the beer ..... :);):Drinks:

    The canopy came out beautifully. Nice work! thumbsup
  20. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435
    Well I just wait for that vivak to vacuform a proper one which is clear... Not so blurry like the shrinking tube one :)
