Building the RK&M III: The Mountain

Discussion in 'HO Scale Model Trains' started by TomPM, Nov 16, 2006.

  1. Jeffs_Railroad

    Jeffs_Railroad Member

    Joined:
    Dec 18, 2006
    Messages:
    61
    Likes Received:
    0
    Hey Tom,
    Thanks great points.
  2. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks!

    Tom did a good job answering this. I would also add that for me the building foam is easier to get than the Woodland Scenincs foam. Also for the amount I need it is cheaper. And lastly it comes in the big sizes I need.

    I did not sculpt the rocks. I used Scuplta-Mold and placed it in the general shape of the rock. I then used aluminum foil over the Sculpta-Mold to shape the rock. I am not good at sculpting. Also with the amount of rocks I was doing it was quicker and easier. I will sculpt things like mortar lines into walls, however.


    I used Scuplta-Mold. I placed it with a putty knife or my fingers.


    As I painted the ties and rail I cleaned them. I used either a paper towel or my finger/thumb. After the paint dried I lightly went over the rails with a piece of fine sandpaper.
  3. IAIS 604

    IAIS 604 Member

    Joined:
    Aug 31, 2003
    Messages:
    105
    Likes Received:
    0
    Tom -

    On another thread, someone is having problems with plaster cloth (which contains hydrocal, I think?) not sticking to the blue building styrofoam.

    Have you had any problems along these lines with your POP, and if so what did you do ???

    Great work, BTW !!!

    I really appreciate you sharing your techniques with us - especially since I'm about to start some of this work myself.

    It's a wonderful on-line manual !!!


    Thanks!
  4. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks George!

    When I started out I used the plaster cloth but it is too expensive for the amount I need. I do remember not being thrilled with it. Off the top of my head I don't remember why. I think it had to do with how much I had to use to get a strong base to hardshell.

    I have not had a sticking issue with the paper towels and the "wet" POP I have been using. My olnly problem with it is the mess.
  5. Jeffs_Railroad

    Jeffs_Railroad Member

    Joined:
    Dec 18, 2006
    Messages:
    61
    Likes Received:
    0
    Tom,
    I appreciate and thanks. I will have to try it on my layout once I get started.

    Jeff
  6. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

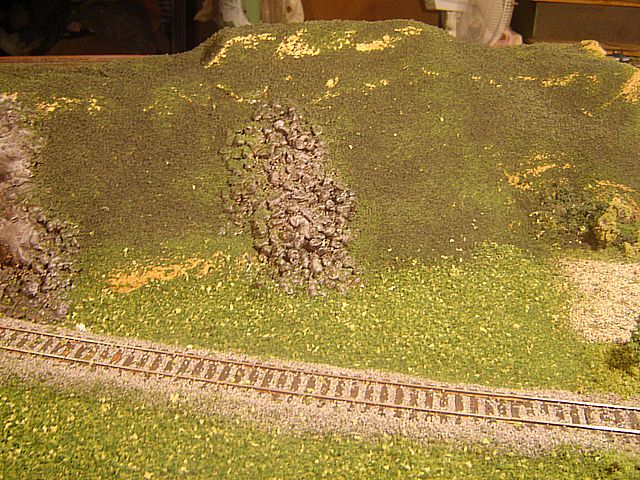

    Next I added some Woodland Scenics Coarse Turf to the Mountain.

    [​IMG]

    [​IMG]

    [​IMG]
  7. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

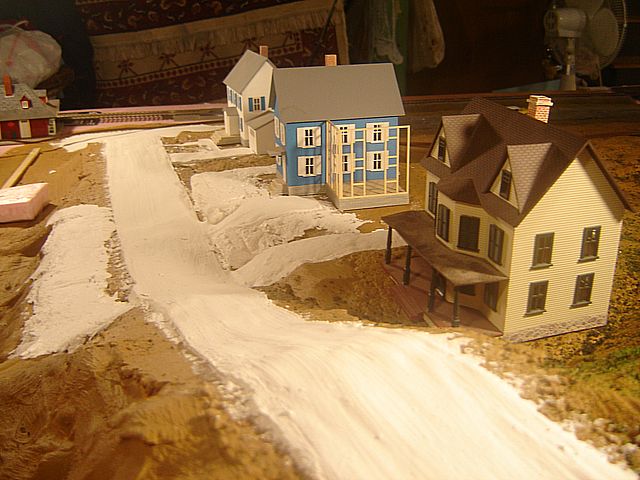

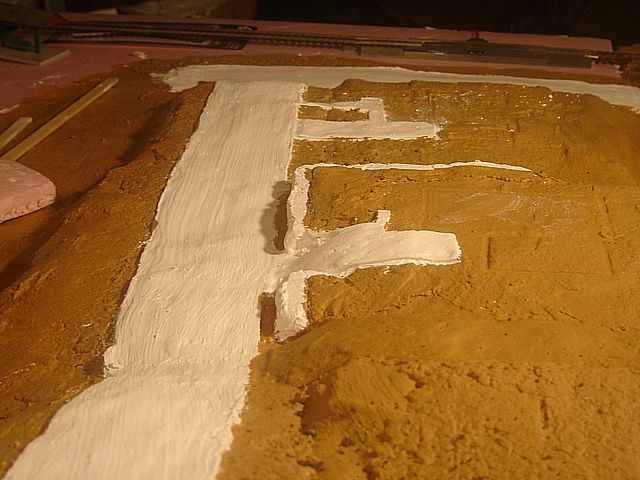

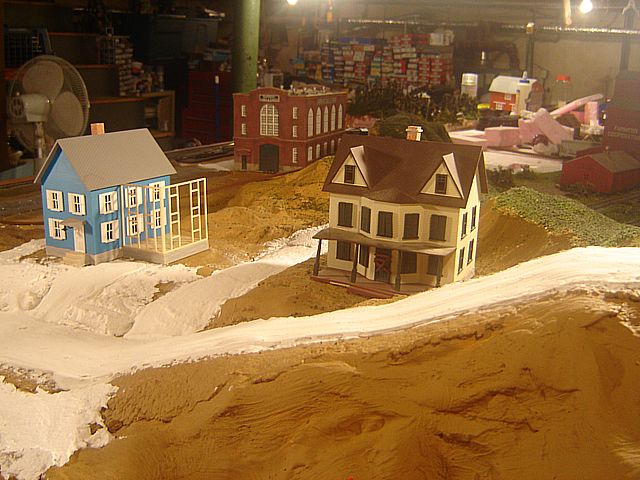

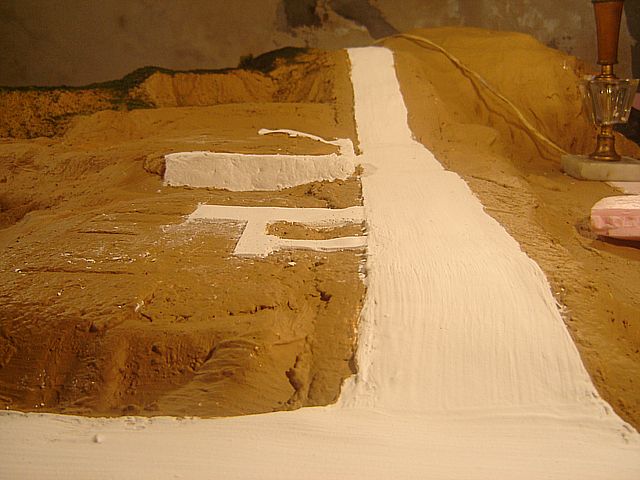

    Using Woodland Scenics Smooth-it I made driveways and walkways for the house along the road. Using Sculpta-mold I also smoothed out some rough areas.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
  8. wickman

    wickman Member

    Joined:
    Dec 8, 2005
    Messages:
    572
    Likes Received:
    0
    The smooth it looks real good for roads. Would you use the smooth it for dirt roads or would that be a waste?:wave:
  9. Nazgul

    Nazgul Active Member

    Joined:
    Jan 23, 2006
    Messages:
    1,040
    Likes Received:
    0
    Tom...
    looking great!....I really like the formation of the land where you are putting the houses...looks so right! Everything is top notch:thumb: :thumb:
  10. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks guys!

    I am not sure. In the past I have used WS turf, usually Soil or Earth for my dirt roads. I guess you could use it. You may have to texture it some.

    I know some folks use Dura-putty or at least that what I think it is called for their dirt roads. They put the putty down and then color it.
  11. ocalicreek

    ocalicreek Member

    Joined:
    May 4, 2005
    Messages:
    838
    Likes Received:
    0
    I've seen the WS gravel and soil used for dirt roads as well, but somehow it hasn't looked right to my eyes. I used a brown gravel for a road surface but the particles seem too large somehow. So I'd be inclined to use a smooth surface material like spackle, then dabbed with a wet sponge to give it just a little texture then let color do the rest. The lightweight spackle I've used for a scenic base will dry to the same color it is when wet, when acrylic craft paint is used to color it.

    Lookin' good Tom! How are you going to color your roads?

    Galen
  12. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks!

    I will use craft paints. I will start with a dark gray for the whole road. I then will drybrush various shades of gray and/or black over the road high-lighting the wheel paths. I will work from dark to light.

    For the yellow lines and whites lines I will use paint pens.
  13. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

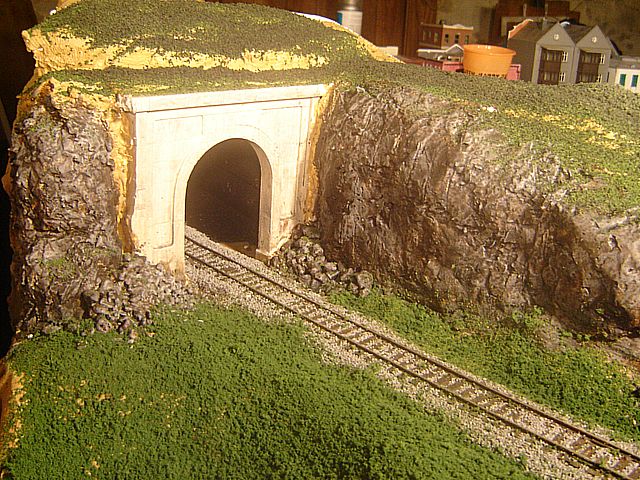

    I added some Fine Leaf Foliage, fine Foliage and Clump Foliage around the tunnel portal.
    [​IMG]

    I repainted the areas I had to fix or Smooth-it got on.
    [​IMG]

    [​IMG]
  14. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    looks cool!
  15. wickman

    wickman Member

    Joined:
    Dec 8, 2005
    Messages:
    572
    Likes Received:
    0
    Nice mix of colors.:wave:
  16. Nazgul

    Nazgul Active Member

    Joined:
    Jan 23, 2006
    Messages:
    1,040
    Likes Received:
    0
    Tom...
    That tunnel portal looks awesome:thumb: :thumb: :thumb: ....may I ask what steps you take to get your ground cover to stick to vertical surfaces? I'm doing it myself but it ain't easy! I was hoping you had a better way
    Thanks
  17. Jeffs_Railroad

    Jeffs_Railroad Member

    Joined:
    Dec 18, 2006
    Messages:
    61
    Likes Received:
    0
    Hi Tom,
    Really enjoying following your progress. Learning some good stuff.

    FYI, I have started my urban layout, since I do not have a digital camera, I am taking pictures as I go, and will have them made to digital to post for the group.

    Take care,
    Jeff
  18. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks!

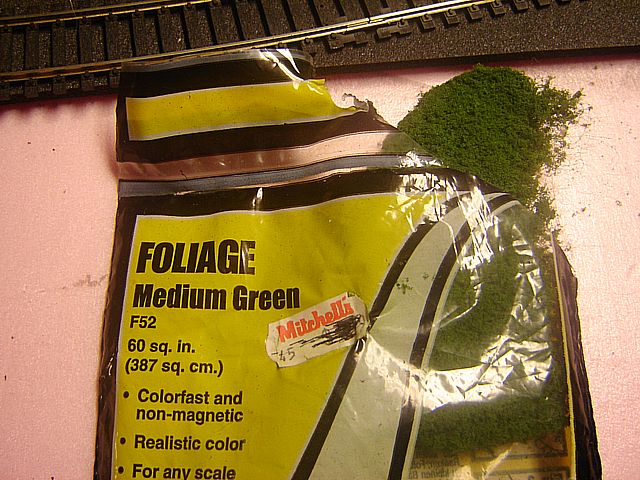

    I am using Woodland Scenics Foliage. It is like a netting that you stretch out to cover the area you want. It works great for vertical spots and as a vine. It comes in four colors:
    Light Green
    Medium Green
    Dark Green
    Conifer Green

    [​IMG]
  19. Nazgul

    Nazgul Active Member

    Joined:
    Jan 23, 2006
    Messages:
    1,040
    Likes Received:
    0
    Thanks Tom!!!
    I'll check it out......
    keep up the excellent work!
  20. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

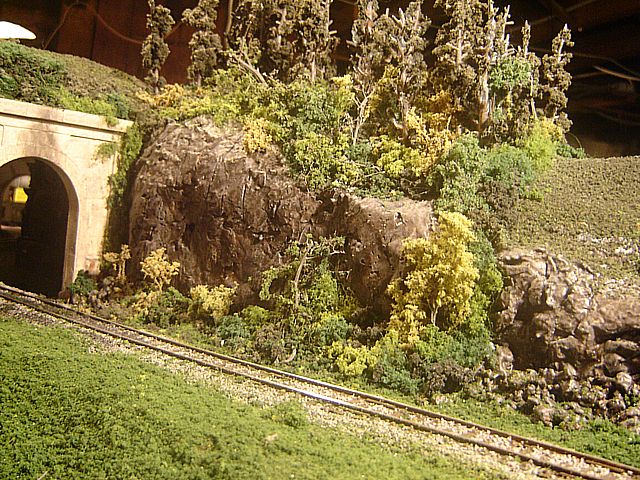

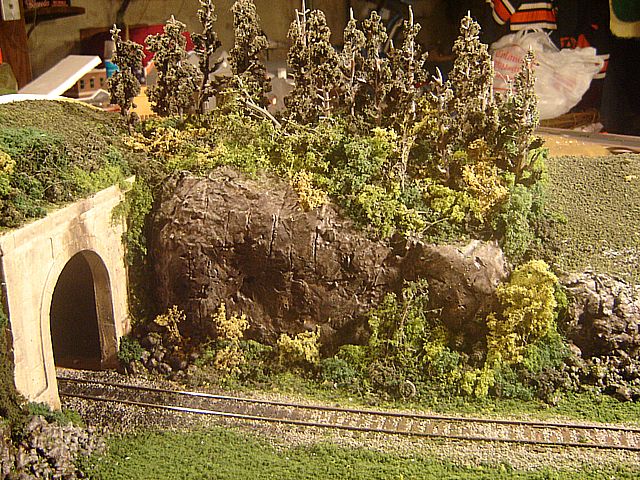

    I have begun to plant trees! I amusing Woodland Scenics’ Pine Trees that I made, clump foliage, foliage, and fine leaf foliage.

    [​IMG]

    [​IMG]
