Building the RK&M III: The Mountain

Discussion in 'HO Scale Model Trains' started by TomPM, Nov 16, 2006.

  1. ocalicreek

    ocalicreek Member

    Joined:
    May 4, 2005
    Messages:
    838
    Likes Received:
    0
    Here's an idea for tunnel liners. They're flexible, not necessarily fully removable.

    On my previous layout I had side access to the tunnel interior (vs. from underneath). But due to viewing angles I needed a liner for both sides of the track. SO I came up with this solution.

    I used heavy duty aluminum foil, crumpled and painted then arched over the track and hot glued to one side. This way I could lift up the liner to rerail or retreive any equipment stuck in the tunnel, then bend it back down into place afterwards.

    First I crumpled the foil to add a rocky look. Then I painted the foil with a can of black spray paint. After the black had dried I added shades of light gray. You could also use that texture paint from the craft store...the stuff that sprays out little colored flecks. They make one with a nice granite color palate of black, white and gray. But really I think just the basic black with a dusting of grays or your base earth coat, is best.

    Also, be sure to spray the secondary color 'into' the tunnel. What you want to acheive is a shadow effect from the black. SO an observer looking into the tunnel sees mostly your base rock color with black shadows behind any crinkles...uh, rocks. Just make sure the black coats the foil well enough to hide any shiny edges or points.

    Galen
  2. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks!

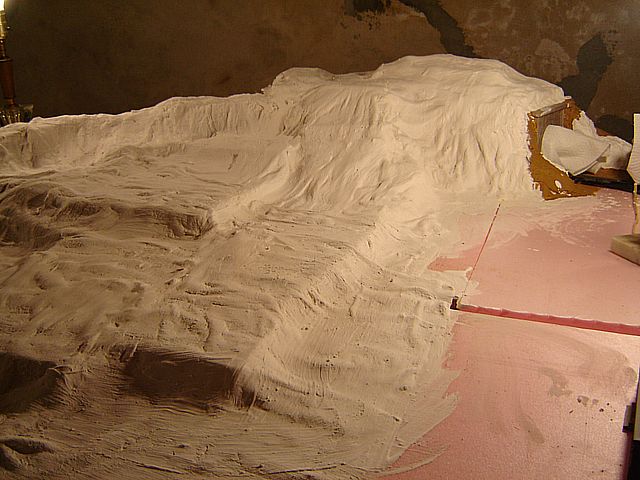

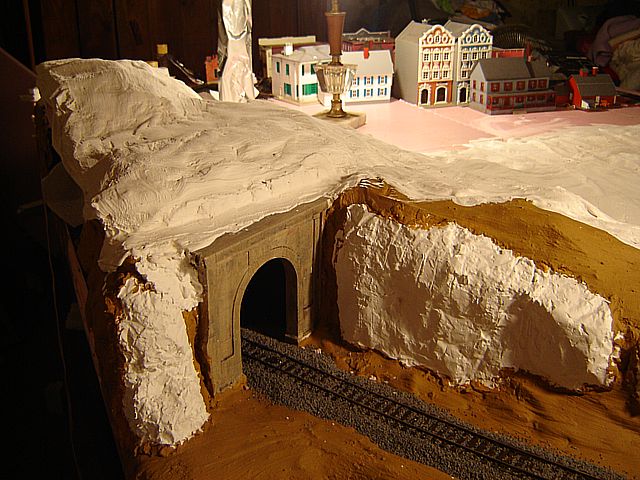

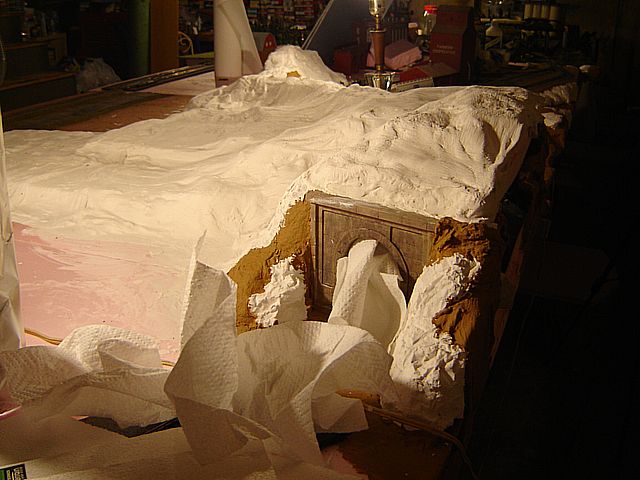

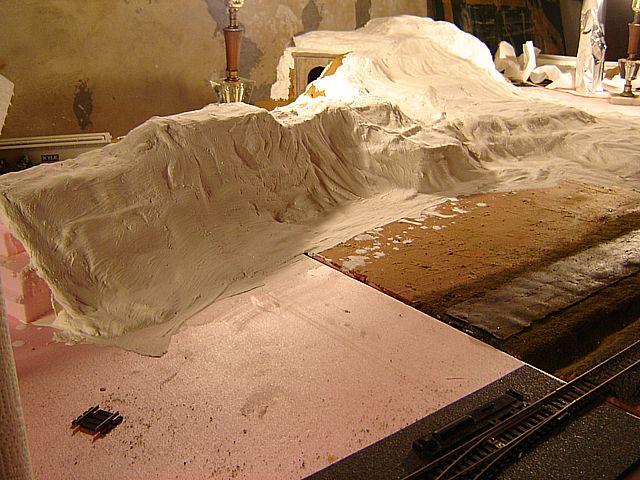

    Here is how the mountain area looks after I gave it a layer of plaster over the paper towels.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
  3. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

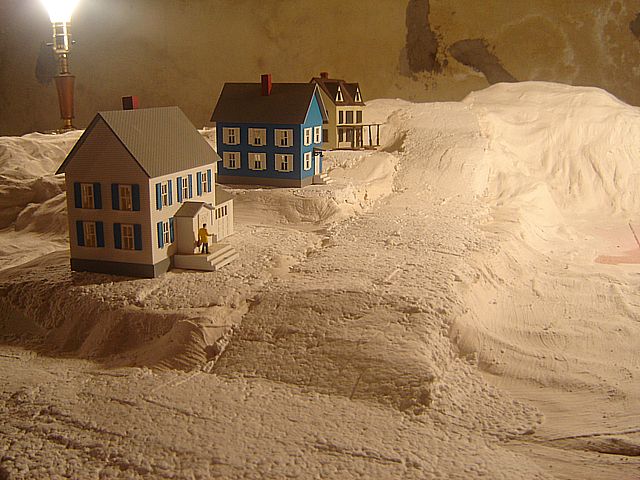

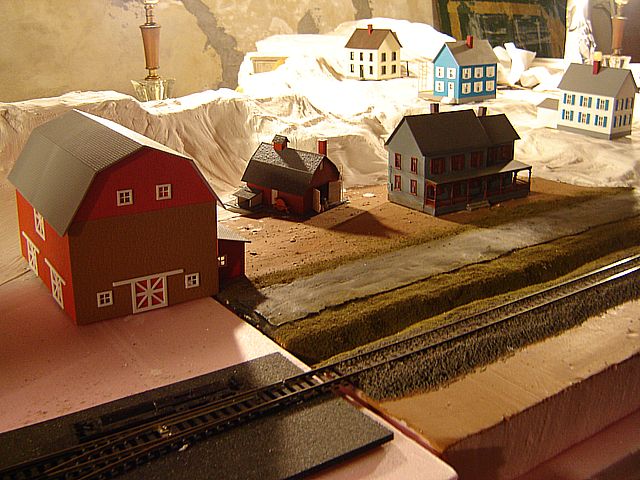

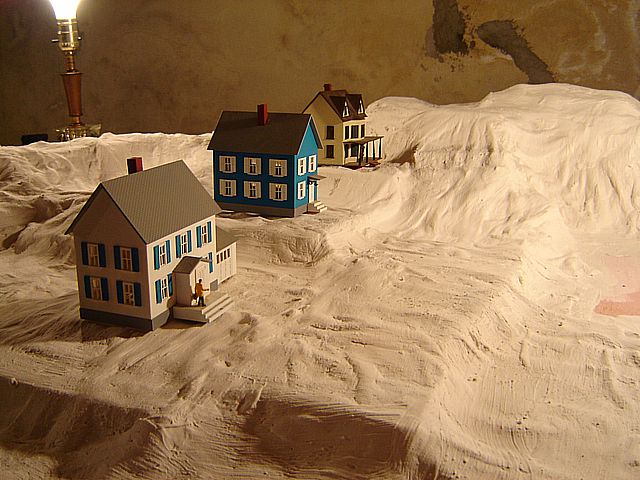

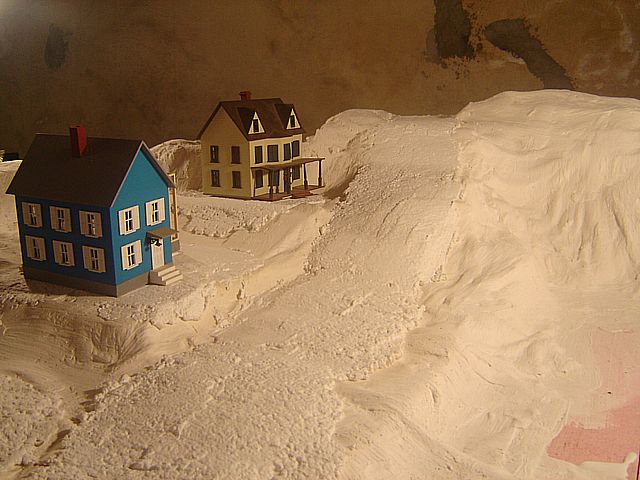

    Next put the buildings in their places temporarily to define where I need to smooth things out.

    [​IMG]

    [​IMG]
  4. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    WOW, that is looking AWSOME Tom:thumb: :thumb: :thumb:
  5. ocalicreek

    ocalicreek Member

    Joined:
    May 4, 2005
    Messages:
    838
    Likes Received:
    0
    I like the nice big yards for those three homes going up the hill. Plenty of room for fun details....people, swingsets, etc.

    Galen
  6. jbaakko

    jbaakko Active Member

    Joined:
    Jun 25, 2006
    Messages:
    1,151
    Likes Received:
    0
    Looking good, keep it up!
  7. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks!

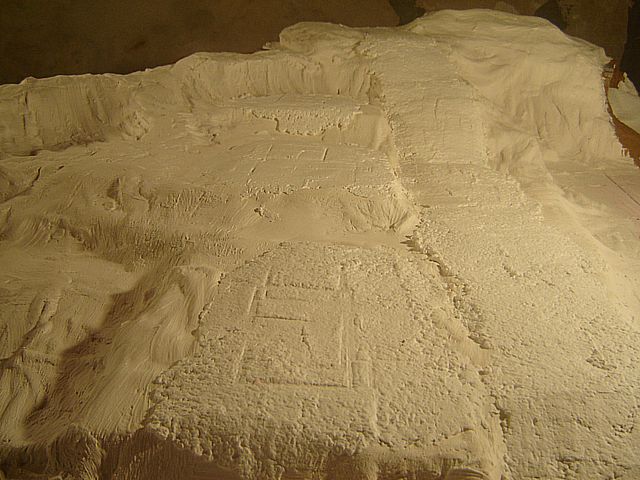

    Using Sculpta-mold I smoothed out the base areas for the buildings and for the road.

    [​IMG]

    [​IMG]

    [​IMG]
  8. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

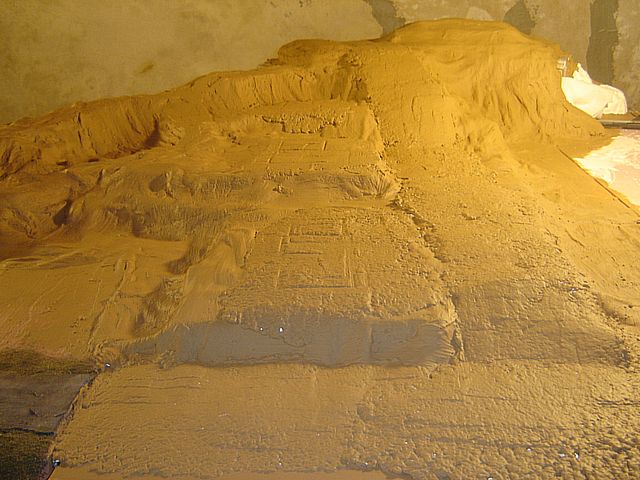

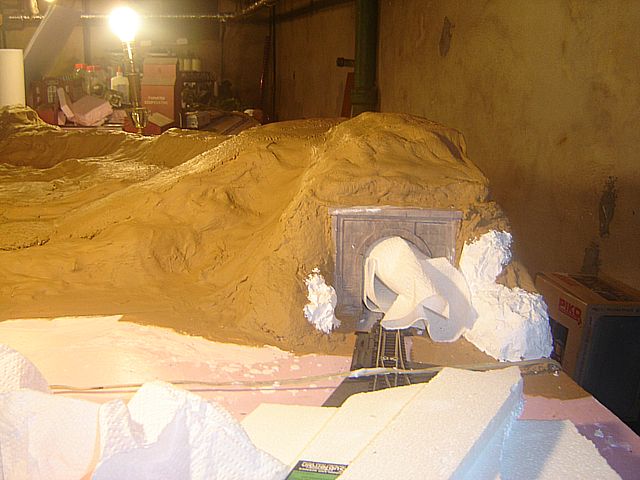

    I have finished painting the ground with Folk Art Honeycomb.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I am also using the photos to track down those areas I missed.

    Next rock coloring and road building.
  9. steamhead

    steamhead Active Member

    Joined:
    Apr 17, 2005
    Messages:
    2,527
    Likes Received:
    0
    Hey Tom...!!! Looking good. Waiting to see how you paint the rock work so I can go ahead with my finishing....
    I think some LGM have snuck a teeny yellow car to get about on your layout...Watch out for them...!!!
  10. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks!

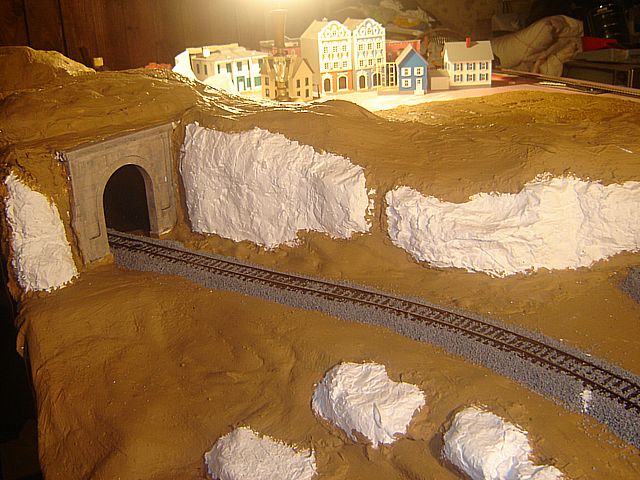

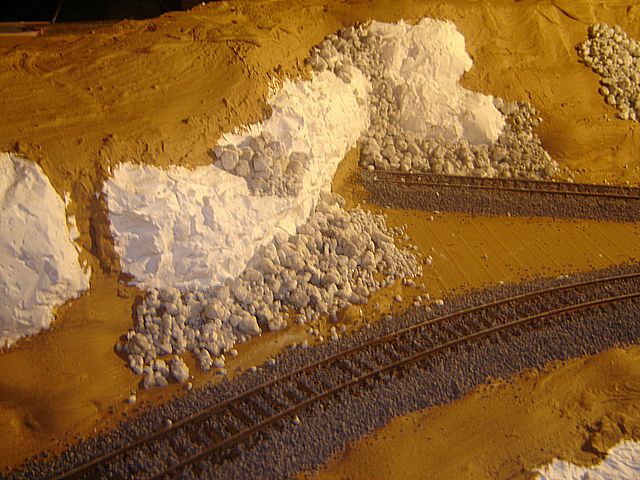

    Using Woodland Scenics Talus I added talus to the mountainside.

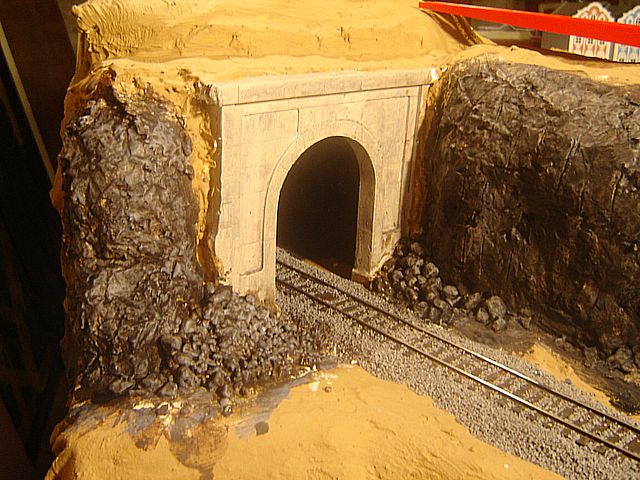

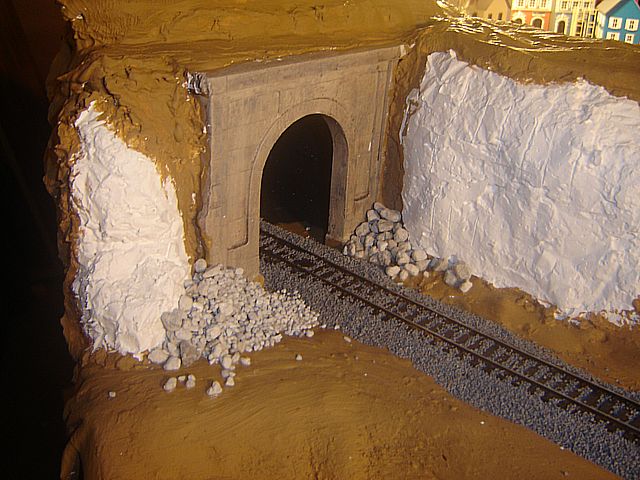

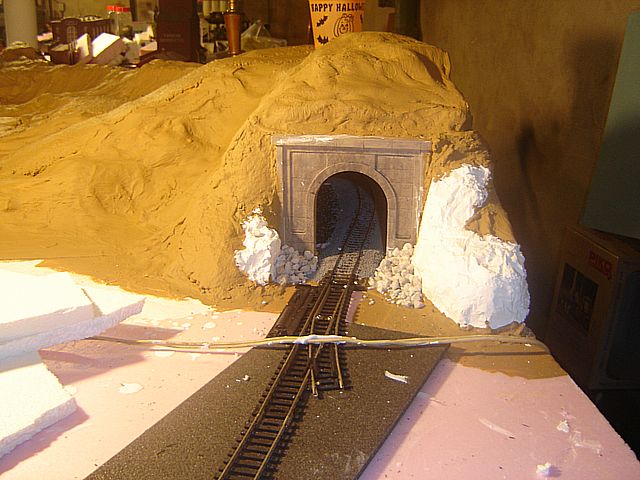

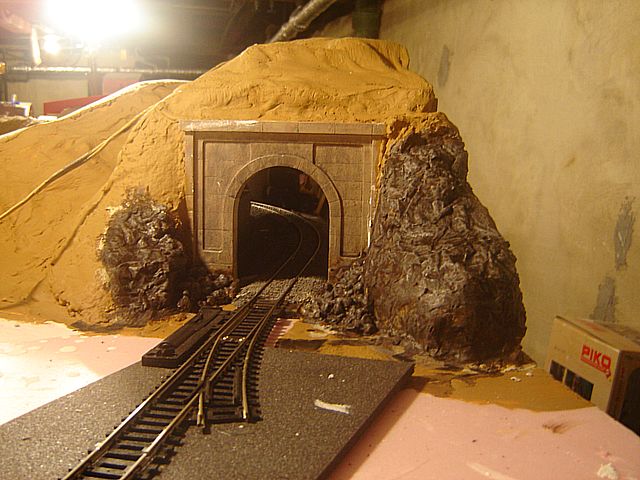

    At the tunnel portals:
    [​IMG]

    [​IMG]

    Around some rock faces:
    [​IMG]

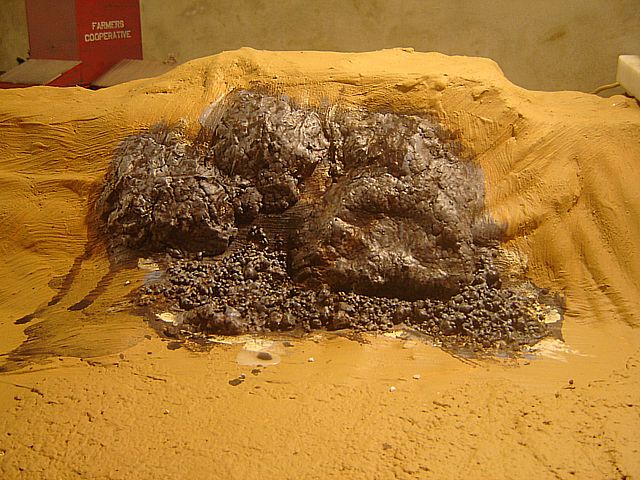

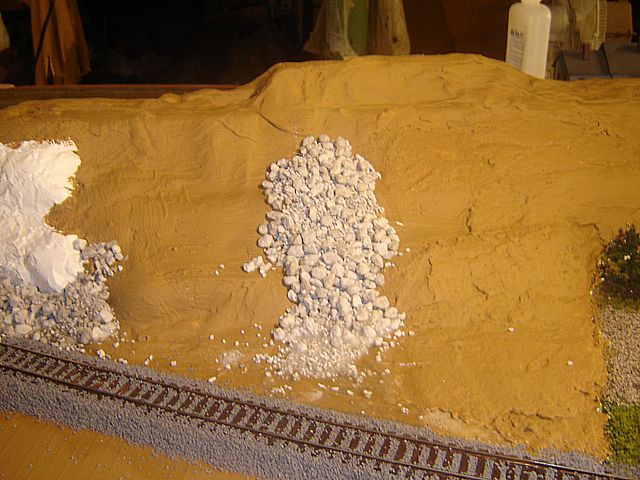

    And a talus field
    [​IMG]
  11. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

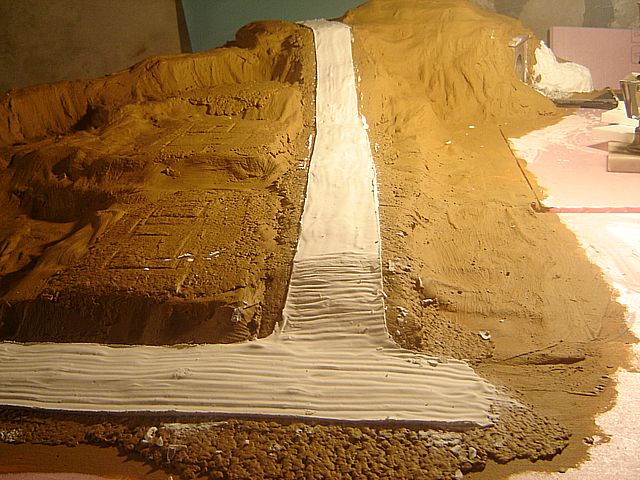

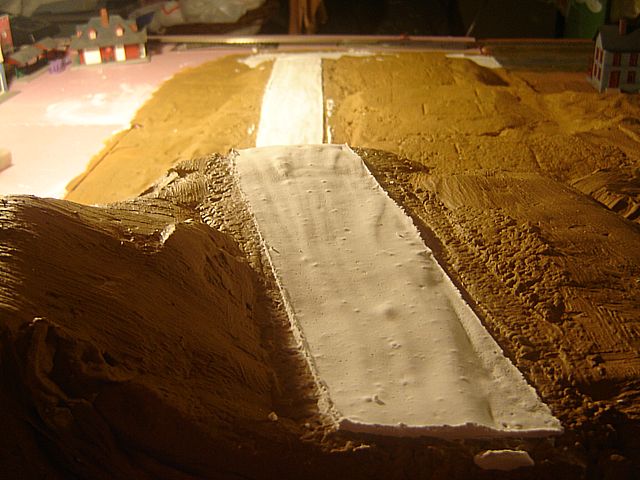

    Using Woodland Scenics Smooth-It I built the road over the mountain.

    Looking up the mountain:
    [​IMG]

    Connecting to the Farm House Diorama
    [​IMG]

    Looking down from the top of the mountain
    [​IMG]

    I need to smooth out some bumps and add things like cracks.
  12. ocalicreek

    ocalicreek Member

    Joined:
    May 4, 2005
    Messages:
    838
    Likes Received:
    0
    Looking great! Are you going to color the talus?

    Galen
  13. green_elite_cab

    green_elite_cab Keep It Moving!

    Joined:
    Apr 4, 2005
    Messages:
    1,942
    Likes Received:
    0
    coolness! I like how its coming out!
  14. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks guys!

    Yes. I should be starting soon. Stay tuned.
  15. wickman

    wickman Member

    Joined:
    Dec 8, 2005
    Messages:
    572
    Likes Received:
    0
    Looks good Tom I was reading or was it maybe viewing one of my video's ah yes it was the Dave Frarey video on making Talus by hammering down some plaster chunks to a useable size then dumping them in a can of black wash then dumping them in a can of earth tone wash they came out looking awsome, err just a thought. Keep up the great work :wave:
  16. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks folks!

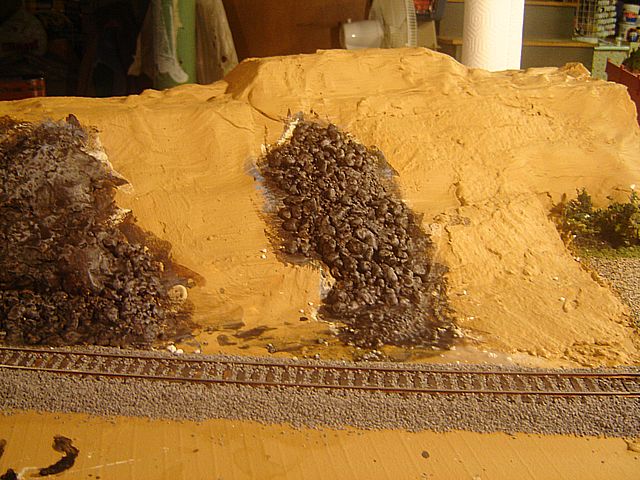

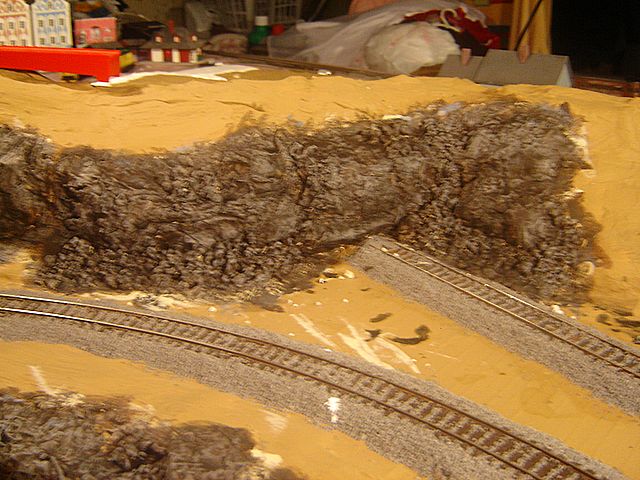

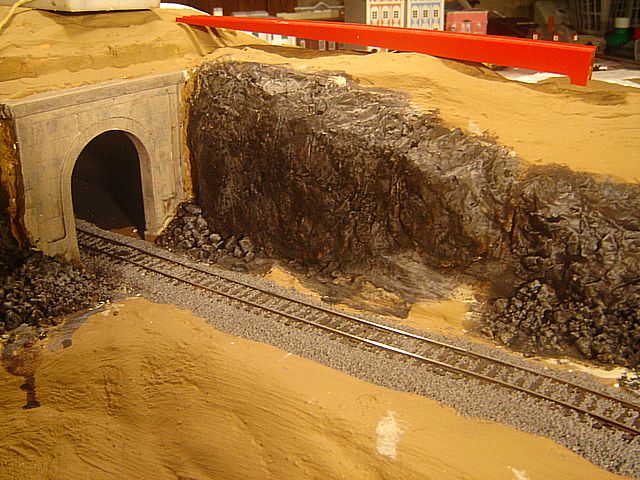

    I finished coloring the rock faces:

    [​IMG]

    [​IMG]

    [​IMG]
  17. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
  18. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

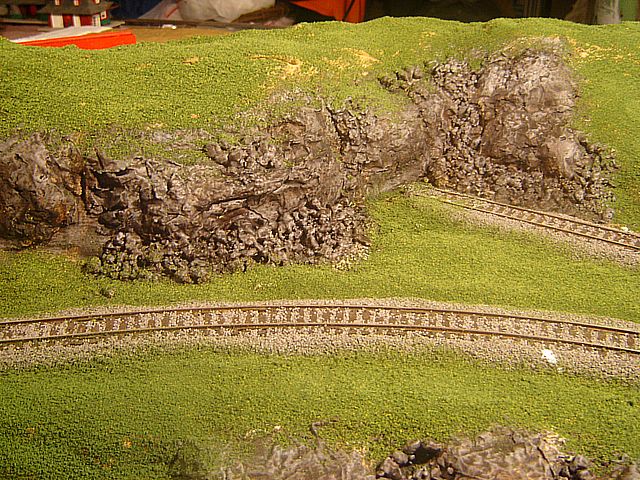

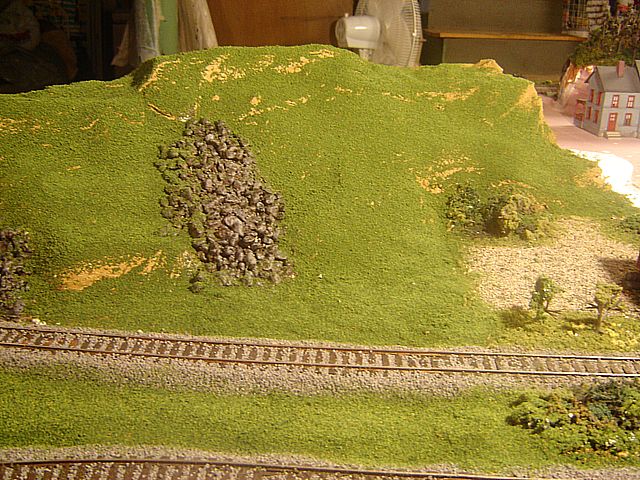

    Here is one side of the mountain with green added. I used Woodland Scenics Blended Green Turf. I ran out toward the end and had to finish with Medium Green Fine Turf.

    [​IMG]

    [​IMG]

    [​IMG]
  19. Jeffs_Railroad

    Jeffs_Railroad Member

    Joined:
    Dec 18, 2006
    Messages:
    61
    Likes Received:
    0
    Hi Tom, you are doing a great job very impressive!!

    Being relatively new to the board, and following the thread to current progress in your developing the layout I am learning a lot from the masters on this board.

    Perhaps with the knowledge gained from attending the Springfield, MA show last year I may be a little confused or as they say a little knowledge I may be dangerous to my layout. I would appreciate your help and others in guiding me down the tracks.
    1) I have been noticing that most everyone uses what appears to be building foam. When I attended the train show in Springfield, MA last year they built their mountains using form to form the tunnel and then rolled up newspaper to sculpture the remaining mounds. Then they placed sheets of newspaper over the mounds and wet the paper with a sprayer to see if they got the desire shape. I would appreciate knowing if there is an advantage to using foam as you did and sculpturing the mountain vs. rolled up newspaper?
    2) When developing rocks you sculptured them. Are there advantages and more realism to sculpturing the rocks vs. using aluminum to make the rocks?
    3) Tunnel Portal, here I probably missed the boat. How and what did you use to fill the gaps between your mountain and portal?
    4) Weathering is a bit scary to me. When you weathered the tracks, you painted them and then cleaned them. Painting seemed easy but how did you clean them? Especially the switch tracks?

    Thanks to all of you, I am learning a great deal and would like to thank each and everyone of you in advance. Nice to know I have a place to go to get answers to my questions. Certainly gives me the confidence to continue building my layout. Hope to someday answer and help others on the board.

    Sincerely,
    Jeff
  20. CCT70

    CCT70 Member

    Joined:
    Jun 25, 2003
    Messages:
    543
    Likes Received:
    0
    My layout is portable, so foam was the way to go. Over the carved and shaped foam, a layer of DAP "Fast & Final" latex based spackle was spread to create the gentle rolling hills for my Napa Valley area (California) scenery. I have used the newspaper/windowscreen/hydrocal plaster method in the past, and while it looked great, it was always so fragile and didn't stand up to the portability of the layout. I was constantly cleaning chips of plaster from inside the tunnel everytime I moved the layout and took it to a show. The foam *to me* is also much easier to shape and form than trying to do the same with hydrocal and screen.

    The foam is just more durable and easier to work with in my opinion.
