Building a Traction Layout

Discussion in 'Traction Thoroughfare' started by interurban, Jul 5, 2005.

  1. Marxed

    Marxed Member

    Joined:
    Jan 29, 2005
    Messages:
    428
    Likes Received:
    0
    WOW!! thats pretty amasing!!! i've never really wandered to far out of the photo forum, but now i'm going to have to check all the other forums here! awsome picture! i never knew what i was missing in this forum! that looks like it's going to be pretty darn awsome
  2. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Thanks CavlrZ, there is a LOT of great stuff in all these sections, happy searching :thumb:
  3. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

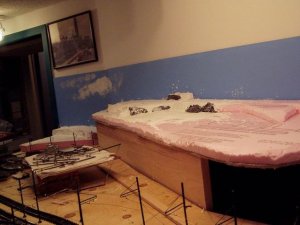

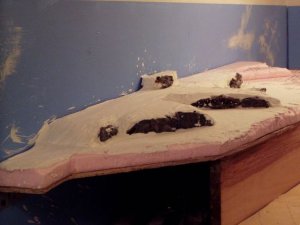

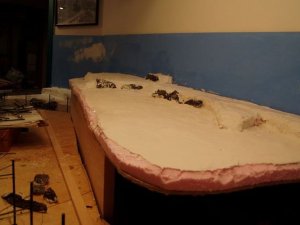

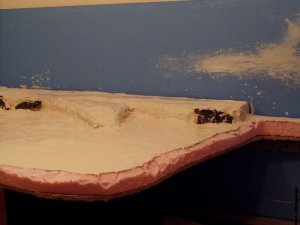

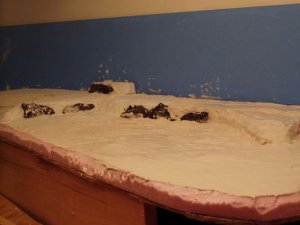

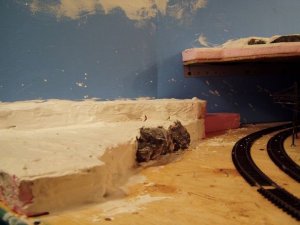

    Hydrocal I hate it !

    BUT I have to get this scenery in.
    so here are a few pictures of my Laours.
    I was given a box of cast rocks from Duckman as he has moved house last week.
    so they will be shared and used by the gang.

    This will be a main photo op area so I do hope I get it right.
    Here are the basics.

    Attached Files:

  4. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

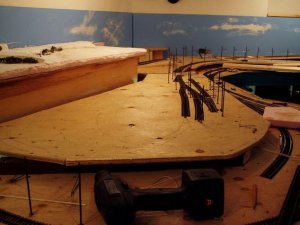

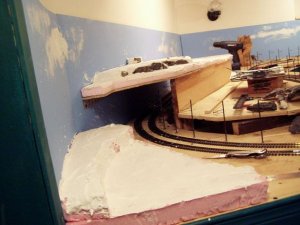

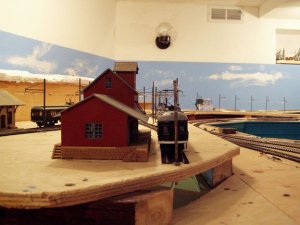

    I have to take the platform below this off and work on the yard befor it gets fixed in and cemented :)

    Attached Files:

  5. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

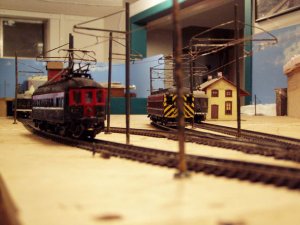

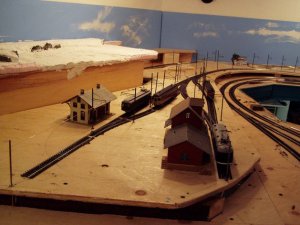

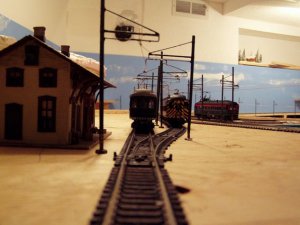

    Its been a while but I am happy with this small yard its in and the overhead is up.
    Scenery will follow after all the overhead is up and working.to my satisfaction.

    Attached Files:

  6. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

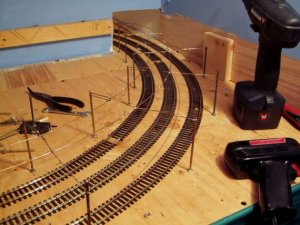

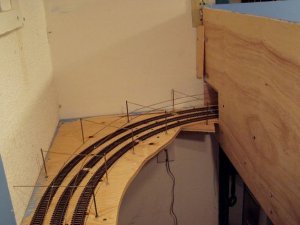

    For those who are still viewing this thread, and are intrested in overhead.

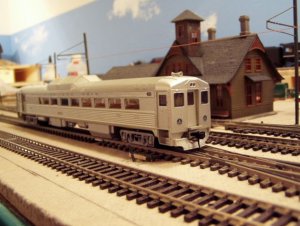

    I had a Christmas gift from an old friend for my L/O.
    A Bud coach. the problem was that it being long in the body it was catching the poles that hold the wire up on the traction tracks under the high town.
    So I had to take the town platform off and redo the poles.

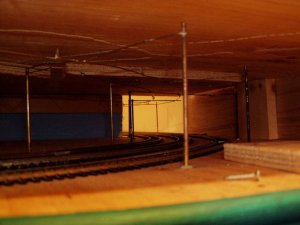

    So here is a chance to see the strong permant no maintance overhead I put in areas that are going to be out of reach.

    Attached Files:

  7. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    Hey Chris,

    Looks like you've been busy. I see that alot of your motors have pantagraphs, but I noticed one car that uses a pole. Does the one(s) ( I haven't seen your whole roster) with the pole track the hidden overhead ok? I can't tell what gage wire you used, but it looks fairly healthy, and forever.
  8. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

    Hi Zedob.

    The overhead "wire" is 26 gauge phosphate bronze on all the exposed L/O
    The heavy duty is only for "no mantinace or apperance" problems as it will be hidden , and that is 1/16th solid soft brass

    The pole model is that of the Grand River Railway. I will be panning it soon when I have scratched built a couple more.
    Each will have one pan and one pole, That is not prototipical of that road, BUT I only operate with pantagaphs.
  9. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    Ok, that makes sense. I always had a liking for traction and have always wanted to have atleast one streetcar running the roads, but I had always planned on the car running one end only forward and never having to raise or lower the pole to reverse. i can see where pantagraphs would make traction modeling more enjoyable.
  10. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    This week end apart from playing on ebay, I am better off as I was out bidded, boy they get stupid money for stuff eh?

    Anyway I digest er digress

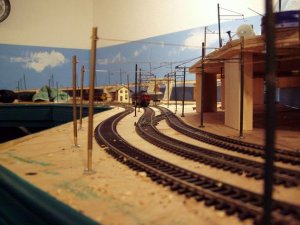

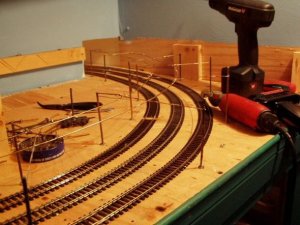

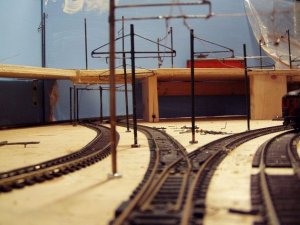

    I did the hard part of my overhead, a lot of work in a small space, but it will make the L/O live.

    What you will see here is,,, two overhead tracks one reversing on itself with 3 park ups at the station that will go there. The outside trackage carries steam/Diesel

    I can now put the town platform back and continue with the rest of the overhead .

    AS you saw the back hidden portion has very strong 1/16th overhead for problem free operation as I will not be able to see a wire adrift back there, and that would be costly

    Attached Files:

  11. jetrock

    jetrock Member

    Joined:
    Dec 19, 2003
    Messages:
    957
    Likes Received:
    0
    The Sacramento Northern made extensive use of locos with one pan and one pole (and third-rail shoes, too!) to utilize the SN's weird admixture of power supplies--pans were used on interurban catenary track and on freight lines, poles were typically used in town on passenger lines, third rail used north of Sacramento outside of towns, and all units crossing Suisun Bay on the ferry RAMON used poles to board the ferry (it wasn't set up for pans.)
    [​IMG]
    SN 1005 with pan up and pole clearly visible
    [​IMG]
    Box motor 601 with pantograph and two poles
    [​IMG]
    GE steeplecab 650 with pan & pole
  12. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

    Thanks Jet that is one of my favarite Lines.
    I Loved the ferry operation.
  13. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Gotta love that steeplecab, what a beastie

    Good to see the wire going up on your new layout, Chris, looks great. :thumb:
  14. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    interurban, nice work, keep it up. I can't wait to see the progress on your layout. I sure can appreciate the effort it takes to build a traction layout. It's almost like building two railroads, kinda sorta. :thumb: Definiately not beginner stuff and not modeled that often (not to say that there are only a handful who do).

    I have a thing for street trackage, especially in brick, and salute anyone who carves their own brick paving and yes, I have read your article.:thumb:

    Now I know who to go too for future traction questions.:D


    Ok jetrock, STOP IT! I really don't need a reason to add overhead to my layout.:D I already have enough unfinished projects to worry about, but boy it would be neat.
  15. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Thanks Bob and zedob, As jetrock said pole and Pan on the same unit was use by Sacramento Northern, I will have a few units equiped like that.
    I have to find some way of getting frogs shipped up to me hhhhmmmm.
  16. jetrock

    jetrock Member

    Joined:
    Dec 19, 2003
    Messages:
    957
    Likes Received:
    0
    I'm still trying to convince myself to add overhead to my own layout...I did some switching today and was reminded that putting in poles would seriously hamper my switching operations, as the 0-5-0 switcher is frequently called into service to unstick reticent couplers! I worry that if I do overhead, my big clumsy paw is going to end up tearing down overhead the next time I have to unstick a derailment--not to mention what those sharp barely-visible wires might do to my hand!

    But then I see the great jobs on others' traction layouts, and the urge to do overhead bounces up again!!
  17. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    :D Jet you know you are going to hang wire soon, do not worry about pulling down overhead , i do it often when I put tools down on the track I almost always lift them off upwards , then I here the TWANGGGGGGG :D

    It soon gets repaired :)
  18. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    I have some questions about the frogs.

    Do you need the overhead kind?

    Attached Files:

  19. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    Or the kind in the the road?

    Attached Files:

  20. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    Regardless, I can send you either kind. How many do you want to order?

    Attached Files:
