Building a Traction Layout

Discussion in 'Traction Thoroughfare' started by interurban, Jul 5, 2005.

  1. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Hi Folks, for those intrested it traction , I will post here with ongoing developments re my new traction L/O.
    here is the link to the start of the new acquired room.

    http://www.the-gauge.com/thread14576-my-new-rr-room-is-ready-at-long-last.html

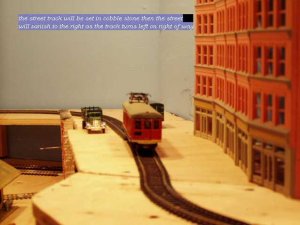

    Putting track into street and cobble stones
    http://www.the-gauge.com/thread12361-finishing-the-street-trackage.html


    Building traction poles here.
    http://www.the-gauge.com/thread15290-poles-to-hang-traction-overhead.html

    Scratch building a interurban here.
    http://www.the-gauge.com/thread7224-what-do-quotwequot-make-with-this-and-that.html

    Chapter 2 will follow soon
  2. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    Hey thanks for putting all of your previous how-to's together.

    I've always wanted to model some inter-urban overhead. I always balked because of the meager supply of cheap, yet exquisitly detailed streetcars.

    Now you gave me some ideas.

    KEEP IT UP!
  3. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Glad it helps zedob,

    It gives folks a referance in the same thread as I build my thing :thumb:
  4. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Here is Chapter 2.

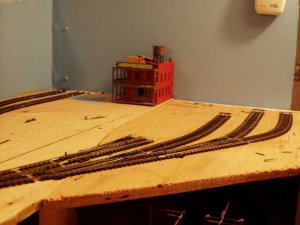

    Most of the track is in on the right of the bench work.
    Main Station has to be finished yet before we continue onto the other side. :cool:

    Attached Files:

  5. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

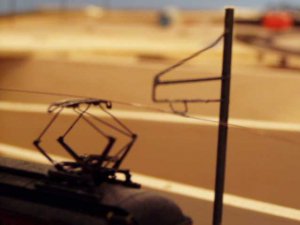

    I will finish all track work before the over head is worked on, as we have to think of the easy way of bringing it all together.

    Chapter 3 to follow. :p

    Attached Files:

  6. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,141
    Likes Received:
    0

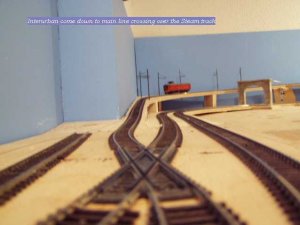

    Chris: you need to take care where you cross the big railway -- with poles they installed a metal net trough over the wire to catch a dewirement and get the trolley car out of the way. Don't know about pantographs -- maybe double or triple wire?
    Saw a photo last weekend of the Dearborn Street Railway (Mich.) crossing a steam railway. Double track reduced to single, spring switches on each side, and the overhead was two wires across -- no frogs. Couldn't make out any trolley pole catchers.
  7. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Thanks David I will read up on that. ;)
  8. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Track is almost finished

    Had a few hours to compleat the two main lines and plant a few poles.
    So here we go ;)

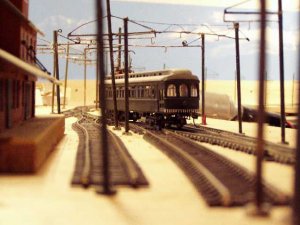

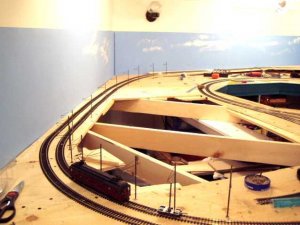

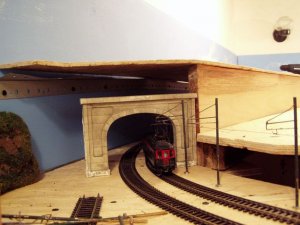

    First three pictures show the over head being put in on a back streach.
    This was going to be in a tunnel, but I am going to make a culvat at the back for the run this allows me to have a lower town maybe 2 " higher than the base for the town development, instead of 4 ".

    Attached Files:

  9. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Fist shot is now going to house the Interurban barn, in the high town.

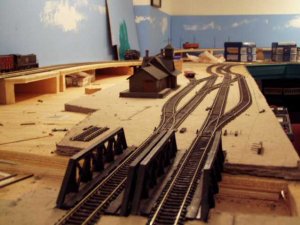

    the other shots are of the main station.
    Inside tracks are overhead outside for steam/ diesel operation.
    That`s it for now. :p

    Attached Files:

  10. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

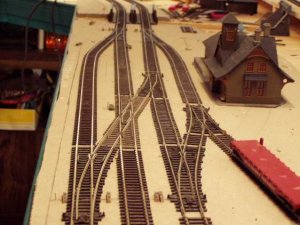

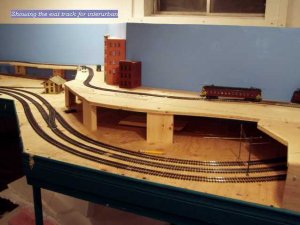

    Did a bit of work this week and put the track in where my interurban dead end station will go.
    These are the easy switch throws I make so I don`t put my big hand under the
    wire to throw them.
    I am not to fond of electric throws when I can reach the switch.

    Attached Files:

  11. shortliner

    shortliner Member

    Joined:
    Dec 23, 2004
    Messages:
    379
    Likes Received:
    0
    Chris - what are the bits ,parallel to the track, just trackside of the operating handles?? They look like a couple of removed ties (sleepers?)
    Shortliner(Jack)away up here in the Highlands
  12. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

    Hi Jack, They are cedar strips from an old wood kit I had knocking around.

    The keep the throw wire in the grove I cut out with the dremal tool.
    Also they give it a finnished look..

    Drill pilot holes first and use rail spikes and there you go :cool:
  13. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

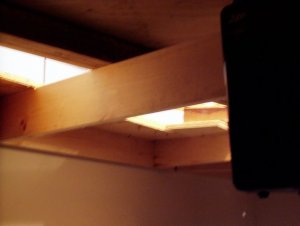

    Hi Folks, I managed to get some more Plans into actual bench progress, that thing called work gets in the way.

    Still putting the skeleton together, and I HAVE almost finished the whole track plan , overhead is another job to do.

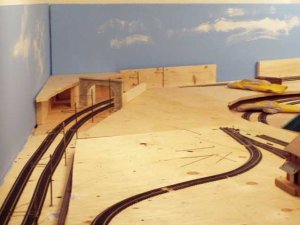

    Just a few pics of the work todate.

    Attached Files:

    • lo1.jpg
      File size:
      47.1 KB
      Views:
      1,244
    • lo2.jpg
      File size:
      35.9 KB
      Views:
      1,240
    • lo3.jpg
      File size:
      30.5 KB
      Views:
      1,297
  14. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    I hope to have the traction poles and overhead up in this hick town section before it`s screwed into place.

    Still a lot of work to do before the tracks are operational.

    That`s when I can get in there with the scenery stuff.

    Attached Files:

  15. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Yes I am back at it

    It has been a while since I posted here, that`s cause its been a while since I got anything done. :(

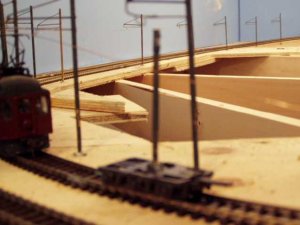

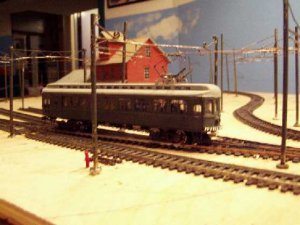

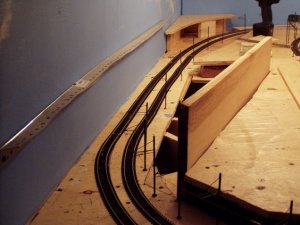

    I have started on the overhead in the freight yard, and hope to get that done, I am in between three two day shows with the traction in action L/O, two still to go.
    Hoping to get at it again soon. :p

    Attached Files:

  16. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

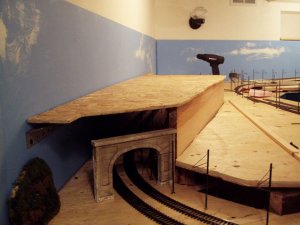

    I have had a rest for a while contemplating this side of the L/O and decided to cover this section so as to avoid out of reach scenery problems and overhead glitches

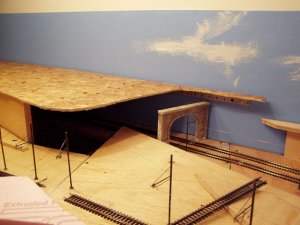

    This is yesterdays work, I went and bought some wafer board and using material on hand I constructed the hill/ mountain.

    This has been a nagging problem as I did not want to cover it at first, but I am not getting any younger :rolleyes:

    Attached Files:

  17. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

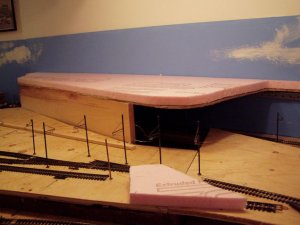

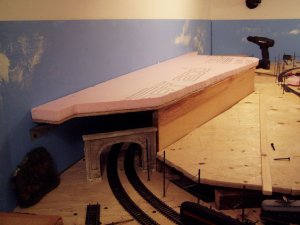

    With the wafer board in place I can work the foam into some decent terrine
    And it will still be well supported.

    Attached Files:

  18. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    This will now have a nice dead end freight station and also a passenger area.

    It`s funny how one gets stuck for a while and just has to sort out one problem instead of working else where on the L/O :rolleyes: :p
  19. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    Boy can I relate. Nice work. I love traction layouts and I can't wait to see yours progress.
  20. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Thanks zebob, I should get more done now eh? :D
