So, back in May of 2010, I did a beta build of the Warhawk for @ThunderChild. Here is the link to the old thread: https://www.zealot.com/threads/thunderchilds-warhawk.167779/#post-905080
Unfortunately, I have not built it again since. So, I have decided to give it another go. However, I have decided to build the harder version and add some extra detail to the model. I am also going to be more detailed with the build thread as well.

Please stay tuned to your local Earth Broadcasting Directorate channel for further updates as they are posted.


Rhaven Blaack

ADMINISTRATOR
Administrator
Moderator
Jun 12, 2009
8,805
3,983
183
Oregon
2 more, you making the headpiece to go along with it? :noteeth:
Are you talking about Hawk's headpiece? If so, no. However, making a "Hawk" figure to go with the rest of the EDD figures would not be a bad idea. Then again I would have to look at doing the Searcher crew and a few others as well.


Rhaven Blaack

ADMINISTRATOR
Administrator
Moderator
Jun 12, 2009
8,805
3,983
183
Oregon

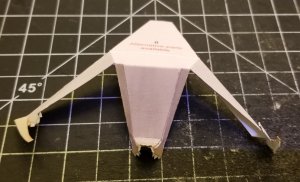

So, I have started the construction. Here is the section that I have started with.
Warhawk section one.JPG

I will be adding more detail. Yes, I will chronicle these details as I go.

Last edited:
  • Like
Reactions: micahrogers

Rhaven Blaack

ADMINISTRATOR
Administrator
Moderator
Jun 12, 2009
8,805
3,983
183
Oregon

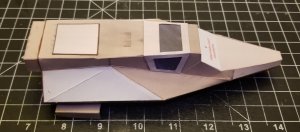

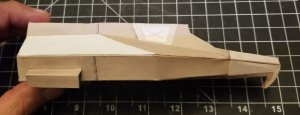

Here are the photos of my progress thus far!

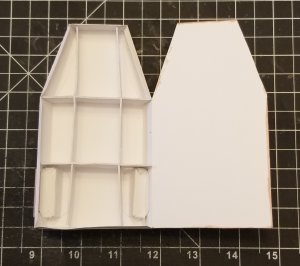

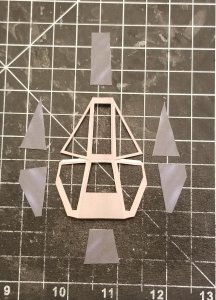

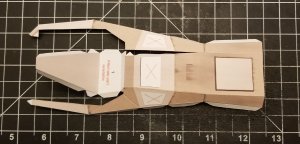

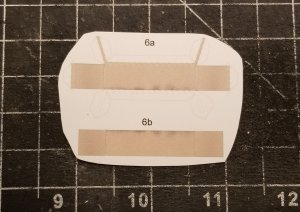

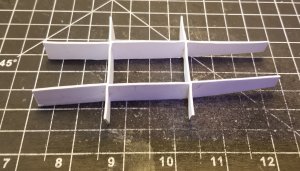

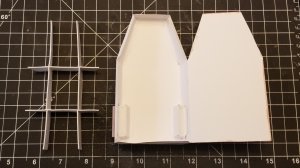

Here are the parts for this section. As you can see, I did make internal formers to add to the fuselage (part A-1) for added support and rigidity (*NOTE* Internal formers for the fuselage do not come with the kit).

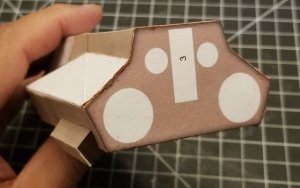

Starting with the lower "beak" (part 6), I started working my way from the outsides and working my way inward.
20191024_195126.jpg 20191024_195133.jpg

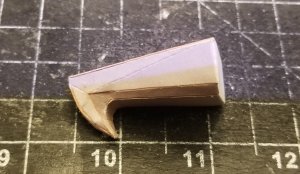

The Beak is finished.
20191024_203149.jpg 20191024_203158.jpg 20191024_203216.jpg

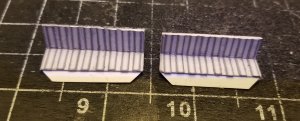

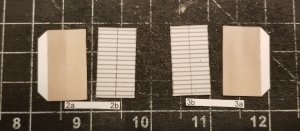

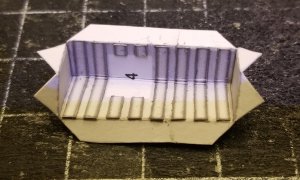

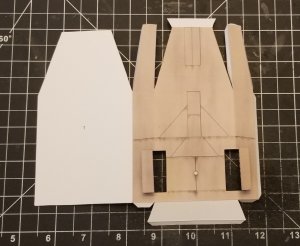

Next comes the landing gear bays and doors. I started with the bays.

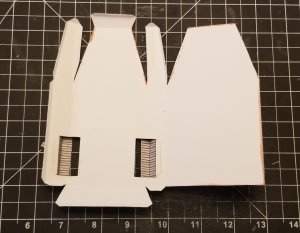

As you can see, I raised the slats inside the bays.
20191024_211837.jpg 20191024_212032.jpg 20191024_220430.jpg

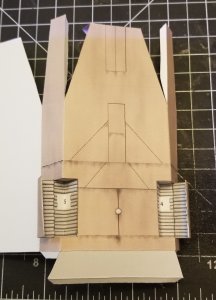

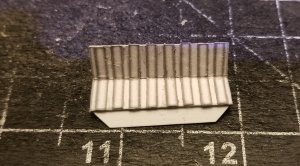

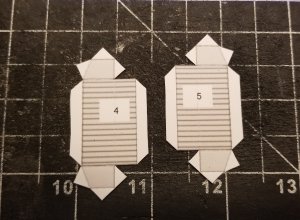

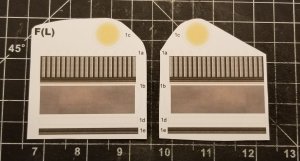

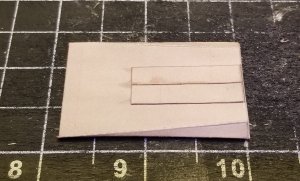

Here are the doors for the landing gear bays. I raised the slats on the doors as well.
20191024_221552.jpg 20191024_224534.jpg 20191025_104154.jpg

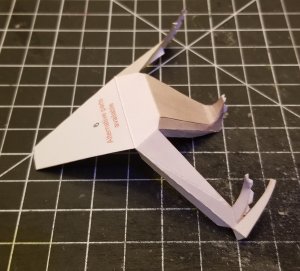

Now on to the main fuselage. I attached the landing gear bay doors to the fuselage.
20191025_105140.jpg 20191025_105155.jpg

The landing gear bays are attached.

As I mentioned earlier, I made internal formers for the fuselage (part A-1).
20191025_111429.jpg 20191025_111410.jpg 20191025_111451.jpg

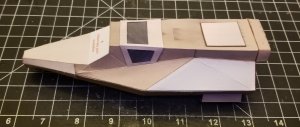

Both the fuselage and the Beak are now finished. As you can see, I did raise some of the panels on the fuselage.

Last edited:

Rhaven Blaack

ADMINISTRATOR
Administrator
Moderator
Jun 12, 2009
8,805
3,983
183
Oregon

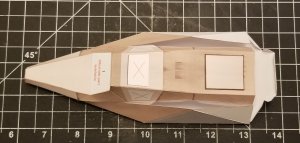

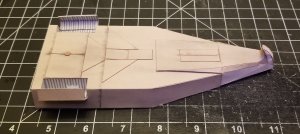

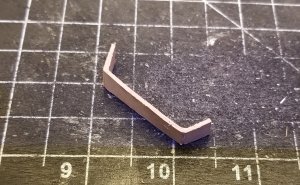

Here is the bottom piece that attaches to both the fuselage and beak.


The piece is assembled.

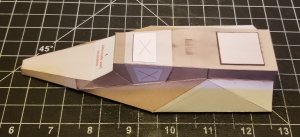

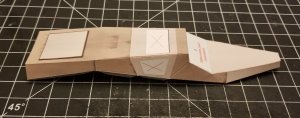

The beak is attached to the fuselage.

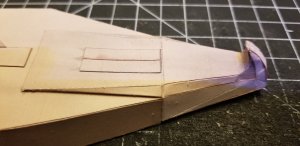

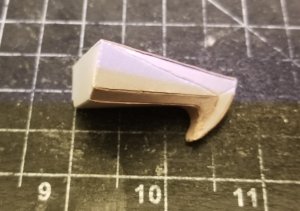

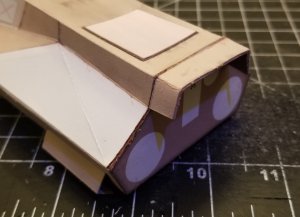

Here is a close-up of the beak.

Please stay tuned to your local Earth Broadcasting Directorate channel for further updates as they are posted.


Rhaven Blaack

ADMINISTRATOR
Administrator
Moderator
Jun 12, 2009
8,805
3,983
183
Oregon

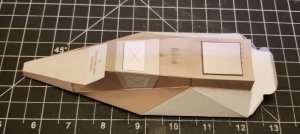

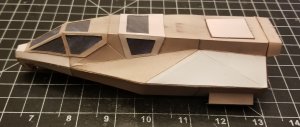

Here is the upper fuselage.

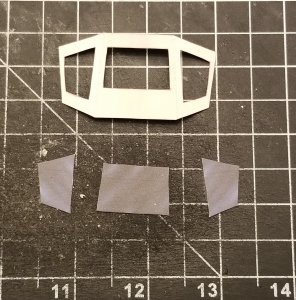

Starting with the cockpit section.

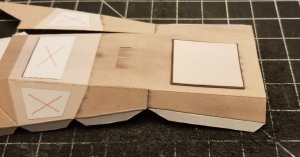

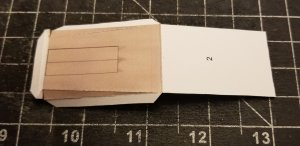

I raised the back panel two levels (both the dark brown and light brown panels).

The main cockpit section is down (without the front canopy).

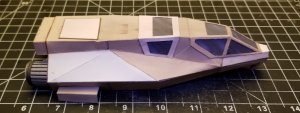

Here are both main parts of the upper part of the fuselage.

I attached both parts, starting from the front working both sides at a time towards the back.

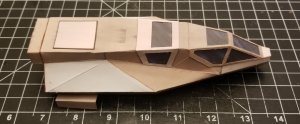

20191025_181730.jpg 20191025_182634.jpg 20191025_182833.jpg

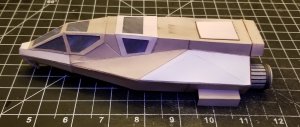

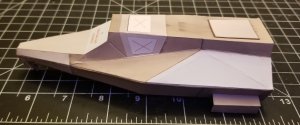

I have attached the upper fuselage to the lower fuselage.
20191025_184747.jpg 20191025_184803.jpg

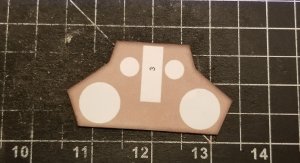

Here is the back plate for the fuselage.

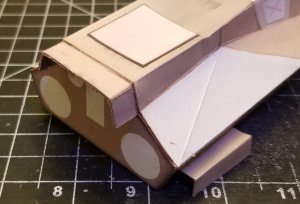

The back plate is attached.

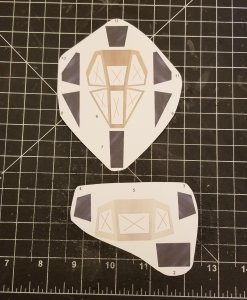

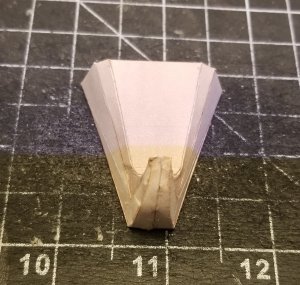

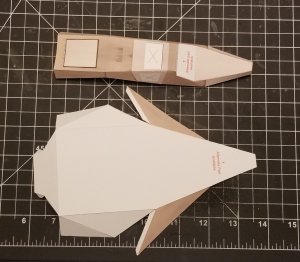

These are the parts for the top cowling.

Instead of making the "boxed" cowling, I decided to laminate the top and bottom parts for the cowling. Doing this makes the cowling stronger.

The cowling is assembled.
20191025_205344.jpg 20191025_205354.jpg

The cowling is now attached.
20191025_205804.jpg 20191025_205815.jpg 20191025_205824.jpg


Rhaven Blaack

ADMINISTRATOR
Administrator
Moderator
Jun 12, 2009
8,805
3,983
183
Oregon

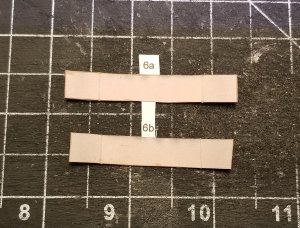

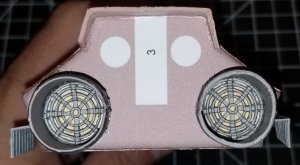

Here are the parts for the engine exhausts.

I laminated the interior piece with the exterior piece so the seams will not be seen.
20191026_094123.jpg 20191026_094134.jpg

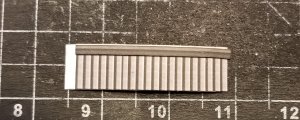

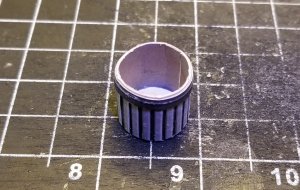

I laminated the gray slats and the black ring to give it more of a "realistic" look.

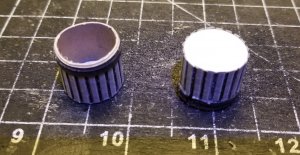

Both engine exhausts are finished.

The exhausts are attached.
20191026_152304.jpg 20191026_152313.jpg

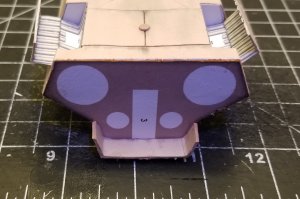

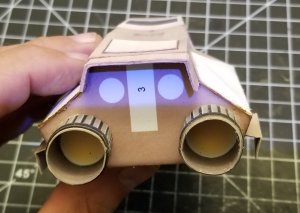

Here is the rear view of the fuselage.

Please stay tuned to your local Earth Broadcasting Directorate channel for further updates as they are posted.


Gandolf50

Researcher of obscure between war vehicles...
Moderator
Jan 28, 2013
1,201
1,433
96
New Mexico USA
Looks very clean and nice... I have had this one for ages as well...If I ever get bored. this might be a nice distraction! I found this sometimes ago and thought it would be fun to adapt back to the original concept, as it was never used.

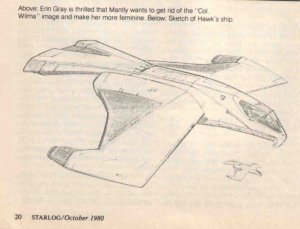

Un-used Warhawk.jpg


Rhaven Blaack

ADMINISTRATOR
Administrator
Moderator
Jun 12, 2009
8,805
3,983
183
Oregon
After I had attached the engine exhausts, I had shown them to my fiance. She said that the outer parts look great, however, the inside looks a bit lackluster. Then suggested that I create something to "spruce" it up a bit. So, yesterday, I came up with this exhaust grate system. Granted, I know that these new parts are not canon, however, it does add a more detailed touch to the finished product.

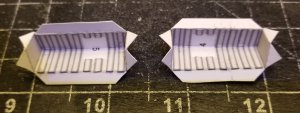

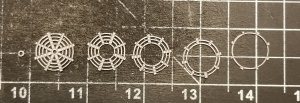

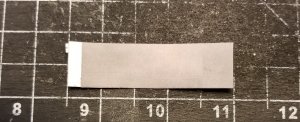

Here are the parts.

20191027_120236.jpg 20191027_165042.jpg

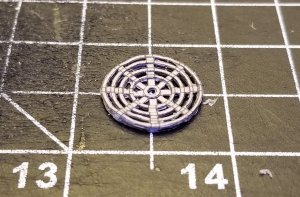

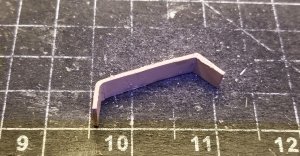

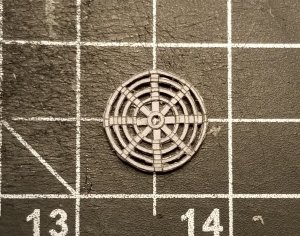

The parts are assembled and form a concave shape.
20191027_172627.jpg 20191027_172640.jpg

The new parts are applied. The


Please stay tuned to your local Earth Broadcasting Directorate channel for further updates as they are posted.
