Next steps with the other side of the cockpit, sensors? Chin gun or sensor?
Makin, progress....
Scott ;-)
Makin, progress....
Scott ;-)
Dr. Tetrode - Valkryie Build II - attempt with color.
- Thread starter dr_tetrode
- Start date
Hello,

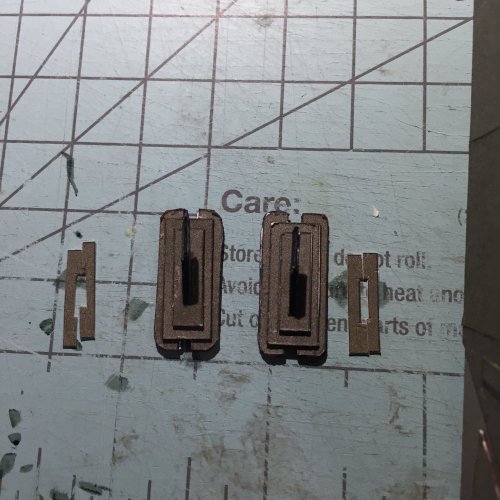

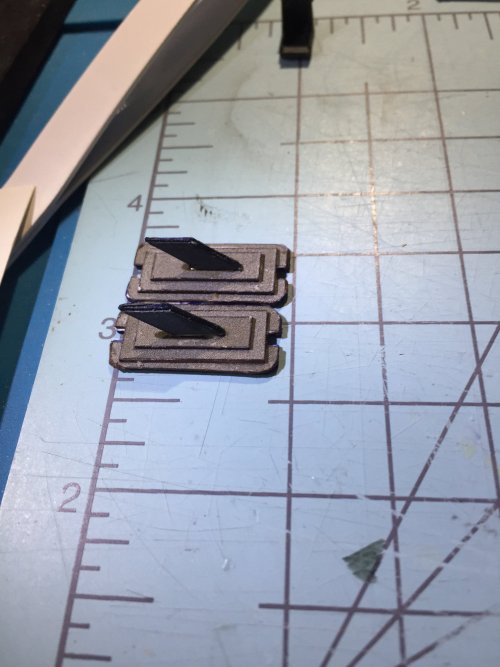

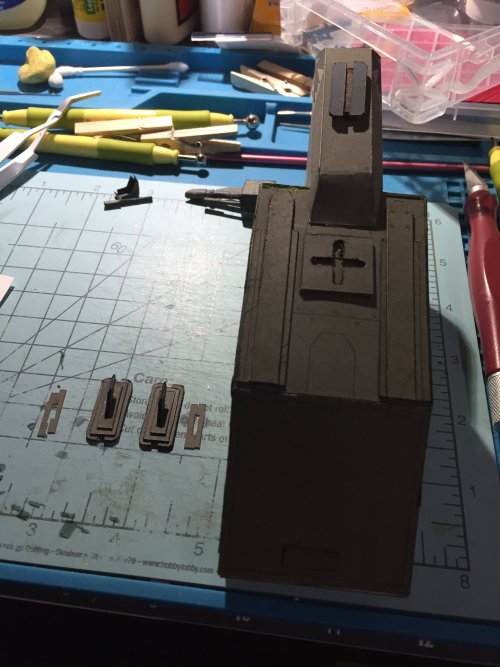

Time to get the landing gear(?) on.... First reinforce the struts by adding another layer and coloring the edges. All 3 pads complete and struts glued in.
Front Pad is glued on.
To prepare for the side gear, I cut out a slot in a piece that will be glued around the strut for some added strength.
This is definitely different from first model I built.
Scott ;-)
Time to get the landing gear(?) on.... First reinforce the struts by adding another layer and coloring the edges. All 3 pads complete and struts glued in.
Front Pad is glued on.
To prepare for the side gear, I cut out a slot in a piece that will be glued around the strut for some added strength.
This is definitely different from first model I built.
Scott ;-)

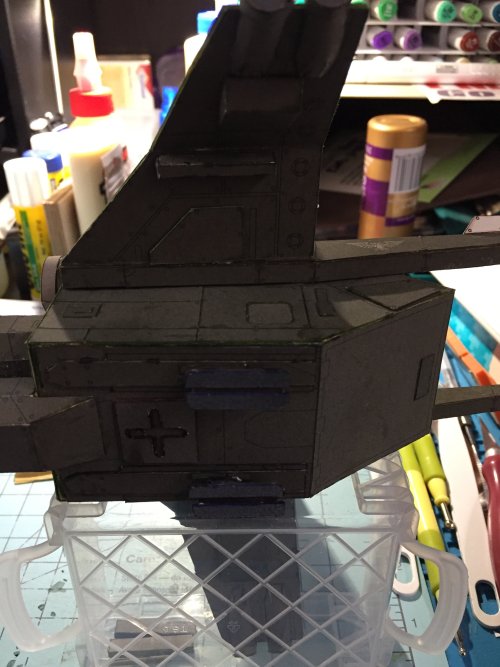

Now, attaching the side pats and struts to the body. I temp taped them to hold while glue dries. Then I put in the reinforcements I made. (no pix ;-( )
Set on a tile for final dry, so the bottoms will be on same plane....
Scott ;-)
Set on a tile for final dry, so the bottoms will be on same plane....
Scott ;-)

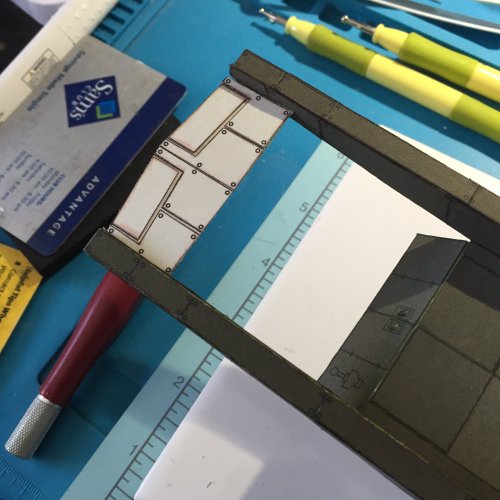

I think I have all sub assemblies done, so on to final assembly! First spar attached.

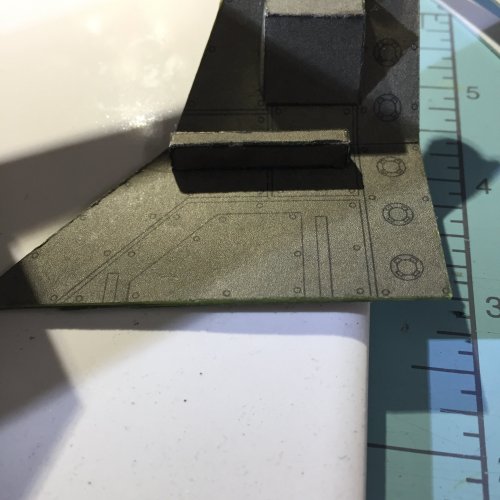

Ooops, just realized I had not added the bottom reinforcement plate to the wings. So, cut, colored edges and glued them on.
Second spar attached.
Scott ;-)
Ooops, just realized I had not added the bottom reinforcement plate to the wings. So, cut, colored edges and glued them on.
Second spar attached.
Scott ;-)
Paper models, Making Retirement Great Again!
Tail being assembled.
Engine mounts being glued on.
Found the wing part I had to cut out above, so glued it on top of that... ;-) Wing mounts being glued up and then on the glued to wing.

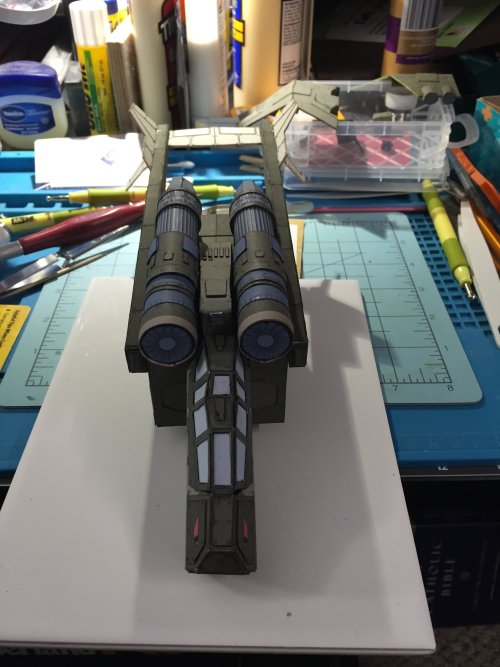

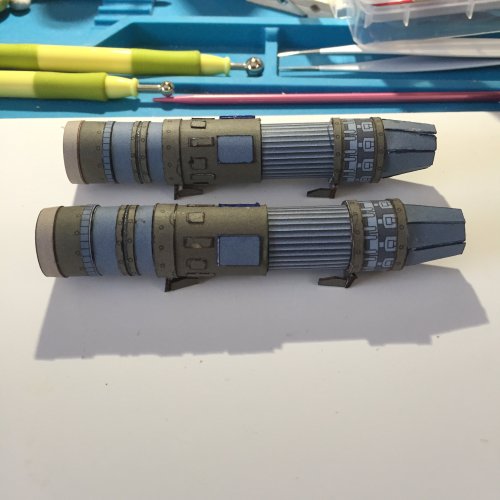

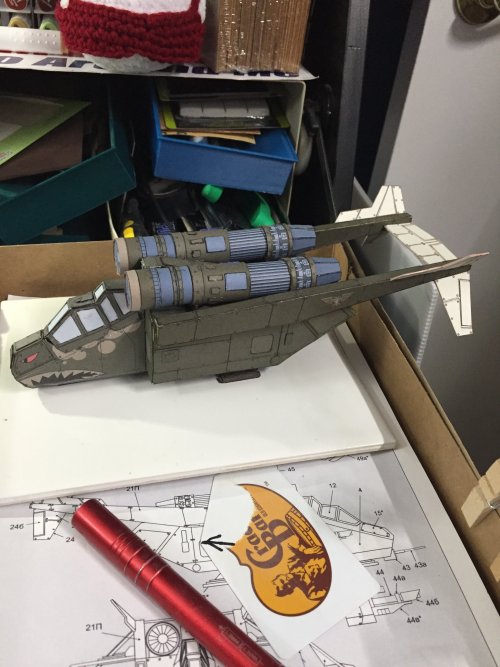

Engines mounted.
Not bad for a day's work.....
Have fun!
Scott ;-)
Engine mounts being glued on.
Found the wing part I had to cut out above, so glued it on top of that... ;-) Wing mounts being glued up and then on the glued to wing.
Engines mounted.
Not bad for a day's work.....
Have fun!
Scott ;-)

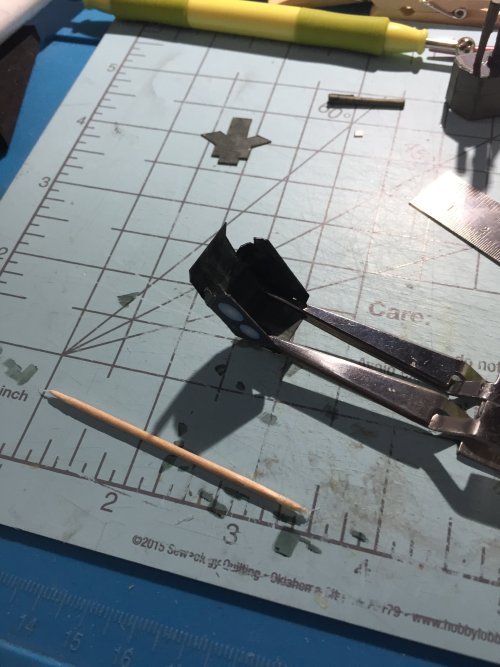

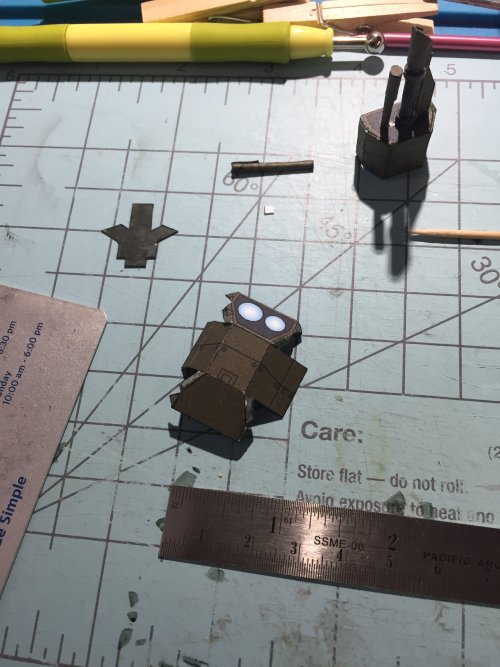

Some more assembly, sensors!
Bolter installed and wings going on. Strange bracing is sometimes needed to work on things.....
Scott ;-)
Bolter installed and wings going on. Strange bracing is sometimes needed to work on things.....
Scott ;-)
Done! A fun journey.... took a long time.... but, made it!
Some photos of completion, builders photos to be taken latere.... ;-)
Thanks for viewing!
Scott ;-) aka Dr Tetrode.... ;-)
Some photos of completion, builders photos to be taken latere.... ;-)
Thanks for viewing!
Scott ;-) aka Dr Tetrode.... ;-)

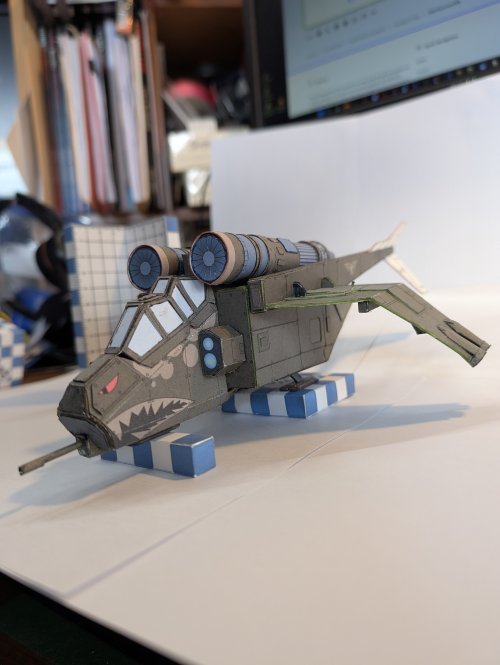

Builder's Photos, with Zealot scale.

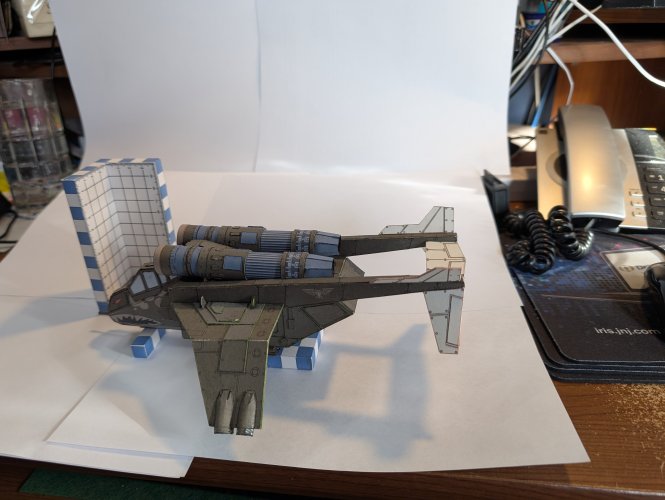

Left side.

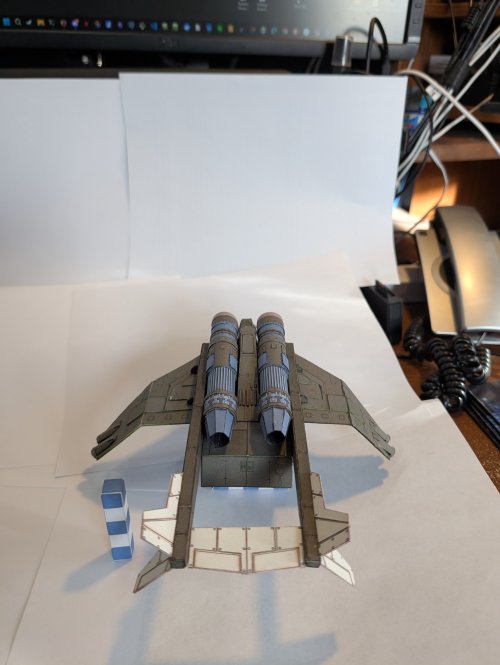

Top down.
Right side.

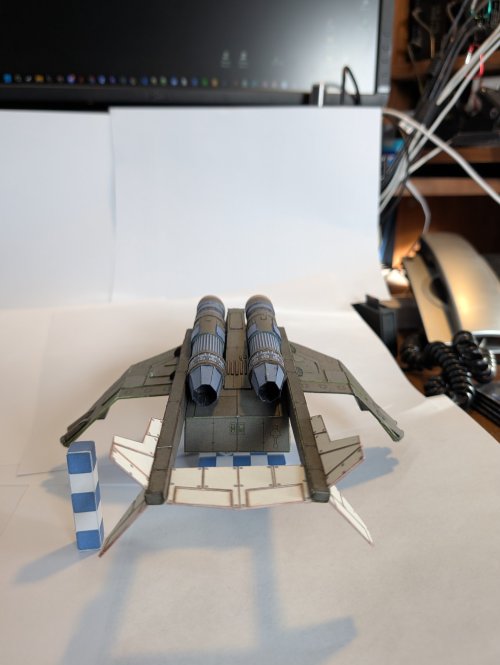

Rear.
More to come.
Scott
Left side.
Top down.
Right side.
Rear.
More to come.
Scott
Some more from the front. Any pose you guys would like???
Scott
Scott
Someday I will learn how to take pictures properly...... Lighting is not good, backgrounds not good, but does document the model for me.
Thanks for going on the journey with me.
Scott
Thanks for going on the journey with me.
Scott
