Cylon Centurion sword

Revell-Fan · Jul 23, 2015

Patience is a virtue.

Alright, I got some new glue today.

I feared that the connection between handle and blade was too weak and inserted some wooden rods. That wouldn't have been necessary if I had cut the parts in a different way (the ribs are going horizontally whereas they should have gone vertically).

Another piece of corrugated card is added to the top and the bottom.

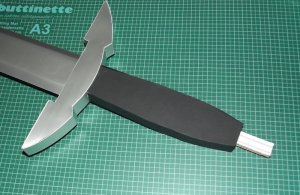

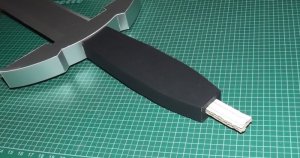

The handle part is covered with black card.

It is supposed to be glossy but I only had some dull card available. Next will be the pommel.

DanBKing · Jul 23, 2015

@Revell-Fan If you ever need to gloss anything up:- In the plastic modelling world the (American) product called "Future" is a self-levelling gloss coat used for parquet and wooden floors. Here in the Netherlands, it's called "Pledge Parket Plus."
Add a few coats of that and build up the layers and you can achieve the sheen of glass, or even metal. Its water based too, and it doesn't yellow over time either.
And with reference to another thread of mine, fish moths (zilvervisjes) hate the stuff!

Remember my canopy I did for the Raptor ???? http://www.zealot.com/threads/bsg-medevac-raptor.173185/page-3#post-957169

Cybergrinder · Jul 23, 2015

@Revell-Fan Well, silence comes with a price.... The Euro - South African Rand exchange rate is pretty good at the moment. Let's hear your offer.... Kapish?

Revell-Fan · Jul 24, 2015

@Cybergrinder : What? I can't hear you - it's so quite here!

@DanBKing : Thanks for the tip! I'll take a look on occasion; I live only a few miles away from Winterswijk. ButI may remember that it is available here in Germany, too (called "Erdal Glänzer").

Cybergrinder · Jul 24, 2015

That's because I'm stealthily creeping up on you.... D'oh.

zathros · Jul 24, 2015

Erdal Glanzer sounds like a girl I knew in 3rd grade!?! She did have a shiny forehead.

Revell-Fan · Jul 25, 2015

"Erdal Glänzer" is the little sister of "Meister Proper" (just google it up to know more).

DanBKing · Jul 25, 2015

I heard that he Cillit Banged her too ....

Revell-Fan · Jul 25, 2015

No, she managed to escape on her faithful horse Ajax before he could do so. She is now together with her former college boyfriend, Domestos. He has a small farm in Villabajo.

Revell-Fan · Jul 25, 2015

Today I finished the pommel. Again I obeyed the original way of construction but I found out that some parts could be omitted which reduced the parts count.

The end cap is a simple cone.

It is equipped with an internal skeleton:

Next come two rings which are constructed the same way: A laminated center piece is coated with silver card.

Revell-Fan · Jul 25, 2015

The rings are pushed over the skeleton. I did not have to use any glue here.

The end cap is glued to the second ring and the skeleton.

blake7 · Jul 25, 2015

Looks Fantastic! Can you take a picture of the whole sword, so we can see all of it?

Revell-Fan · Jul 26, 2015

I will, of course. Unfortunately I just noticed that the shape of the pommel was wrong. :sadno:

Luckily I didn't glue it to the handle so I was able to easily pull it off. A new pommel is on the way.

Revell-Fan · Jul 26, 2015

The new (now screen-accurate) pommel is ready.

It fits so well that I did not need to glue it to the handle.

A comparison of the old one and the new one.

Now I am pleased.

zathros · Jul 26, 2015

You should be. This is coming out great!!

zathros · Jul 26, 2015

"Erdal Glänzer" is the little sister of "Meister Proper" (just google it up to know more).

Wow, the things you learn here. They should have named their dog "Spot".

Revell-Fan · Jul 26, 2015

Now I am continuing with something that was not part of the original plans: The sheath. This is completely my design but I'm staying as faithful to the sword construction to maintain continuity and quality.

It took me three attempts to come up with a suitable and easy-to-build shape:

The silver card is laminated to the corrugated card. You need two of these, one for each side:

The pattern for the side walls is traced onto silver card:

The side walls are attached

and the other side of the sheath is glued to the walls:

I hope to get the final steps done tomorrow, which is glueing a strip of silver card around the walls for a smooth finish and adding the clamp to the back to allow the sheath to be attached to a belt. CU!
