Steady there she goes! :)

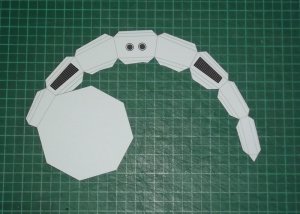

The simplified base of the undercarriage consists of one top layer, one bottom layer and a strip of paper. The cutouts were omitted and the areas painted black. The top layer was laminated to corrugated card of the desired thickness. Then the bottom layer is laminated to the back side. The rim was covered with the paper strip. Clean and fast result! :)

However, I had some trouble with my SD card. It lost the build pics. Fortunately I was able to recover them but a few lost their colour information, so some of the pics are presented in black and white. It was too late to take new pics because the undercarriage had already been assembled, but I think they show clearly what has been done.






Careful observers will notice a colour change on the drive wheel: The center is now red like it was on the Snowram. I'm not sure if it was painted differently in the show or if it simply was not visible but a new behind the scenes picture taken in daylight shows a red axis:



I'll update the drive wheel graphics accordingly and will release it with the new revised turret mount (so all previously released versions will be updated soon).



On to the driver's cabin and the new parts! CU! :)

Last edited:

Revell-Fan

Co-Administrator
Administrator
Moderator
Aug 1, 2009
8,134
6,396
183
Vreden
... All kits except for the A-Team Ram version: I find the old one more appropriate since it looks more like the GMC Van wheels, so that one will stay. ;)


Revell-Fan

Co-Administrator
Administrator
Moderator
Aug 1, 2009
8,134
6,396
183
Vreden
Second revision:

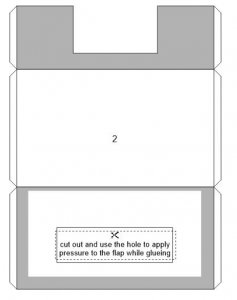

When I assembled the driver's cabin I noticed that a hole is important to press the flap of part 1 to the inside of part 2. I think I already mentioned that somewhere a looong time ago but it has never been an actual part of the template. This has changed and part 2 looks like this now:


This will make assembly much easier. :)


Revell-Fan

Co-Administrator
Administrator
Moderator
Aug 1, 2009
8,134
6,396
183
Vreden
Sooo, I have drawn the final part in Corel and printed the last two pages for the test build.

My nose is speeding things down at the moment but I have set an ETA for the model. If everything fits it will be in the Resources in approximately one week for everyone to enjoy! :)


Revell-Fan

Co-Administrator
Administrator
Moderator
Aug 1, 2009
8,134
6,396
183
Vreden
THANK YOU! :)

What's even better: The parts are much easier to assemble than their predecessors. :)

I was a bit hesistant to tell you more about the new Landram version because I wasn't sure if everything would proceed as planned. Now as the test build is progressing so fluidly I can tell you what this new Landram is all about. This will be a special Ram in a dessert camo paint scheme, with many new parts for @Rhaven Blaack to greeble out. ;)

I'm still tweaking the texture of the hull but I can already show you some detail parts.

First of all, a dessert version needs a cooling unit or airconditioning. I therefore retextured part 37a and added cooling vents and a few "holes" at the rear:

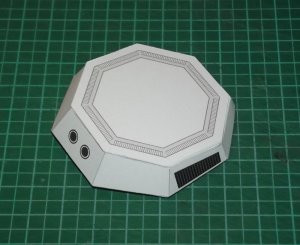

However, this looked a bit "empty", so I added some graphics:


Not too bad, methinks ;)


Revell-Fan

Co-Administrator
Administrator
Moderator
Aug 1, 2009
8,134
6,396
183
Vreden
This project was supposed to be a small fun project but it is more and more becoming an essential part of the revision of the Landram files as a whole.

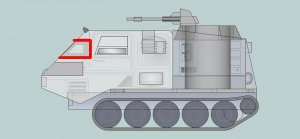

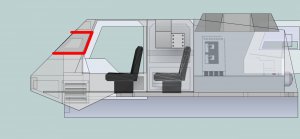

While digging through old folders I found a project Rhaven and I started a year ago: An interior for the Landram. We were comparing different Snowcat versions to see how the interior for the Landram could have been like. All versions had one thing in common: angled front windows. I mistakenly chose to model windows that go straight down.

Old straight windows version:


New angled windows version:


In the first model the straight down windows were okay but in a version with interior these would be in the way for the driver and co-pilot and would look odd compared to the screenshots of the Ram with open doors. So I changed the construction accordingly to match the original vehicle. The Dessert Ram will be the first to contain the new parts.

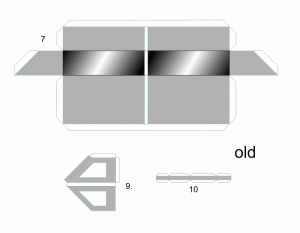

A quick comparison of the unfolds:


I missed to add some flaps and scissors in the graphics but you get the meaning. This way I'm thinking ahead and make sure that the Dessert Ram is ready to be equipped with a full cabin interior later-on (if someone wants to build it this way - OK, I know someone who will do it! ;) ).

BTW, I think it is time for a new LAUNCH COUNTDOWN:

ETA T-7 Days!
:)

Last edited:

Revell-Fan

Co-Administrator
Administrator
Moderator
Aug 1, 2009
8,134
6,396
183
Vreden

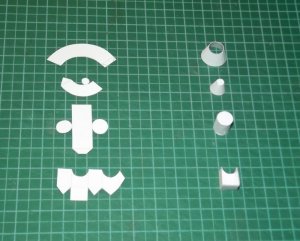

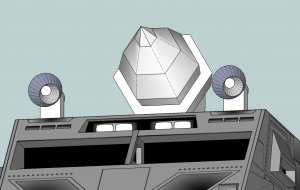

Yesterday I spent the whole evening designing new parts for this special version. Among them is THIS:


OK, you can also see this will be a very horny Ram..! ;)

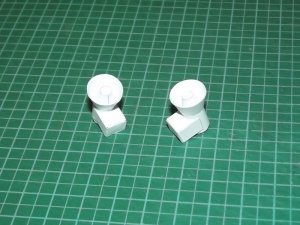

This is the big cahoona on top of the driver's cabin. I figured that it would need a counterbalance on the back, so I added a dish on top of the cooling unit that actually rotates! :)

T-6 days! :)

Last edited:

Revell-Fan

Co-Administrator
Administrator
Moderator
Aug 1, 2009
8,134
6,396
183
Vreden
I have just completed the paint scheme of the big cahoona. It is pretty sophisticated. It will have many different shades of brown, some cream and a dip of red. I like it very much. It will be very "lifelike". ;)


Revell-Fan

Co-Administrator
Administrator
Moderator
Aug 1, 2009
8,134
6,396
183
Vreden
And the test build continues!

These are some parts of the interior:

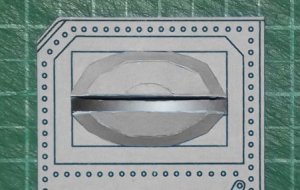

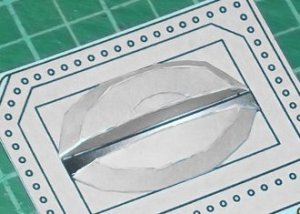

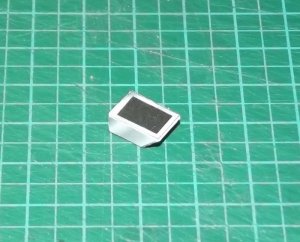

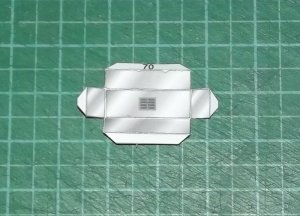

This is some kind of fuse box. I found out that it needs refinement: It was supposed to be placed in the upper corner of the compartment section but since this has an angled roof it did not fit properly. Small fix on-the-fly, BTW. ;)

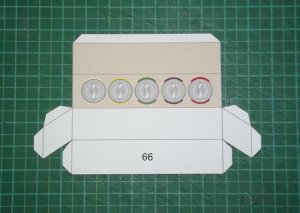

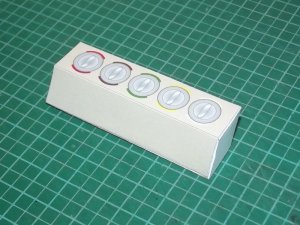

Now we have a control panel consisting of three parts which are laminated to each other. It looks great! :)



And this is what I call the "kitchen sink". It is also part of the ceiling and belongs to the cooling unit.

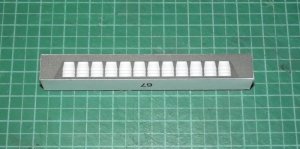

Last but not least a wall computron.


T-5 days! :)

Last edited:

Rhaven Blaack

!!!THE MAN BEHIND THE CURTAIN!!!
Administrator
Moderator
Jun 12, 2009
9,144
4,526
183
Oregon
Those components look GREAT!
On the control panel, I would raise the outer circles and the inner rounded rectangles.


Revell-Fan

Co-Administrator
Administrator
Moderator
Aug 1, 2009
8,134
6,396
183
Vreden
You can do that. The bars are supposed to be raised since these are some kind of handles. You could see this as a maintenance or storage unit as well, similar to the apparatus that stored the self-destruct containers in "Alien" (the ones Ripley pulled out and in again at the end of the movie). I could have gone all-out by adding a structure beneath and turn the circles into removable lids but that would have required too much time. ;)
