Titanic 1:400 JSC amended full hull.

Discussion in 'Ship & Watercraft Models' started by chapuzas100, May 9, 2008.

  1. chapuzas100

    chapuzas100 Member

    Joined:
    Mar 1, 2007
    Messages:
    193
    Likes Received:
    0
    Some time ago not start a new thread, but every day I visit this forum.
    I take time working on this project is well underway and I want to share it here.

    [​IMG]

    The project is to modify a boat that comes waterline hull to complete the first test and I'm doing with the titanic of JSC.

    [​IMG]

    The first thing I did was move the internal structure in the original paper to a carton of 1 mm

    The first idea is to adapt the pieces of model Gomix that he also bought.

    [​IMG]

    But the waterline of the two models do not match, as can be seen in this photo.

    [​IMG]

    The JSC model is more unreal, I can only use the profile of the model Gomix and the remainder will build from scratch.

    The first attempt was very bad

    [​IMG]

    The second attempt was better

    [​IMG]

    [​IMG]

    [​IMG]

    continue ..............
  2. Soaring

    Soaring Guest

    Excellent work so far, worthy of praise!
  3. David H

    David H Member

    Joined:
    Nov 2, 2005
    Messages:
    523
    Likes Received:
    0
    Fantastic!
  4. col. kurtz

    col. kurtz Member

    Joined:
    Sep 21, 2007
    Messages:
    402
    Likes Received:
    0
    great build so far !!!!!!!!!:thumb:
  5. chapuzas100

    chapuzas100 Member

    Joined:
    Mar 1, 2007
    Messages:
    193
    Likes Received:
    0
    .............. and continue.

    Now the problem is to paint the hull plating and disguising the court of original pieces to which I have made.

    First the paint with a marker

    [​IMG]

    But the result is not good and advised me try other solutions. For the next test short strips of colored hull and marks sheet and then the one to one hit to the hull. This time the result if I like.

    [​IMG]

    Here you can see better comparison

    [​IMG]

    The latest photos are of the promenade deck first class, I'm doing tests with cables chimneys, I'm still not sure how I will ride.

    [​IMG]

    [​IMG]

    [​IMG]

    Tomorrow will finish mounting the helmet, I am eager to read your comments.

    A greeting.
  6. jparenti

    jparenti Member

    Joined:
    Jun 4, 2006
    Messages:
    447
    Likes Received:
    0
    Very nice model, and I like the modifications you added. I've never seen this model, and I prefer full hulls to waterline models, so I follow this with great interest.
  7. Soaring

    Soaring Guest

    Oh. My. Gosh.! Inspiration! Ding ding ding! Fantastic work (Again), I'm very intrested in the first class deck O.O The small details, they're ...perfecT! I mean cmon, that makes me wonder, is it even possible!
  8. jparenti

    jparenti Member

    Joined:
    Jun 4, 2006
    Messages:
    447
    Likes Received:
    0
    Where can the Gomix model be purchased, by the way? I forgot to ask.
  9. chapuzas100

    chapuzas100 Member

    Joined:
    Mar 1, 2007
    Messages:
    193
    Likes Received:
    0
    I've bought in Poland in GPM - modele kartonowe, live in Spain and there are no problems with the shipment, if you live in the USA where you can not buy.
  10. lriera

    lriera Member

    Joined:
    Aug 29, 2007
    Messages:
    281
    Likes Received:
    0
    Chapuzas, very nice model. Very well done, specially the build of the complete hull.

    Please keep posting. Thank you.
  11. chapuzas100

    chapuzas100 Member

    Joined:
    Mar 1, 2007
    Messages:
    193
    Likes Received:
    0
    And so it is definitely the hull of this model

    [​IMG]

    [​IMG]

    [​IMG]

    Here you can see compared with the first attempt

    [​IMG]

    [​IMG]

    I hope your comments.

    A greeting
  12. logicman

    logicman Greybeard

    Joined:
    May 1, 2008
    Messages:
    542
    Likes Received:
    0
    Muy bien hecho!

    Mas! Quiero mas!

    Deseo robar más ideas. :rolleyes:

    :thumb:

    Hombrelogico


    (Very well made.
    More! I want more!
    I want to steal more ideas!)
  13. I was studying your aft build and the stern did not appear as I remembered it. Specifically the Port and Starboad drive assembly. I built the Revell model several years ago. After looking up the pictures of the real thing, I just learned yours is correct and mine is wrong. Mine tilt upwards and yours tilt down. Now what? Do I tear it apart for the sake of accuracy? ---- Thanks, I was perfectly happy in my ignorance now you have forced me to reality.

    Nice build by the way
  14. Mauiman

    Mauiman Member

    Joined:
    Nov 4, 2007
    Messages:
    104
    Likes Received:
    0
    That is beautiful. IS there a chance that I can get it from Amazon.com?
  15. chapuzas100

    chapuzas100 Member

    Joined:
    Mar 1, 2007
    Messages:
    193
    Likes Received:
    0
    That is what we want to achieve?
  16. CJTK1701

    CJTK1701 Banned

    Joined:
    Dec 13, 2006
    Messages:
    1,147
    Likes Received:
    0
    Excellent craftmanship on this build. Looking forward to seeing more. Great job.:thumb:
  17. chapuzas100

    chapuzas100 Member

    Joined:
    Mar 1, 2007
    Messages:
    193
    Likes Received:
    0
    The first attempt to simulate the hull plating was painting with a ruler and a marker

    [​IMG]

    The result is not good, the grating are not parallel and have different widths

    For the second attempt I do is cut strips of paper with the marks painted on and I hitting the hull, in these two photographs can be seen strips pasted on the helmet painted with felt pens.

    [​IMG]

    [​IMG]

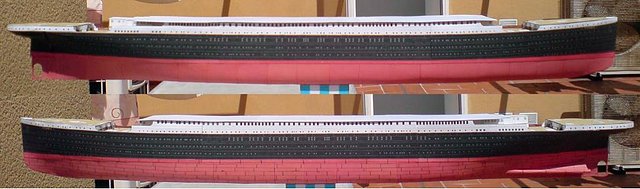

    Here you can compare the first hull against the final outcome, (it hurts so bad picture)

    [​IMG]

    Un saludo
  18. chapuzas100

    chapuzas100 Member

    Joined:
    Mar 1, 2007
    Messages:
    193
    Likes Received:
    0
    Thank you for your comments.
  19. chapuzas100

    chapuzas100 Member

    Joined:
    Mar 1, 2007
    Messages:
    193
    Likes Received:
    0
    And this is achieved in advancing this week, that Bowman finished at 95% since he entered the working party where the pieces are very small and progress seems slow.

    [​IMG]

    [​IMG]

    A greeting.
  20. lriera

    lriera Member

    Joined:
    Aug 29, 2007
    Messages:
    281
    Likes Received:
    0
    Chapuzas, it is looking very good, please keep posting. :thumb:
