The Sainte Chapelle

Discussion in 'Architecture Models' started by Tonino, Apr 19, 2014.

  1. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097

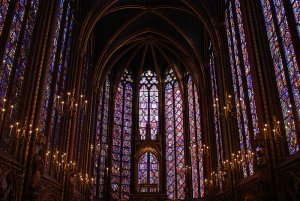

    Several years ago, during a Paris vacation, I visited the Sainte Chapelle. It was a sunny day and the sight of the immense windows, their colours, their shine, was something marvellous. I'll never forget it.
    Some time later a dear friend of mine, returning from a trip in Paris, as he knows of my cardmodel passion, took me an "Instant Durable" cardmodel of the Sainte Chapelle. It is a little nice reproduction of the building with a removable facade to show the inside with the famous coloured windows. Obviously the windows are printed on cardboard and not transparent. Suddendly a lamp turned on in my mind: why don't try to reproduce the wonder of the glass windows in some way? Let's give it a try... Sainte-Chapelle.jpg
    carlos filipe and Rhaven Blaack like this.
  2. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097

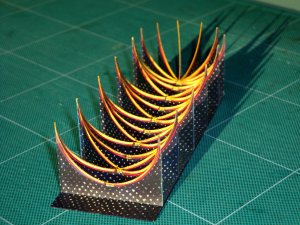

    The first step is to build the complex ceiling


    Then, prior to build the walls, I should decide how to make the windows. I started scanning the wall parts (inner and outer) and printing them on trasparent sheets.

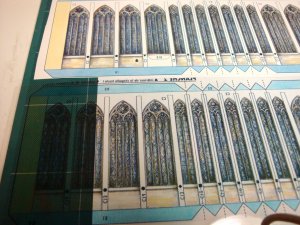

    Here you can see (above) the original outer wall and (under) the transparent copy.

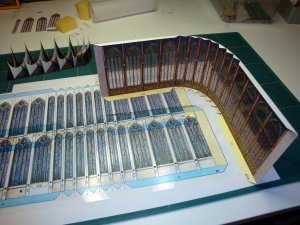

    Then I removed all the windows from the paper walls and pasted the transparent copies from behind

    DSC02672b.JPG DSC02673b.JPG DSC02675b.JPG
    The resolution of printing is nothing special but the general effect is pretty fine.
  3. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,055
    Likes Received:
    3,697
    Oh, this is gonna be fine! Great idea to use the tranparent sheet!
  4. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    The floor and the apse has basic details but they are not the main subject of the internal view...


    After closing the walls I realized that the windows, completely cut off, has a poor appearance in the external side.

    Luckily I never waste anything so the cut windows was recovered to obtain some more details to add to external side.

    Now they are slightly better from outside...

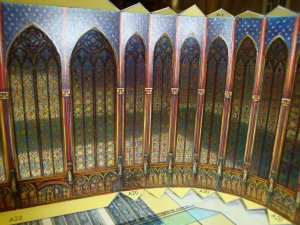

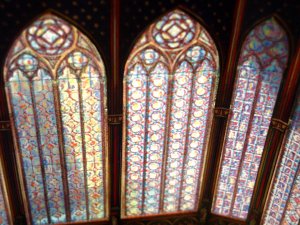

    ...and the inside view has improved as well.
    DSC02683b.JPG DSC02690b.JPG DSC03410b.JPG
  5. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,520
    Likes Received:
    2,459
    You are doing a FANTASTIC JOB on this!!!
    I like how you made the windows. It has more of a "REALISTIC" look to it!
    The interior shots are AMAZING and quite REALISTIC as well.
    I will be following this thread.

    KEEP UP THE GREAT WORK!!!
  6. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    External completion...

    A little backside painting before mounting windows ornaments

    wall detailing
    DSC03407.JPG DSC03408.JPG

    roof build...
    DSC03412.JPG DSC03413.JPG

    the spire...
    DSC03423.JPG DSC03419.JPG
    and the facade

    almost done... only have to make the usual little, repetitive and boring series of little things that are common in this kind of subjects...
    a lot of those still to do...
  7. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    The little paper chapel is complete!

    DSC03486.JPG DSC03492.JPG DSC03487.JPG DSC03488.JPG DSC03489.JPG DSC03493.JPG DSC03490.JPG
  8. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    ... an "human" point of view



    ...and an experiment with a little light inside.

    DSC03496.JPG DSC03497.JPG

    You can use it as a night lamp for the kids' room...
  9. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,520
    Likes Received:
    2,459
    You did a SPECTACULAR JOB on this project!!!
    Thank you for sharing this with all of us!!!
    Tonino likes this.
  10. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    Thanks to you for your nice comment!
    I feel so gratified being among other people who share my same passion and who can well understand the joy that a little thing like this can give to his builder when he looks at the result of his work. My wife doesn't understand this feeling, she say all those paper things are only dust-collectors... Thank god there is Zealot.com!!! ;)
  11. ansoff

    ansoff New Member

    Joined:
    Feb 12, 2004
    Messages:
    10
    Likes Received:
    2
    This is really impressive. Am I right that you laser-printed the windows onto the transparent sheets? I didn't think that there was any way to do that with inkjet.
  12. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    You're right. I first tried to print on transparent sheet for inkjet but the result was very bad. The transparent for ink jet has rough surface and matt finish. The colours were very pale and dull...
    I had to find someone with a color laser printer and, using gloss transparent sheets, I had pretty good results (as of the colours... even if the resolution is not the "optimum"...)
  13. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,055
    Likes Received:
    3,697
    ABSOLUTELY WONDERFUL! A true work of art! Not only a night lamp but also a VERY atmospheric X-mas deco!
