The N scale Climax concept LIVES!!!!

Discussion in 'Scratchin' & Bashin'' started by Delamaize, May 12, 2005.

  1. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0

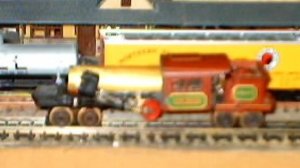

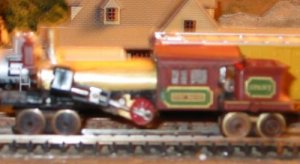

    hello all, I am a very excited individual right now, for I have a working climax prototype in N scale, it is too big, but still N scale, and runs rough, but none the less, My Idea WORDED!!! I gotta give David Bedard credit, he spent lots of time and effort helping me work out kinks and problems with the design.
    here are some pictures! with and without "shell" sorry about the crummy quality, I'll get better pics when my wife gets back with the better camrea.

    Only One last thing to say: "W00T!"

    Attached Files:

  2. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    :thumb: :thumb: :thumb:
  3. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    An interesting loco Delamaize. What did you start off with?
  4. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0
    Well it is a bastard mess of a Life-like F40PHI frame and trucks (chopped down trucks) and motor, the cab, pistons and half a tender from a old Minitrix 0-6-0 switcher shell. and some other various parts from my parts box and some brass.
  5. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0
    Climax Update

    here is the newest picture, headlight and smoke jack added, still running rough. not mutch better of a picture though.

    Attached Files:

  6. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0
    N scale Climax V 3.0 almost running

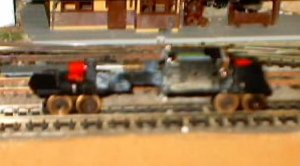

    OK so the climax has now gone into it's 3rd version, and I think I got it right this time, the mechnisim is fairly smooth, and made of brass, so it is strong, (except one spot where I got to re-enforce) it is only front trock drive, but it should work once I get it wired up. alot of scrach building here, and a steep learning curve on soldering brass, mainly: Electric souldering irons do not work well, I used a combination of a lighter to "pre heat" the brass then, wile still on the flame, did my soldering, I havn't decided weather to scrach build the pistons and rods, or use some scavenged from other locos. anyways, I am excited, and I have some pics, as soon as I get it moving under it's own power I will post videos.

    [​IMG]

    [​IMG]

    [​IMG]
  7. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Interesting project.:thumb:
  8. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    Wow! That's quire amazing! I like your Enginuity with the double worm gears powering bothe the truck and the piston! :thumb:
  9. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    That little booger must be a sight runnin' down the main:thumb:
  10. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0
    well the mechisim is fun to watch on the bench power, but I still have yet to get it to move under it's own power. I think I might have to start on V 4.0 soon, this, like the previous versions, is cursed with bad drive trucks. i need to break down and buy a few Kato Shorty B critter chassis and just start chopping!! I did learn enought about brass soldering to be able to make a new "shell" once I get a good drive mechnisim.

    EDIT: forgot to add the new pics, not much diffrence, added the pistons.
    [​IMG]
  11. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0
    Climax V 5.0

    Ok so after talking with Randgust (Over at Trainboard.com) About his climax's projects, I decided to try Version 5 of my Class B project. Well I finally got a successfull model, it is still a little light, and it REALLY sencitive to dirty track, so what do you need to pull with a climax? Logging Bunks, and a homebuilt caboose! so here is my project, it is closer to paint now, it still needs a lot of detail. so here are my pics! (Sorry about the Fuzzyness)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
