The gatter

Discussion in 'Logging, Mining and Industrial Railroads' started by krokodil, Mar 31, 2004.

  1. krokodil

    krokodil Member

    Joined:
    Nov 20, 2003
    Messages:
    223
    Likes Received:
    0

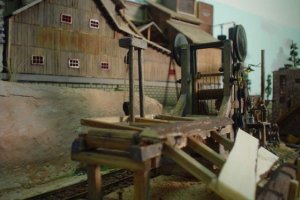

    Everybody builds a sawmill for his logging railroad. I did as well, but a bit differently as we know.

    This machine is the so called venetian gatter, which with a single operation cuts the wood into lumber. Do you have (did you have) such machines over the lake?

    Attached Files:

  2. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    I don't model logging or know much about it but your subject heading made me curious. Wow! What an amazing model of that intricate machine!
    Ralph
  3. krokodil

    krokodil Member

    Joined:
    Nov 20, 2003
    Messages:
    223
    Likes Received:
    0

    Attached Files:

  4. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    What a great looking and detailed model! Great job!:thumb: :thumb: :thumb:
  5. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Thats a very interesting looking piece of machinery, any chance of a large photo of it taken from the front and back, and side views. Would be interested in making one for myself.
    Thanks
    Shamus
    [​IMG]
  6. krokodil

    krokodil Member

    Joined:
    Nov 20, 2003
    Messages:
    223
    Likes Received:
    0
    Hi Shamus

    few photos are on my WEB page, and I will make some more (not on the layout in next days).

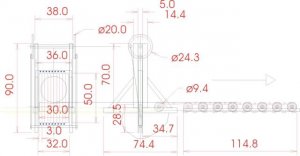

    I have also a drawing - the model is a bit different in the part where the log is moved to the gatter (I found an another method in an old book).

    Have the drawings and the old picture. The drawing is for H0 and according the space what I had on the laxout.

    Regards

    Attached Files:

  7. krokodil

    krokodil Member

    Joined:
    Nov 20, 2003
    Messages:
    223
    Likes Received:
    0
    Sorry there was the wrong picture
  8. krokodil

    krokodil Member

    Joined:
    Nov 20, 2003
    Messages:
    223
    Likes Received:
    0
    It was the wrong one (those small thumbnails :mad: )

    Attached Files:

  9. neilmunck

    neilmunck Member

    Joined:
    Feb 18, 2004
    Messages:
    184
    Likes Received:
    0
    It looks like the model is animated (second picture).

    Now, that is cool
    :thumb:
  10. krokodil

    krokodil Member

    Joined:
    Nov 20, 2003
    Messages:
    223
    Likes Received:
    0
    Hi


    you are right.

    The model is animated (even functional :eek: theoretically I could cut some balsa ..... :D ).

    The frame with piercing saw blades is moving up and down, and the transportation mechanism (two ribbed drums) is turning to move slowly the log across the saw. The motor is under the layout. The original belt and chain drive is done by tiny rubber bands.
  11. neilmunck

    neilmunck Member

    Joined:
    Feb 18, 2004
    Messages:
    184
    Likes Received:
    0
    i just had an image of a mini scene - A man with a top hat and a twirly handlebar mustache (typical 1920s film villan) about to feed a damsel in distress through your venetian gatter with the hero riding to save her (on a shay? probably faster to walk:) )
  12. Ho Modeler

    Ho Modeler Member

    Joined:
    Apr 6, 2004
    Messages:
    100
    Likes Received:
    0
    Venetian Gatter

    Do you have the dimensions for the Venetian Gatter that you do a post about?
    I would like to model one.
    How did you get the unit to be an animated structure?
    Thanks
    Eric
  13. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    That is one intriguing model ET. You have done an excellent job putting it together .
    Very nice.
    I haven't seen anything like it at the logging museums I have visited here. I do know that German wood cutting machinery is used in factories here because nobody else makes that kind of equipment.
