Ten-wheeler

Discussion in 'FAQs' started by MasonJar, Jan 21, 2003.

  1. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Please help, I'm confused...

    When people talk (write?) about ten-wheelers, are they generally refering to 2-8-0 or 4-6-0 or what?

    I ran a really really nice Bachmann Spectrum (?) 2-8-0 with a Soundtraxx decoder in it last weekend. What a nice engine! I'll have to wait for DCC on my layout though... :(

    Andrew
  2. davidstrains

    davidstrains Active Member

    Joined:
    Aug 29, 2002
    Messages:
    1,061
    Likes Received:
    0
    In the context of the train itself, the 2-8-0 is generally referred to as a Consolidation. The 4-6-0 has been cited as the 10 wheeler. Tyco used to have a 4-6-0 that everyone called "the 10 wheeler" and I guess it stuck.
  3. rockislandmike

    rockislandmike Active Member

    Joined:
    Nov 6, 2001
    Messages:
    1,288
    Likes Received:
    0
    Interesting, because according to another forum, people are talking "ten wheeler" in reference to the new Bachmann 2-8-0 that is now or will soon be available.
  4. DanRaitz

    DanRaitz Member

    Joined:
    May 30, 2002
    Messages:
    316
    Likes Received:
    0
    Most locomotive types, i.e. 4-4-0, 2-6-0, 2-8-0, etc. had a name identity also. For example:

    4-4-0 = American
    2-6-0 = Mogul
    2-8-0 = Consolidation
    2-10-0 = Decapod
    2-10-2 = Santa Fe
    4-6-0 = Ten Wheeler
    4-6-2 = Pacific
    4-6-4 = Hudson
    4-8-4 = Northern
    2-8-2 = Mikado
    2-8-8-4 = Yellowstone
    4-8-8-4 = Big Boy
    4-6-6-4 = Challenger

    there are more this is just a small sample

    Dan
  5. DanRaitz

    DanRaitz Member

    Joined:
    May 30, 2002
    Messages:
    316
    Likes Received:
    0
    Mike,

    The new loco that Bachmann is coming out with is a 4-6-0.
    They have had a 2-8-0 out for at least 3 years now. If the Ten Wheeler (4-6-0) runs anything like their 2-8-0 it should be as good a seller as the Considation.

    Dan
  6. rockislandmike

    rockislandmike Active Member

    Joined:
    Nov 6, 2001
    Messages:
    1,288
    Likes Received:
    0
    Ahhh, hence my confusion. Sorry guyz, I am a total neophyte when it comes to steam.
  7. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Mee too

    Mike - that's my confusion too, since I read in the other forum that there was a ten-wheeler coming out, and I'm thinking --- I just played with one (aforementioned 2-8-0) this past weekend...???

    Thanks everyone for your clarifications.

    Andrew
  8. Woodie

    Woodie Active Member

    Joined:
    Mar 23, 2001
    Messages:
    2,227
    Likes Received:
    0
    Dunno, but RailRoad Tycoon TSC says a 10 Wheeler is 4-6-0. (with a yellow cab).

    Dan, Railroad Tycoon has all of them on it too. :):)
  9. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    It's a misleading name, but the force of tradition has it. (The name could also be applied to a 4-2-4 but isn't.)
    Ten-wheeler was the most common type of main-line locomotive in Britain. (may have been beat out by the 0-6-0)
  10. dmb3006

    dmb3006 Member

    Joined:
    May 22, 2002
    Messages:
    45
    Likes Received:
    0
    Ten Wheeler

    Dan is correct,the list he posted is part of the Whyte classification system for steam locomotives. Mr.Whyte was in the motive department of the NEW YORK Central railroad.soooooooo a 4-8-4 & 4-8-2 are really NIAGARA & MOHAWK sort of falls in with 4-6-4 Hudson does it not.The NYC gone but not for gotten:cool:
  11. DanRaitz

    DanRaitz Member

    Joined:
    May 30, 2002
    Messages:
    316
    Likes Received:
    0
    David

    Only the NYC would call a 4-8-4 Northern a "Niagara" and a 4-8-2 Mountain a "Mohawk". Just had to different, didn't they :p

    Dan :)
  12. Woodie

    Woodie Active Member

    Joined:
    Mar 23, 2001
    Messages:
    2,227
    Likes Received:
    0
    There are no Mohawks or Niagras in Railroad Tycoon. There are Hudsons, though.
  13. dmb3006

    dmb3006 Member

    Joined:
    May 22, 2002
    Messages:
    45
    Likes Received:
    0
    Ten wheeler

    Gee Woodie we were the Water Level Route,The Pennsylvinia had the roller coaster main line.After all if the Central took the time to classify the engines we get to name them.:cool:
  14. dmb3006

    dmb3006 Member

    Joined:
    May 22, 2002
    Messages:
    45
    Likes Received:
    0
    Ten Wheeler

    Sorry guys I mixed my replys Dan my Pennsy diggs were aimed at you.WOW I just took a ride on Woodid's great website that was a treat The best of the New Year to both of you.
  15. Woodie

    Woodie Active Member

    Joined:
    Mar 23, 2001
    Messages:
    2,227
    Likes Received:
    0
    Re: Ten Wheeler

    Thanks David. :) But Alas, as of two days ago, Garahbara is no more. It now only exists in hyperspace. Noah's Flood from the laundry upstairs saw to that. :(
  16. DanRaitz

    DanRaitz Member

    Joined:
    May 30, 2002
    Messages:
    316
    Likes Received:
    0
    Dave,

    When it comes to steam locomotives there is only one railroad worth modeling. It is the "GREAT NORTHERN"! Home of the largest Mikados ever built (the O-8 class) :D

    Dan
  17. DanRaitz

    DanRaitz Member

    Joined:
    May 30, 2002
    Messages:
    316
    Likes Received:
    0

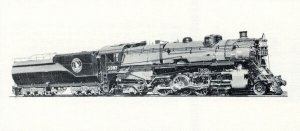

    Found a photo of a GN O-8 2-8-2 #3397

    Attached Files:

  18. dmb3006

    dmb3006 Member

    Joined:
    May 22, 2002
    Messages:
    45
    Likes Received:
    0
    Ten Wheeler

    Well I must admit there is a lot to like about that GN locomotive.I love that all weather cab.Vanderbuilt Tender.Oil fired??I've heard that the quality of coal out west was poor compared to what the big eastern roads used.May have been the reason for those oversized fire boxes.Who was the builder? I like Alco and Lima;but every once and awile Baldwin produced a good one.Smoke box mounted air pumps and Elesco feed water heaters really give that look of power that is so good to see on a frieght hauler.Thanks for a great photo.Its been suggested that there were railroads other than the N.Y.C. I'm still waiting to be convinced.:cool:Is this engine equipped with a Coffen feed water heater.
  19. TR-Flyer

    TR-Flyer Member

    Joined:
    Nov 25, 2001
    Messages:
    554
    Likes Received:
    0
    Hi:
    While y'all are talkin about "ten" wheelers, i have a question about steam engine "classes". One of the railroads i'm interested in, the C&IM, lists 2-10-2 engines by Baldwin, Alco-Brooks and Lima. The class is listed, respectively, as G-1, G-4 and H-1 with a later Baldwin being an H-2. What does class signify? Is that like a manufacturer's model number in that it has no meaning when you look at other manfacturer's similar engines?

    Thanks,
    Ted
  20. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    TR
    Locomotive classes were assigned by the railroad. The builder may have designated model numbers (f7, gp9, pa), but the railroads used their own ideas for classes.
    Most railroads used a letter for a steam locomotive wheel arrangement, then a number for significantly different variations. There might be another letter to indicate a small difference or a second order. Usually, if the letter and number were the same, then the locos were interchangeable as far as assignments were concerned. The letters varied from raiload to railroad; NYC used J for Hudsons, CPR used H.
    I have the class specs for 3 different Canadian Rlys; they're all different. (I can type them in if you're interested.)
