SN & CCT GE Diesels

Discussion in 'Photos & Videos' started by jetrock, Dec 19, 2004.

  1. jetrock

    jetrock Member

    Joined:
    Dec 19, 2003
    Messages:
    924
    Likes Received:
    0
    Here are a couple recent painting projects, slightly dressed-up Bachmann Spectrum 44 and 70 tonners.

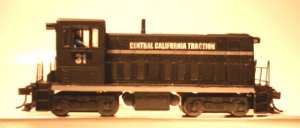

    CCT 31 is modified to reflect the first 70 tonners, which featured a single headlight and no front louvers (later models had a dual headlight and front louvers.) This model also features an early (late Forties) color scheme and CCT number board on the nose. I still need to add a horn.

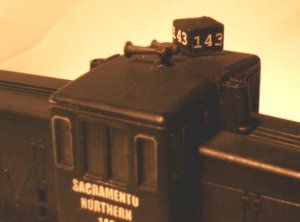

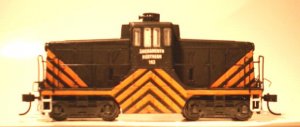

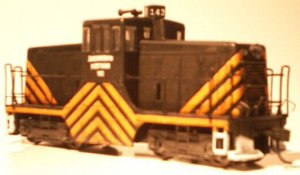

    SN 143 is also an early color scheme (pre-Zephyr silver & orange), black with orange stripes, and is essentially stock aside from the addition of the Sacramento Northern's characteristic number box on one side of the cab hood. These boxes were roughly diamond-shaped and illuminated from within, but for simplicity I just used a cut-off section if 1/4" Northeastern styrene, distorted a bit by hand to look somewhat diamond-shaped, with a bit of .020" styrene glued on top and filed to match the profile of the number boxes.

    Attached Files:

  2. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,860
    Likes Received:
    0
    Nice lookin' locos there..Puts ideas in my head about using GE44 or 70 tonners on my industrial switching layout and coming up with a switching railroad name.
  3. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,859
    Likes Received:
    0
    Beautiful Looking Locomotive :thumb: :thumb:
  4. jetrock

    jetrock Member

    Joined:
    Dec 19, 2003
    Messages:
    924
    Likes Received:
    0
    brakie: The second-version Bachmann GE's (with a single motor) are more reliable runners, and Bachmann is supposedly coming out with a single-motor version of the 70 as well. The earlier two-motor versions ran okay but the motors had a reputation for burning out.
  5. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,353
    Likes Received:
    0
    Great job! The locomotives look really good!
  6. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,605
    Likes Received:
    0
    I understand that the early Bachmann 44 toners ran a lot better if the two motors were wired in series instead of parrallel.
