Small track plan suggestions

Discussion in 'Track Planning' started by screwysquirrel, Jun 27, 2004.

  1. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    since moving into a smaller dorm space, my Door-sized layout is really too big.
    :cry: :cry: :cry:

    I'm cutting down to a simple 2x4, using again an Extruded foam baseboard on a table.

    Here's my givens & druthers:

    2x4 to a MAX of 2.5x4.5 (smaller = better!)

    continuous running, but not a simple oval

    Small yard based on the Inglenook Puzzle (3 track yard holding 5, 3, 3 cars, yard lead holds engine and 3 cars, the 5 car track doubles as an A/D track)

    3-5 industries able to take the random 5-car trains the Inglenook puts out.

    Industries should be interesting to switch, but *not* a second puzzle (eg, not a Timesaver)

    room for a small town (which could also be the 'industries' being switched)

    I have a few plan Ideas, but wondered if anyone else might have some suggestions.
    :wave: :wave: :wave:
  2. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0

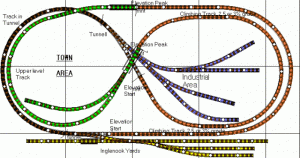

    starter plan idea

    this is part 1 of my planning: opinions?

    Attached Files:

  3. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    Plan #2

    this would be a 'port' layout (perhaps a River port like Memphis, or small coastal city like Wilmington or Savannah).

    Attached Files:

  4. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    You know, SS, I like plan 1 best. As it is very close to my track plan. Hard for me to top that one, but I will try. Just for the fun of it. ;)

    TrainClown :)
  5. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    Slight modification

    this rearranges the first layout's sidings so they are all trailing point.

    Attached Files:

  6. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    Boy SS, that's the best one yet!

    What about a passing siding on the inside of the inside loop on the right? That would be a good spot for a station.

    TrainClown
  7. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    I would retain a mix of trailing and facing sidings - I think it makes it more interesting for operating... Just my 2 cents :)

    Andrew
  8. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    comments

    TC: Hard to put a passing siding on an upslope, not to mention that it would have to be 8" curves to be inside that ring, plus passenger cars look bad on the tight curves.

    Mason: there is no passing siding -- no room for it, so its hard to put facing point sidings and actually serve them.
  9. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Squirrel,

    There is one in #2, and I guess that is my favourite. It also has that cool diamond crossing which adds interest. If you go with #3, I would second the suggestion of a passing siding on the right hand end, even if you have to modify it a bit.

    Andrew

    PS - Have you seen this: http://www.naisp.net/users/mfischer/m_train2.htm
  10. Papa Bear

    Papa Bear Member

    Joined:
    Dec 29, 2003
    Messages:
    630
    Likes Received:
    0
    I like #2 the best, but they're all good plans. :)

    SS, if you use a second loco, you could switch both facing and trailing point sidings without a runaround. Have a road engine and a yard engine. This might add some operating interest.

    John
  11. Fred_M

    Fred_M Guest

    That's a high density layout SS. Fred
  12. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    SS, you know, I was thinking about what you said. Regarding the inside passing siding being of to small a radious. You have not thought it through, my friend. The inside passing siding could be the same raidious as the main line (or the inside track in your case. I'm not sure what track is the main line, but).

    This will work. I have done it before. You would probably need curved turnouts , depending on where you put them and how long the siding is to be. But I managed it with regular turnouts.

    Imagine you have 2 circles the same size. Now offset the centers of the circles by a few inches. The circle on the right would be the end of your main line. The right side of the circle on the left would be your passing siding. Put a turnout where the two circles cross and get rid of the left side of both circles. Now bring in your srtaight tracks and join them to the turnouts and there you are.

    Easy to do with flex track. ;)

    I have it on a plan. When I find it, I'll post it.

    TrainClown
  13. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0

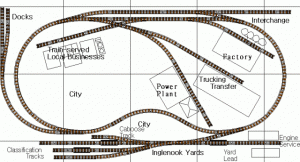

    Trackplan 2B

    This is as variation of Trackplan #2. It moves the docks and uses the saved space to lengthen the straight section of the S-Curves.

    I also removed the crossover in this version. I moved two of the rerailers to the back of the layout to serve as road crossings

    the Docks might end up as the 'Wharf' with only a single track

    Attached Files:

  14. ross31r

    ross31r Member

    Joined:
    Jul 6, 2004
    Messages:
    329
    Likes Received:
    0
    forgive me for being stupid, but what scale is it?
  15. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Has to be N scale Ross. The clue, door size op :D
  16. ross31r

    ross31r Member

    Joined:
    Jul 6, 2004
    Messages:
    329
    Likes Received:
    0
    true, lol. still trying to find a small trackplan! couldnt read the ones you sent me because computer didnt understand the file format.
  17. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Ross, send me your snail mail I will post them if you want them.
    No Prob.
  18. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    Plan #4!

    Well, damn thor for this inspiration, but this one is a little smaller

    this has an egg-shaped main, 5 industries, and is 4'1"x2'

    Attached Files:

  19. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    An Idea For SS

    Hi SS, :D

    So I was thinking, and My idea is somewhat different than what you have done so far. My idea is to have 1 industry on the small layout that the rail line services. My choice is a steel plant. I not long ago went by Ipsco Steel here in Regina and saw lots of rail action there. So I designed a steel plant of my own. All curves have a 9" radii.

    Here is the basic track plan.

    Attached Files:

  20. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    My puter ran out of memory, so I drew in the various sites so you can get an idea of how the place would be laid out. :eek:
    [​IMG]

    Here is a 3D view. Lots of cranes and machines in this layout. 27 feet of track in this one. My original plan didn't have the 3 way turnout. The raw steel pile was to be worked by machines and cranes from the train. But, I couldn't resist adding this section of track. :rolleyes:

    Well, what do you think? ;)

    TrainClown :wave:

    Attached Files:
