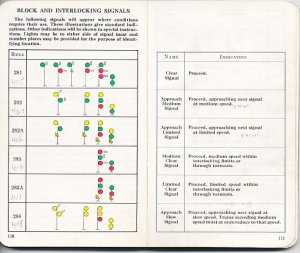

    Herre are some pages from the 1962 Canadian Operating Rules. They cover signal indications.

    Attached Files:

  2. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,141
    Likes Received:
    0

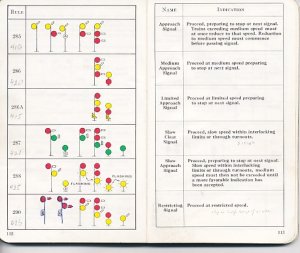

    second page

    Page 2 of the rules

    Attached Files:

  3. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,141
    Likes Received:
    0

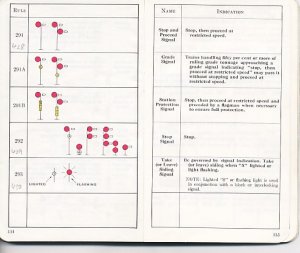

    Third page

    Third and last page.

    Attached Files:

  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thats good information David. Thanks for posting. I imagine the US and other countries used something the same or close to.
  5. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,141
    Likes Received:
    0
    Notes

    Speeds:
    Restricted speed: a speed that will permit stopping within one-half the range of vision. And in no case exceeding slow speed.
    Slow speed: a speed not exceeding 15 miles per hour.
    Medium speed: a speed not exceeding 30 miles per hour.
    Limited speed: a speed not exceeding 45 miles per hour.

    Some of these rules have been changed since then. I put the new rule numbers in pencil. The term "approach" now seems to be "Stop".

    Notes:
    unlit lamps are to be taken at the most restricting meaning, usually red.
    The signals are speed signals only; they do not indicate routes. A lot of them limit speeds through switches or interlocking, then permit a higher speed to the next signal.
    Signals with both heads on the same side of the pole are interlocking signals. Signals with heads on opposite sides of the pole are block signals (second pole in rule 281).
  6. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    That's great David!! Thanks for posting it!! I'm going to download those pages for reference if you don't mind :thumb:

    Val
  7. Hoghead

    Hoghead Member

    Joined:
    Jul 10, 2002
    Messages:
    184
    Likes Received:
    0
    I would have to say they are somewhat similar to where I run, except for the station protection signal and the take or leave siding signal. One noticeable missing signal I see a lot of is the Advance Approach Signal. A flashing yellow aspect that basically means to pass the next signal (approach) not exceeding 30 mph and be prepared to stop at the second signal.
  8. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,141
    Likes Received:
    0
    Hoghead: I took these out of the 1962 revision. The Canadian Trackside Guide has the current Canadian rules -- All the numbers have been changed and the station protection signals and grade signals have been dropped. There are a lot of additions (I count 30 rules) including 409 Advance clear to stop which is flashing yellow, flashing yellow over red, or flashing yellow over red over red.
    (If anyone wants the current version, the Trackside Guide 2005 is Cdn $29.95.)
    I saw a comment that the most efficient railway would have every train coming on every signal just as it turned from red to yellow.
  9. Hoghead

    Hoghead Member

    Joined:
    Jul 10, 2002
    Messages:
    184
    Likes Received:
    0
    Advance Clear to Stop?

    The aspect sounds like the same as an Advance Approach.

    I take it means to stop at the second signal?
  10. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,141
    Likes Received:
    0
    Advance clear to stop

    Yes.
    "Proceed, next signal is displaying Clear to Stop, be prepared to stop at second signal"
  11. Hoghead

    Hoghead Member

    Joined:
    Jul 10, 2002
    Messages:
    184
    Likes Received:
    0
    OK

    The advance approach will lead you into an approach and finally a stop signal (or on occasions - Restricting)
  12. Hoghead

    Hoghead Member

    Joined:
    Jul 10, 2002
    Messages:
    184
    Likes Received:
    0
    That clear to stop name really throws me for a loop :eek:
  13. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,141
    Likes Received:
    0
    Clear to Stop

    Rule 410 Clear to Stop "Proceed, preparing to stop at next signal".
    Signal shows Yellow, yellow over red, or yellow over red over red.

    I just tells 'em, I don't decide 'em.
  14. Traisessive

    Traisessive New Member

    Joined:
    Oct 29, 2005
    Messages:
    9
    Likes Received:
    0
    YEA there ar soo many now in Canada

    CLEAR
    CLEAR TO LIMITED
    CLEAR TO MEDIUM
    CLEAR TO SLOW
    ADVANCE CLEAR TO STOP
    CLEAR TO STOP

    LIMITED TO CLEAR
    LIMITED TO LIMITED
    LIMITED TO MEDIUM
    LIMITED TO SLOW
    LIMITED TO STOP

    MEDIUM TO CLEAR
    MEDIUM TO LIMITED
    MEDIUM TO MEDIUM
    MEDIUM TO SLOW
    MEDIUM TO STOP

    SLOW TO CLEAR
    SLOW TO LIMITED
    SLOW TO MEDIUM
    SLOW TO SLOW
    SLOW TO STOP

    STOP AND PROCEED
    RESTRICTING
    STOP

    Did i miss any???
