Scratchbuilt detail parts

Discussion in 'Scratchin' & Bashin'' started by Gary S., Dec 31, 2005.

  1. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0
    I have seen some really nice detail parts in the LHS. But this stuff is expensive! 55 gallon drums are about a buck apiece. So, I've been trying my hand at building some of this stuff.

    I would love to see what kind of detail parts you guys build. I need ideas! I will get the thread kicked off with a few things I have built. Remember, I just got started so I haven't done much, mostly just "messin' around" and learning some techniques. All the stuff still needs paint and/or weathering

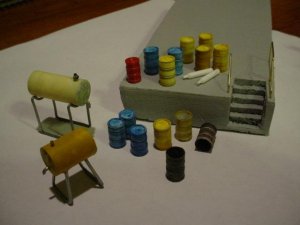

    Here is a loading dock with stairs carved out of pink foam, some tanks, a couple of acetylene bottles made out of plastic rod, and a handful of 55 gallon drums that I turned from plastic tube.... chucked it up in a drill motor like a lathe and cut them with the tip of an exacto knife. Only problem is, I made them slightly too big. The drum on the left corner of the loading dock is a drum from a structure kit.

    Attached Files:

  2. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0

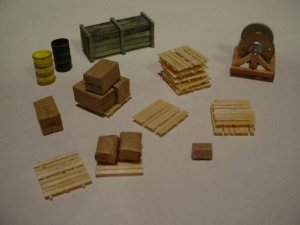

    Here is some more stuff, some pallets and boxes and a crate

    Attached Files:

  3. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Great stuff. I can't contribute, mainly because I don't think I'd attempt that in N scale. It's hard enough handling parts that come in kits or as accessories without building them from scratch.:rolleyes: :rolleyes:

    Not to say I wouldn't like to try someday...:D :D
  4. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    It all looks great, Gary!
    Very nice work!
    :thumb: :cool: :cool: :thumb:
  5. GeorgeHO

    GeorgeHO Member

    Joined:
    May 4, 2005
    Messages:
    186
    Likes Received:
    0
    Your drums look far better than the kit drum, and your loading platform stuff looks good too. I agree that the drums seem slightly tall in proportion to their diameters, but overall they look good. Check around at the local crafts store (Michaels, AC Moore, etc) for stuff you can use to make things. I just bought some wood that seems just right for individual lumber boards laying around, and probably could be used for fencing or siding if you want a highly detailed structure. They also had some wooden pickle barrels and spools to use to simulate cables or heavy wires for flatcar loads.
  6. Tad

    Tad Member

    Joined:
    Apr 8, 2003
    Messages:
    303
    Likes Received:
    0
    I scratchbuilt the MU stands.

    [​IMG]


    and these spark arresters.

    [​IMG]

    [​IMG]

    [​IMG]

    This is an N scale MoPac 531 GP18 project that I am working on.
  7. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0
    Those spark arrestors are amazingly small! Did you use a magnifying glass to build them? Great job!

    Anybody else have anything they want to show off? Loading dock items... crates, boxes, bags, freight

    Machine shop tools?

    Conveyors? Junk piles? Railroad junk?

    Anyone else tried to make 55 gallon drums?

    I'd love to see pics of the stuff you guys use to dress up your industries.
  8. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0
    Here are a few other things.

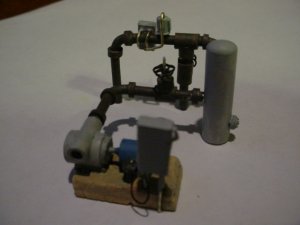

    A pump and some piping for the tank farm, and some loads from the machine shop to go on flat cars.

    Attached Files:

  9. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Looks Great Gary.:thumb: :thumb: :thumb: :thumb:
  10. Tad

    Tad Member

    Joined:
    Apr 8, 2003
    Messages:
    303
    Likes Received:
    0
    Very nice work, Gary.
  11. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Gary, you don't need your LHS for details, that's for sure! You do beautiful miniature work. Your 55 gallon drums make me envious and I love the tank farm piping. Beautiful!
    Ralph
  12. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Nice work! If you want to make open or battered barrels, you might try thin metal. I used brass shim stock. Fred did a howto using the jig I made him for "O" scale. This can be done easily in any scale from N on up. The jig can also be made from a softer material than the aluminum block I used, so you don't need machining skills.

    http://2guyzandsumtrains.com/Content/pa=showpage/pid=48.html
  13. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Here are some small wooden crates I did for my lazy (_!_)'ed LPB to sit on:

    [​IMG]

    [​IMG]

    [​IMG]
  14. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    This was done ages ago and entered in a gauge photo contest. Jugs of shine, still and instruments are scratch built from brass. I gave away the still but have the other parts somewhere.

    [​IMG]
  15. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    I scratch built these stumps, the pig hurder and pigs were just there to make a gag photo:

    [​IMG]
  16. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Most of the junk in the back of this truck was scratch built, including the model T engine block to the left.

    [​IMG]
  17. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Used scraps of brass, plastic, screen, printer parts, you name it...

    [​IMG]
  18. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Shelves and contents, as well as machine tools posted on another thread are all scratch made:

    [​IMG]
  19. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Finally, you can find a bunch of brass tools I made, most given to Paul Templar years back, in a thread in the gems.
  20. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0
    Wow! Great stuff, that is what I want to see more of!

    Being new to the hobby, here is what strikes me as being the most important aspect of modeling: It is the paint/weathering and the added detail items that matter.

    The most expertly conceived and constructed structure lacking good paint and lacking detail items will pale in comparison to a mediocre structure with superb paint, weathering, and added detail.

    I'm also coming to the conclusion that EVERYTHING on a layout should be painted. It should all at the very least get a washing of dilute black and then a dry-brushing of a lighter color, however subtle these may be.

    I suppose this doesn't apply to ground cover and trees, and to the tops of the rails, but pretty much everything else. Now, I'm not saying that a layout that doesn't follow my precept is a bad layout, I'm just saying that the paint is what seperates the "astounding" from the merely "good".

    How do the rest of you feel about this?
