Rigging Lines

Discussion in 'Shamus' Narrow Gauge World' started by shamus, Jan 14, 2003.

  1. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0

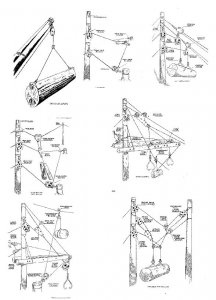

    For those interested in high leads and heel booms, here are some drawings of them

    Shamus

    Attached Files:

  2. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Paulsen-Knudsen Pullies Corp. is very interested in the drawins. I think the wheel diameter is much larger than we discussed. Some of those in the drawin are almost as big around as the logs themselves, no? Maybe 12"? :D :D :D Got one 5"er I'm gunna post after a few minutes. :D :D :D
  3. Steam Donkey

    Steam Donkey Member

    Joined:
    Jul 9, 2002
    Messages:
    86
    Likes Received:
    0
    Ahhhhh......diagrams for people like me. Now this is good info. Does anybody know where a fellow can purchase the blocks and other metal wheely thingys found on the spar poles?

    Stan
  4. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Coworker saw me and asked what I was shootin' and I showed him the pully and he went into shock. He's a modeler too...

    The wheel is 1/16" dia., about that wide too. The wire is stuck through holding it until I find something better to use. Attempts at using a brass brad as a rivet failed :(

    Attached Files:

    • fin3.jpg
      File size:
      96.1 KB
      Views:
      211
  5. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Looking rather good Jon,
    Can't wait to use them :D

    Shamus[​IMG]

    [​IMG]
  6. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Stan, To the best of my knoweledge, Paulsen-Knudsen Pullies Corp. is the only manufacturer of fine, scale, functional pullies on teh planet. Unfortunately, there is quite a backlog, and to complicate matters, all the the "wheel" part of the pullies, manufactured to date, were stored in one container which just fell 1000's of scale feet to the floor. :( Some will say old man Knudsen is just tryin to run the prices up. I say I got alot of pickin up to do :( Thank God we don't have carpet!

    Jon, Foreman Paulsen-Knudsen Pullies Corp.
    "Is that a genuine P-K-P Pully holding that log over your little plastic head?"
  7. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks Shamus and Jon for the inspiration.
    I want something like this for my logging area so the diagrams and how to will be saved till I reach that point.
  8. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0
    Jon
    Nice job!
    Kind'na tiny suckers, good thing your not modeling in "Z" scale.
    :) :) :) :)
    Marty
  9. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0

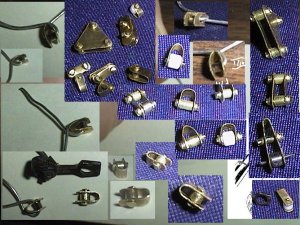

    proto2 is up. I just added them to the bottom of pg1 drawing. This is a 3/32" real or 8" HO and is much easier to manufacture, as it is all brass. The stainless is very hard to debur, and little plastic people were breaking their little plastic arms off on the lapping machine. There is a kadee #5 for size reference. I am now crosseyed.:eek:
  10. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0

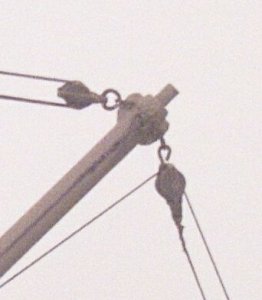

    these blocks measure 9" in HO scale. They are made for model ships, I got these from "the ship chandler", a hobby shop in Mount Prospect, Il.. They are cast pewter, the manufacturer's name is unknown to me right now. I don't have record, and there are several who make ship parts.

    Attached Files:

  11. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0

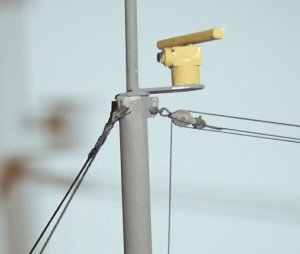

    this block is at the top of the mast.

    Attached Files:

  12. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Are those babies functional? They sure look like it!
  13. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Hey Pete, I really like those pullies, are they Billings Boats parts.

    BTW, I posted your 2shays.

    Shamus[​IMG]

    [​IMG]
  14. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    These new pullies really have little plastic people at P-K-P sweatin' plast bricks! They see layoffs, soup lines, don'tcha feel bad Pete??? :D :D :D
  15. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Nope. (I been unable to find work since being layed off LAST january!)

    They're one piece cast, there's holes for stringin' the thread.

    Model Shipways comes to mind, but I'd have to get back to the Ship Chandler to find out for sure.
    Pete
  16. Drew Toner

    Drew Toner Member

    Joined:
    Mar 2, 2002
    Messages:
    337
    Likes Received:
    0
    Supplier

    Stan, I just got all my pulleys, etc from "Rio Grande Models Ltd" You can search for Rio Grande or email Dave @

    david@ironhorsehobbies.com

    His service was very good!

    Drew
  17. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Hi Drew, some items can be bought from "Billings Boats" they are really for boats, but some are ideal for H0 - Don't know if they have a website or not.

    Shamus[​IMG]

    [​IMG]
  18. Drew Toner

    Drew Toner Member

    Joined:
    Mar 2, 2002
    Messages:
    337
    Likes Received:
    0
    Finally!!

    How about this! But I am having a hard time understanding it!!

    http://www.billingboats.com/


    This one is more direct,

    http://www.bestrc.com/billingboats/accessory.html

    Drew
  19. Rusty Stumps

    Rusty Stumps Member

    Joined:
    Oct 16, 2002
    Messages:
    85
    Likes Received:
    0
    Sumpter, Do you have a website address for The Ship Chandler" or an address?
  20. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    I don't have the address here, and because the store is outside my local calling area, it's not listed in my phone book.
    I don't think the store itself has a website, but the group the store sponsors might.(management is a member)
    The store is, The Ship Chandler, and it is on Northwest Highway, in Mt. Prospect, Il.. I need to get down there soon, so will get the info and post it for you.
