Ray's layout party#6

Discussion in 'Photos & Videos' started by Ray Marinaccio, Feb 2, 2006.

  1. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Looking real good! Great to see the progress.
  2. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Wow, typical Ray stuff, all of it supurb. :thumb: :thumb: :thumb: :thumb: Great detail Ray. I will be pleased if my party is just a faction of how sucessful yours is turning out.:wave: :wave:
  3. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    LPB's..Typical...Four working...one standing around doing nothing.
  4. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    :thumb: :thumb: And I thought I had a list of things to do. Love your trees. :thumb: :thumb: :thumb:
  5. rksstl

    rksstl Member

    Joined:
    May 24, 2003
    Messages:
    306
    Likes Received:
    0
    Looks REAL good Ray, Keep the momentum going.
  6. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Thanks Guys,
    I've been working on the Honey-do list, but got some valve gear parts made for the Rivarossi 0-4-0.
    The trees are made similar to Gary's http://www.the-gauge.com/thread17782-uh-noobie-with-a-tree-tutorial.html but use weeds and roots from the backyard and home made ground foam.
    I got a few new projects at the club swap meet.

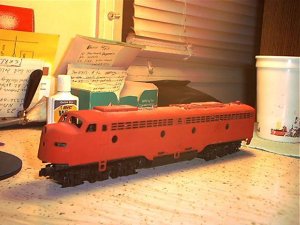

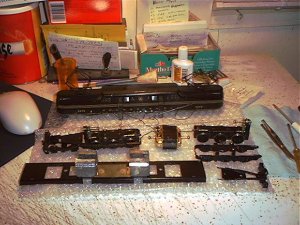

    A P2K E8, An IHC C-415 and an SP Daylight P2K PA and PB to give to my son for his birthday, I'll have to tune them up before I give them to him.

    Attached Files:

  7. CharlesH.

    CharlesH. Member

    Joined:
    Aug 1, 2004
    Messages:
    218
    Likes Received:
    0
    That sure is a long list! What percentage of it do you think you have completed, Ray?
  8. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Most of the projects are more than half completed, some are a box of parts and a plan.
    Most of the ones that are half completed got set aside until parts could be located, now that I have alot of the parts I need to get in gear and finish them.
  9. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

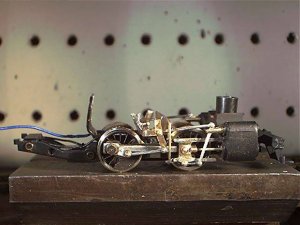

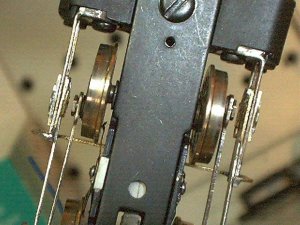

    I made a little progress on the Rivarrossi 0-4-0.
    The cross heads and main rods are modified L/L parts.
    the rest of the parts are scratch-built.

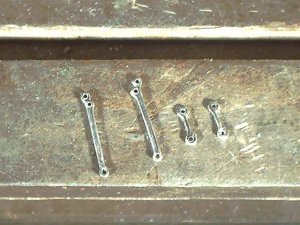

    The parts in the second photo are formed from steel wire around jigs and soldered.

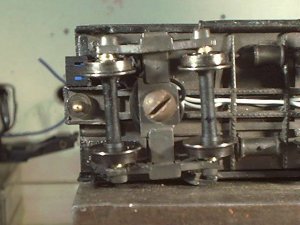

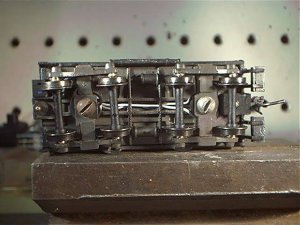

    A low friction pick-up system was built for the tender.
    It uses Atlas wheels that transfer the power through brass journals fit into the stock journals and tied together with apiece of solid strand copper wire.
    Jumper wires are run from them to a small plug on the front of the tender

    Attached Files:

  10. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0
    Wish I had that kind of time and talent. I can't even find the time to put one decoder in one engine!!
  11. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    898
    Likes Received:
    0
    That's the ticket, Ray. That's just the sort of job I have to do. How do you make the small rivits? On a lathe, I suspect, but what are the steps? Please :D

    TrainClown ;)
  12. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Chris,
    To make the rivets I first turn a piece of brass stock to the dia, of the rivet head, then turn it to .002" smaller than the dia. of the hole in the outer most part to be riveted to the length of the width of both parts to be riveted plus .015".
    Next I turn the rivet to the dia. of the hole in the innermost part (.005 less than the outer part) to the length of its width plus .010".
    I then use a centering drill to drill into the end of the rivet that will be crimped (about .005").
    The rivet is then parted from the brass stock .020" from the end of the second cut .
    Now the hard part, finding the rivet that just went flying as it is cut off.
    Having photos would probably help the explanation.
  13. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Here's a project that I am doing for my brother. He found this on Ebay for around $20 we had no idea what make it was until it arrived. We thought it was an IHC and were buying it to part out for the panagraphs. It turned out to be made of brass by Lambert.
    One of the trucks needs soldered, a tune up and a little touch up.
    It will most likely be resold.

    Attached Files:

  14. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    898
    Likes Received:
    0
    Thanks, Ray. I copy/paste that post in my notes.

    Very Cool!

    TrainClown ;)
  15. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    7,260
    Likes Received:
    0
    That's so cool!!!! Sometimes you get good bargains in e-bay :) :)

    I cant wait to see the assembled pics :) :)
  16. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Ray you are just chipping a way at that list! :thumb: :thumb:

    Cool find on the G!
  17. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

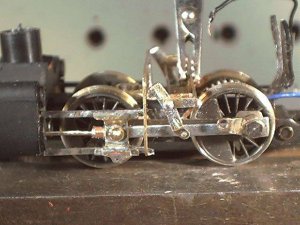

    I have the valve gear completed on the Rivarossi 0-4-0.
    I just need to mount a coupler and some details on the pilot, wire it up and paint it.

    Attached Files:

  18. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Looking Great My Friend. [​IMG] [​IMG] [​IMG]
  19. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Didn't get much done this weekend.

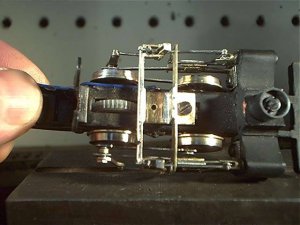

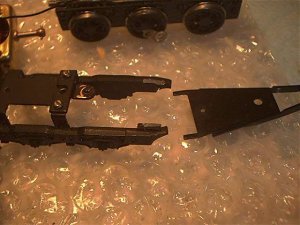

    The only progress was on the 0-4-0's pilot.

    Attached Files:

  20. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

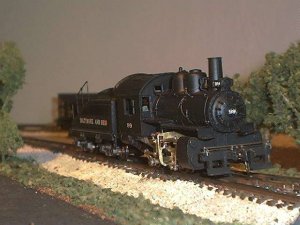

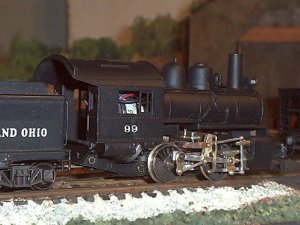

    I made a draw-bar, put the boiler on and have been test running the 0-4-0.
    There's a slight bit of gear noise I want to work out and add a cab floor.
    I may also add a constant intensity headlight.

    Attached Files:
