photo of my layout

Discussion in 'N / Z Scale Model Trains' started by scoobyloven, Mar 21, 2002.

  1. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0
    when do you need a big bridge

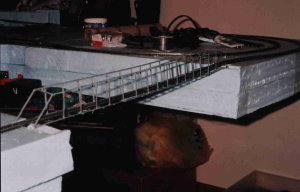

    here's a scrach built bridge made out of old flex track i had it is about 22 inches long and about 2 1/2 inches wide and 2 3/4 high it's in n scale and it's about 95% done :p

    Attached Files:

  2. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0

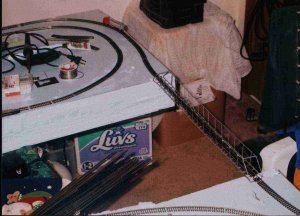

    here's a nother look at that bridge

    Attached Files:

  3. kettlestack

    kettlestack Member

    Joined:
    Jan 18, 2002
    Messages:
    898
    Likes Received:
    0
    I see you're going BigTime on that bridge Scooby,
    When you get the angled trusses fitted it should take about a 160 lbs without bending. Has to be all of 4 SD40-2's on the point. Well done.

    Errol
  4. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0

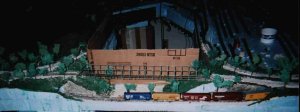

    here's it with the lower that leading to the yard and run around in place with a little scenery in place i'm still making the angle truss to finsh it off

    Attached Files:

  5. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0
    the soon to be north yard

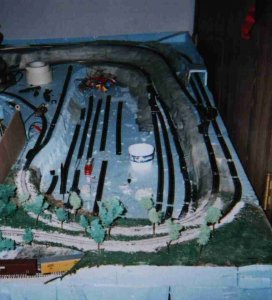

    this is a shot of the north yard it's still in the works the switch on the left i am taking out to open it up for the turn table i got the other day. the yard is about 2 inches below the main line and it shows the run around track to the right of the yard and their is a tunnel on the lower left that leads to the yard it self .... (that ugly card board is getting taken out and the hole is getting coverd)

    Attached Files:

  6. roryglasgow

    roryglasgow Active Member

    Joined:
    Jun 4, 2001
    Messages:
    1,312
    Likes Received:
    0
    Wow! That looks like a very BIG and fun project! I wish I had the space for something like that... :)

    -Rory
  7. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0

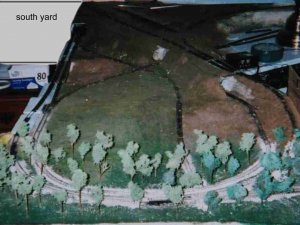

    beleave it or not the whole layout is only 6 x 6 but it is getting the south yard to the back right of the layout with would be 3x 5 when it is done and the two main lines would also run though the add on that

    Attached Files:

  8. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0

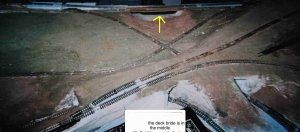

    here's a shot of the soon to be deck bridge it will be 12 inches long and it is a dubble track...... and all the ground cover is made out of saw dust that i will paint hunter green when it is all in place.. tha shot sucks hard to see the tunnel walls are made out of some of that wood puty it looks real good when painted...

    Attached Files:

  9. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Good work Scoobyloven. You are being very creative.
    Thanks for sharing
  10. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0
    yes i'm getting down to work on it and it is starting to take a life of it's own i knew all that art school would come in handy some day dut not in this way i got a letter a while back from disney to go work for them but i truned it down i but want to get paid to do art and i cant see my self sitting a desk all day long so i'm putting it to work in my hobby now i would love to get paid to do my hobby.. as for running them gose i'm from a long line of the rail road my dad works for csx my granfather works for n/s and my older brother works for cp and i went to school for n/s my self
    i'm in the middle of thinking of making more things move on the layout more than just the train's ( the cars, pepole, ect... )... but when it come to detail it has to be just right or it won't go.... well when i get some more pics i'll post them.... open to any and all input
