Pennsy-izing a Mantua 0-6-0

Discussion in 'HO Scale Model Trains' started by Flangehead, Nov 15, 2003.

  1. Flangehead

    Flangehead Member

    Joined:
    Oct 18, 2003
    Messages:
    69
    Likes Received:
    0
    This probably belongs in the kitbashing section, but here it is.

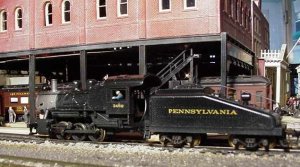

    I had a used, very dusty and poorly painted all metal Mantua 0-6-0 laying around and I noticed that it was actually a good little engine, it just needed a little TLC. The short wheelbase of the engine caused it to stall on turnouts, so I added a pickup wiper on one tender truck. It worked very well. Next I stripped all the old paint off and made a Belpaire firebox by molding "PC-7" epoxy and filing it down repeatedly. That stuff is good! It dries very hard and can be filed or sanded. Next came the repaint and a few detail parts ( generator,bell and fireman).
    With it's weight and good running motor, this little kettle will be out of retirement for a long time.

    Attached Files:

    • 060.jpg
      File size:
      35.1 KB
      Views:
      110
  2. Flangehead

    Flangehead Member

    Joined:
    Oct 18, 2003
    Messages:
    69
    Likes Received:
    0
    .

    Attached Files:

    • 060a.jpg
      File size:
      31.7 KB
      Views:
      106
  3. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0
    Wow, that looks great! And the scene in the first photo is very nice as well. Have any other photos of it?

    Gary
  4. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,441
    Likes Received:
    0
    nice looking little loco.
  5. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
  6. pjb

    pjb Member

    Joined:
    Dec 22, 2000
    Messages:
    83
    Likes Received:
    0
    Very nice job , but you need valve gear. Mantua had a kit for it at one time, and maybe MODEL POWER has it , since they have taken over the line. They probably don't - so I might suggest that you look at Bowser, and MDC's offerings, to find one to adapt. Long time dealers often have old parts around that can be adapted.
    Good-Luck, PJB
  7. Flangehead

    Flangehead Member

    Joined:
    Oct 18, 2003
    Messages:
    69
    Likes Received:
    0
    I might do the valve gear, but for now I am considering it to be a Stephenson geared model with piston valves. Thanks for the info!

    Rob
