Parallel tracks

Discussion in 'Track Planning' started by jambo101, May 8, 2008.

  1. jambo101

    jambo101 Member

    Joined:
    Feb 15, 2007
    Messages:
    142
    Likes Received:
    0
    I know its a noob question but i've never been able to successfully get the tracks to be parallel after installing a turnout,the small curved piece of track that comes with the turn out runs the turned out track off at an angle and up till now i've had to use a small piece of Flex Trac to get the tracks parallel.So whats the trick?:confused:
  2. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Depends on the geometry of the turnout (i.e. which one from which manufacturer are you using?).

    You've already discovered the most commonly used "trick"...

    Andrew
  3. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,707
    Likes Received:
    0
    You don't have to use the small section of curved track that comes with the turnout. Use flex track to make a very gentle "s" curve off of the turnout into a parallel track at the center to center distance you need. Using the short section of curved track when making parallel tracks just makes the "S" curve tighter.
  4. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    I think that the turnout is 2/3 of a curve and the short piece is the other 1/3 so that the turnout can replace a full curve, but work in a shorter situation if required. Maybe 2 short pieces? or take another turnout, put it on the end and draw around it, and then lay flextrack.
  5. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0

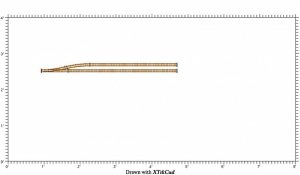

    Jambo, the best way to get the tracks parrallel is with the flex track. The piece that comes with the turnout is to sharp a radius. Here's a turnout with 2 tracks spaced at 2"s. Making the curved piece longer will ease the dreaded "S" curve.

    Loren

    Attached Files:

    • *.jpg
      File size:
      59.7 KB
      Views:
      18
  6. jambo101

    jambo101 Member

    Joined:
    Feb 15, 2007
    Messages:
    142
    Likes Received:
    0
    Thanks guys,guess i'll stick with the flextrac.I dont understand why they put that piece of curve in the package if it doesnt make the tracks parallel,it seems to send the track off on a 10 degree angle.
  7. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    I think you are talking about the Atlas Snapswitches (turnouts). THey are a curved radius turnout, and the 1/3 18" radius piece is there to help you complete the circle/oval of track.

    Andrew
  8. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,707
    Likes Received:
    0
    It is there because the turnouts are made for train set use, not for a serious model railroad. If you buy Atlas Custom Line, Shinohara, or Peco the turnouts don't come with additional track. I don't like Atlas turnouts, but that is just my personal preference. Just use flex track, and don't feel you need to use everything that comes in the package with the turnout.
