    This is the start of the documentation on my technique of building tracks.

    As an example I've picked the tracks for the WAK 1/25 Panzer IF. These are complicated enough to show some of the attributes of the method.

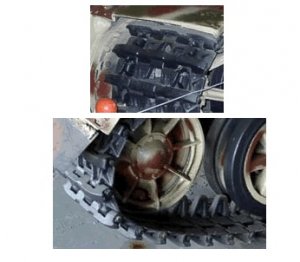

    To start with I've included images of the original tracks - this will give a build target and hopefully the finished product will approximate the original. These images are from one of two surviving Pz IFs at Kubinka, Russia. The images are details taken from the www.jagdtiger.de site.

    Charlie

    Attached Files:

  2. charliec

    charliec Active Member

    Joined:
    Jan 19, 2004
    Messages:
    887
    Likes Received:
    0
    The WAK model gives a choice of flat strip or individual track elements. The individual track elements are quite small and look to be quite difficult to get right.

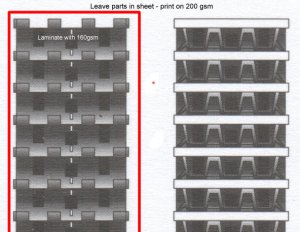

    Starting with the flat strip sheet - print on 200gsm (I scanned it at 300dpi) laminate the inside of the track (where the guide plates go) with 160gsm. This is to get the track thickness approximately right. Don't cut the strips out of the sheet - we'll need as much support as possible later.

    I've shown only a few track links in the images - the rest of the track is simply
    repetition.

    Charlie

    Attached Files:

  3. charliec

    charliec Active Member

    Joined:
    Jan 19, 2004
    Messages:
    887
    Likes Received:
    0
    No pain so far - this is about to change.

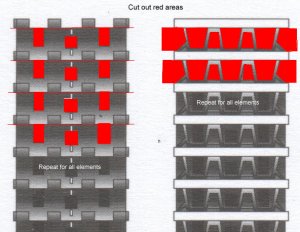

    Cut out the drive slots, etc on the inside of the track and once finished cut
    across the track on the hinges lines. These are shown in red on the image.

    On the outside of the track cut out the pieces noted - don't cut across the hinge lines yet on this side.

    Charlie

    Attached Files:

  4. charliec

    charliec Active Member

    Joined:
    Jan 19, 2004
    Messages:
    887
    Likes Received:
    0

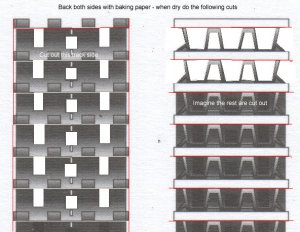

    Back both sides with baking paper - make sure you get good surface coverage with the glue of choice. I used slightly thinned PVA glue and brushed it on.

    When the glue's dry cut out the inside of the track and the hinge lines of the inside of the track. If you try to cut the hinge lines on the outside of the track without the support of the baking paper it will almost certainly fail.

    Charlie

    Attached Files:

  5. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    I am with ya so far!
    Jim
  6. charliec

    charliec Active Member

    Joined:
    Jan 19, 2004
    Messages:
    887
    Likes Received:
    0
    Back the inside of the track with baking paper - when dry - cut out the track side.

    At this stage we've got two track sides - both supported by a layer of baking paper but capable of hinging around the cuts on the track hinges.

    Charlie

    Attached Files:

  7. charliec

    charliec Active Member

    Joined:
    Jan 19, 2004
    Messages:
    887
    Likes Received:
    0

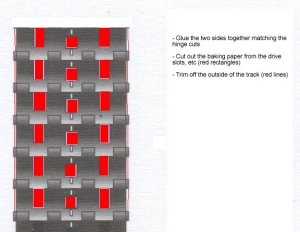

    Now glue the two sides together making sure that the hinge lines are aligned and the track sides are oriented in the correct directions. One the glue is dry
    cut out the drive slots (again) - the slots will be obstructed with the baking paper layers but it's easy to cut out with a sharp #11 blade.

    I found it's easier to work from the inside of the track for this rather than guess where the slots are from the outside.

    Trim off the edges of the track - the Pz I track is wider at each hinge. I used a ground down chisel blade to do this (thanks Jim Nunn).

    Charlie

    Attached Files:

  8. charliec

    charliec Active Member

    Joined:
    Jan 19, 2004
    Messages:
    887
    Likes Received:
    0
    All that's left to do is add the grouser bars on the outside of the track and the guide plates on the inside.

    The track will need to be painted since there are large white area exposed on the outside of the track.

    I'll add a couple of images of a completed track section when I get it painted but .... that's all folks....

    On second thoughts - I'll put up a couple of images of the completed track section before I hide the mistakes
    under a paint layer...


    Charlie

    Attached Files:

  9. cmdrted

    cmdrted Active Member

    Joined:
    Jul 9, 2004
    Messages:
    1,728
    Likes Received:
    0
    Man that is exactly why I don't build armor kits!
  10. charliec

    charliec Active Member

    Joined:
    Jan 19, 2004
    Messages:
    887
    Likes Received:
    0

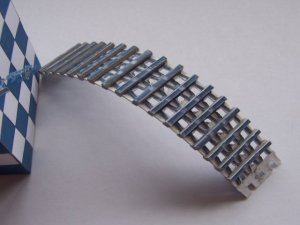

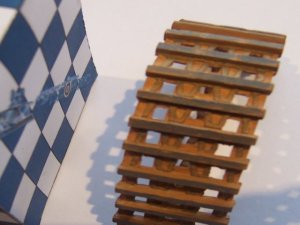

    And - just to prove that the thing is flexible - a view from the other side.

    I'll leave it to others to judge how reasonable this is compared to the original.

    A couple of things which could be improved:

    1. The original grousers had a couple of slots on the outer surface which aren't represented.

    2. The profile of the guide plates is not quite right - they should be more pointed.

    Once I've got the tracks done I guess I've got to build the rest of the tank to hang them on.

    Charlie

    Attached Files:

  11. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,543
    Likes Received:
    0
    Great technique, Charlie!
    I'm gonna have to try this myself when I get a little time to play around with it.

    Yeah, I would like to see it before and after painting.
    Some close up shots would be awesome, if you can.

    Thanks for sharing this, Charlie!
    I think this is a great new way to lay some track!

    Russell
  12. charliec

    charliec Active Member

    Joined:
    Jan 19, 2004
    Messages:
    887
    Likes Received:
    0

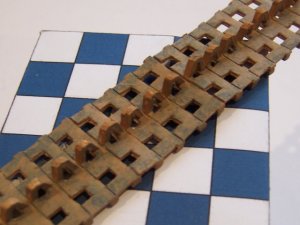

    Here's the painted version.

    I'm aiming at the "rust and dust" look.

    It's a fairly thin coat of acrylic with grey highlight on the grousers.

    Charlie

    Attached Files:

  13. charliec

    charliec Active Member

    Joined:
    Jan 19, 2004
    Messages:
    887
    Likes Received:
    0

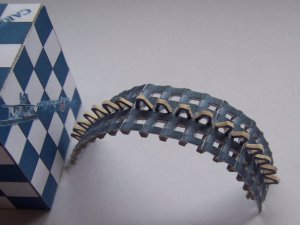

    A view of the inside of the track.
