our new layout

Discussion in 'N / Z Scale Model Trains' started by railroader9731, Mar 2, 2007.

  1. railroader9731

    railroader9731 Member

    Joined:
    Oct 11, 2004
    Messages:
    342
    Likes Received:
    0

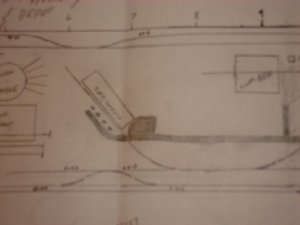

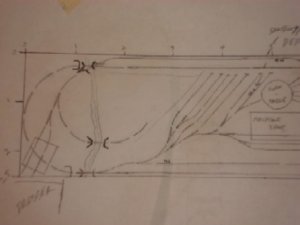

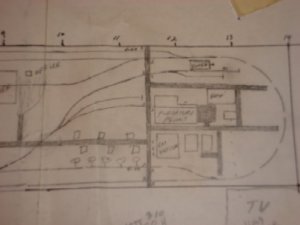

    Here are a few pics of our new Conrail track plan. All comments are welcome:wave:

    Attached Files:

  2. Triplex

    Triplex Active Member

    Joined:
    Aug 24, 2005
    Messages:
    1,849
    Likes Received:
    0
    Have you calculated what radius the inner bend on the left end is? It looks pretty tight. In general, what equipment do you intend to run?
  3. railroader9731

    railroader9731 Member

    Joined:
    Oct 11, 2004
    Messages:
    342
    Likes Received:
    0
    it is a 11 radius and i shoud have said it is a upper part on the left end that looks tight and we plan on running a few SD's on the lower part and a couple GP's and SW's to do switching on top and in the town:thumb:
  4. baldwinjl

    baldwinjl Member

    Joined:
    Apr 30, 2005
    Messages:
    410
    Likes Received:
    0
    I always worry when I see that many turnouts in that small of a space drawn by hand. I fear it will not fit as drawn. But it might. I'd try XTrkcad to get a more realistic feel for how it fits.
  5. rr9731's girl

    rr9731's girl New Member

    Joined:
    Jan 3, 2007
    Messages:
    24
    Likes Received:
    0
    This was drawn up by using track template:)
  6. baldwinjl

    baldwinjl Member

    Joined:
    Apr 30, 2005
    Messages:
    410
    Likes Received:
    0
    I still worry a little bit, tiny errors in the angles can make turnouts quite different than you expect. The small scale can let you draw things that are impossible.

    XTrkCad is free, and has the advantage of letting you print out a full size drawing that you can use when laying the track. The biggest disadvantage is that it isn't the easiest thing to learn, it is not as intuitive as it might be. But doing the tutorials/demos over the course of a few hours gets you pretty competent pretty quick.
  7. rr9731's girl

    rr9731's girl New Member

    Joined:
    Jan 3, 2007
    Messages:
    24
    Likes Received:
    0
    i'll be sure to check it out, this is not our first layout, we've built a previouse one almost like it and had no problems.
  8. baldwinjl

    baldwinjl Member

    Joined:
    Apr 30, 2005
    Messages:
    410
    Likes Received:
    0
    It might be fine, the angles going into the yard area just look off to me, but it's as likely to be my perception as it is the drawing.
  9. railroader9731

    railroader9731 Member

    Joined:
    Oct 11, 2004
    Messages:
    342
    Likes Received:
    0
    its been a long while but we have made a lot of progress on the layout in our spare time. we did have to make a change to the rail yard as it was to small, must get picture posted now.:cool:
  10. railroader9731

    railroader9731 Member

    Joined:
    Oct 11, 2004
    Messages:
    342
    Likes Received:
    0
    i know i know where are they???? i finaly got 2over veiw shots of our layout. its just been so darn hectic with havin to be at work 13 days and 1 off the last 3 1/2 months.

    Attached Files:

  11. jesso

    jesso Member

    Joined:
    Jul 21, 2006
    Messages:
    725
    Likes Received:
    0
    Your layout is looking very nice! Keep up the good work!:thumb:
  12. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    WOW Its looking great guys!!!!! AWESOME job :thumb: :thumb: :thumb:

    Now lest see some more pics :mrgreen:
